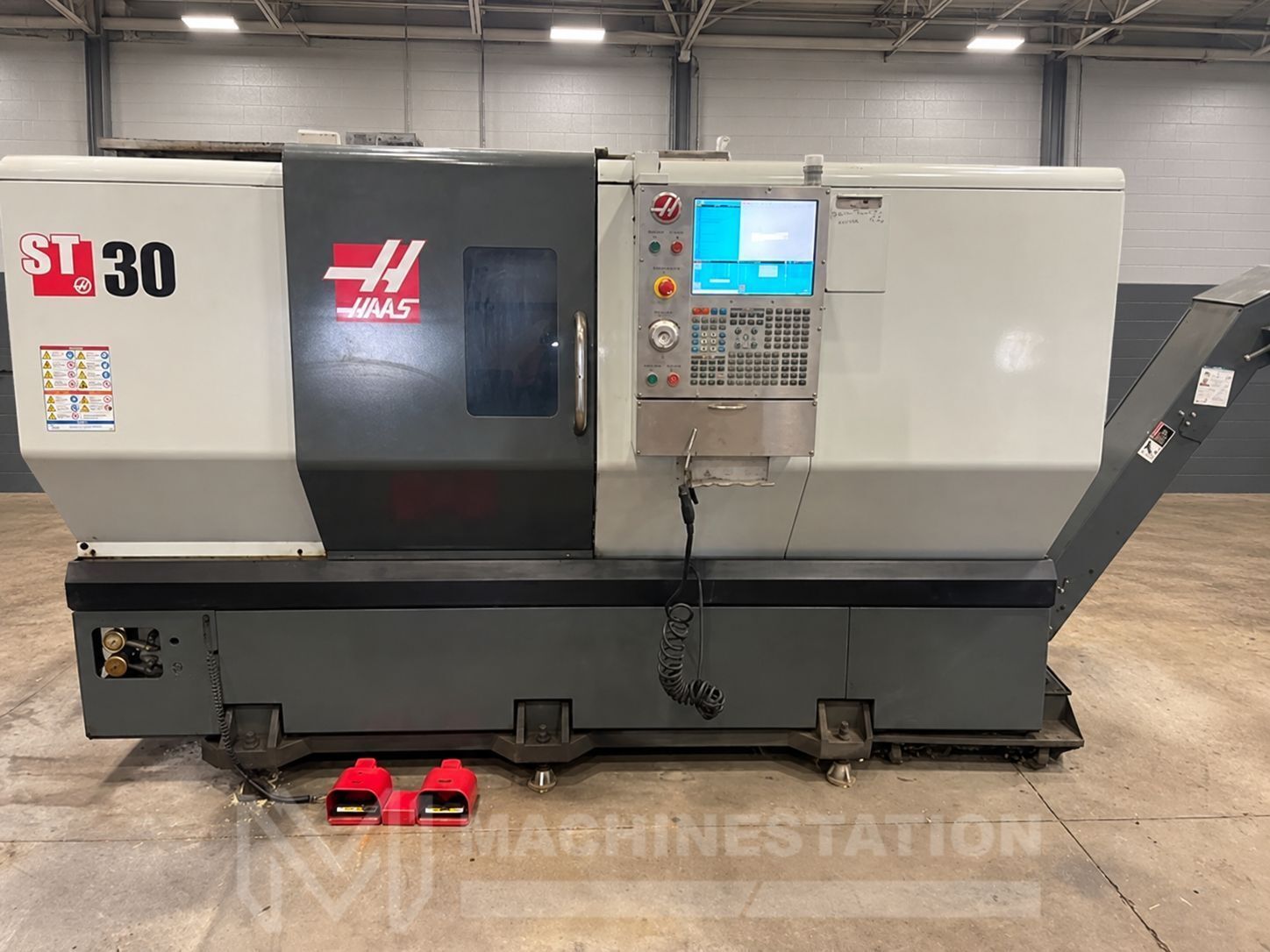

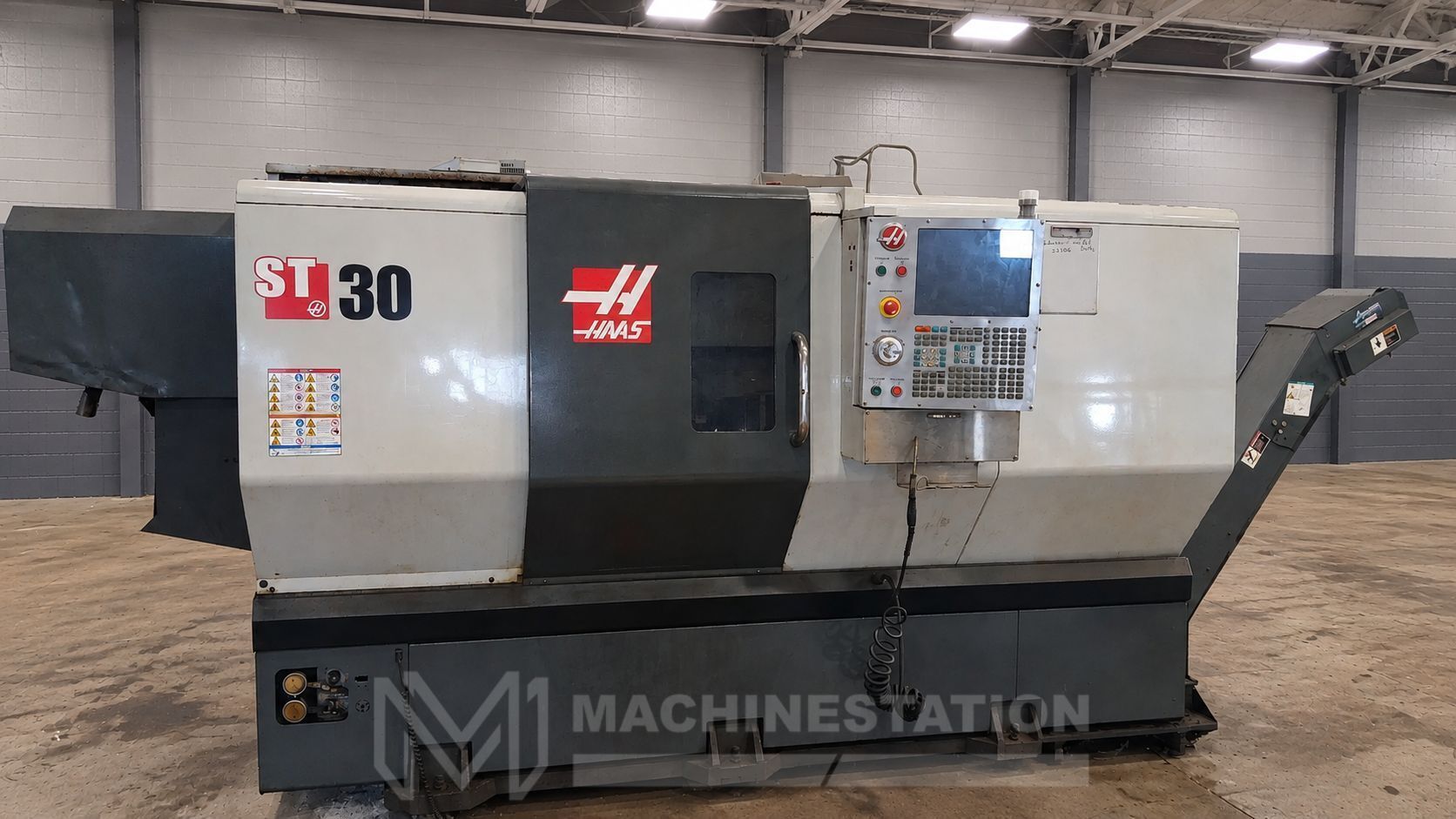

This 2013 Haas ST-30 is fully equipped with 12″ Chuck, Tool Presetter, Programmable Tailstock and Chip Conveyor.
Replacement Cost Over $116,000 with Similar Options.
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Make: |
Haas |
| Model: |
ST-30 |
| Year: |
2013 |
| Equipped With: |

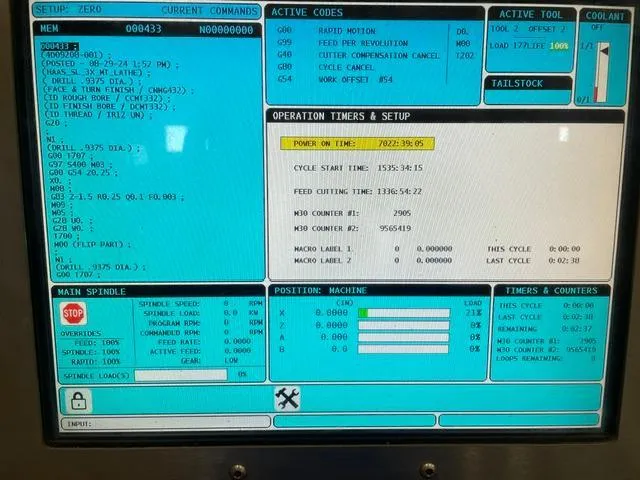

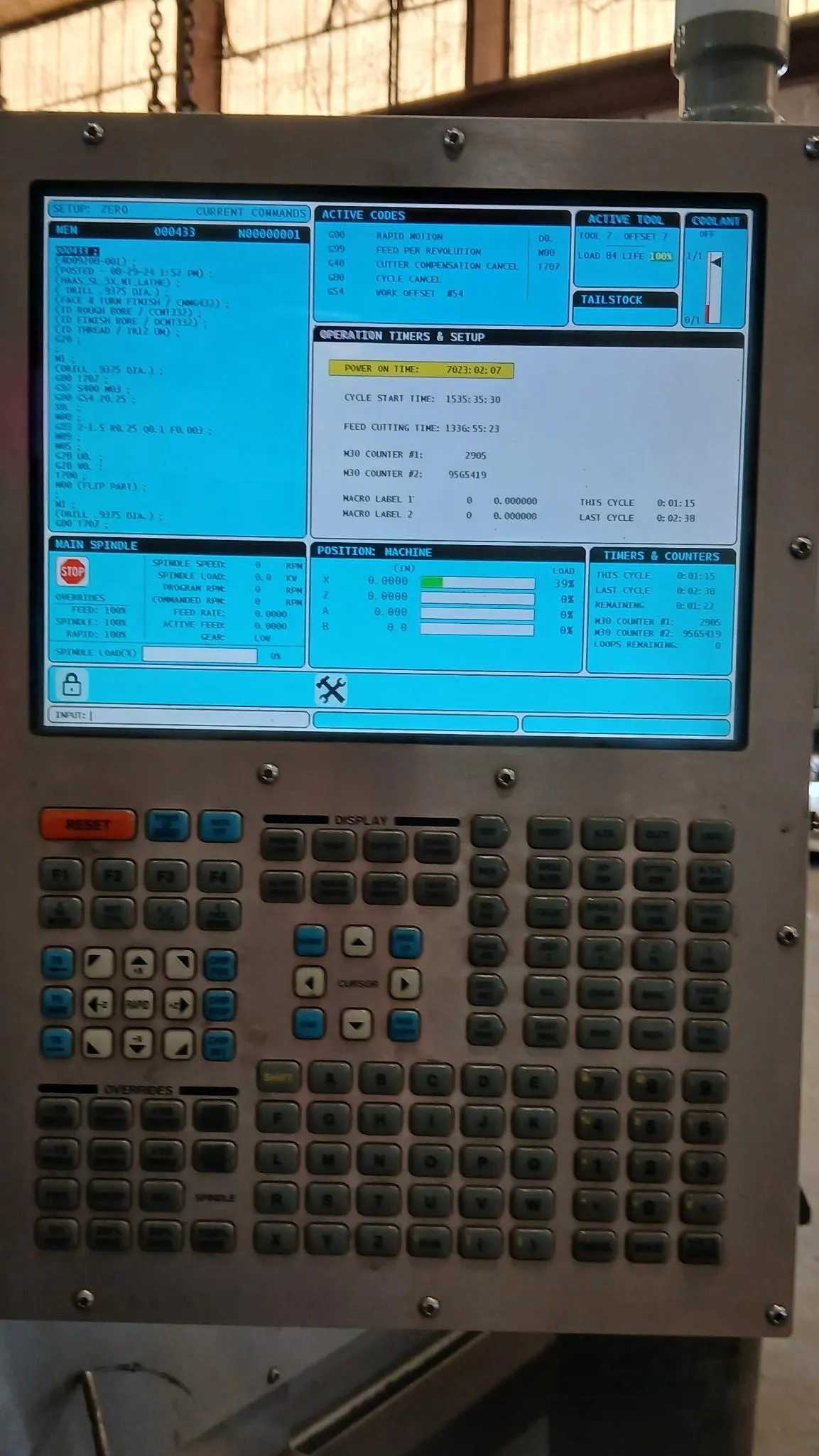

| Haas CNC Control |

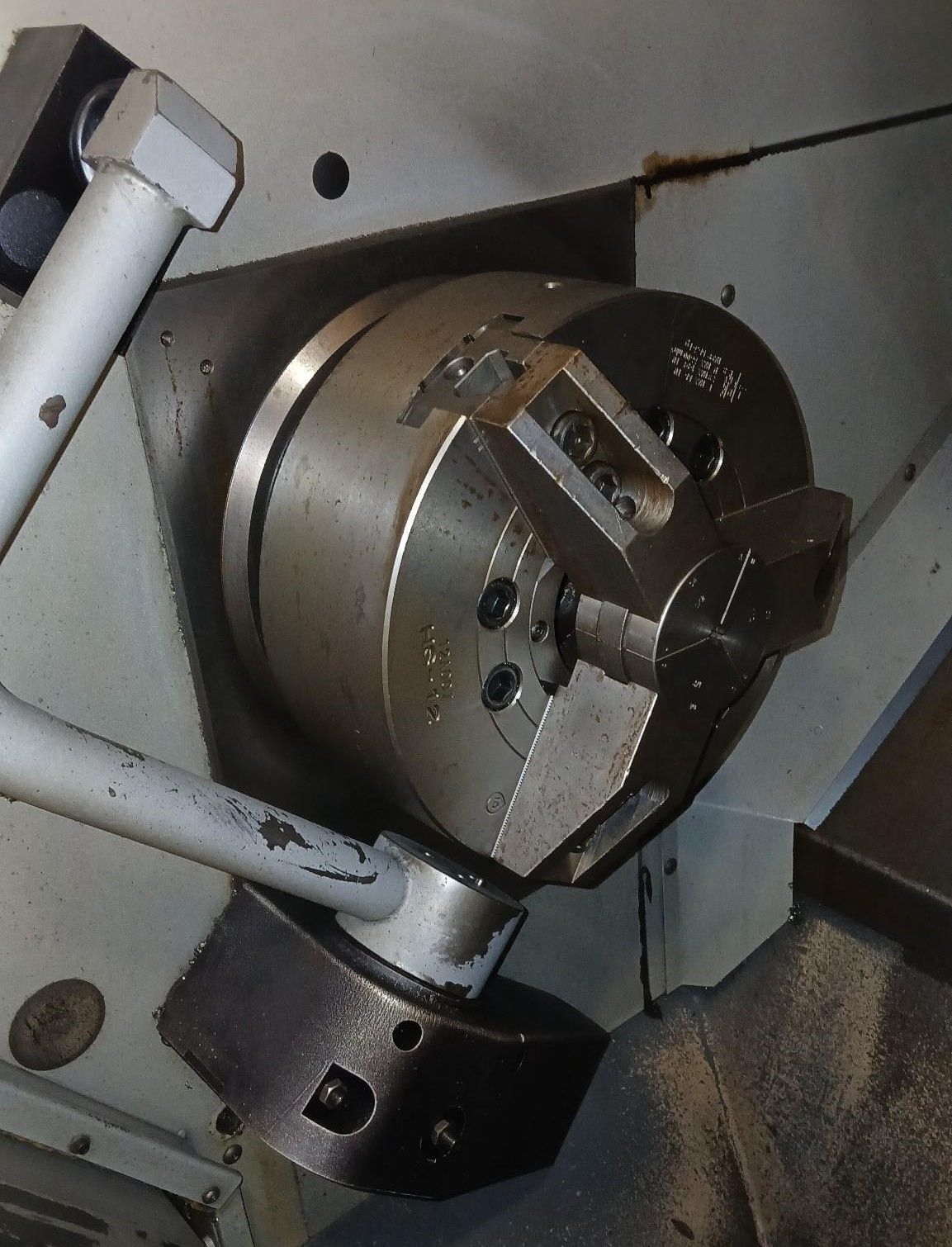

| 12 inch 3-Jaw Hydraulic Chuck (Upgraded $4,095 Value Included) |

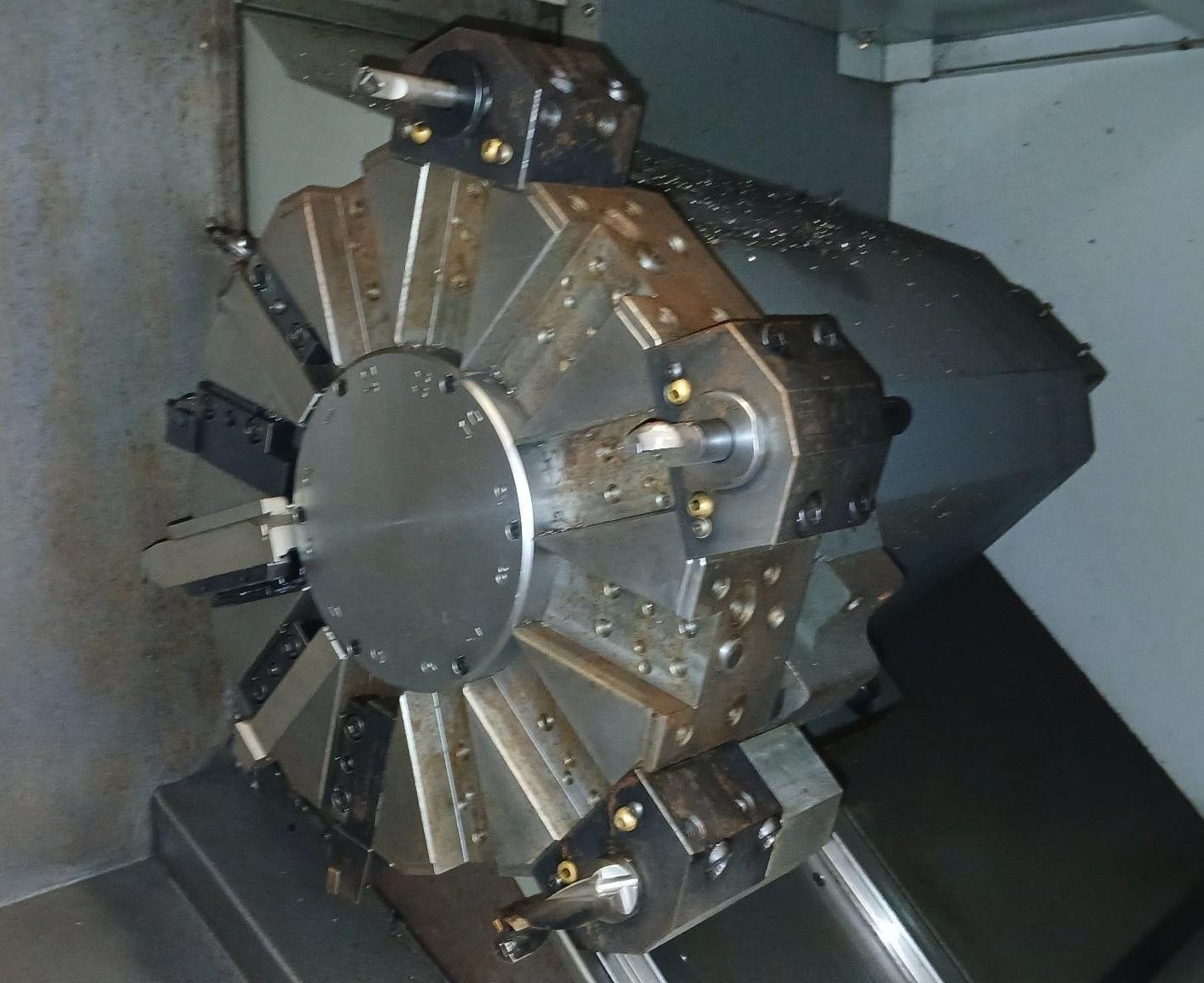

| 12 Station Automatic Turret |

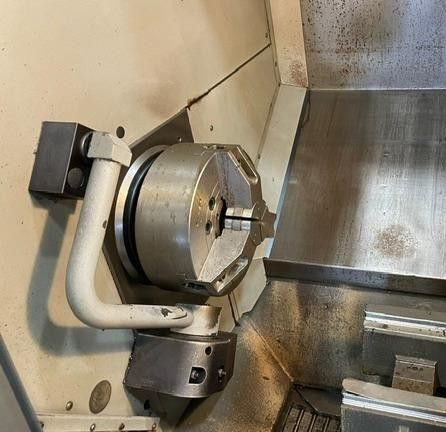

| Tool Presetter (Upgraded $6,195 Value Included) |
| A2-6 Spindle, 3,200 RPM Spindle |
| 3.5 inch Big Bore Spindle |
| Rigid Tapping |

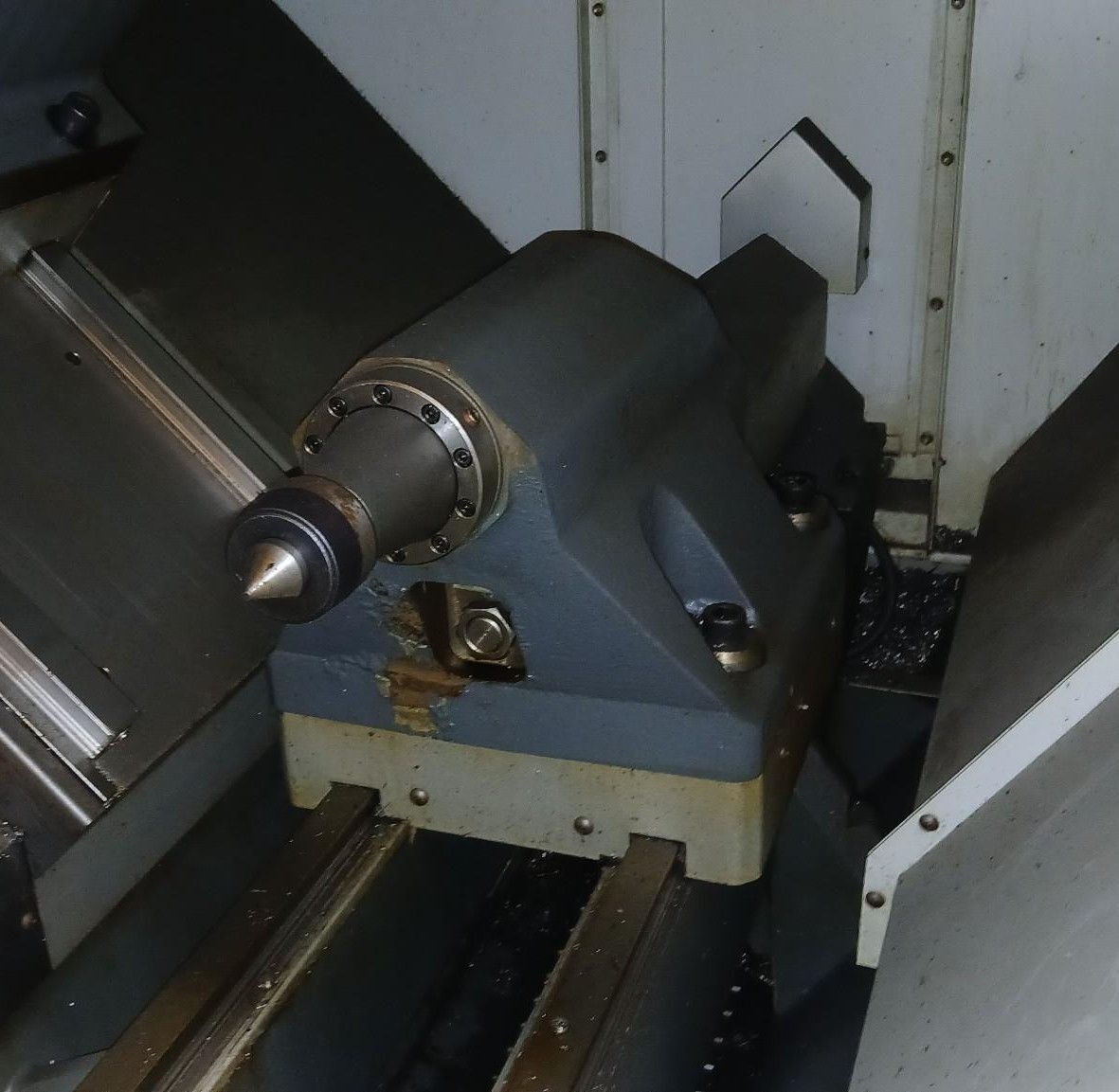

| Programmable Hydraulic Tailstock (Upgraded $11,095 Value Included) |

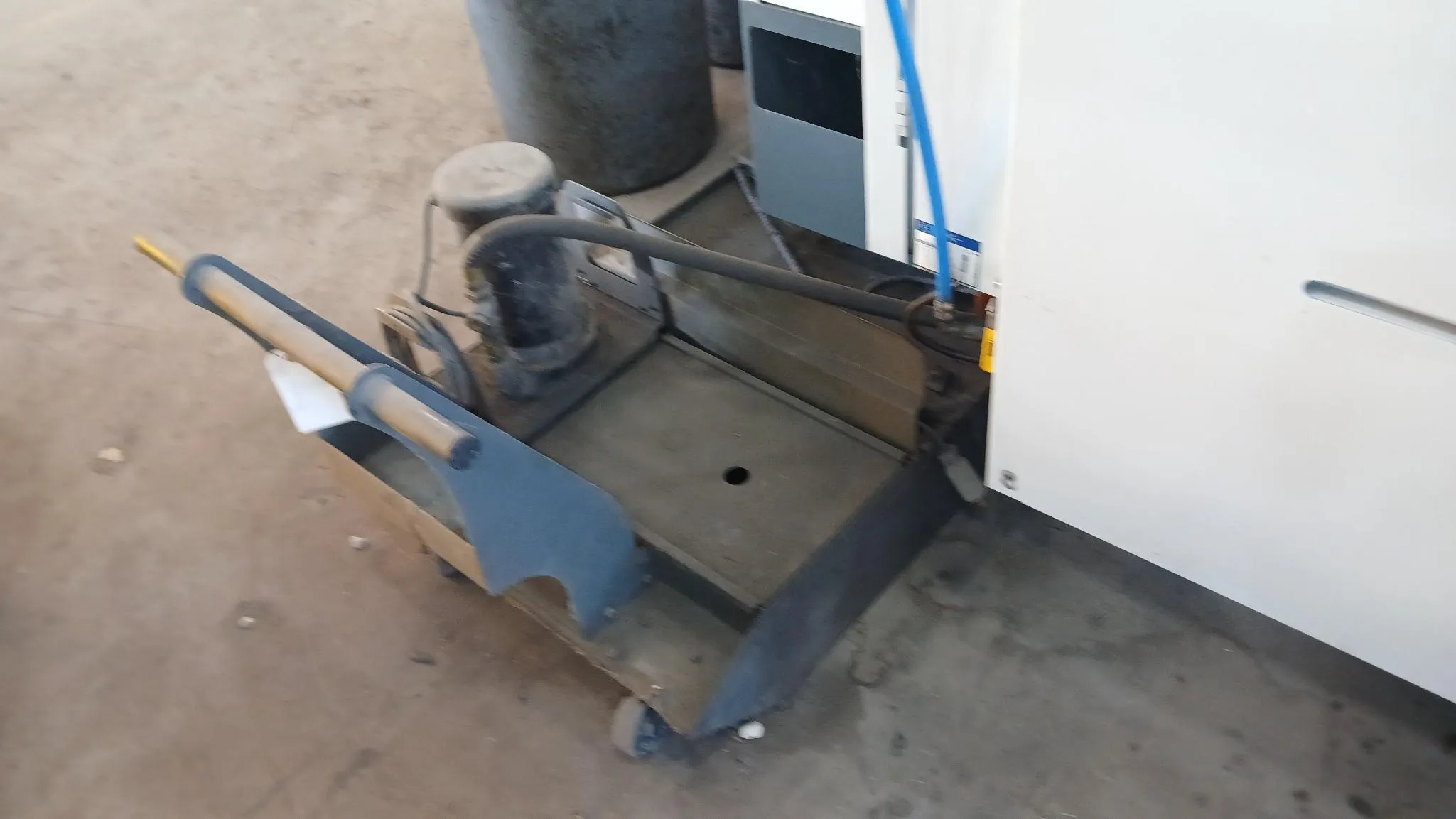

| Coolant Tank |
| Belt Type Chip Conveyor (Upgraded $6,195 Value Included) |

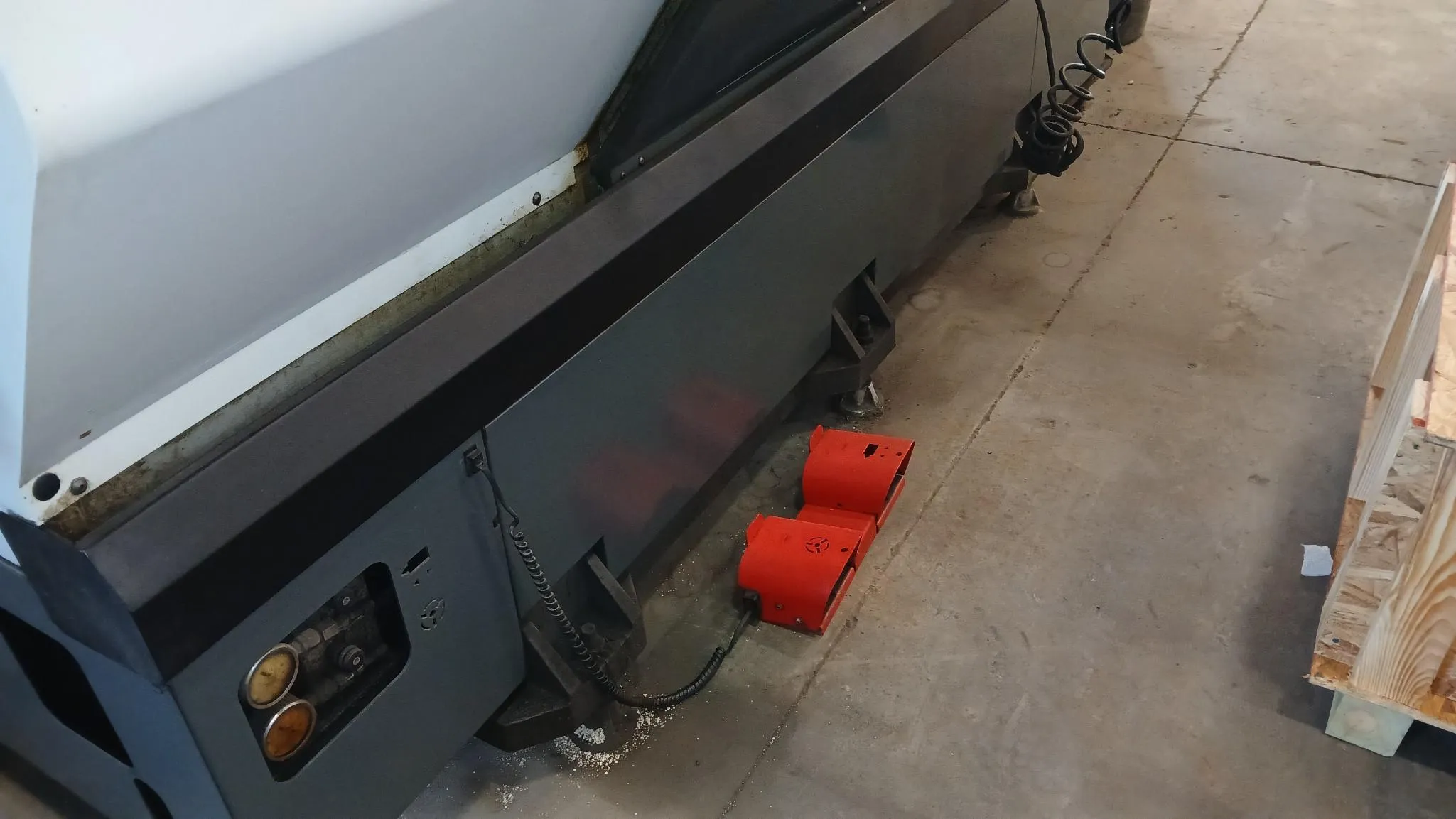

| Foot Switches |
| Capacity: |
| Max Turning Diameter: 15.0 inch |
| Max Swing Over Bed: 21.0 inch |
| Max Turning Length: 32.5 inch |
| Max Bar Capacity: 3.0 inch |
| Distance Between Centers: 32.5 inch |
| Travels: |
| X Axis Travel: 9.4 inch |
| Z Axis Travel: 32.5 inch |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5 inch |
| Spindle Speed: 3,200 RPM |
| Spindle Motor: 30 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Type: Bolt-On Tool Turret |
| Tailstock: |
| Tailstock Taper: MT-4 |
| Tailstock Type: Programmable |
| General: |
| Air Required: 100 PSI, 4 SCFM |
| Power Source: AC 195V-220V / 3-Phase / 60 Hz |
| Machine Dimensions: 170 inch x 90 inch x 98 inch High Approx. |
| Machine Weight: 10,900 lbs Approx. |
