*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

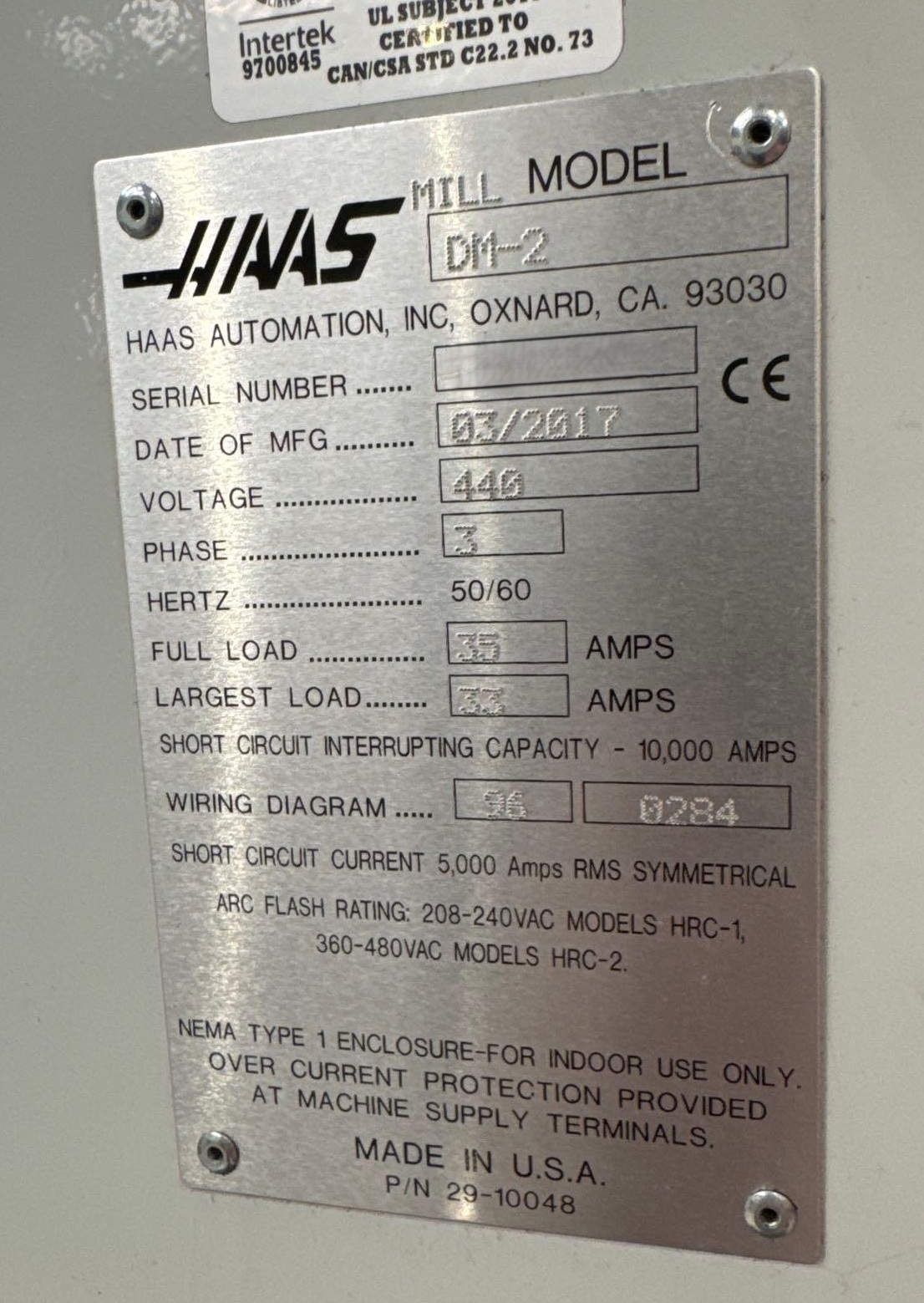

| Make: | Haas |
| Model: | DM-2 |
| Year: | 2017 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | HAAS CNC Control |
| Features: |
|---|
| HAAS CNC Control |
| 40-Taper Inline Direct-Drive Spindle |
| 15 HP Spindle Motor |
| 15,000 RPM Spindle |
| 18+1 Station Side-Mount Automatic Tool Changer |
| Programmable Coolant Nozzle |
| Through-Spindle Coolant |
| Chip Auger |
| Remote Handwheel |
| USB Port |
| 4th-Axis Interface |
| 5th-Axis Interface |
| Interlocked Guards |
| Low-Voltage Work Light |
| High-Speed Machining Function |
| Enclosed Work Area |
| Table: |
|---|
| Table Length: 34″ |
| Table Width: 15″ |
| T-Slot Width: 0.630″ |
| T-Slot Center Distance: 4.92″ |
| Number of T-Slots: 3 |
| Travels: |
|---|
| X-Axis Travel: 28″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 15.5″ |
| Spindle Nose to Table: 6.0″–21.5″ |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z-Axis: 2,400 IPM |
| Maximum Cutting Feed: 1,200 IPM |
| Spindle: |
|---|
| Spindle Taper: CT / BT-40 |
| Spindle Speed: 15,000 RPM |
| Spindle Motor: 15 HP |
| Maximum Torque: 46 ft-lb @ 1,700 RPM |
| Automatic Tool Changer: |
|---|
| Type: Side-Mount Automatic Tool Changer |
| Tool Capacity: 18+1 Stations |
| Tool Taper: BT-40 |
| Maximum Tool Diameter: 2.5″ |
| Maximum Tool Length: 7.00″ |
| Maximum Tool Weight: 12 lbs. |
| Tool-to-Tool Time: 1.75 sec. |
| General: |
|---|
| Power Source: 440v / 3-Phase / 50/60 Hz |
| Machine Weight (Approx.): 5,350 lbs. |
| Overall Dimensions (Approx.): 111″ L × 97″ W × 102″ H |
