*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

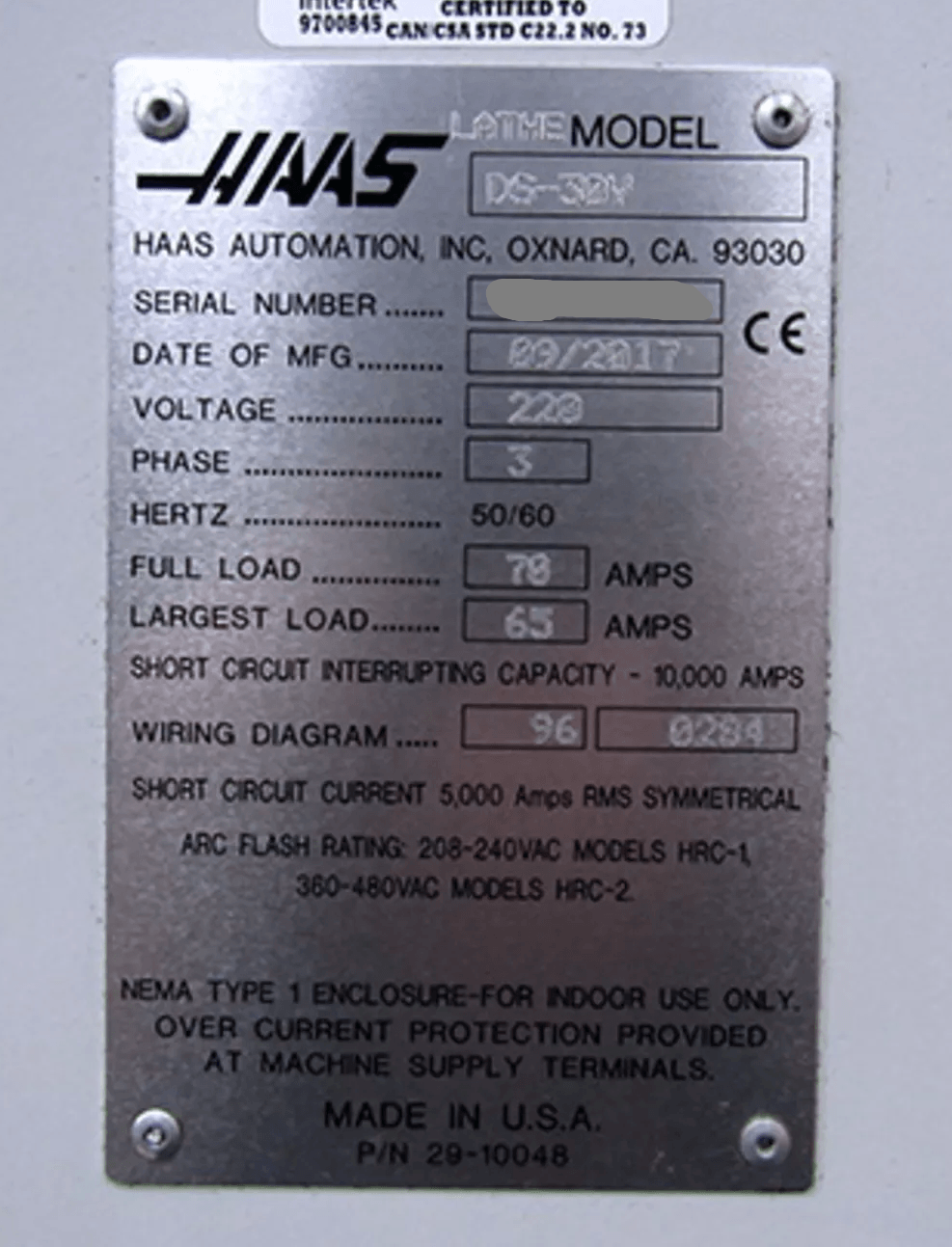

| Make: | Haas |
| Model No.: | DS-30Y |
| Year of Manufacture: | 2017 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center (Dual Spindle, Y-Axis) |

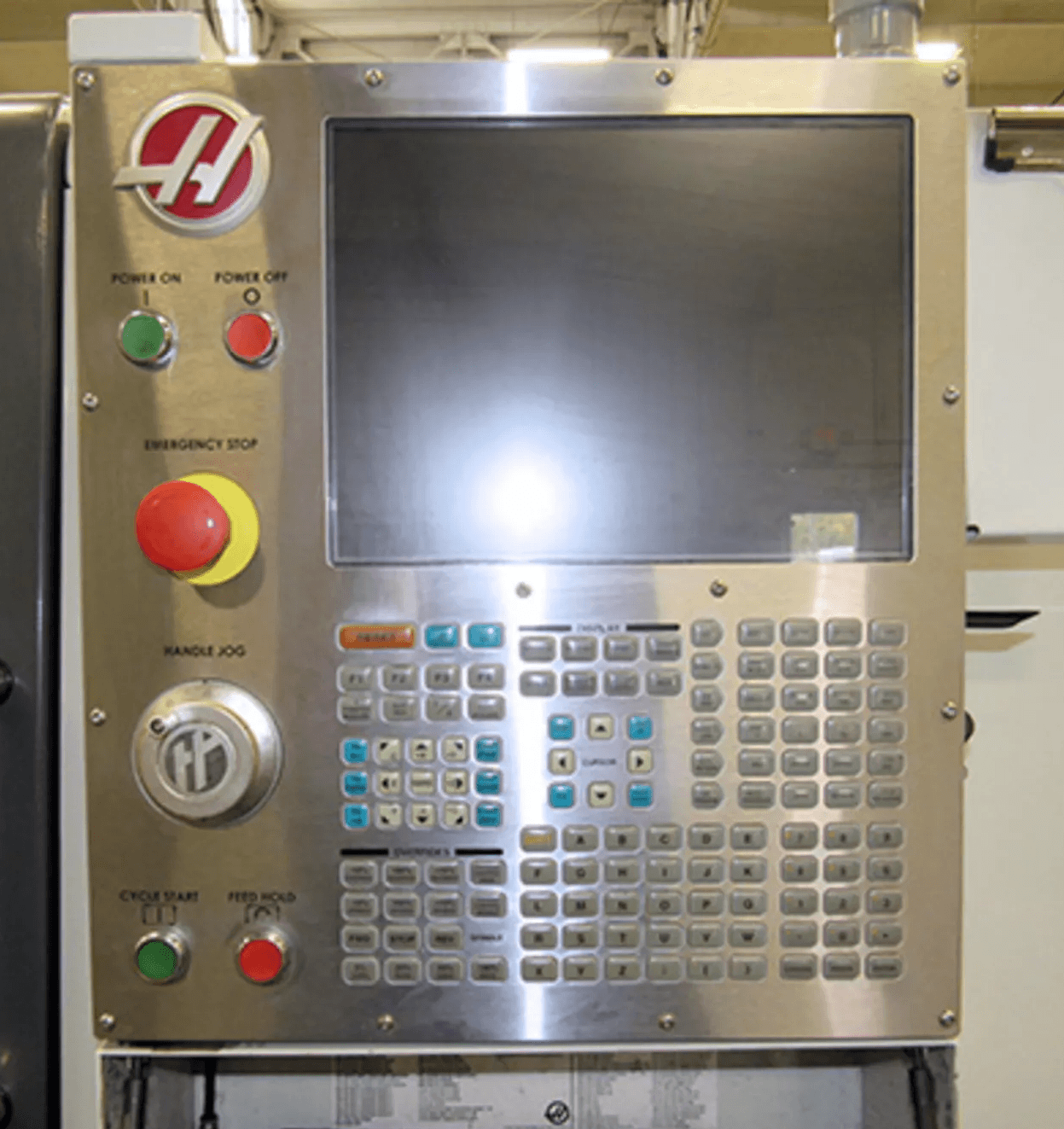

| CNC Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|

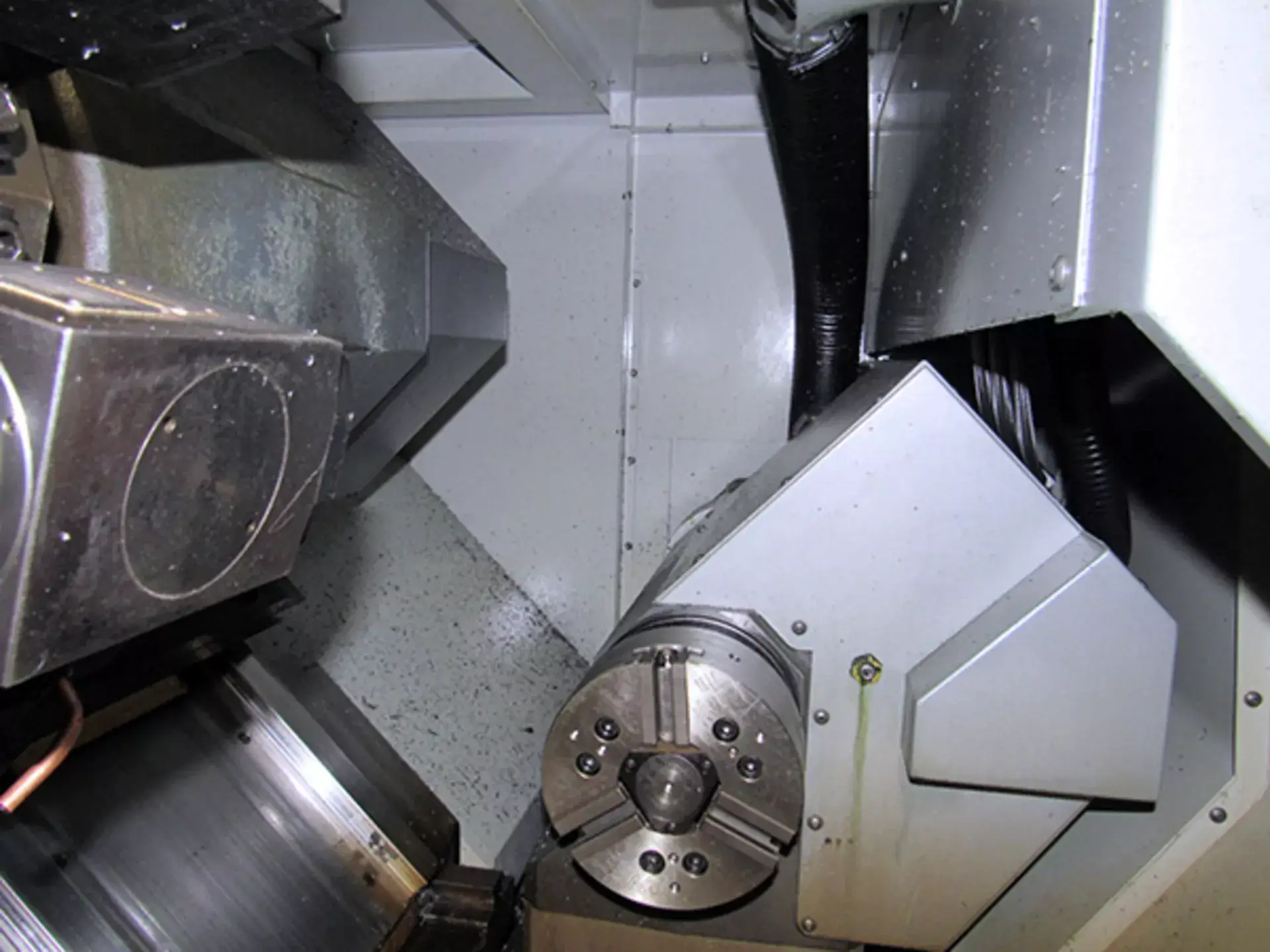

| Dual Spindle |
| Y-Axis Capability |
| Live Tooling |
| Tool Presetter |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Chuck Size (Main): 10″ |
| Chuck Size (Sub): 8″ |
| Max Turning Diameter: 13.75″ |
| Max Turning Length: 32.5″ |
| Max Swing: 21″ |
| Bar Capacity: 3″ |
| Travels: |
|---|
| X-Axis Travel: 9.4″ |
| Y-Axis Travel: ±2″ |
| Z-Axis Travel: 32″ |
| Spindle: |
|---|
| Main Spindle Speed: 4,500 RPM |
| Main Spindle Motor: 30 HP |
| Main Spindle Nose: A2-6 |
| Main Spindle Bore: 3.5″ |
| Sub Spindle Speed: 4,000 RPM |
| Sub Spindle Motor: 15 HP |
| Sub Spindle Nose: A2-5 |
| C-Axis Speed: 60 RPM |
| General: |
|---|
| Power Source: AC 220V, 3-Phase, 50/60 Hz |
| Overall Dimensions: ~130″ x 75″ x 72″ High |
| Weight: ~12,500 lbs |
