*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

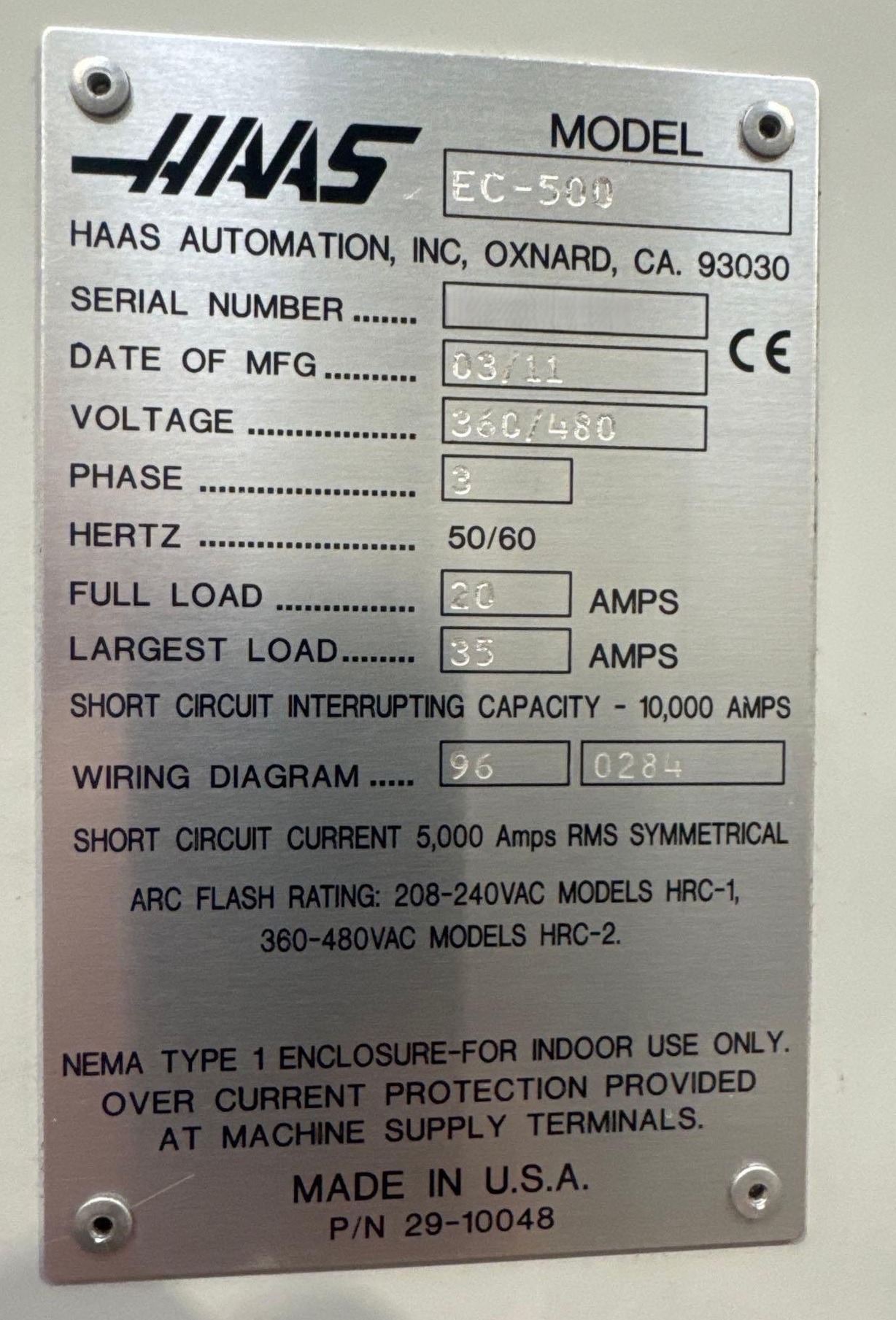

| Make: | Haas |
| Model: | EC-500 |
| Year: | 2011 |
| Machine Type: | 4-Axis CNC Horizontal Machining Center |
| CNC Control: | Haas CNC Control |
| Features: |
|---|
| Haas CNC Control |
| Dual 500 mm Pallet Changer |
| Full 4th-Axis Pallet Rotation |
| CAT 40 Spindle |
| 12,000 RPM Spindle |
| 40+1 Side-Mount Automatic Tool Changer |
| Chip Auger / Chip Conveyor System |
| Programmable Coolant |
| Through-Spindle Coolant |
| Coolant Shower |
| Rigid Tapping |
| Advanced Tool Management |
| WIPS / Renishaw Probing System |
| Remote Jog Handle |
| Quick Code Programming |
| 15″ Color LCD Monitor |
| Enclosed Work Area |
| Table: |
|---|
| Pallet Size: 19.69″ × 19.69″ |
| Number of Pallets: 2 |
| Pallet Type: Automatic Twin-Pallet Changer |
| Pallet Indexing: 1° Increments |
| Maximum Workpiece Weight: 1,000 lbs. |
| Continuous Rotary Torque: 300 ft-lb |
| 90° Rotation Time: 5.5 seconds |
| Travels: |
|---|
| X-Axis Travel: 32″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 28″ |
| X/Y/Z Rapid Traverse: 1,000 IPM |
| Maximum Cutting Feedrate: 500 IPM |
| Spindle: |
|---|
| Spindle Taper: CAT 40 |
| Maximum Spindle Speed: 12,000 RPM |
| Spindle Motor: 30 HP |
| Automatic Tool Changer: |
|---|
| Tool Changer: Side-Mount |
| Tool Capacity: 40+1 Positions |
| Tool Taper: CAT 40 |
| Tool-to-Tool Time: 2.8 sec. |
| General: |
|---|
| Power Source: 360–480v / 3-Phase / 50/60 Hz |
| Machine Weight (Approx.): 24,000 lbs. |
| Machine Dimensions (Approx.): 104″ L × 148″ W × 156″ H |
