*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | EC-500 |
| Year: | 2008 |

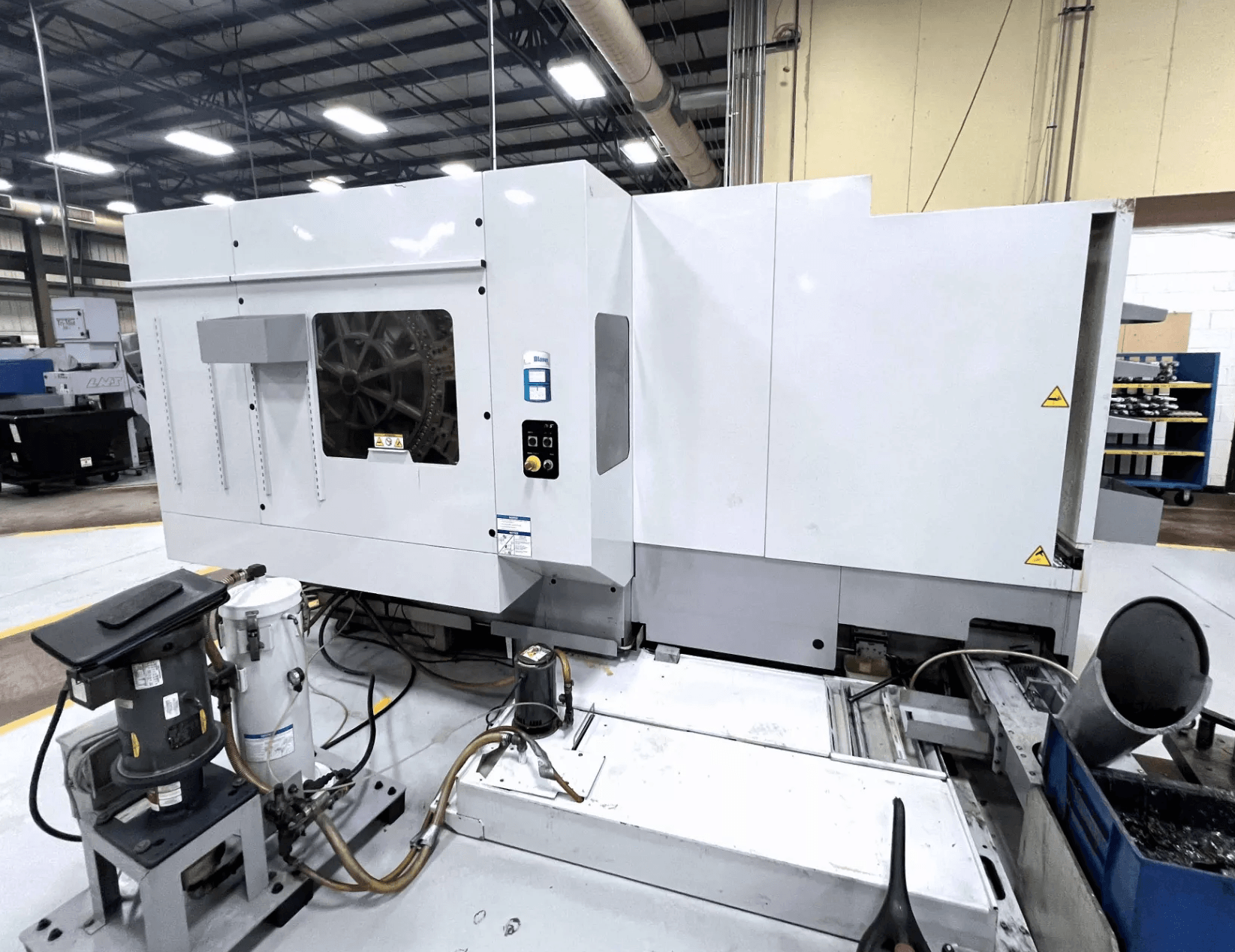

| Machine Type: | CNC Horizontal Machining Center |

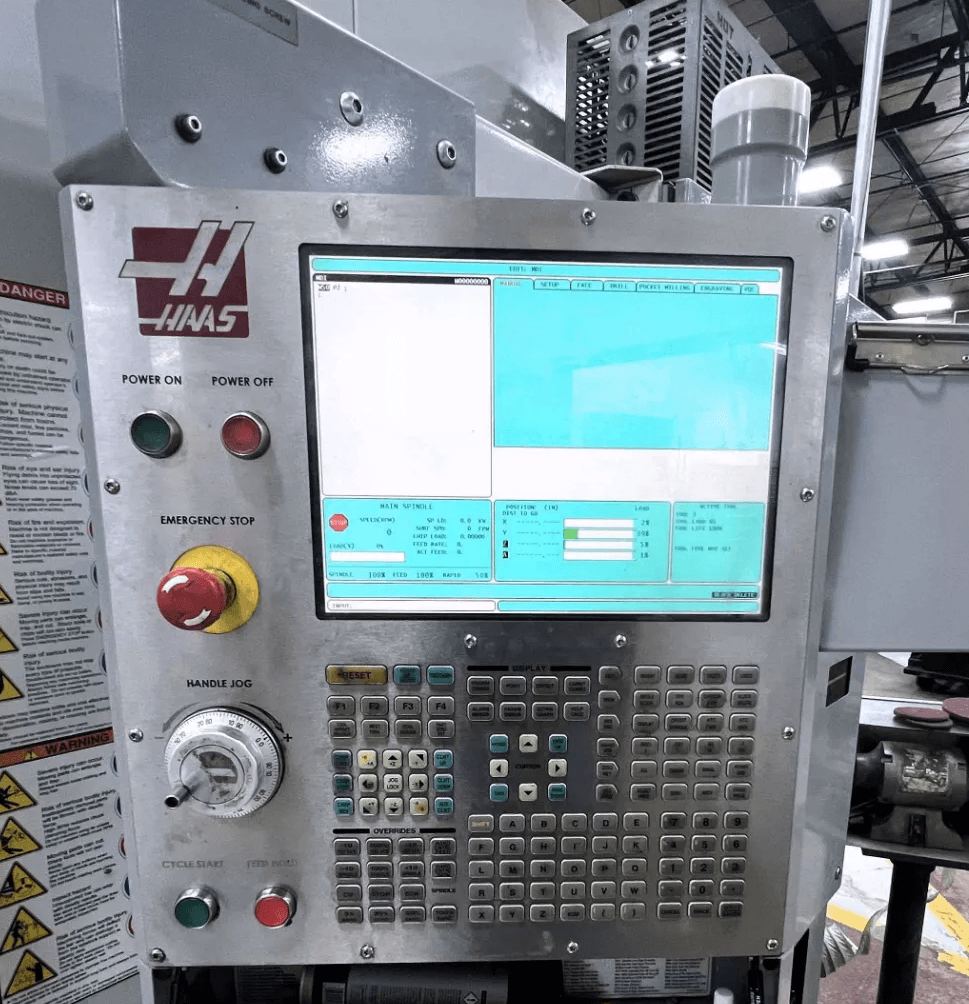

| Control: | Haas CNC Control |
| Country of Origin: | USA |
| Features: |
|---|
| 12,000 RPM Inline Direct Drive Spindle |
| 70 Position Side Mount Tool Changer |
| 1,000 PSI Through Spindle Coolant |
| Wireless Intuitive Probing System (WIPS) |
| Dual Pallets |
| Pallet Changer |
| Chip Auger |
| CT40 Spindle Taper |
| Inline Spindle Design |
| Coolant System |
| Side Mount Tool Changer |
| Full Enclosure |

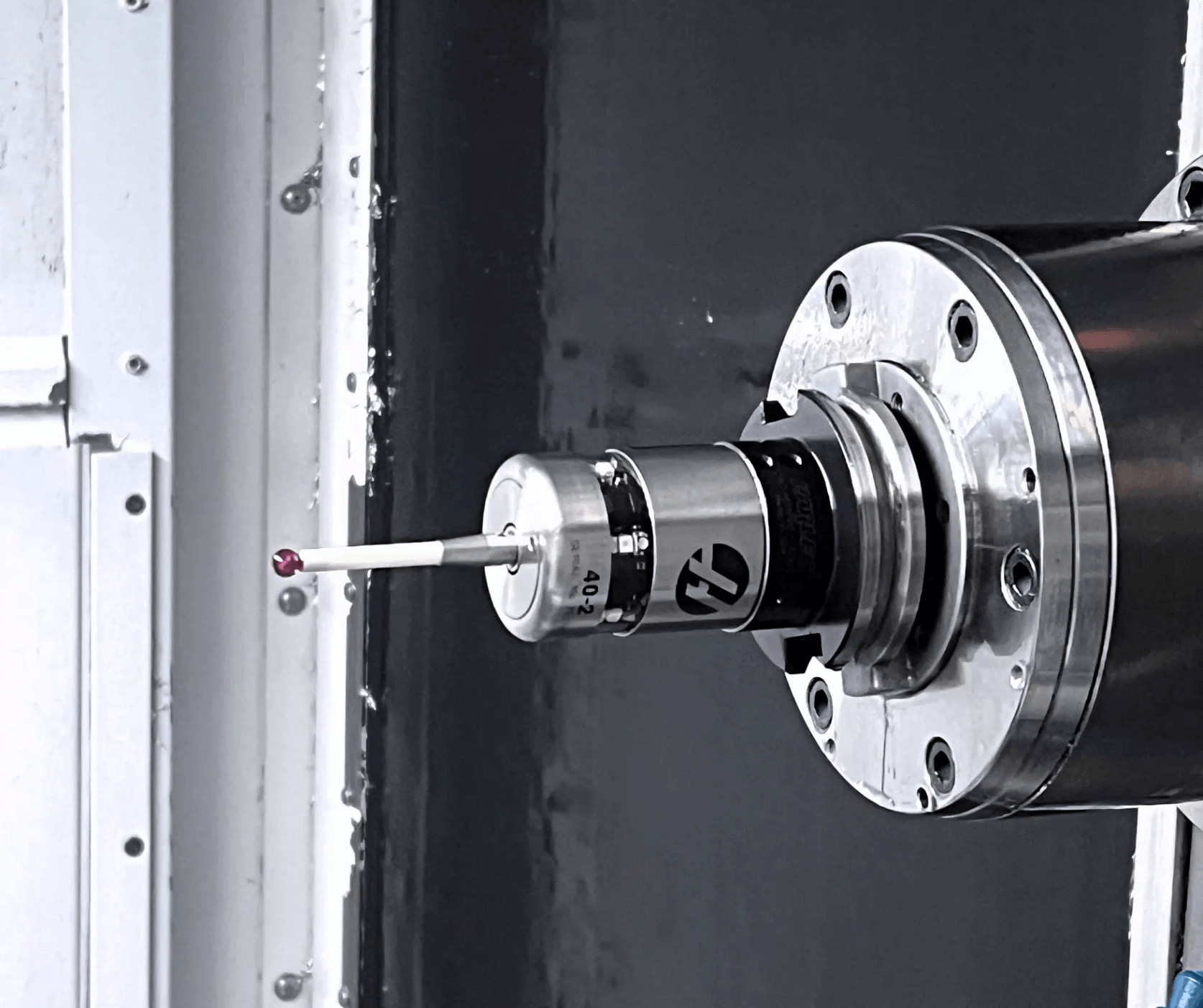

| Renishaw Probe |
| Programmable Coolant |
| Automatic Lubrication System |
| Travels: |
|---|
| X-Axis Travel: 32″ |
| Y-Axis Travel: 25″ |
| Z-Axis Travel: 28″ |

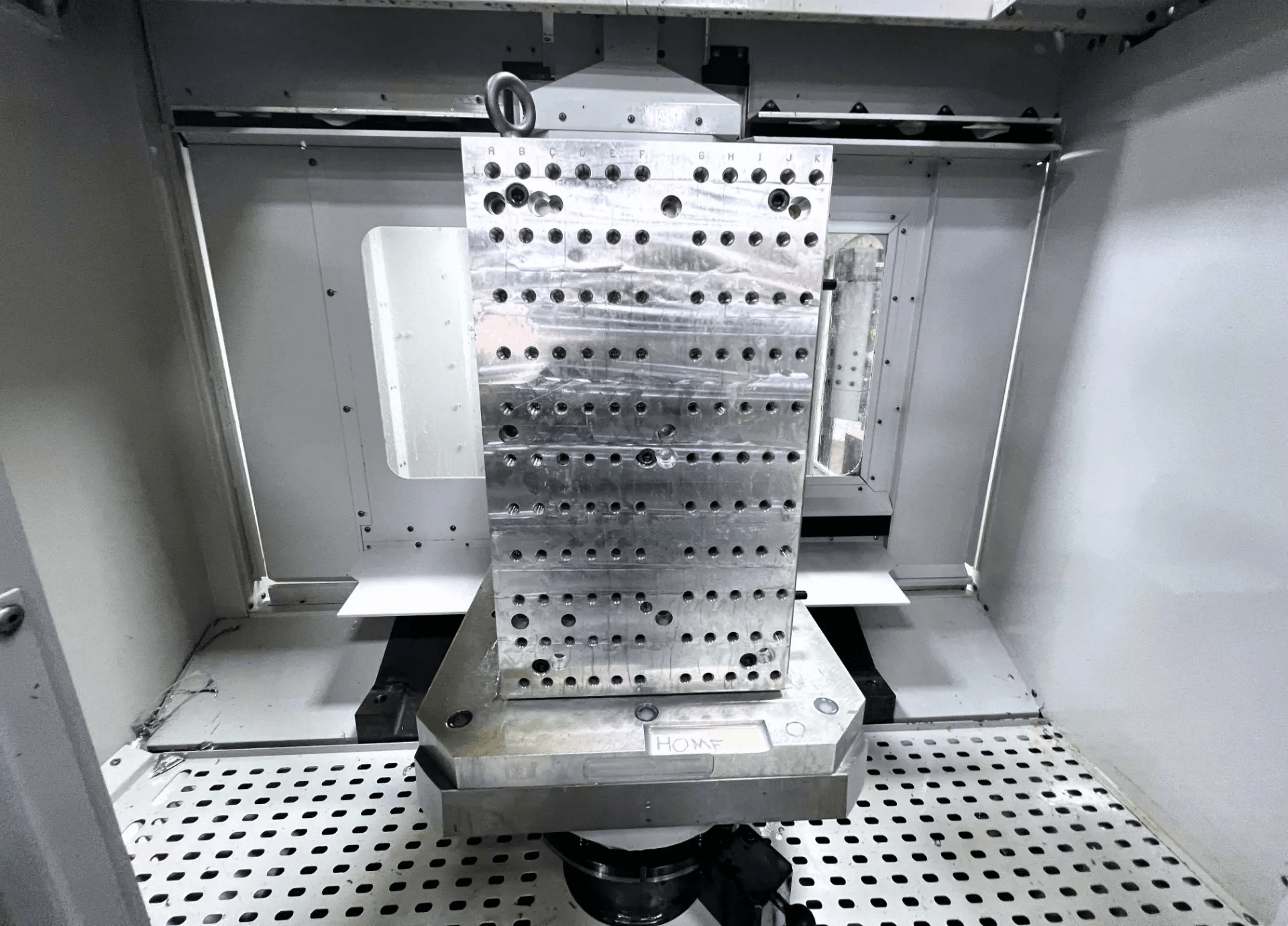

| Pallet: |
|---|
| Pallet Size: 19.69″ x 19.69″ |
| Pallet Load Capacity: 880 Lbs |
| Number of Pallets: 2 |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 30 HP |
| Spindle Taper: CT40 |
| Spindle Type: Inline Direct Drive |
| Tool Changer: |
|---|
| Tool Capacity: 70 Tools |
| Tool Changer Type: Side Mount Tool Changer (SMTC) |
| General: |
|---|
| Machine Weight: Approx. 24,000 Lbs |
| Machine Dimensions: Approx. 170″ x 120″ x 115″ |
