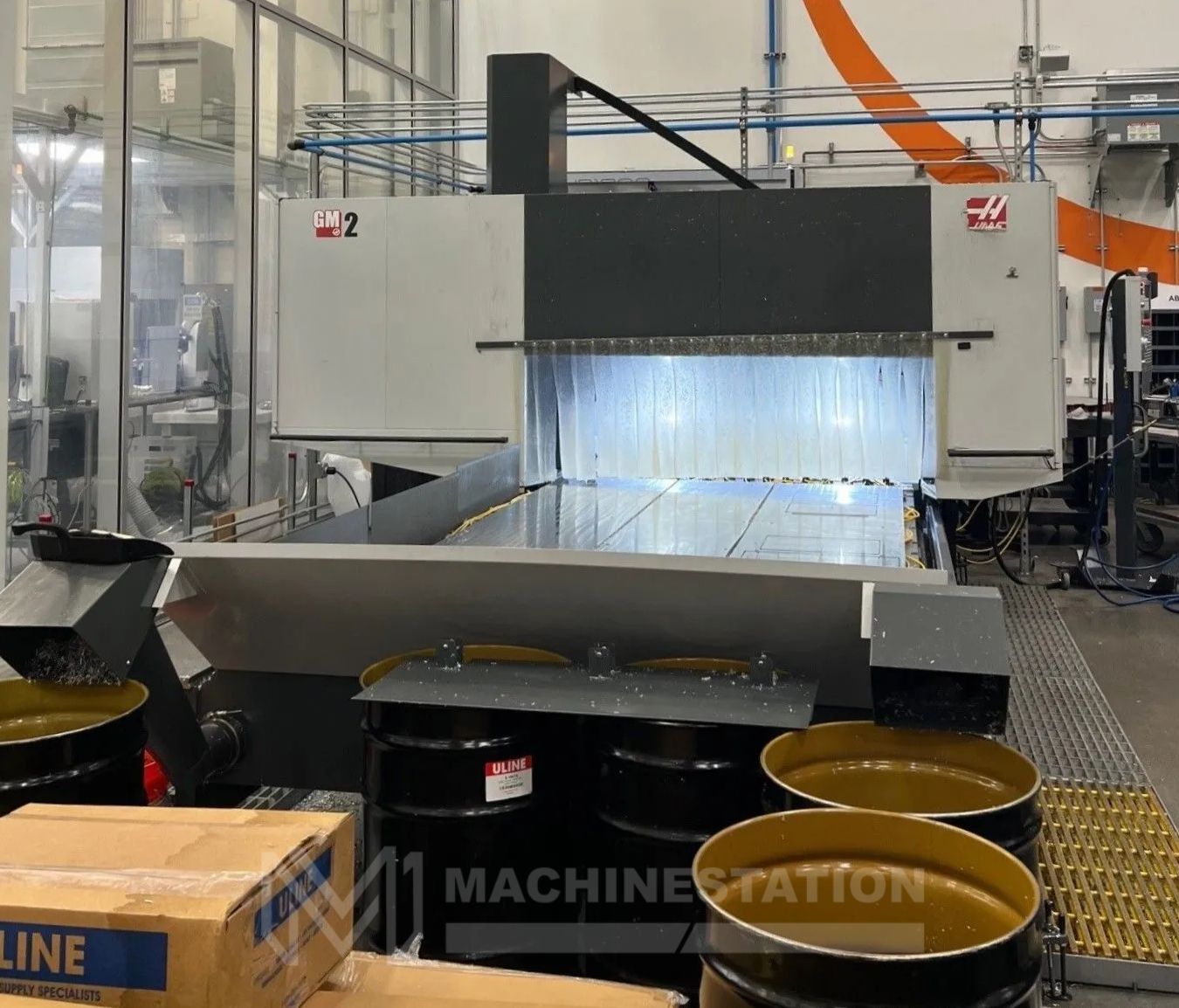

Haas GM-2 CNC Gantry Machining Center – 2024 Mill

SKU 115093
Make/Model Haas GM-2
Year 2024
Video No Video
Out of stock

Avoid Paying More! New Haas prices just went up 5% as of May 1st — plus, long lead times on new machines mean delays and higher costs. This 2024 Haas GM-2 is fully equipped with 15,000 RPM Spindle, WIPS- Wireless Intuitive Probing System, Probe Riser Block, TSC, HSM, Steel Table-Inch, Programmable Coolant Nozzle, Gantry Router Coolant System and Chip Auger.
“Replacement Cost Over $350,000 with Similar Options”

SKU: 115093
Make/Model: Haas GM-2
Year: 2024
Video: No Video
SKU: 115093

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 115093
Make: Haas
Model: GM-2
Equipped With:

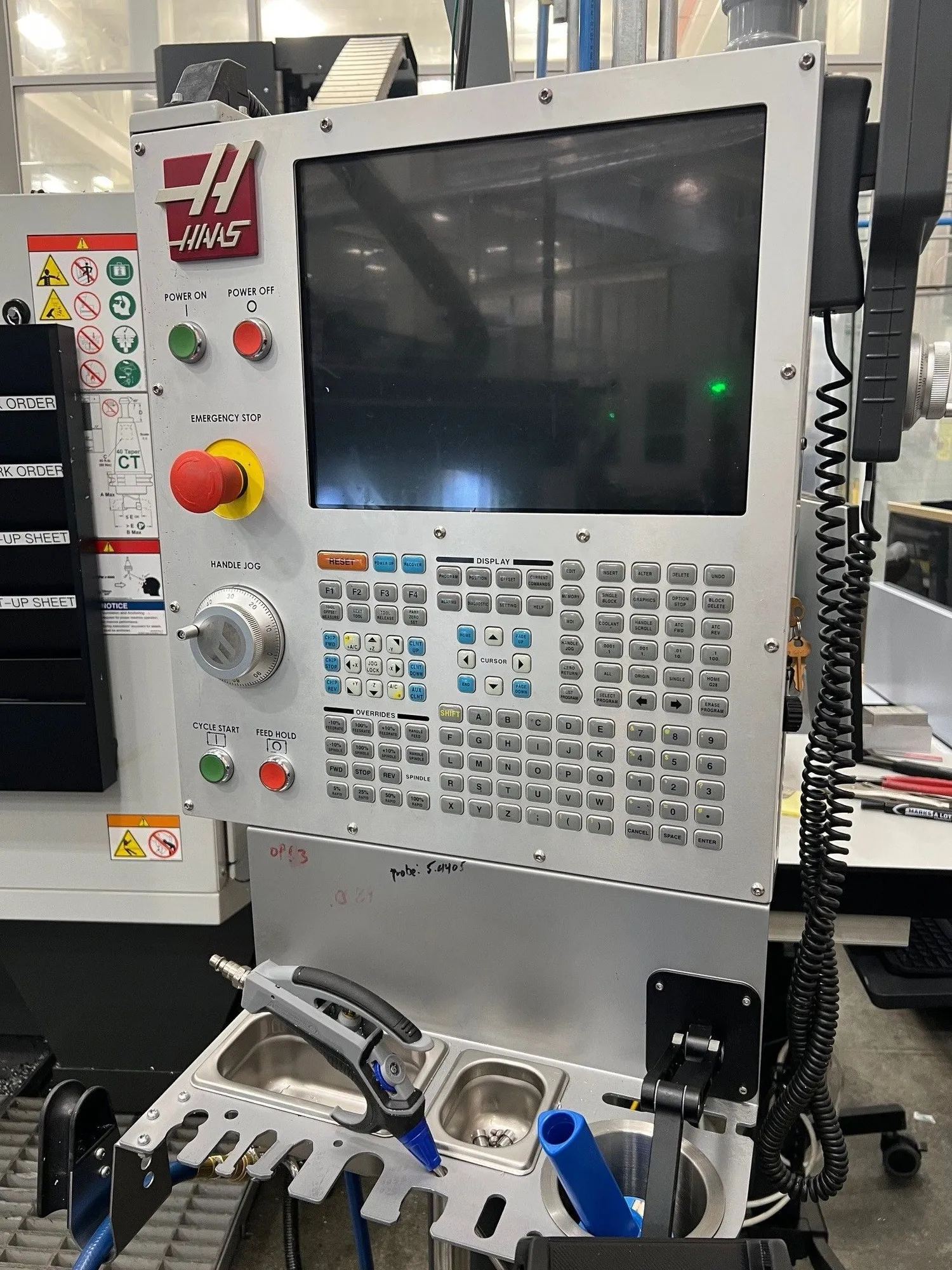

Haas CNC Control
15,000 RPM Spindle (Upgraded $15,995 value Included)
30 Station Side Mounted Automatic Tool Changer
Steel Table-Inch (Upgraded $20,895 value Included)
Through Spindle Coolant – 300 PSI (Upgraded $15,995 value Included)
WIPS- Wireless Intuitive Probing System (Upgraded $7,095 value Included)
Probe Riser Block (Upgraded $495 value Included)
Programmable Coolant Nozzle (Upgraded $2,395 value Included)
Gantry Router Coolant System (Upgraded $3,895 value Included)
Automatic Air Gun (Upgraded $1,595 value Included)
Auxiliary Coolant Filter (Upgraded $3,195 value Included)
WIFI Camera (Upgraded $995 value Included)
High Speed Machining (Upgraded $3,895 value Included)
32 GB Expanded Memory (Upgraded $1,695 value Included)
Rigid Tapping
Spindle Orientation
Coordinate Rotation and Scaling
Visual Part Programming System
Early Power Failure Detection Module
Chip Auger
Low Volt Transformer
Travels:
X-Axis: 145.0″
Y-Axis: 87.50″
Z-Axis: 22.0″
Distance Between Columns: 75″
Spindle Nose to Table (Min.- Max.): 4.0″- 26″
Feed rates: Rapid X Axis: 472 IPM
Feed rates: Rapid Y Axis: 1889 IPM
Feed rates: Rapid Z Axis: 1181 IPM
Cutting Feedrate: 472 IPM
Table:
Length: 144″
Width: 72″
Thickness: 1.0″
Max Weight on Table: 6,000 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 30 Station
Max Tool Weight: 12 lbs
Max Tool Length: 11″
Max Tool Dia.: 2.5 – 3.5″
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 3-Phase, 70 Kva
Floor Dimensions: 226″ X 143″ x 109″ High
Weight: 20,200 lbs.
Equipped With:
Haas CNC Control
15,000 RPM Spindle (Upgraded $15,995 value Included)
30 Station Side Mounted Automatic Tool Changer
Steel Table-Inch (Upgraded $20,895 value Included)
Through Spindle Coolant - 300 PSI (Upgraded $15,995 value Included)
WIPS- Wireless Intuitive Probing System (Upgraded $7,095 value Included)
Probe Riser Block (Upgraded $495 value Included)
Programmable Coolant Nozzle (Upgraded $2,395 value Included)
Gantry Router Coolant System (Upgraded $3,895 value Included)
Automatic Air Gun (Upgraded $1,595 value Included)
Auxiliary Coolant Filter (Upgraded $3,195 value Included)
WIFI Camera (Upgraded $995 value Included)
High Speed Machining (Upgraded $3,895 value Included)
32 GB Expanded Memory (Upgraded $1,695 value Included)
Rigid Tapping
Spindle Orientation
Coordinate Rotation and Scaling
Visual Part Programming System
Early Power Failure Detection Module
Chip Auger
Low Volt Transformer
Travels:
X-Axis: 3,683 mm
Y-Axis: 2,223 mm
Z-Axis: 559 mm
Distance Between Columns: 1,905 mm
Spindle Nose to Table (Min.- Max.): 102 mm- 660 mm
Feed rates: Rapid X Axis: 472 IPM
Feed rates: Rapid Y Axis: 1889 IPM
Feed rates: Rapid Z Axis: 1181 IPM
Cutting Feedrate: 472 IPM
Table:
Length: 3,658 mm
Width: 1,829 mm
Thickness: 25 mm
Max Weight on Table: 6,000 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 30 Station
Max Tool Weight: 12 lbs
Max Tool Length: 279 mm
Max Tool Dia.: 2.5 – 89 mm
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 3-Phase, 70 Kva
Floor Dimensions: 5,740 mm X 3,632 mm x 2,769 mm High
Weight: 20,200 lbs.
MakeHaas
ModelGM-2
CategoriesCNC Bridge / Gantry Mill
