Haas GR-510 CNC Gantry Router – Mill
1 in stock

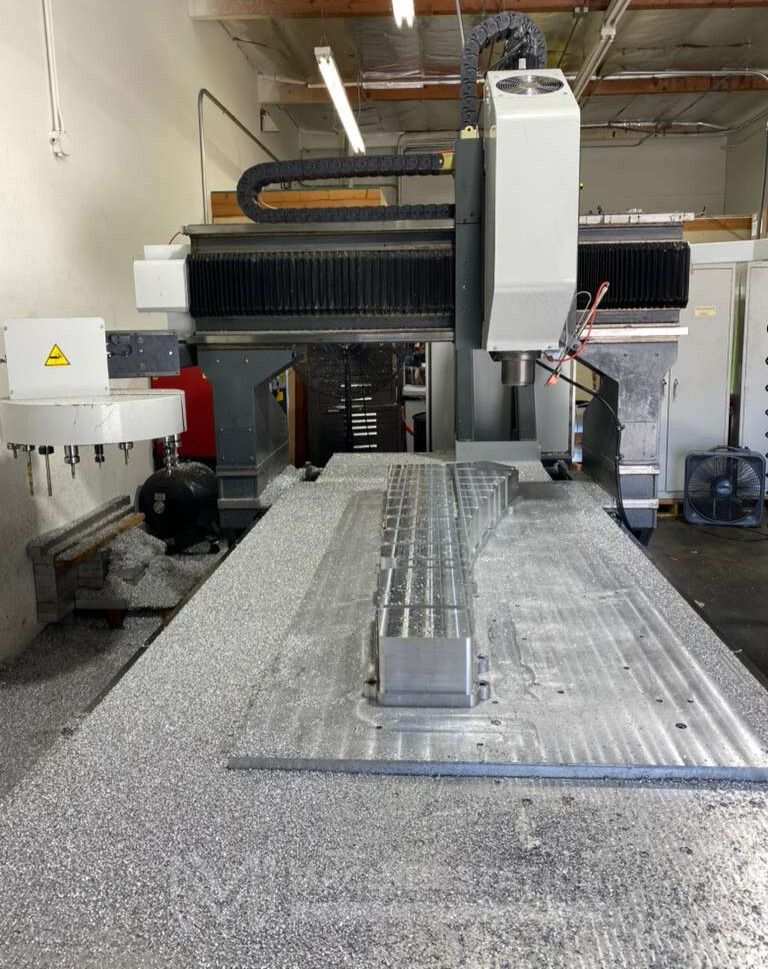

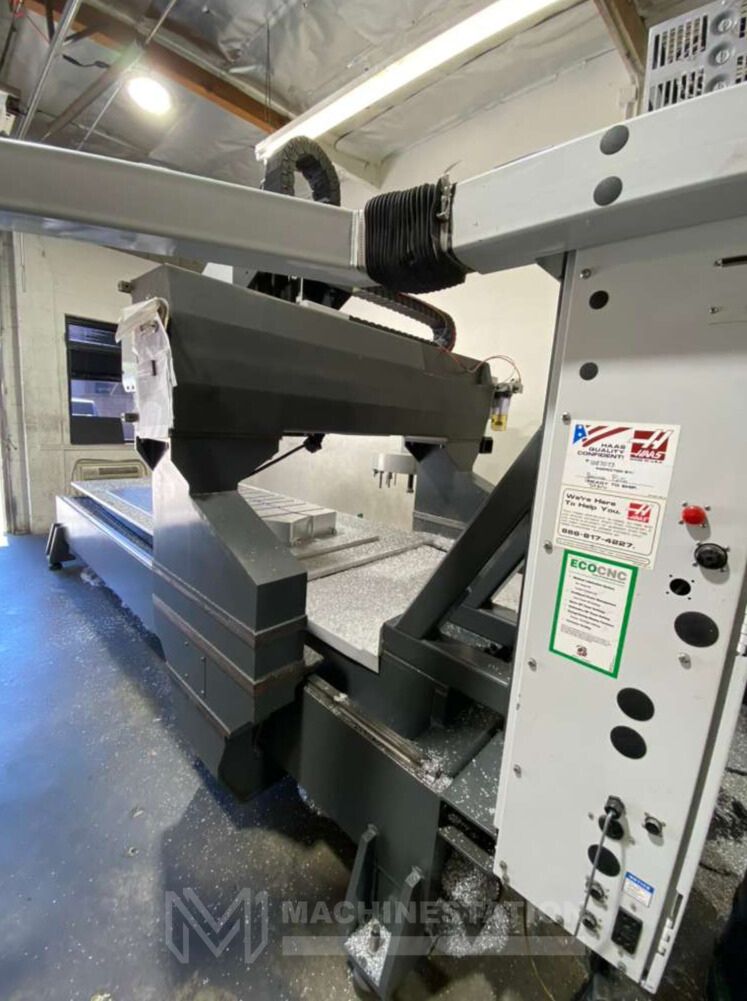

Used Haas GR-510 CNC Gantry Router for Sale.
| SKU: | 115117 |
| Make/Model: | Haas GR-510 |
| Year: | 2011 |
| Condition: | Used – Good |
| Video: | No Video |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | GR-510 |
| Year: | 2011 |
| Condition: | Used -Good |
| Features: |
|---|
| Haas CNC Control |
| 8,100 RPM Spindle |
| 20 Station Automatic Tool Changer |
| Coolant System |
| MPG Handwheel Control |
| Travels: |
|---|
| X-Axis: 121″ |
| Y-Axis: 61″ |
| Z-Axis: 11″ |
| Spindle Nose to Table (Min.- Max.): 2.5″ – 13.5″ |
| Feed Rates: |
|---|
| Cutting Feed Rates: 800 Inch per Minute |
| Rapid Traverse Rates: |
| X Axis: 800 Inch Per Minute |
| Y Axis: 2100 Inch Per Minute |
| Z Axis: 1100 Inch Per Minute |
| Table: |
|---|
| Length: 122″ |
| Width: 53″ |
| Max Weight on Table: 6,000 lbs |
| Between Columns: 62″ |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 8,100 RPM |
| Spindle Power: 15 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 206″ x 111″ x 108″ High |
| Weight: 19,400 lbs |
| Make | |
|---|---|
| Model | GR-510 |
| Categories | CNC Bridge / Gantry Mill |
