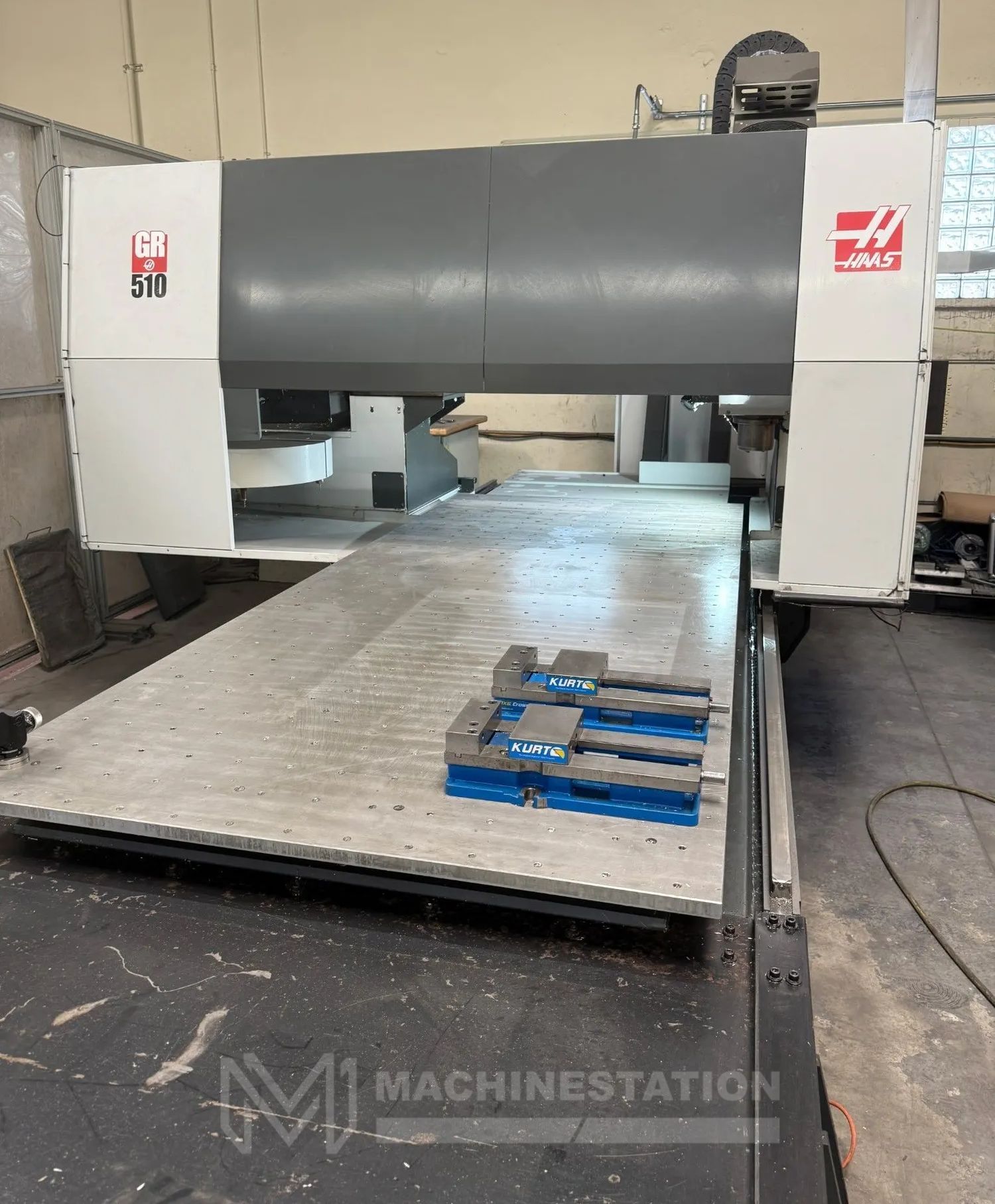

Haas GR-510 CNC Gantry Router - 2022 Mill 1

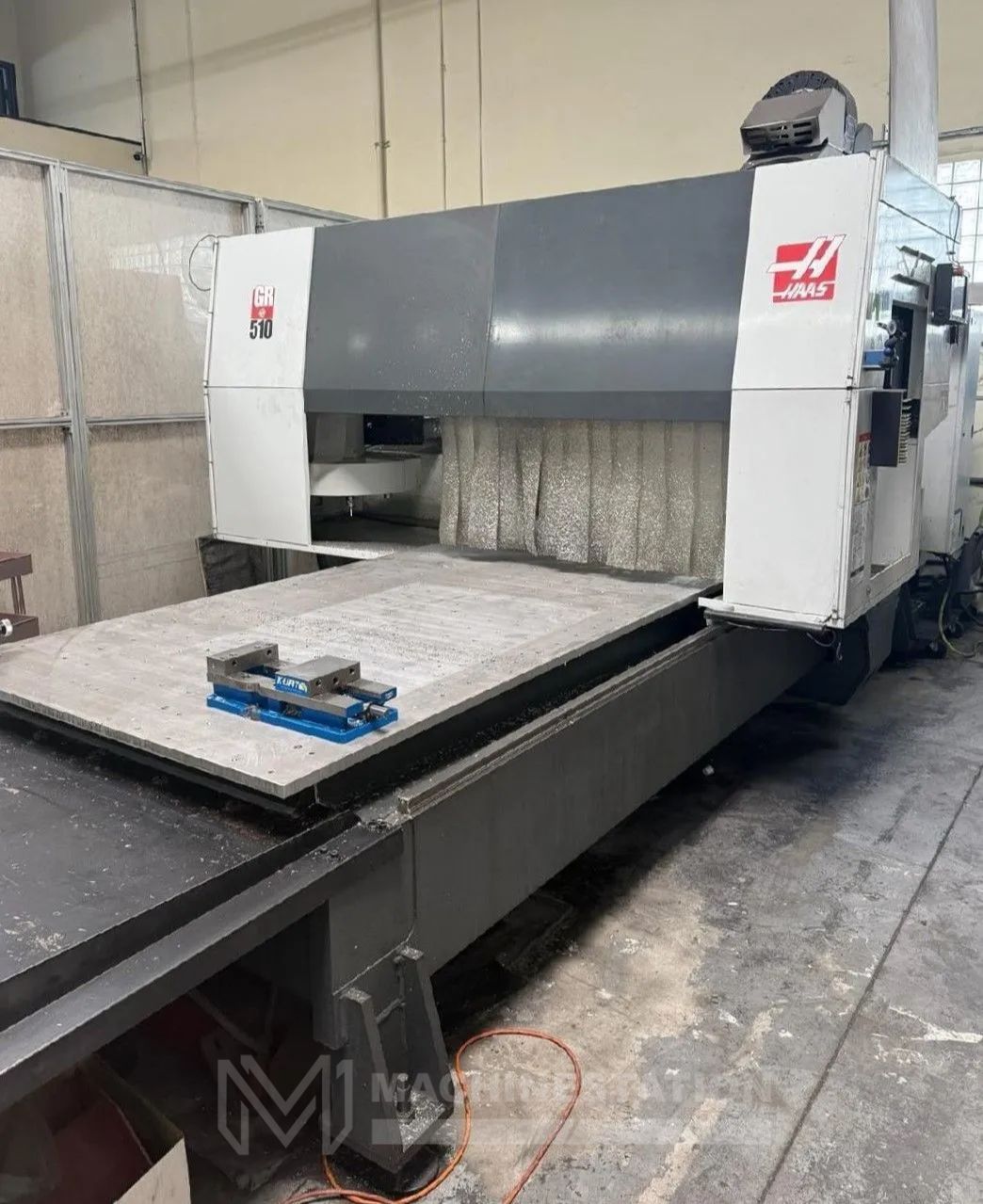

Haas GR-510 CNC Gantry Router - 2022 Mill 2

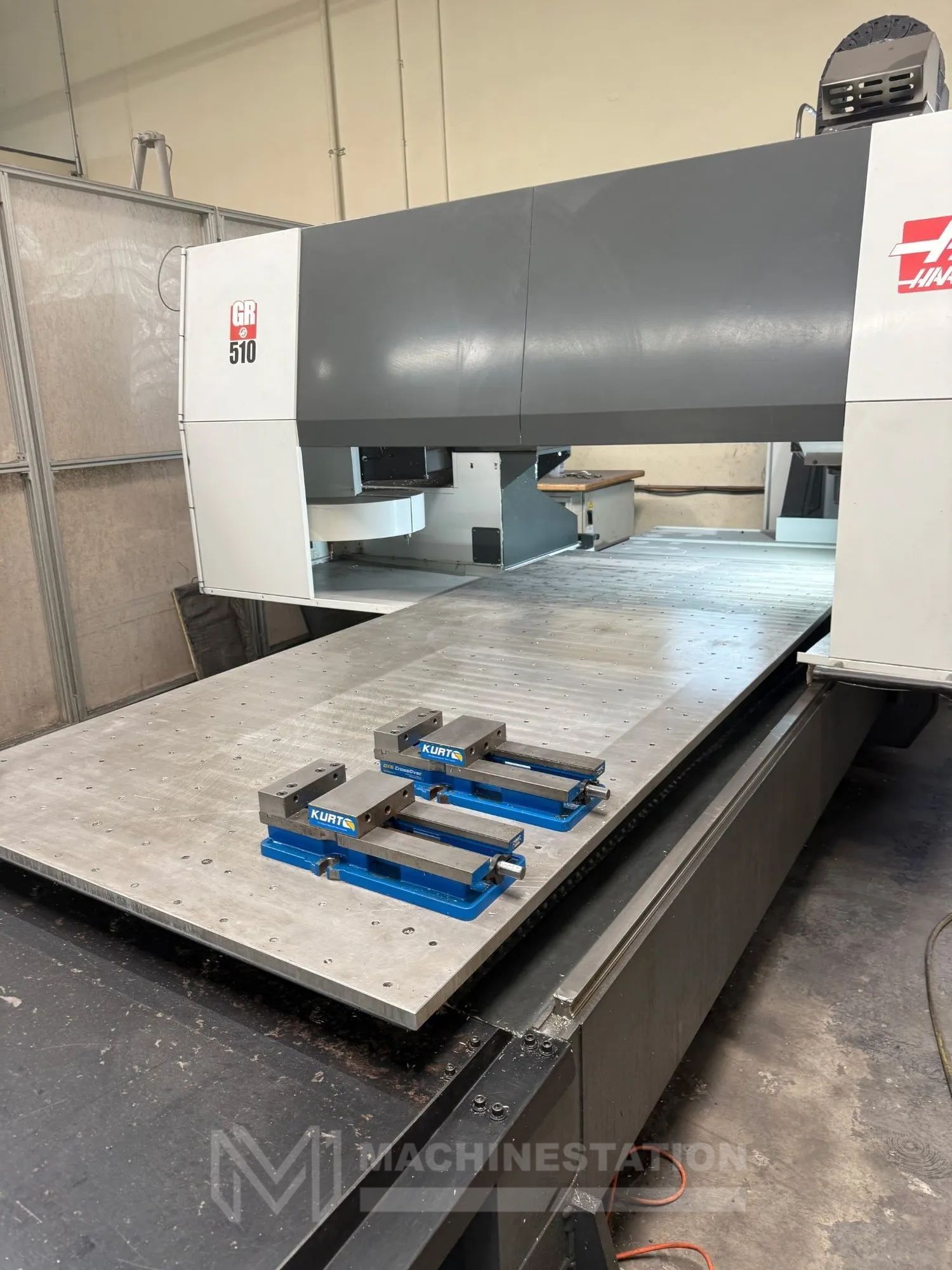

Haas GR-510 CNC Gantry Router - 2022 Mill 3

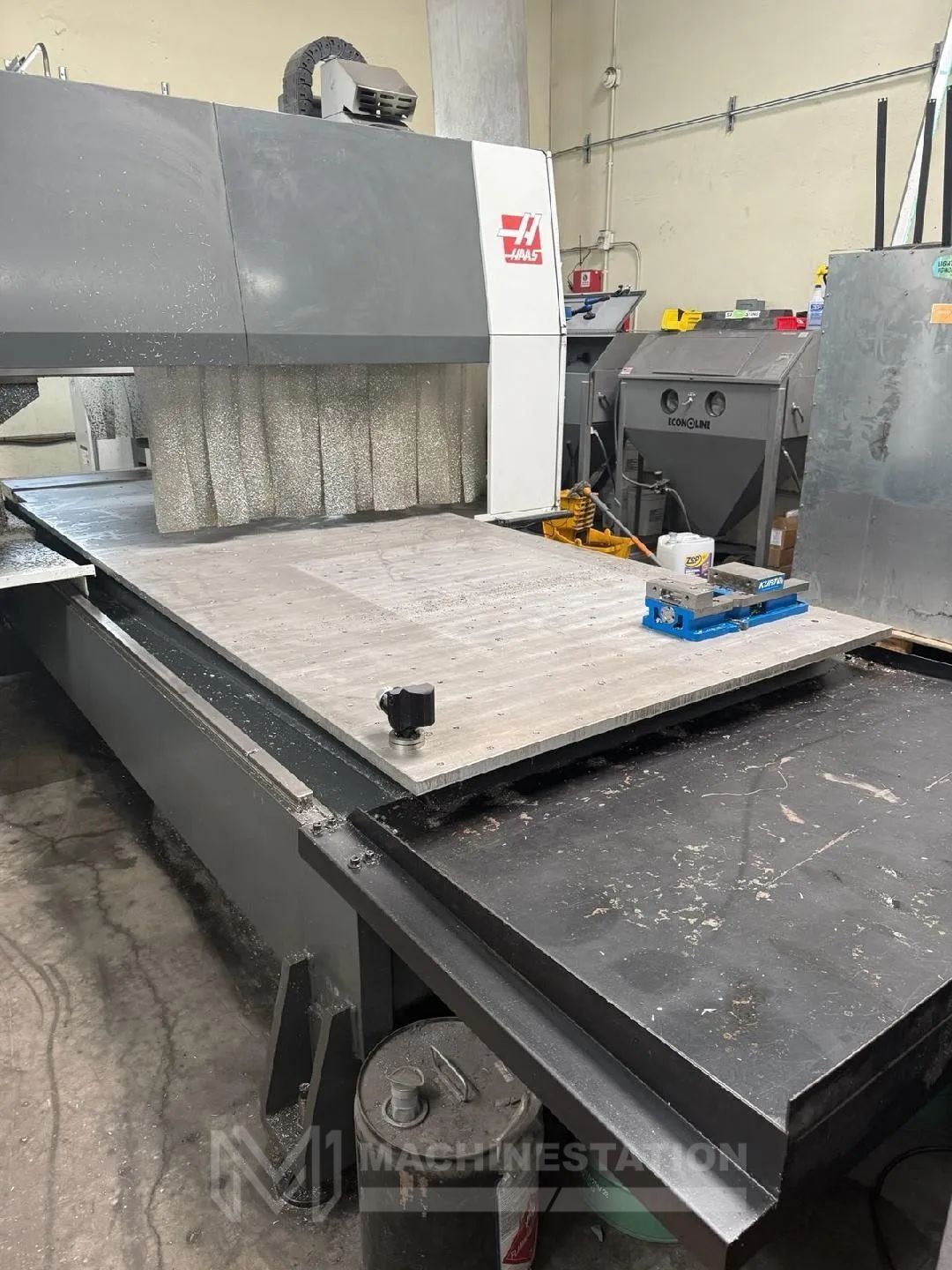

Haas GR-510 CNC Gantry Router - 2022 Mill 4

Haas GR-510 CNC Gantry Router – 2022 Mill

Location Saint Paul, MN
SKU 115094
Make HAAS
Model GR-510
Year 2022
Out of stock
Location: Saint Paul, MN
SKU: 115094
Make: HAAS
Model: GR-510
Year: 2022
SKU: 115094
Brand:

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Haas
Model: GR-510
Year: 2022

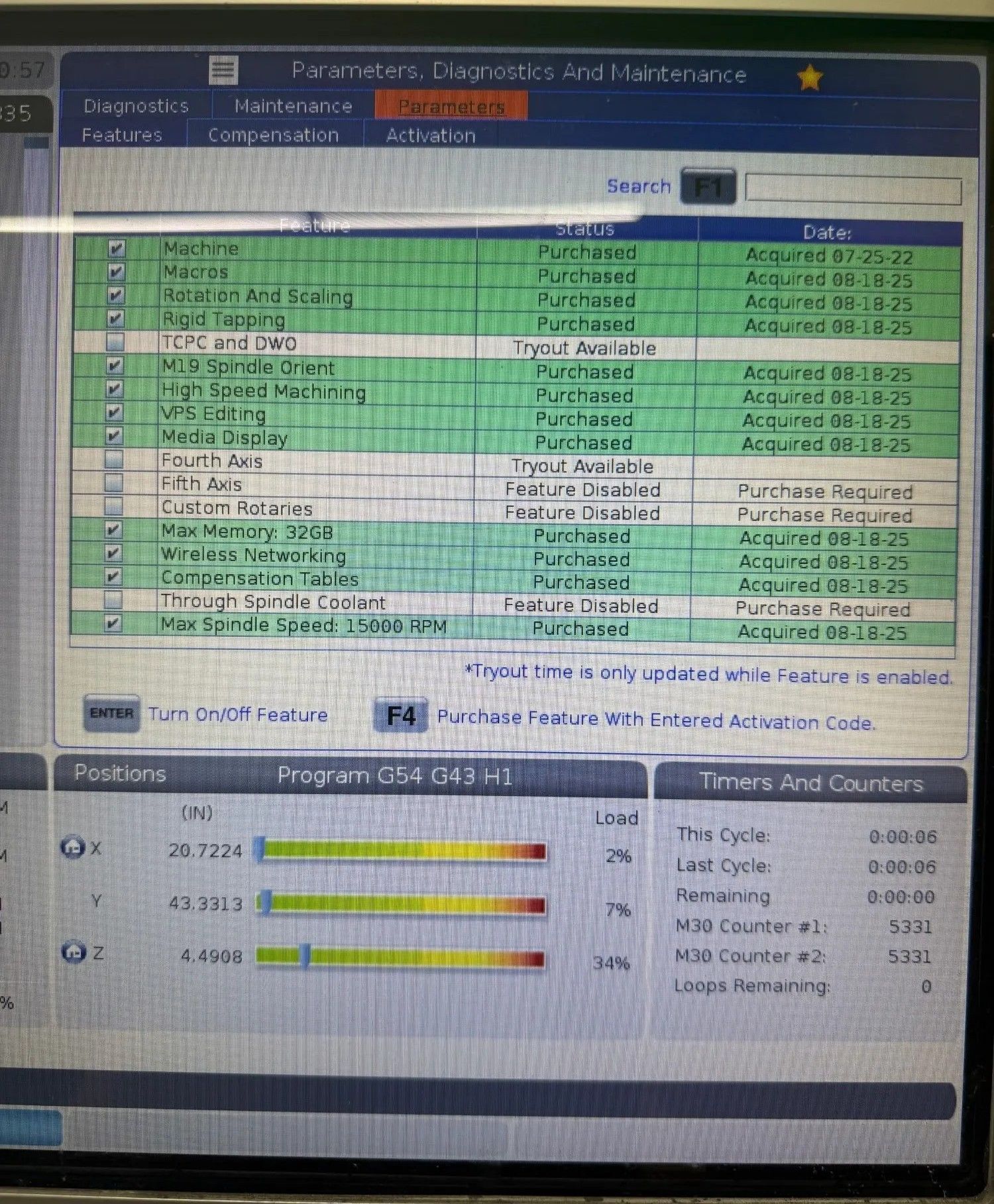

Features:
Haas CNC Control
15,000 RPM High Speed Spindle (Upgraded $12,595 value Included)
20 Station Automatic Tool Changer (Upgraded $5,595 value Included)
WIPS – Wireless Intuitive Probing System (Upgraded $6,395 value Included)
High Speed Machining (Upgraded $3,895 value Included)
Rigid Tapping (Upgraded $1,895 value Included)
Spindle Orientation
Visual Part Programming System
User-Definable Macros
Coordinate Rotation and Scaling
Remote Jog Handle
32 GB Expanded Memory (Upgraded $1,695 value Included)
8 additional M Codes
Early Power-Failure detection
Coolant System
Chip Strainer
Travels:
X-Axis: 121″
Y-Axis: 61″
Z-Axis: 11″
Spindle Nose to Table (Min.- Max.): 2.5″ – 13.5″
Feed Rates:
Cutting Feed Rates: 800 Inch per Minute
Rapid Traverse Rates:
X Axis: 800 Inch Per Minute
Y Axis: 2100 Inch Per Minute
Z Axis: 1100 Inch Per Minute
Table:
Length: 122″
Width: 53″
Max Weight on Table: 6,000 lbs
Between Columns: 62″
Spindle:
Taper Size: 40
Speed Range: 15,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 206″ x 111″ x 108″ High
Weight: 19,400 lbs
Travels:
X-Axis: 3,073 mm
Y-Axis: 1,549 mm
Z-Axis: 279 mm
Spindle Nose to Table (Min.- Max.): 64 mm – 343 mm
Feed Rates:
Cutting Feed Rates: 800 Inch per Minute
Rapid Traverse Rates:
X Axis: 800 Inch Per Minute
Y Axis: 2100 Inch Per Minute
Z Axis: 1100 Inch Per Minute
Table:
Length: 3,099 mm
Width: 1,346 mm
Max Weight on Table: 6,000 lbs
Between Columns: 1,575 mm
Spindle:
Taper Size: 40
Speed Range: 15,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 89 mm
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 5,232 mm x 2,819 mm x 2,743 mm High
Weight: 19,400 lbs
MakeHaas
ModelGR-510
CategoriesCNC Bridge / Gantry Mill
  • Haas CNC Control
  • 15,000 RPM High Speed Spindle (Upgraded $12,595 value Included)
  • 20 Station Automatic Tool Changer (Upgraded $5,595 value Included)
  • WIPS - Wireless Intuitive Probing System (Upgraded $6,395 value Included)
  • High Speed Machining (Upgraded $3,895 value Included)
  • Rigid Tapping (Upgraded $1,895 value Included)
  • Spindle Orientation
  • Visual Part Programming System
  • User-Definable Macros
  • Coordinate Rotation and Scaling
  • Remote Jog Handle
  • 32 GB Expanded Memory (Upgraded $1,695 value Included)
  • 8 additional M Codes
  • Early Power-Failure detection
  • Coolant System
  • Chip Strainer
Haas GR-510 CNC Gantry Router - 2022 Mill 1Haas GR-510 CNC Gantry Router - 2022 Mill 2Haas GR-510 CNC Gantry Router - 2022 Mill 3Haas GR-510 CNC Gantry Router - 2022 Mill 4
