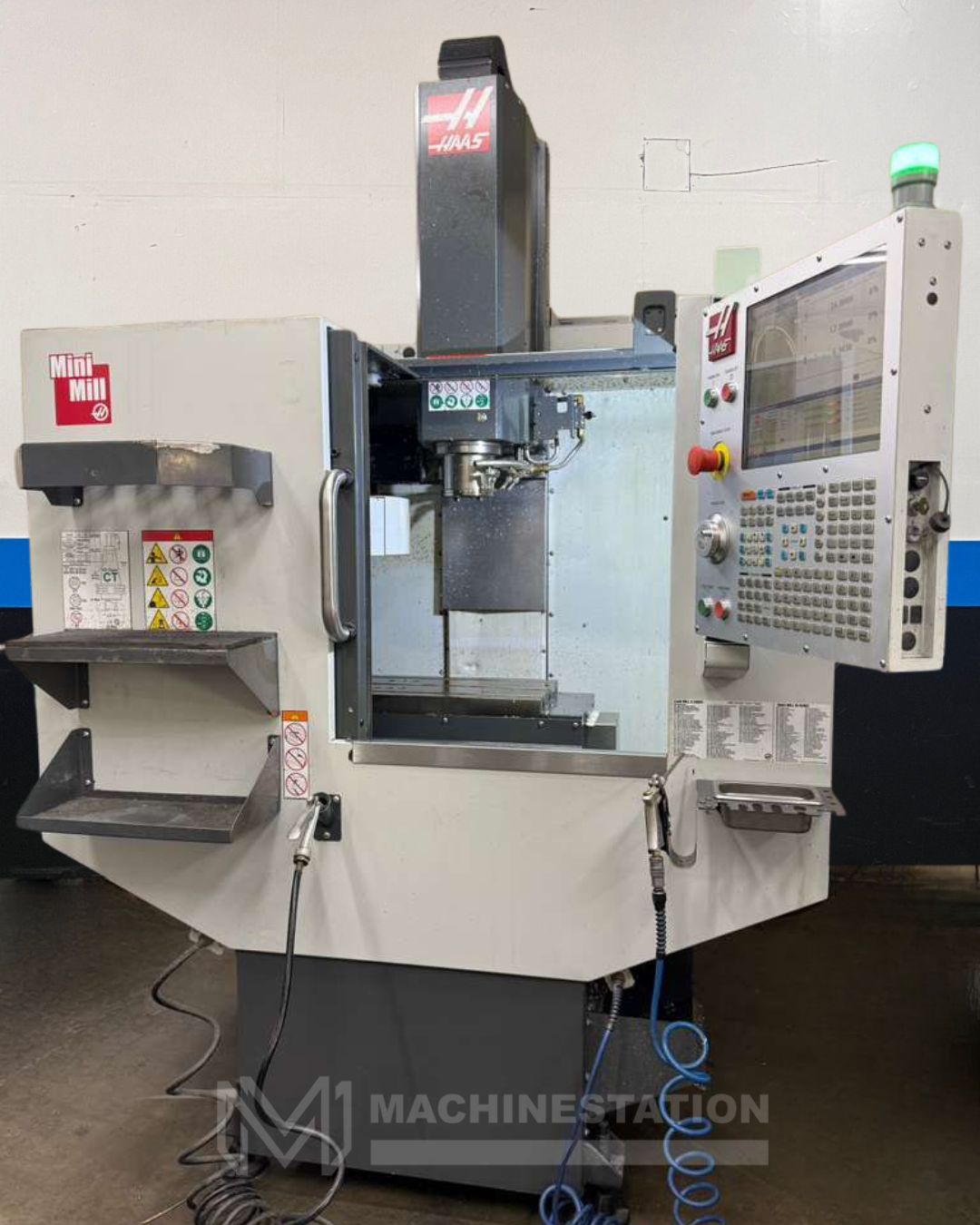

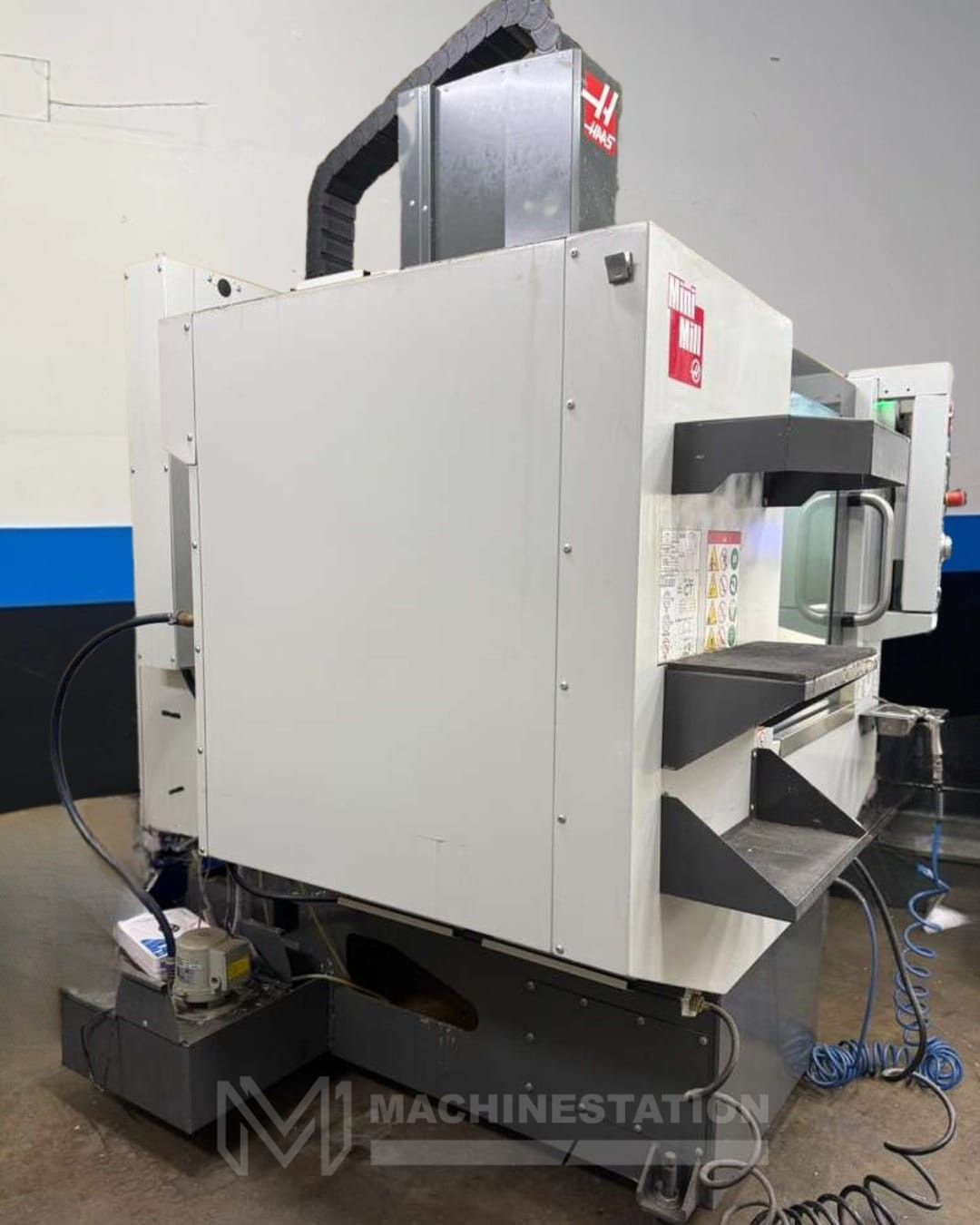

Haas Mini Mill CNC Vertical Machining Center – 2019 Mill

SKU 113509
Make Haas
Model Mini Mill
Year 2019
Cutting Time 567 Hours
Video No Video
Out of stock

Avoid Paying More! New Haas prices just went up 5% as of May 1st — plus, long lead times on new machines mean delays and higher costs. This 2029 Haas Mini Mill is fully equipped with 6,ooo RPM CAT-40 Taper Spindle, 10 Station Tool Changer, Rigid Tapping and Coolant System.
“Replacement Cost Over $44,000 with Similar Options”

SKU: 113509
Make Haas
Model: Mini Mill
Year: 2019
Cutting Time: 567 Hours
Video: No Video
SKU: 113509

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 113509
Make: Haas
Model: Mini Mill
Year of Manufacture: 2019

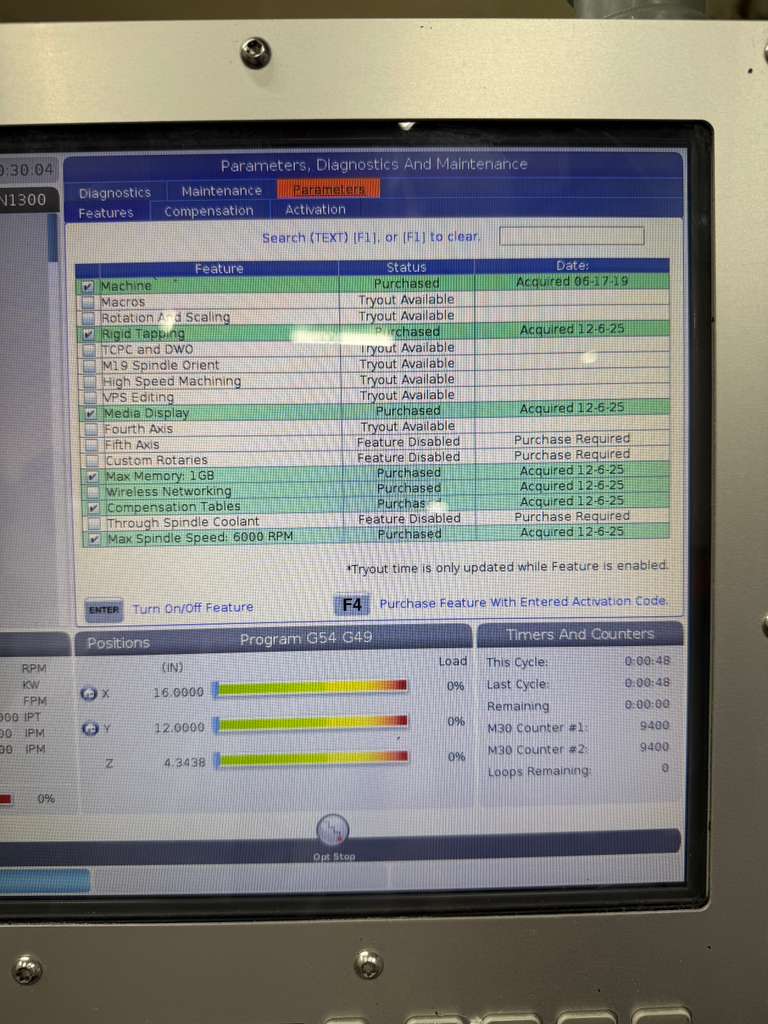

  • Equipped With:

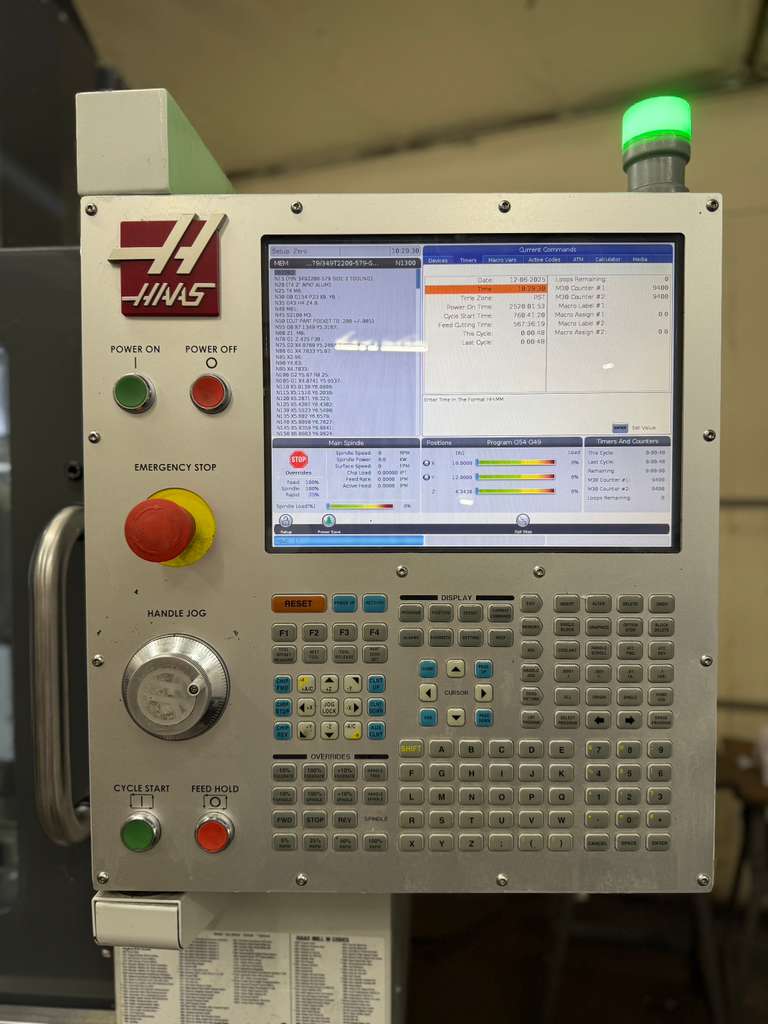

  • Haas CNC Control
  • 6000 RPM Spindle
  • CAT-40 Taper Spindle

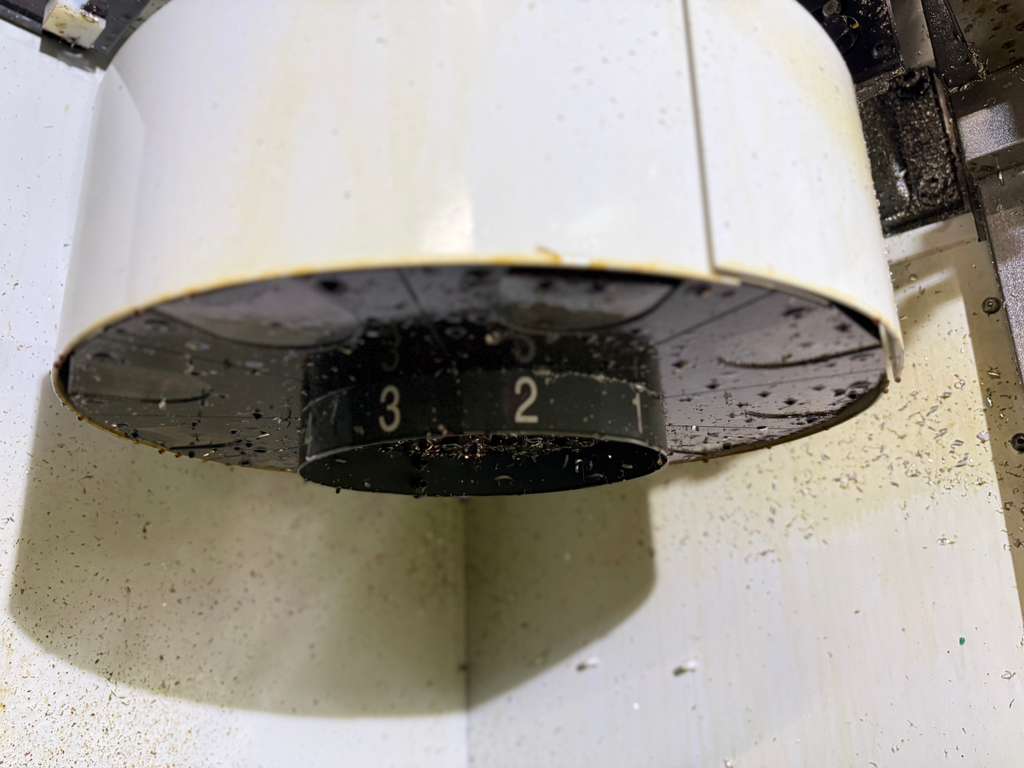

  • 10 Station Automatic Tool Changer
  • Rigid Tapping
  • Media Display
  • 1 GB Max Memory
  • Compensation Tables
  • Coolant System
  • Table:

  • Length: 36.0″
  • Width: 12″
  • Number of Std T-Slots: 3
  • T-Slot Width: 5/8″
  • Max Weight on Table: 500 lbs
  • Travel:

  • X-Axis: 16″
  • Y-Axis: 14″
  • Z-Axis: 15″
  • Rapid Traverse Rates: 800 Inch Per Minute
  • Cutting Feed Rates: 650 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 19″
  • Automatic Tool Changer:

  • Capacity: 10 Station
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 3.5″
  • Tool Change Time: 4.2 Sec.
  • Spindle:

  • Taper Size: CAT-40
  • Speed Range: 6000 RPM
  • Spindle Power: 10 HP
  • Max Torque: 33.0 ft-lbf @ 1200 rpm
  • General:

  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 90″ x 80″ x 92″ High
  • Weight: 4450 lbs

No detailed specifications listed for this machine yet — call us for full specs.
