All specifications are approximations and are subject to verification.
-

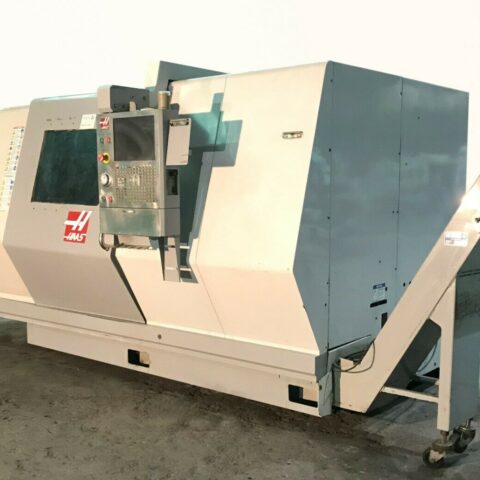

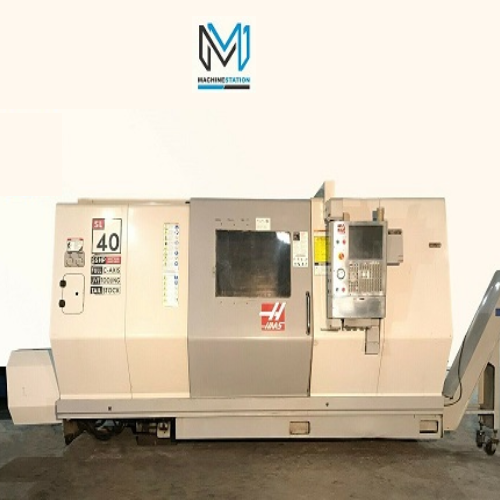

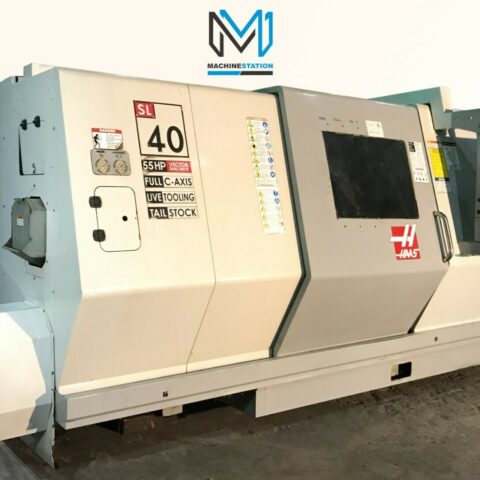

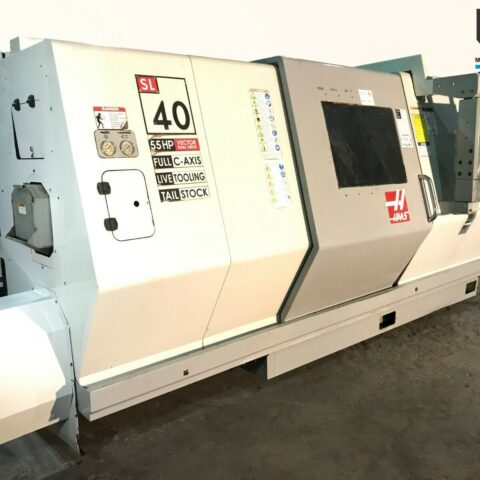

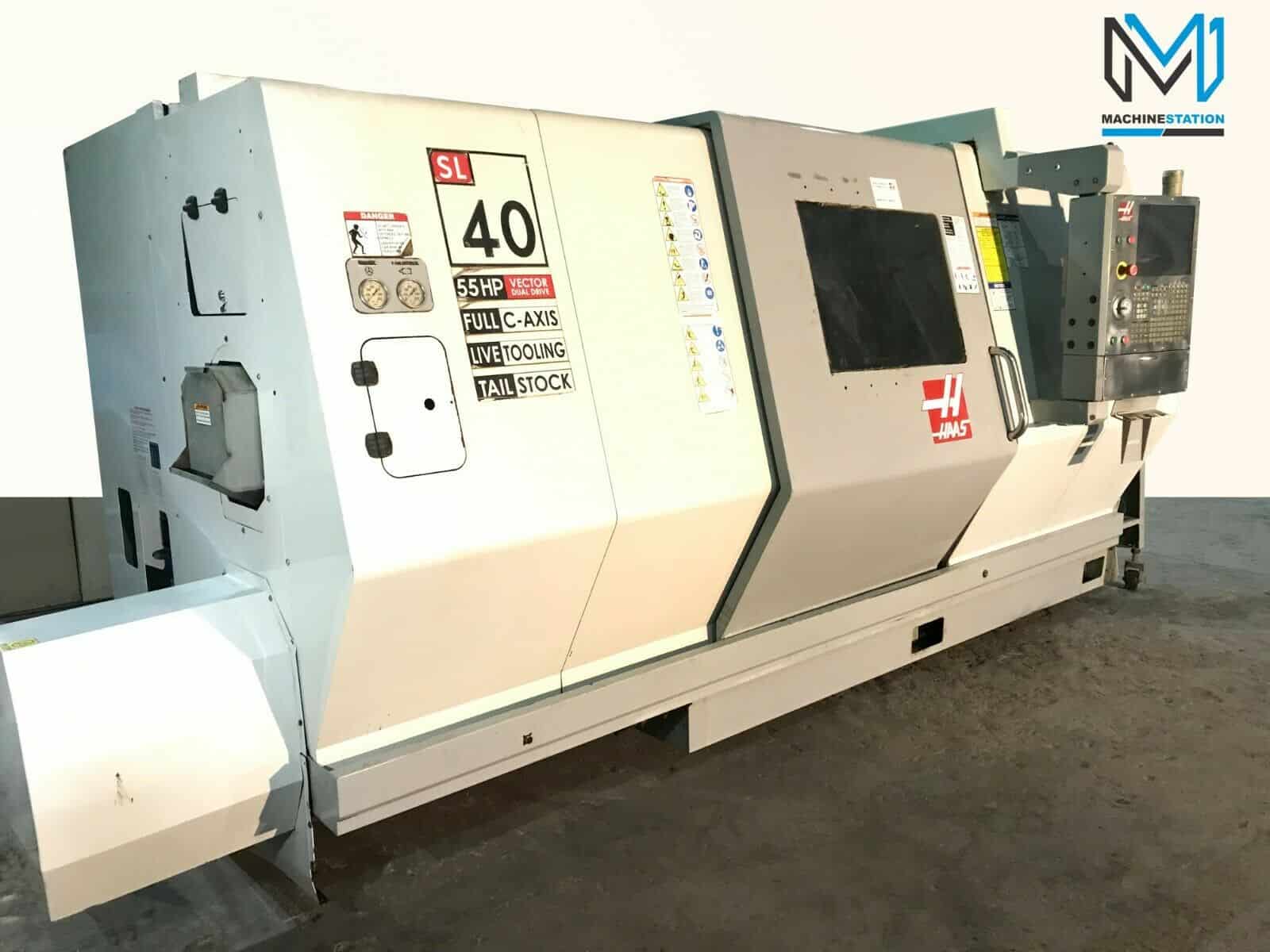

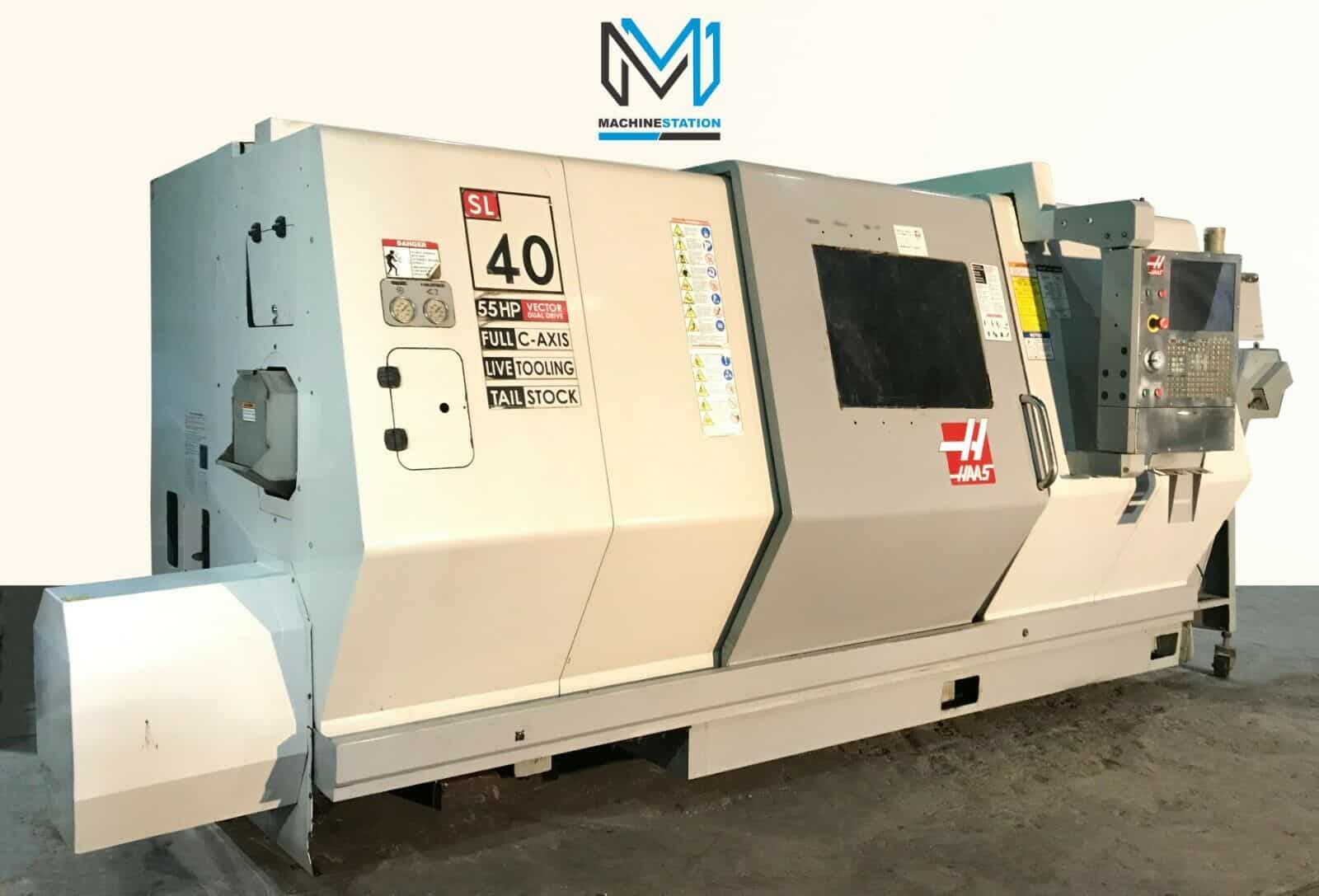

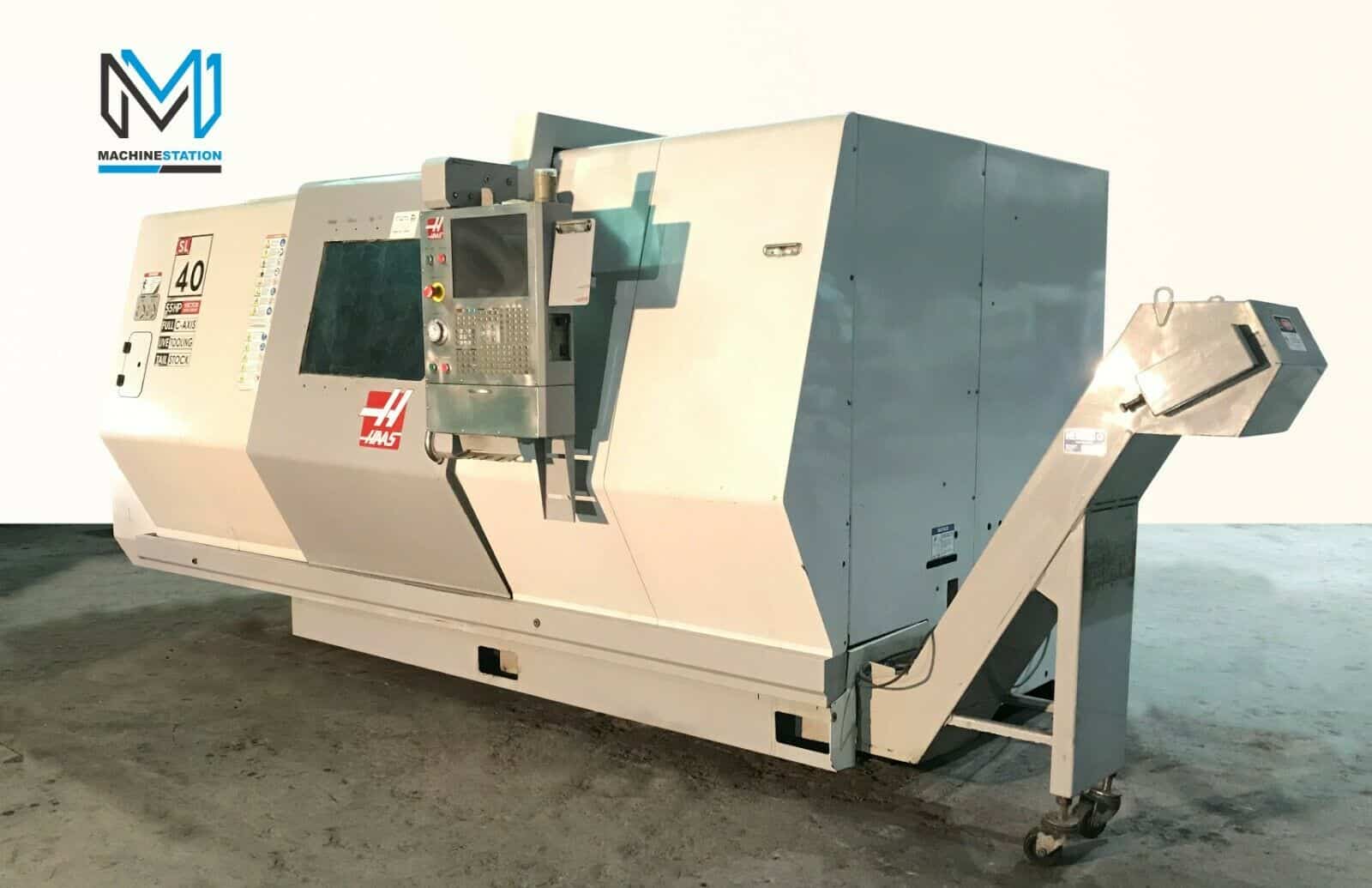

Haas SL-40LM Equipped With:

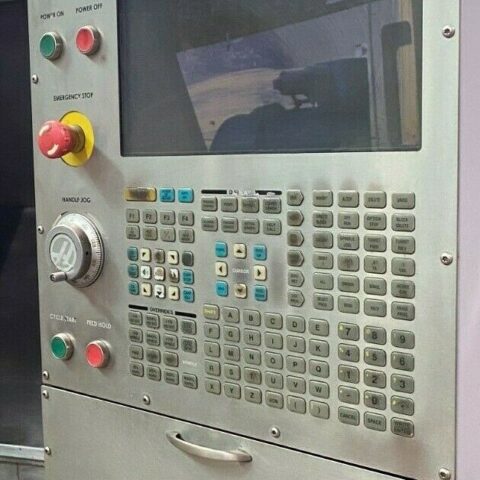

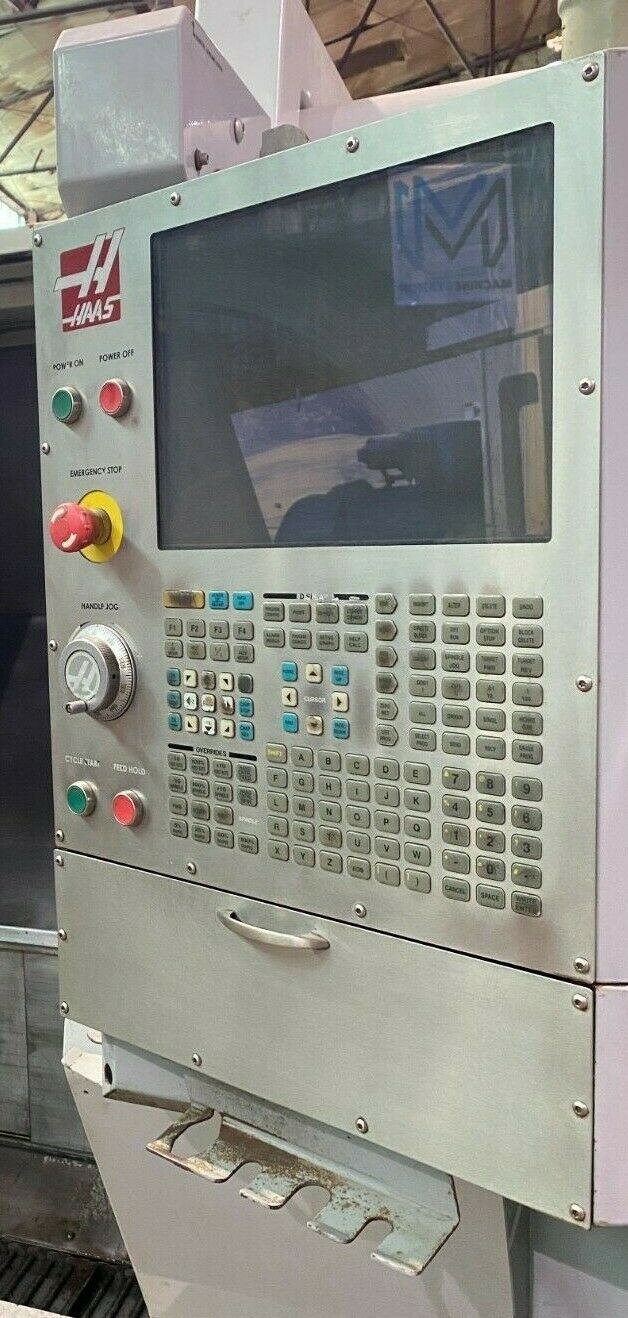

- Haas 32 Bit CNC Control

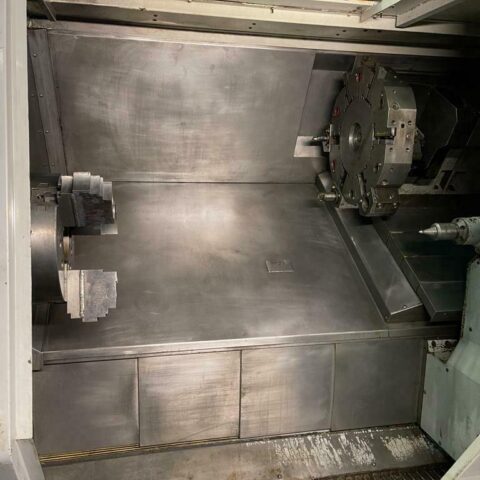

- C Axis Live Tool Capability

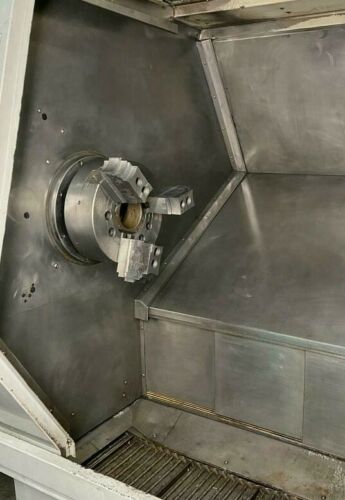

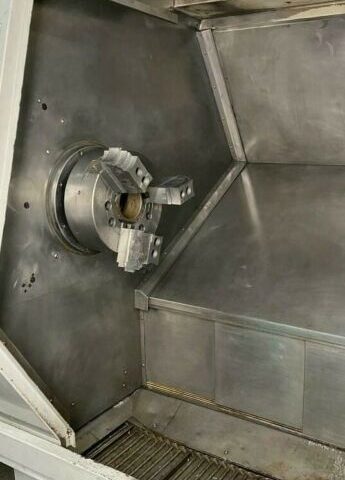

- 15″ 3 Jaw Hydraulic Chuck
- 50HP Gearbox Spindle
- USB Drive

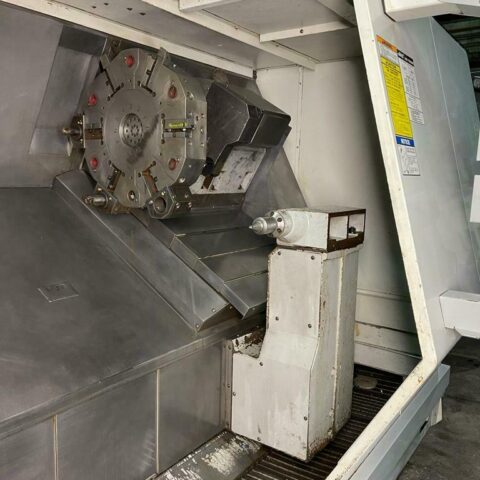

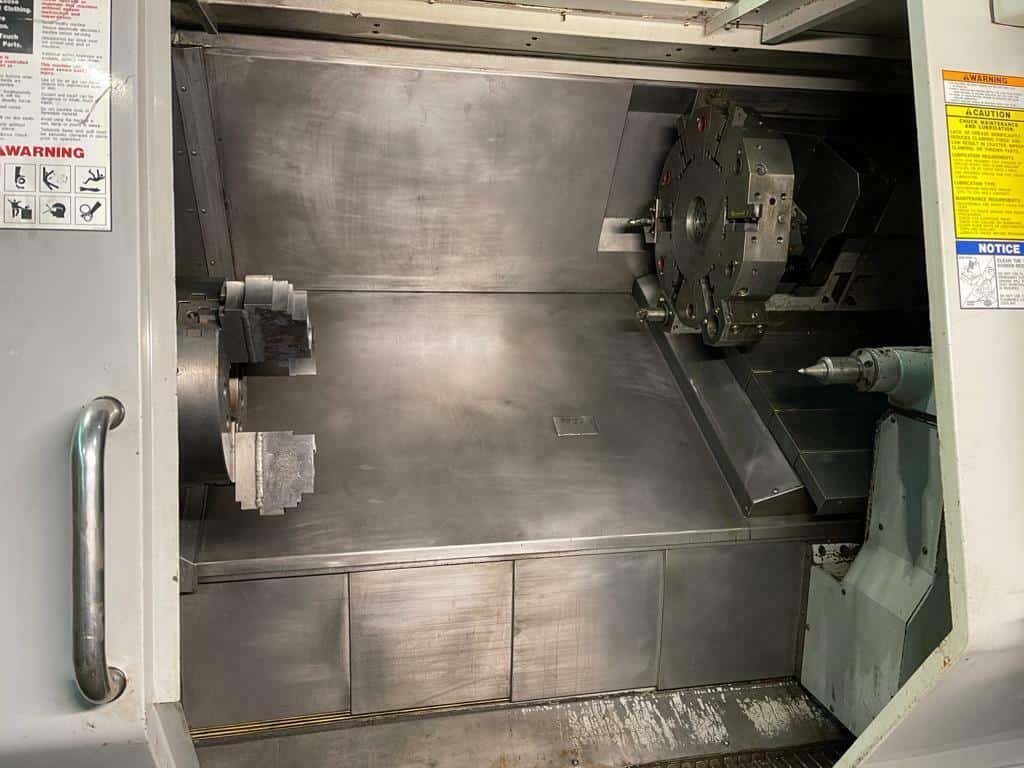

- 12 Station Live Tool Turret
- Programmable Tailstock
- Rigid Tapping
- Coolant System
- Foot Switch
- Chip Conveyor
-
Travels:
- X Axis Travel: 11.3″
- Z Axis Travel: 42.0 “
- Rapid Traverse X Axis: 710 IPM
- Rapid Traverse Z Axis: 710 IPM
-
Capacity:
- Max Turning Diameter: 25.5″
- Max Turning Length: 40.0″
- Max Bar Capacity: 4.75″
- Swing Over Bed: 40.0″
- Distance Between Centers: 44.0″
-
Spindle:
- Spindle Nose: A2-11
- Spindle Bore: 5.02″
- Spindle Speed: 24 – 2400 RPM
- Spindle Motor: 30 HP
-

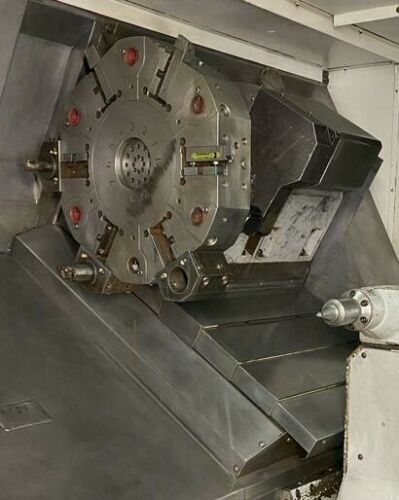

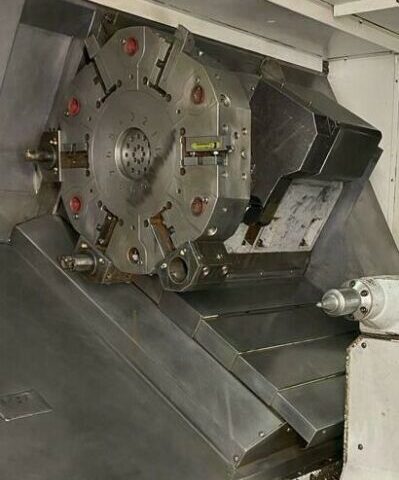

Turret:
- Turret Capacity: 12 Stations Live Tool Turret
- Index Time: 1 Second
-

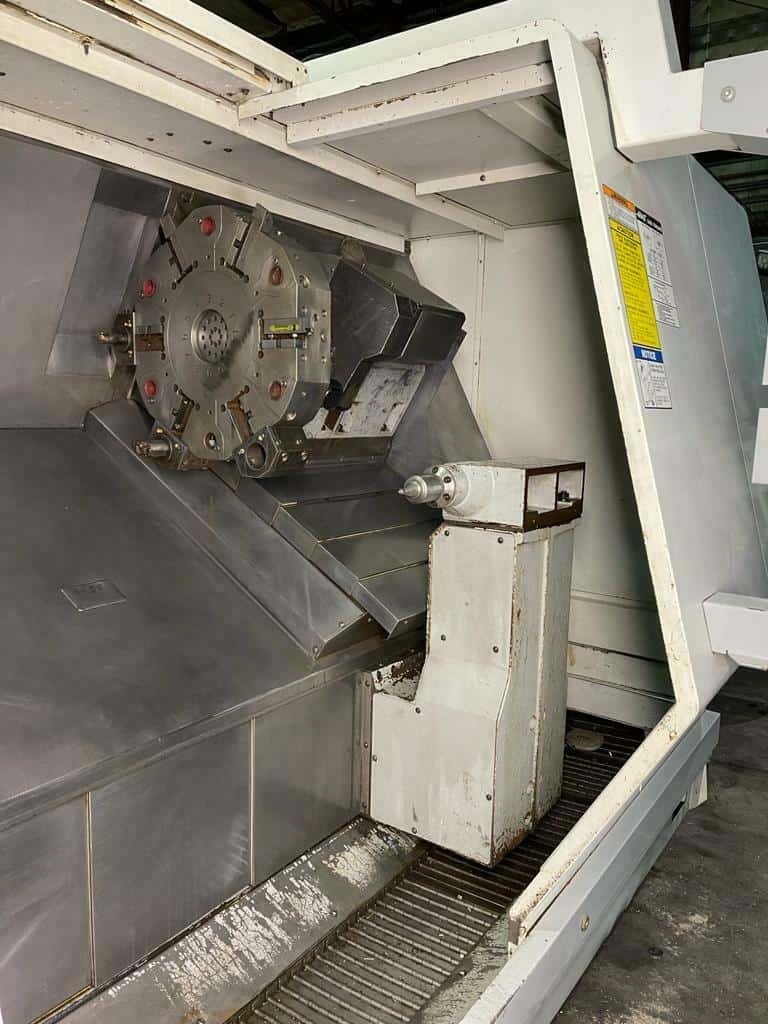

Tailstock:
- Tailstock Taper: MT-4
- Tailstock Body Travel: 34.0″
-
General:

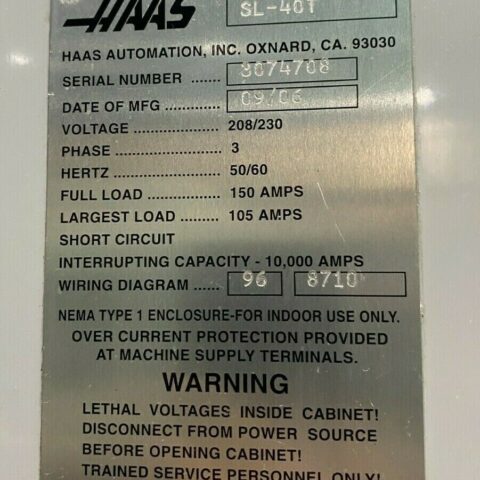

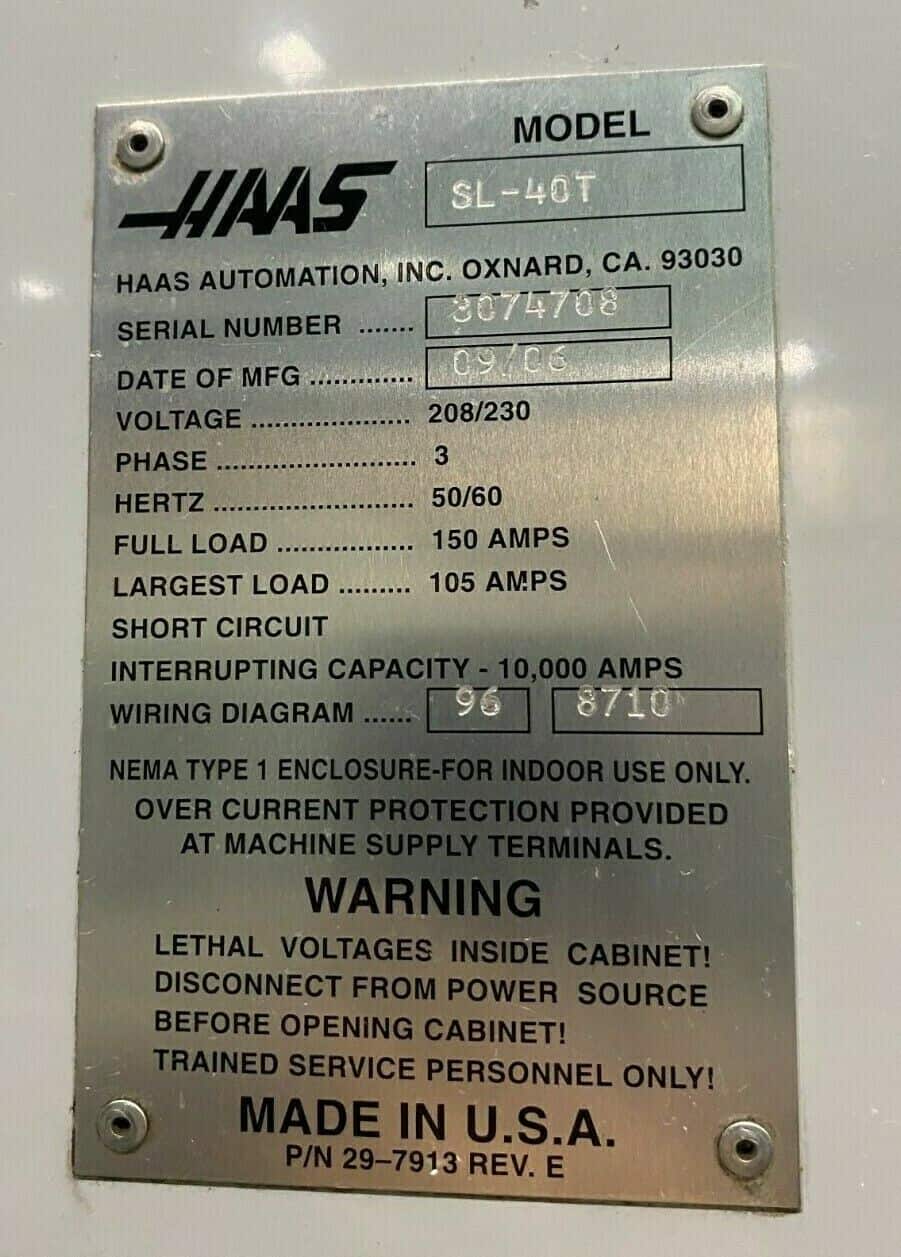

- Power: 45 kva, 220v / 3-Phase Overall
- Dimensions: 180″ X 102″ X 104 ” High
- Weight: 20,000 lbs
“No Charges for loading at list Price”
