*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model No.: | SL-40T |
| Year: | 2006 |
| Machine Type: | CNC Turning Center |

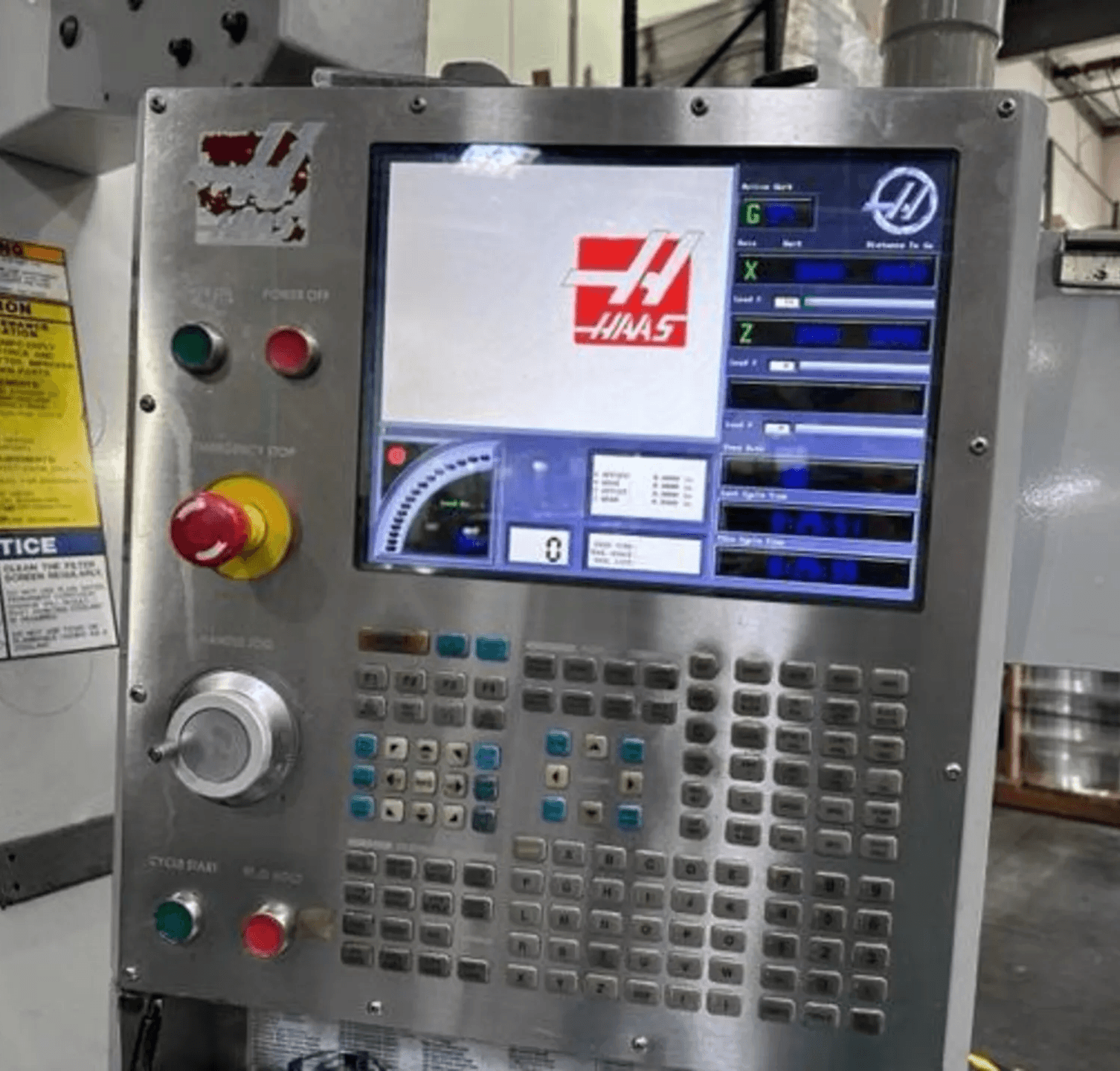

| Control: | Haas CNC Control |
| Country of Origin: | USA |
| Features: |
|---|
| Big Bore Spindle |
| Haas CNC Control |
| Programmable Tailstock |
| Hydraulic Chuck |
| Chip Conveyor |
| Tool Presetter |
| Coolant System |
| Automatic Lubrication System |
| Enclosed Splash Guard |
| Heavy Duty Box Way Construction |
| Capacity: |
|---|
| Max Swing Over Bed: 34.5″ |
| Max Cutting Diameter: 25.5″ |
| Max Cutting Length: 44″ |
| Bar Capacity: 4.0″ |
| Travels: |
|---|
| X-Axis Travel: 17″ |
| Z-Axis Travel: 44″ |
| Spindle: |
|---|
| Spindle Speed: 2,400 RPM |
| Spindle Nose: A2-8 |
| Spindle Bore: 4.12″ |
| Main Motor: 40 HP |
| Turret: |
|---|
| Turret Stations: 10 |
| Tool Size: 1.25″ |
| Boring Bar Capacity: 2″ |
| Tailstock: |
|---|
| Tailstock Type: Programmable Hydraulic |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Voltage: 208/230V |
| Phase: 3 Phase |
| Machine Weight: Approx. 18,000 lbs |
