*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*

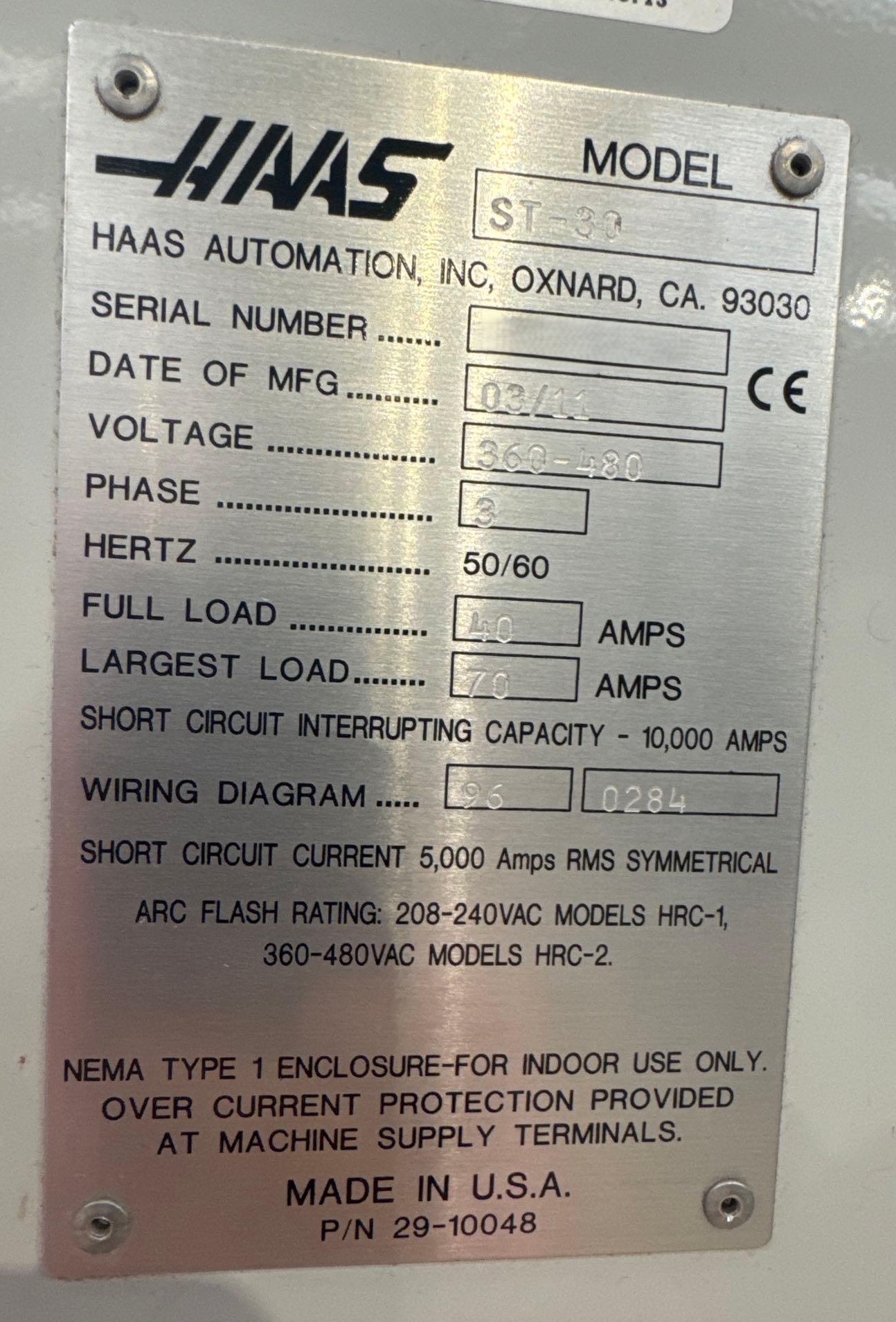

| Make: | Haas |
| Model: | ST-30 |
| Year: | 2011 |
| Machine Type: | CNC Turning Center |
| CNC Control: | Haas CNC Control |
| Equipped With: |
|---|
| Haas CNC Control |
| 10″ 3-Jaw Chuck |
| 12-Station Bolt-On Tool Turret |

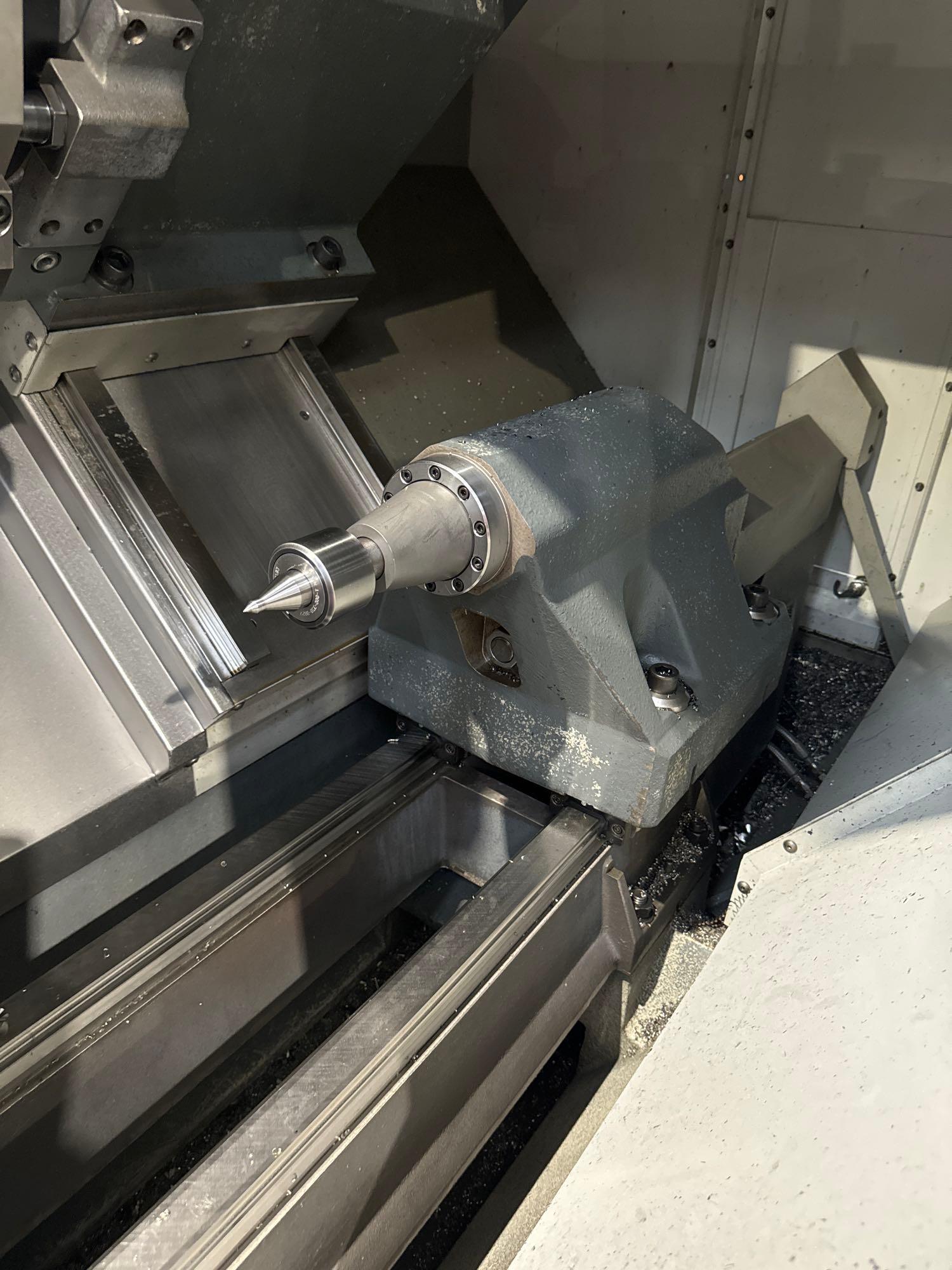

| Tailstock |
| Belt-Drive Spindle |
| Chip Conveyor |
| Coolant System |
| Enclosed Machine Guarding |
| Foot Switch |
| Leveling Pads |
| Rigid Tapping |
| Capacities: |
|---|
| Maximum Swing Over Bed: 31.75″ |
| Maximum Turning Diameter: 21.0″ |
| Maximum Turning Length: 32.5″ |
| Between Centers: 32.5″ |
| Travels: |
|---|
| X-Axis Travel: 9.4″ |
| Z-Axis Travel: 32.5″ |
| X-Axis Rapid Traverse: 945 IPM |
| Z-Axis Rapid Traverse: 945 IPM |
| Spindle: |
|---|
| Spindle Motor: 30 HP |
| Maximum Spindle Speed: 3,400 RPM |
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Bar Capacity: 3.0″ |
| Chuck Size: 10″ |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Boring Bar Rear Clearance: 4.0″ |
| General: |
|---|
| Power Source: 360–480V / 3-Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 170″ L × 90″ W × 98″ H |
| Machine Weight (Approx.): 10,900 lbs. |
