*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

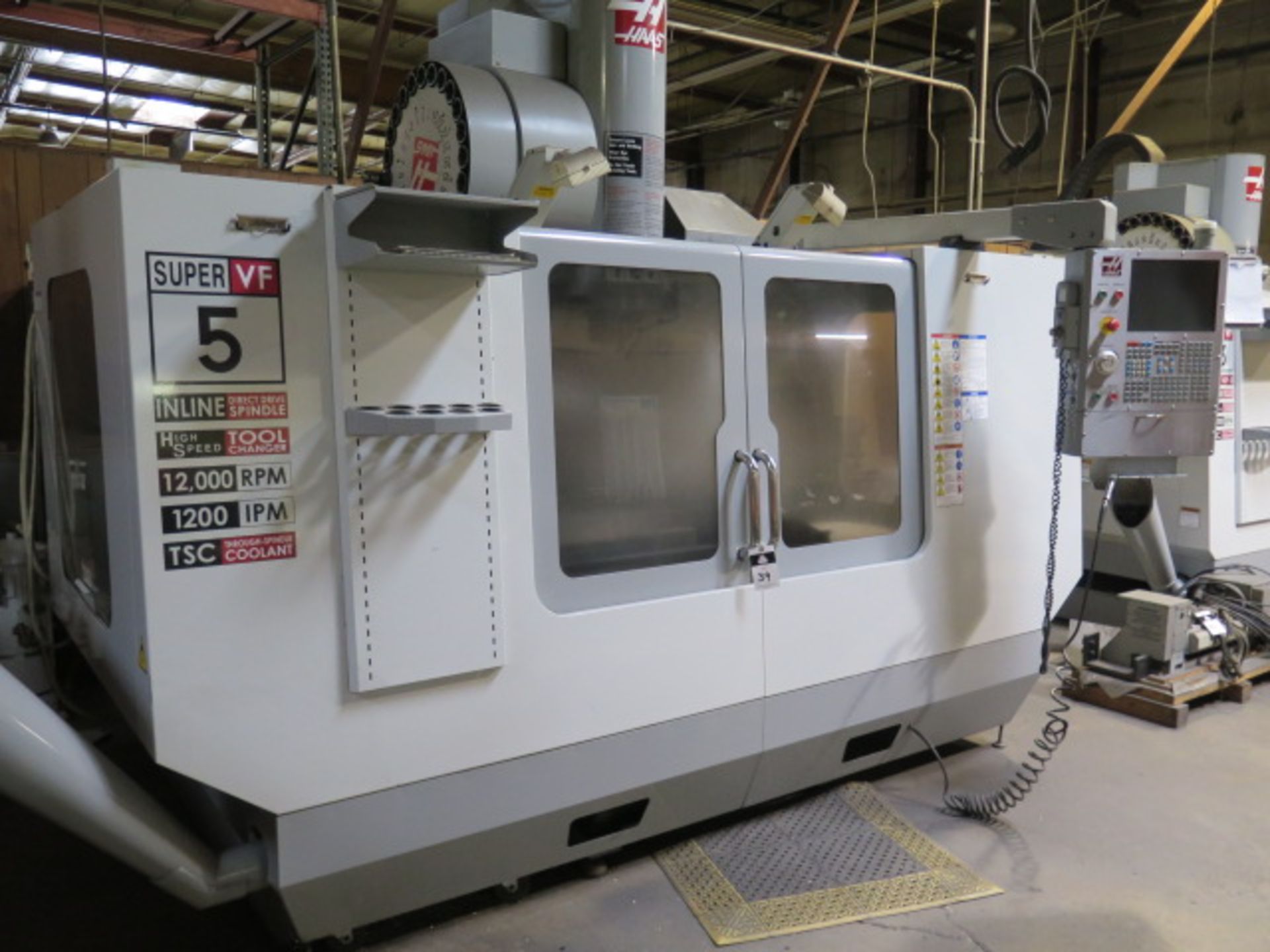

| Make: | Haas |
| Model: | Super VF-5SS |
| Year: | 2009 |
| Condition: | Used – Good |
| Machine Type: | Super-Speed CNC Vertical Machining Center |
| Country of Origin: | USA |
| Features: |
|---|
- Haas CNC Control
- Super-Speed (SS) Configuration
- Inline Direct-Drive Spindle
- High-Speed Rapids on All Axes
- Ultra-Fast Side-Mount Tool Changer
- Rigid Tapping
- High-Speed Look-Ahead Machining
- Fully Enclosed Splash Guard
|
| Travels: |
|---|
- X-Axis Travel: 50″
- Y-Axis Travel: 26″
- Z-Axis Travel: 25″
|
| Table: |
|---|
- Table Size: 52″ × 23″
- Standard Haas T-Slot Configuration
- Max Table Load: 1,750 lbs
|
| Spindle: |
|---|
- Spindle Taper: CT40
- Spindle Speed: 12,000 RPM
- Spindle Type: Inline Direct-Drive
- Spindle Motor: 30 HP Vector Dual Drive
- Max Torque: 90 ft-lbs @ 2,000 RPM
- Programmable Spindle Orientation
- Rigid Tapping (Standard)
|
| Feedrates: |
|---|
- Rapid Traverse (X/Y/Z): 1,200 IPM
- Max Cutting Feedrate: 835 IPM
|
| Automatic Tool Changer: |
|---|
- High-Speed Side-Mount ATC
- Tool Capacity: 24 + 1
- Tool-to-Tool Time: 1.6 sec
- Chip-to-Chip Time: 2.2 sec
- Max Tool Diameter: 3.0″
- Tool Holder Type: CT40
|

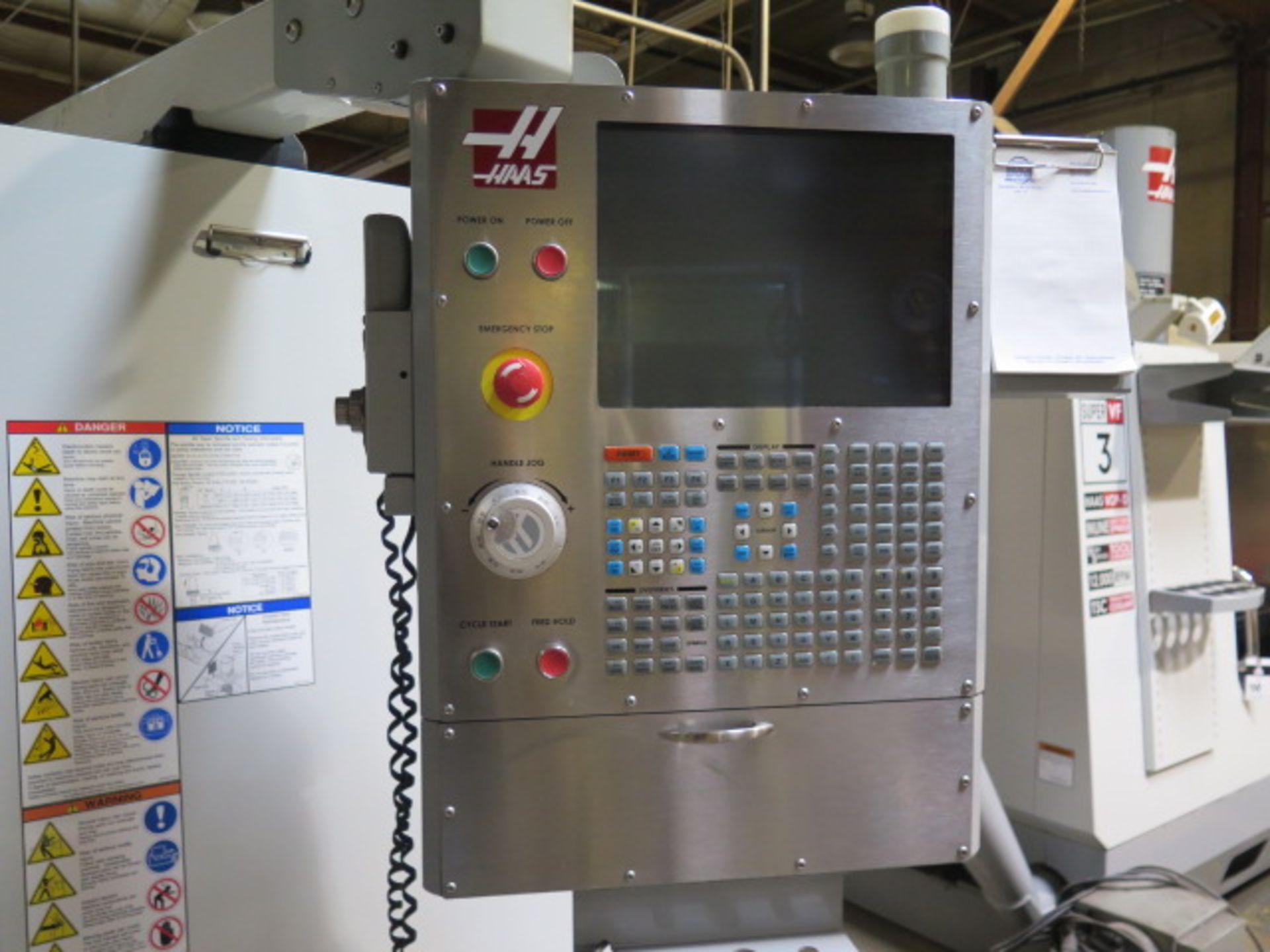

| Control: |
|---|
- Haas CNC Control
- ISO Standard G-Code Programming
- 15″ Color LCD Monitor
- USB Port
- User-Definable Macros
- Tool Life Management
- Coordinate Rotation & Scaling
- Optional Haas Intuitive Programming System
|
| Coolant & Chip Handling: |
|---|
- Flood Coolant (Standard)
- Programmable Coolant Nozzle (Optional)
- Chip Auger (Optional)
- Through-Spindle Coolant – TSC (Optional)
|

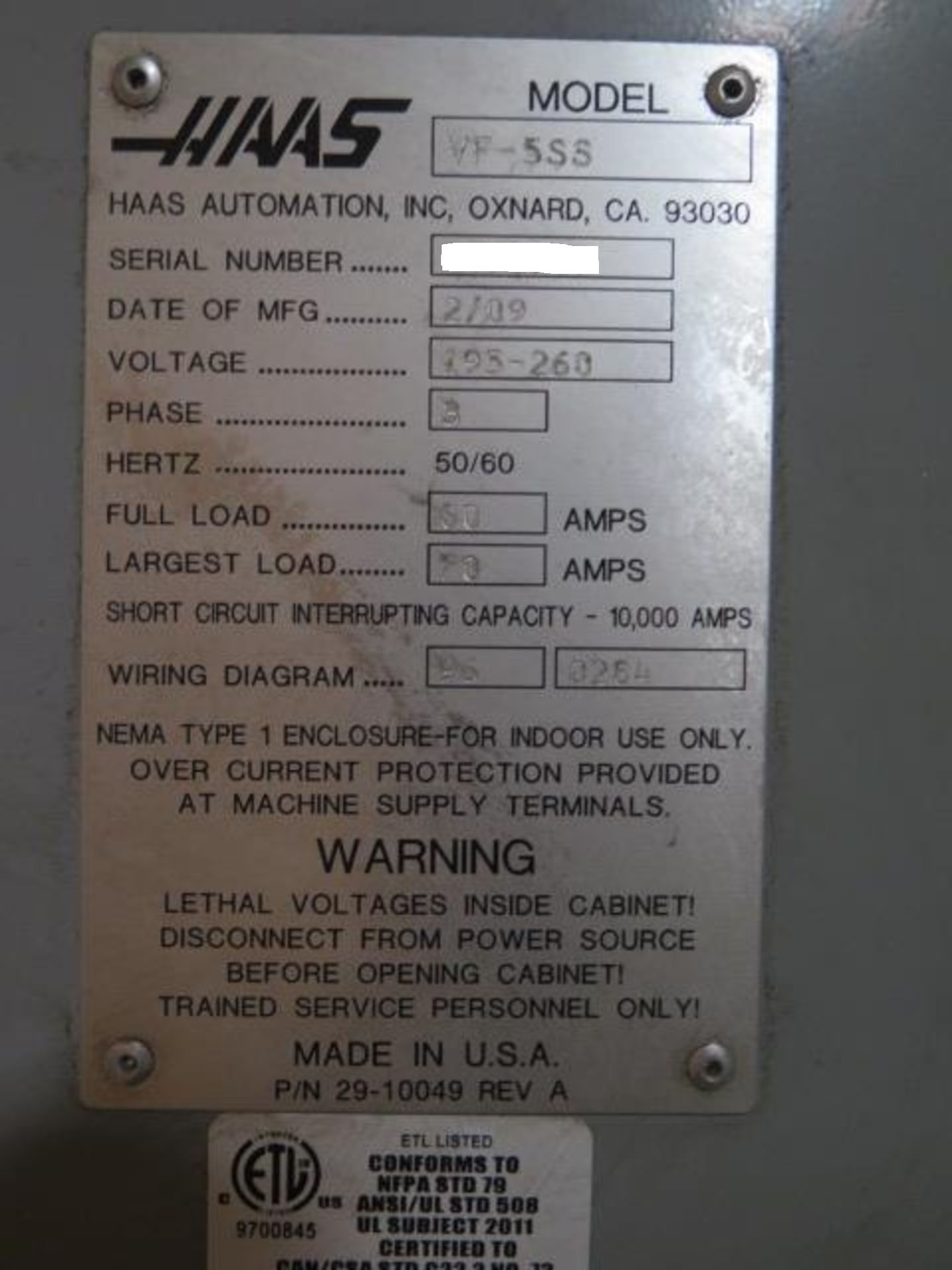

| Electrical: |
|---|
- Voltage: 195 – 260 VAC
- Phase: 3-Phase
- Frequency: 50 / 60 Hz
- Full Load Current: 50 Amps
- Largest Load: 63 Amps
- Short Circuit Interrupt Capacity: 10,000 Amps
- Enclosure Rating: NEMA Type 1 (Indoor Use)
|
| Machine Dimensions & Weight: |
|---|
- Max Operating Height: 119.0″
- Max Operating Width: 158.0″
- Max Operating Depth: 112.0″
- Machine Weight: 14,600 lbs
|
