*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

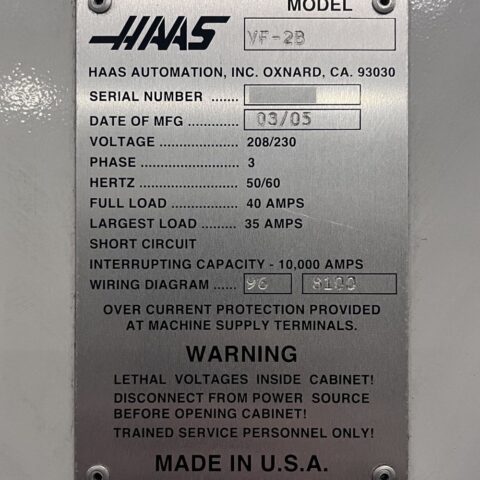

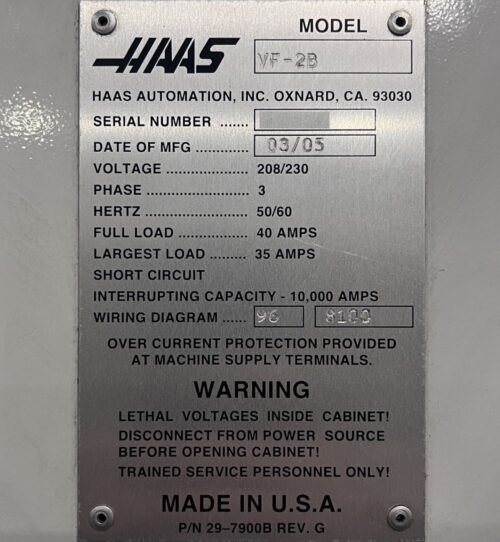

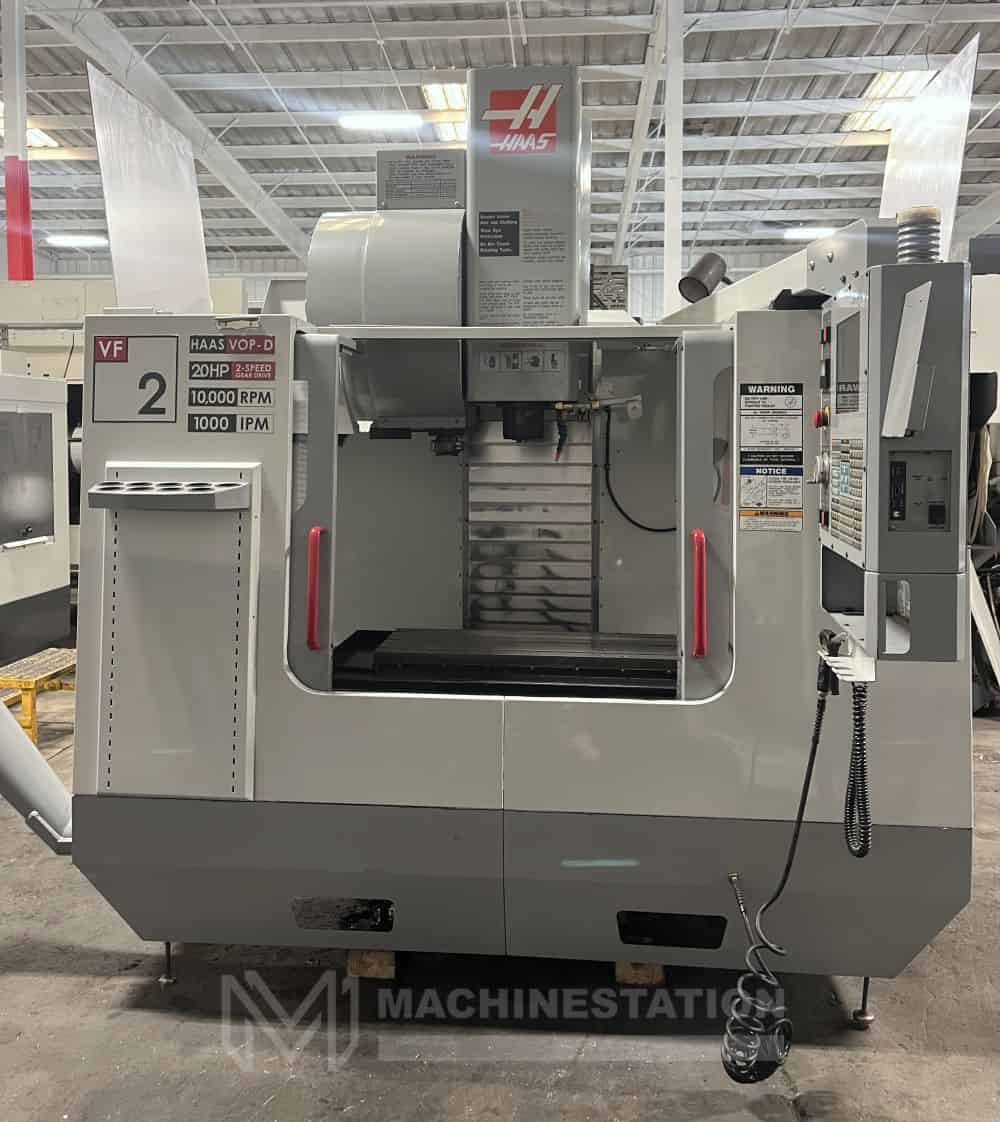

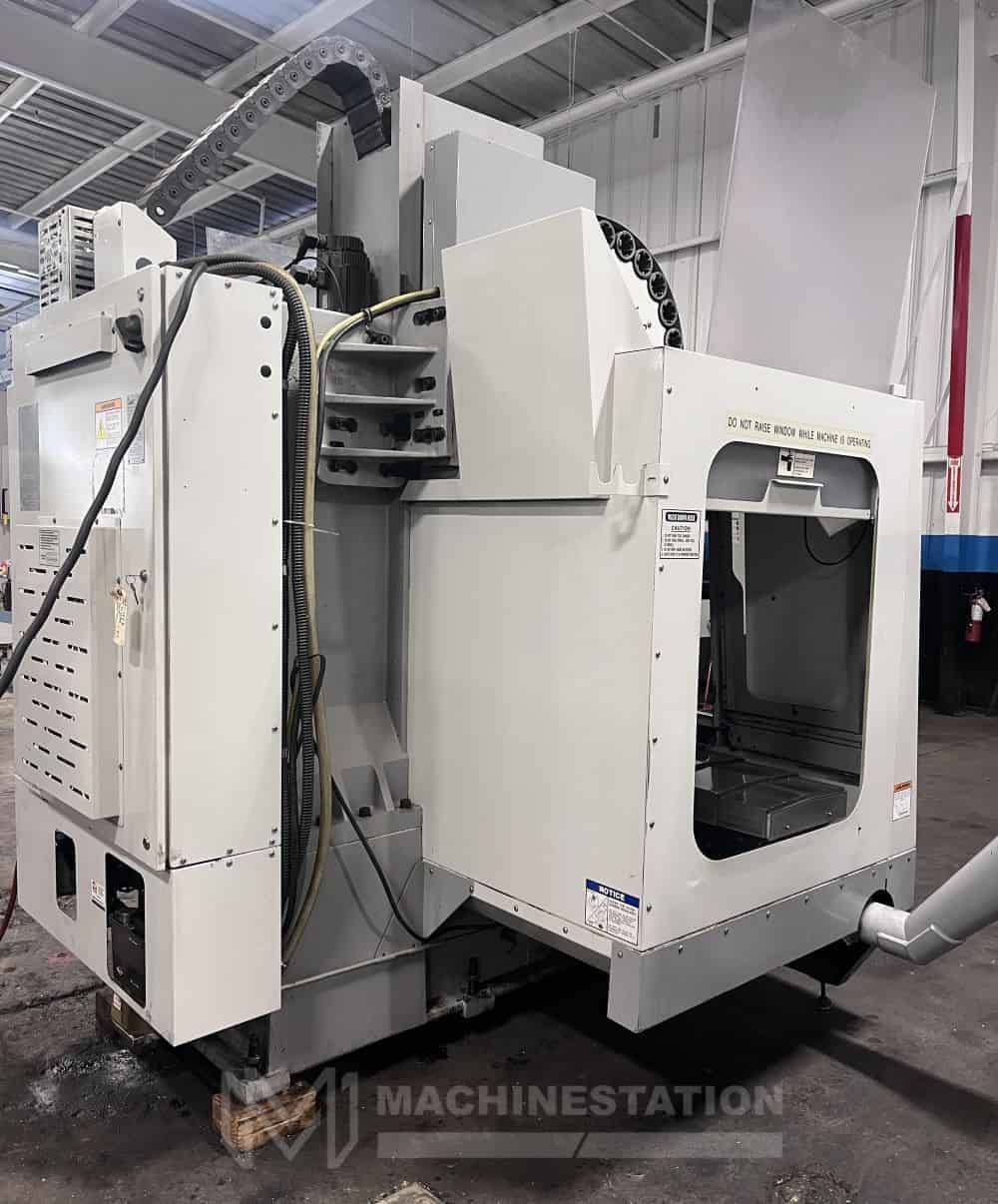

| Make | Haas |
| Model: | VF2B |
| Year: | 2005 |
| Condition: | Used – Good |
| Features: |
|---|

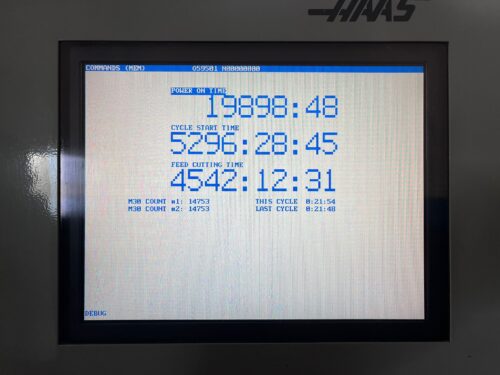

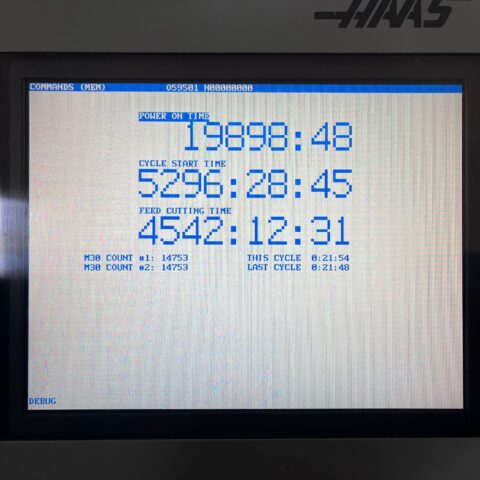

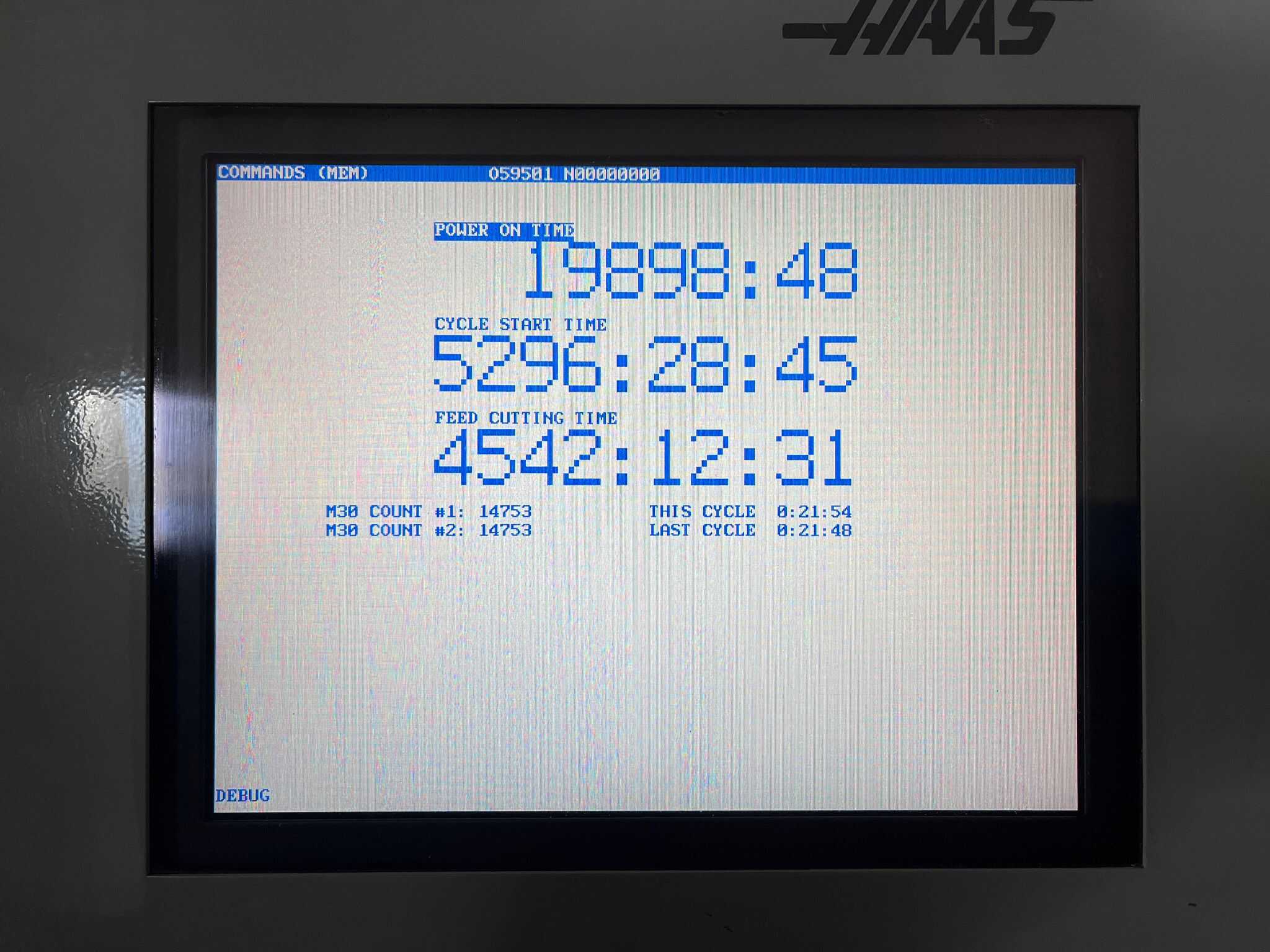

| Haas CNC Control |
| 4th Axis Ready |
| Haas VOP-D Package |
| 10,000 RPM Spindle |
| 1000 IPM Rapids |
| 20 HP 2-Speed Gear Drive |
| 24 Station Side Mount Automatic tool changer |
| Renishaw Probing System Ready |

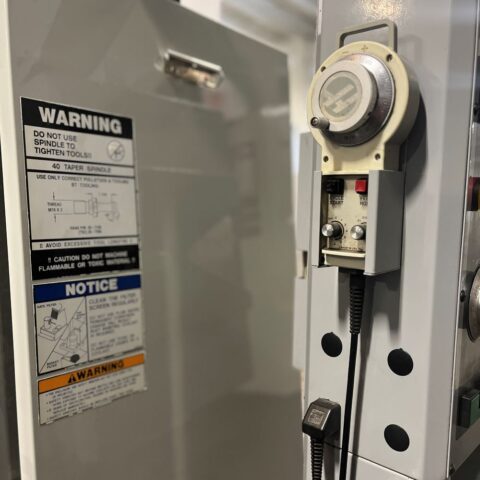

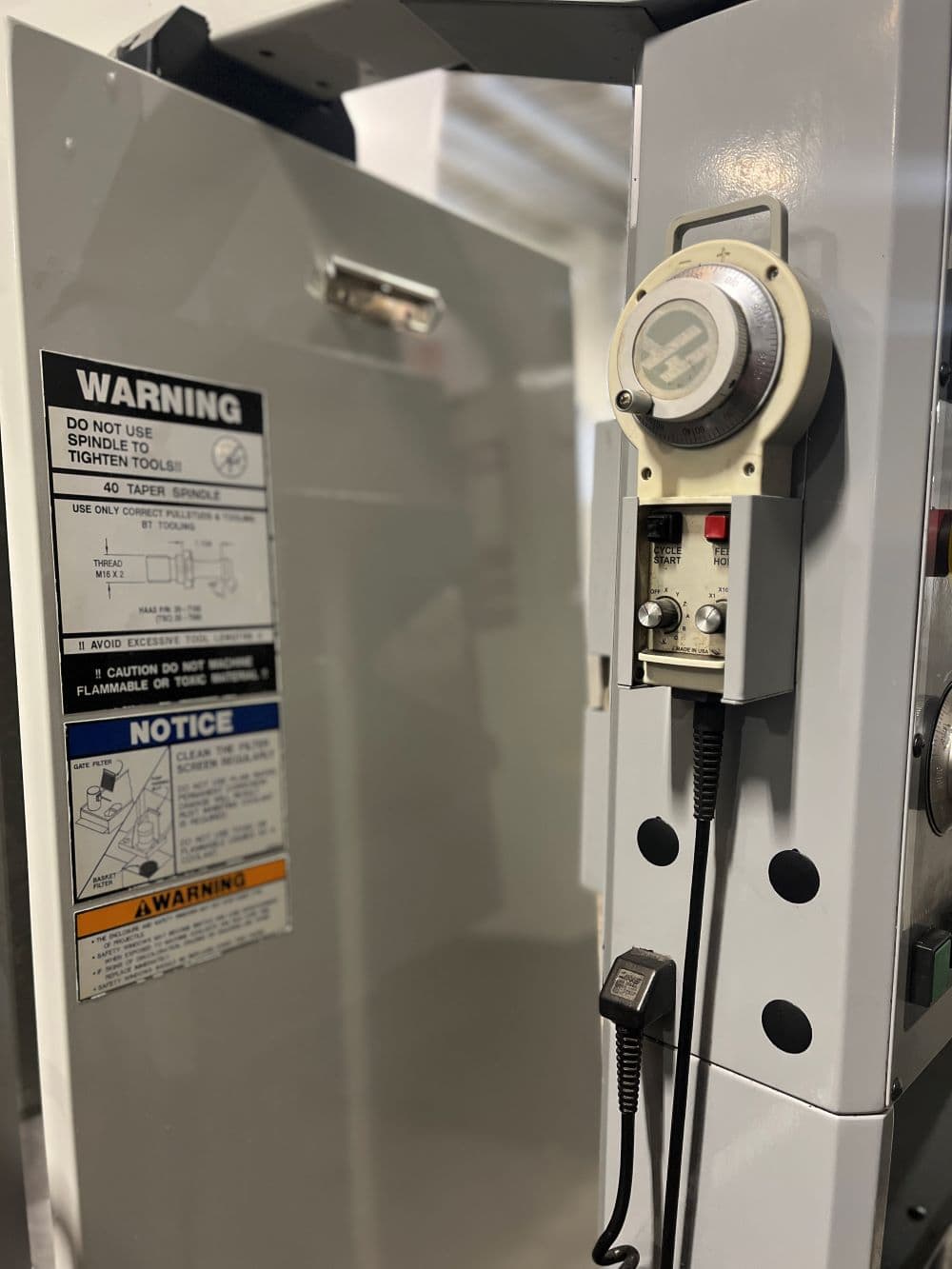

| MPG Handwheel Control |
| Rigid Tapping |

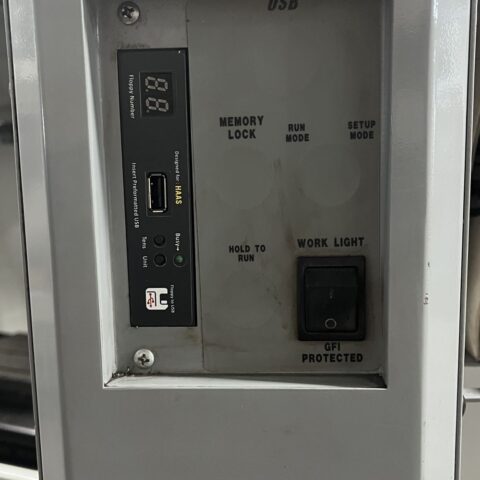

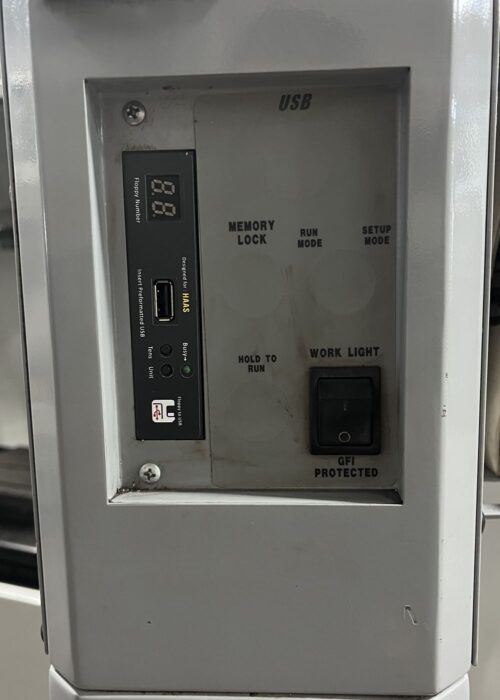

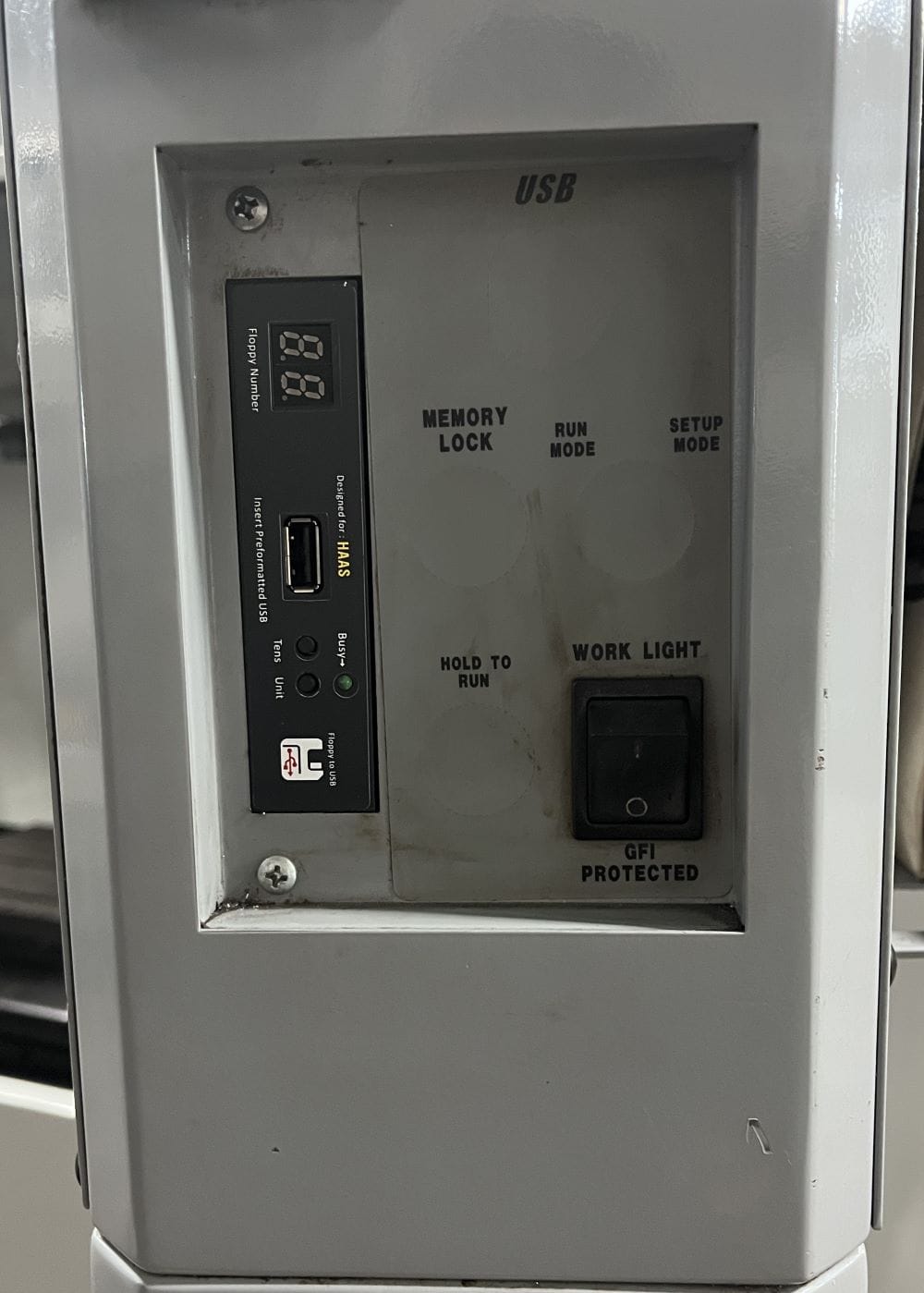

| USB Drive |
| Coolant System |
| Chip Auger |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |

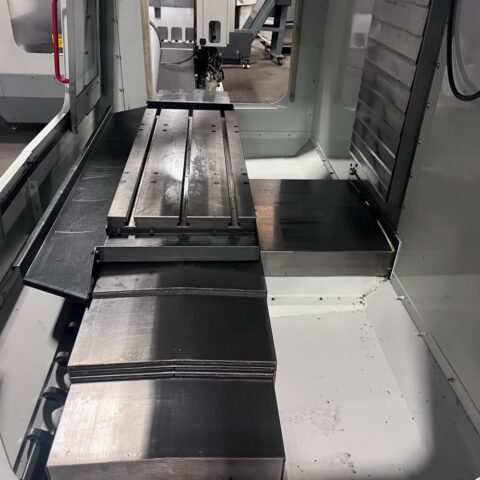

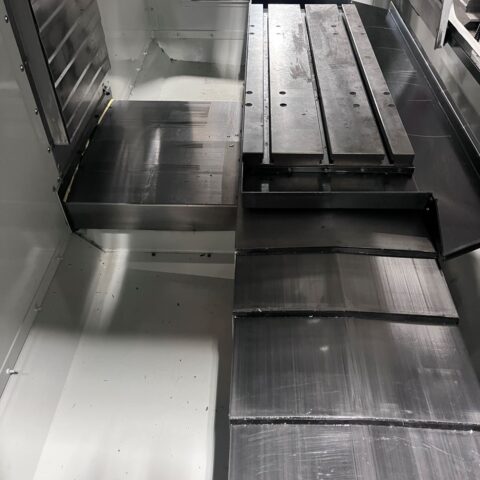

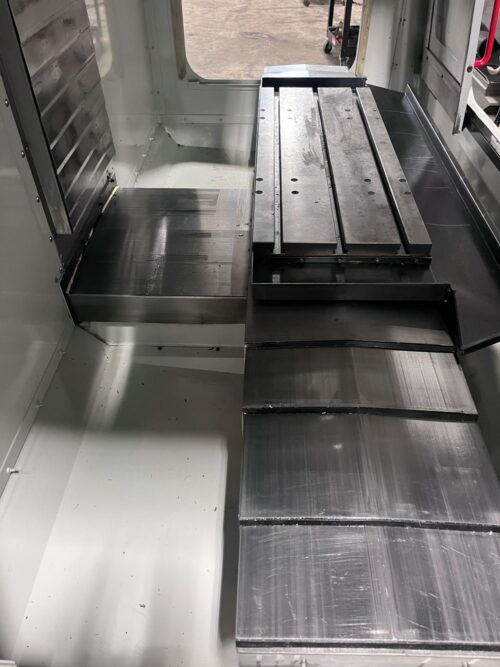

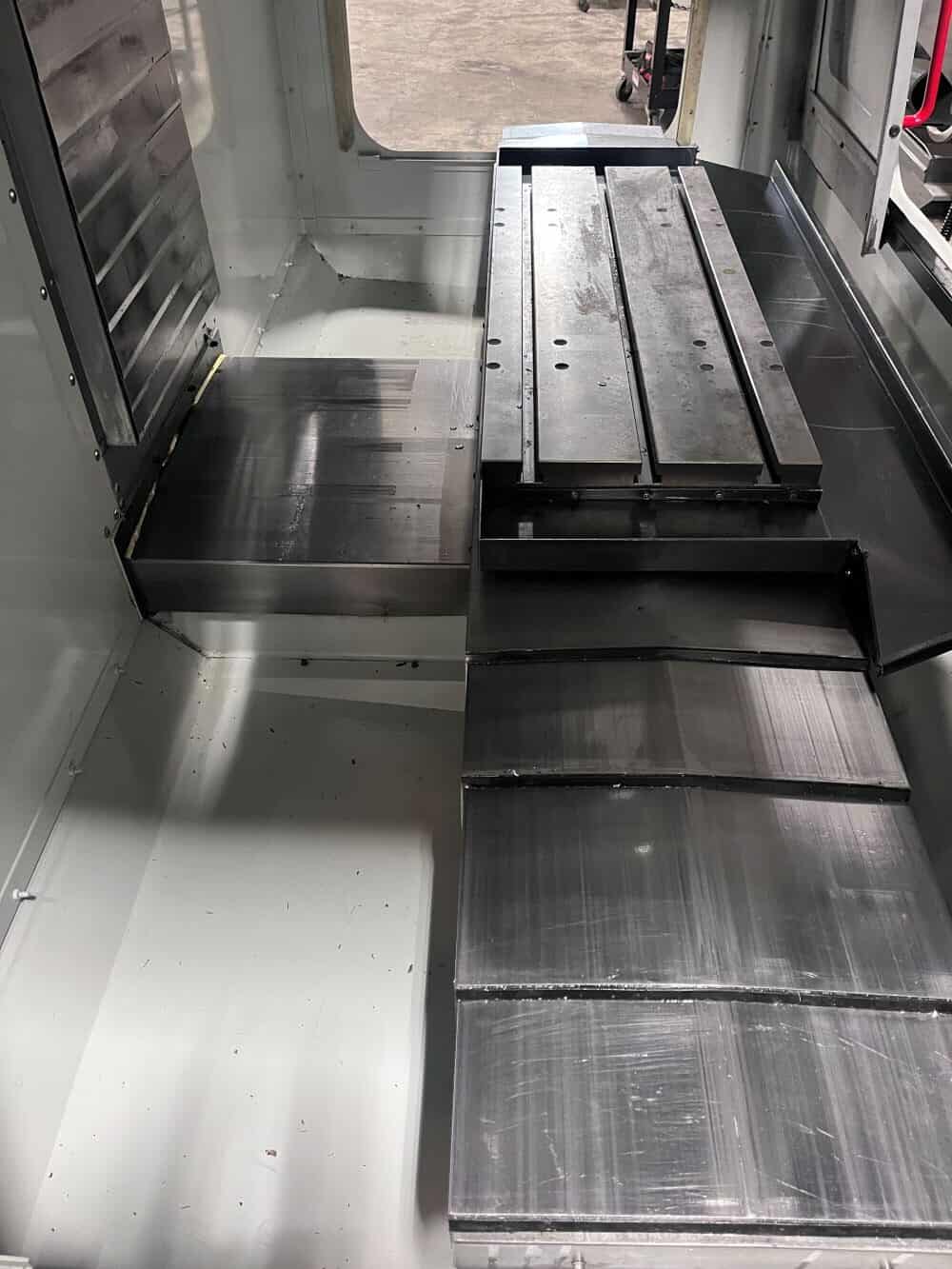

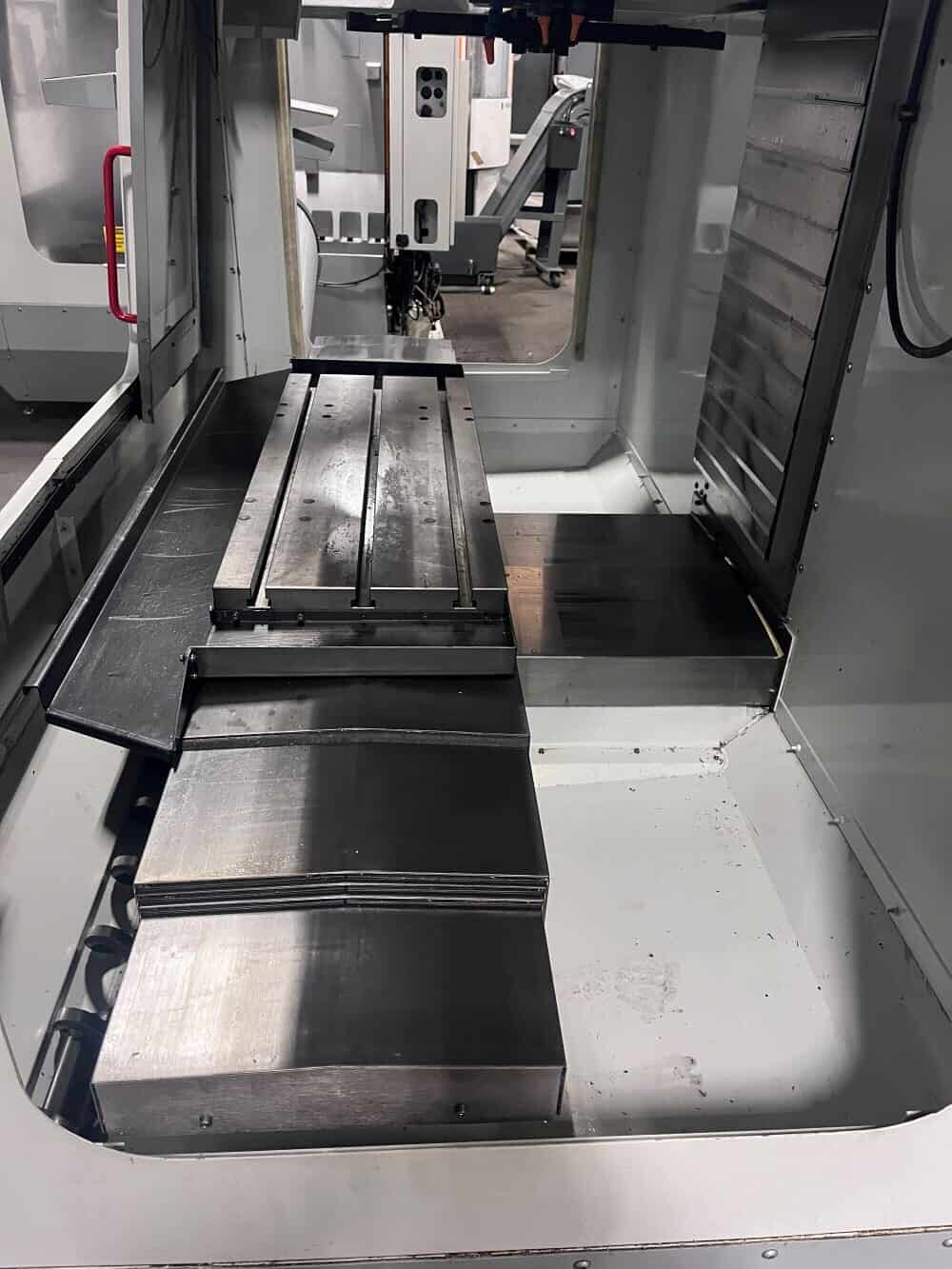

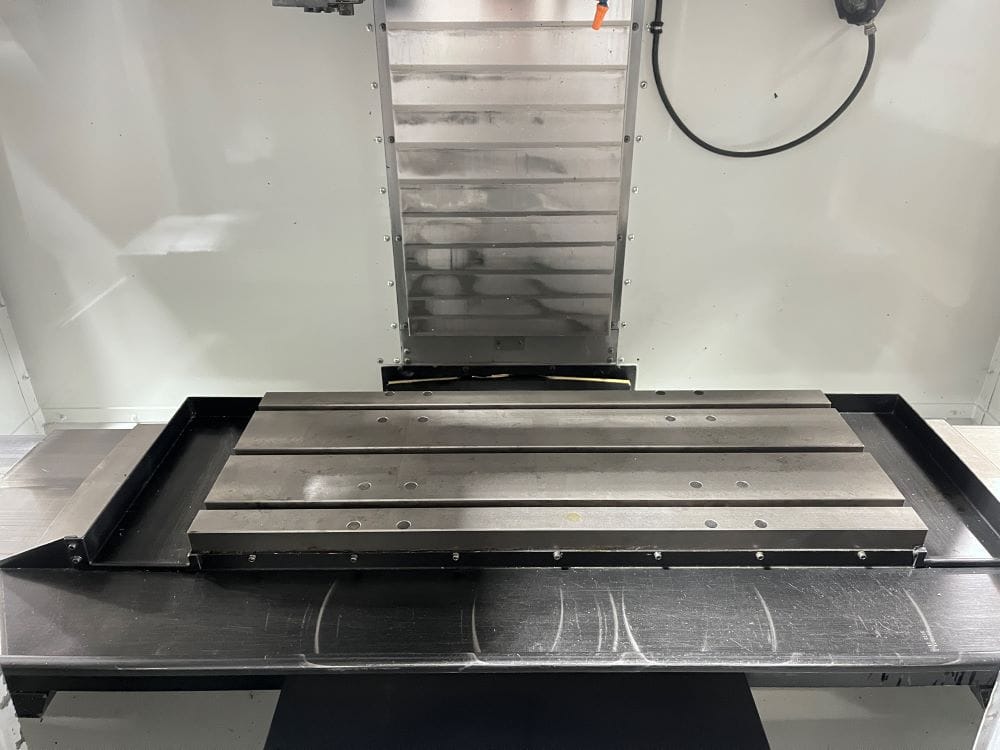

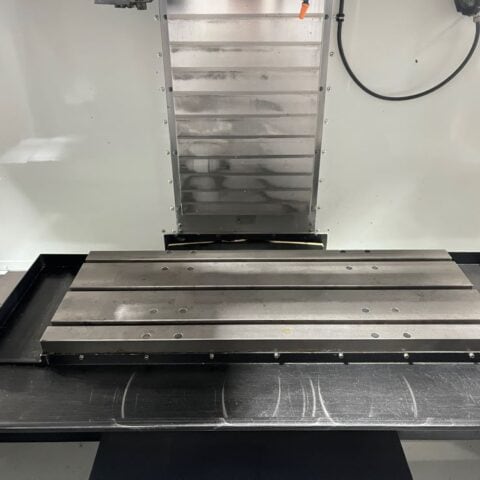

| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Max Weight on Table: 3000 lbs |

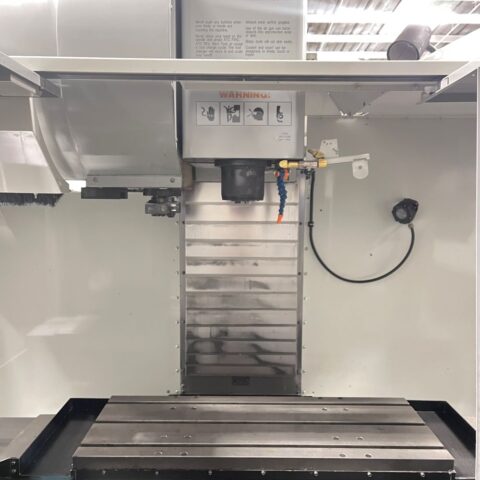

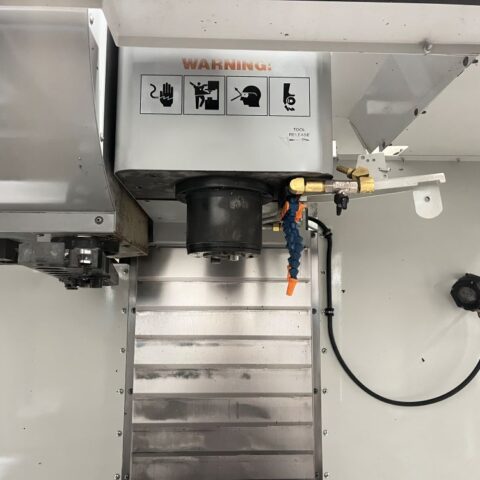

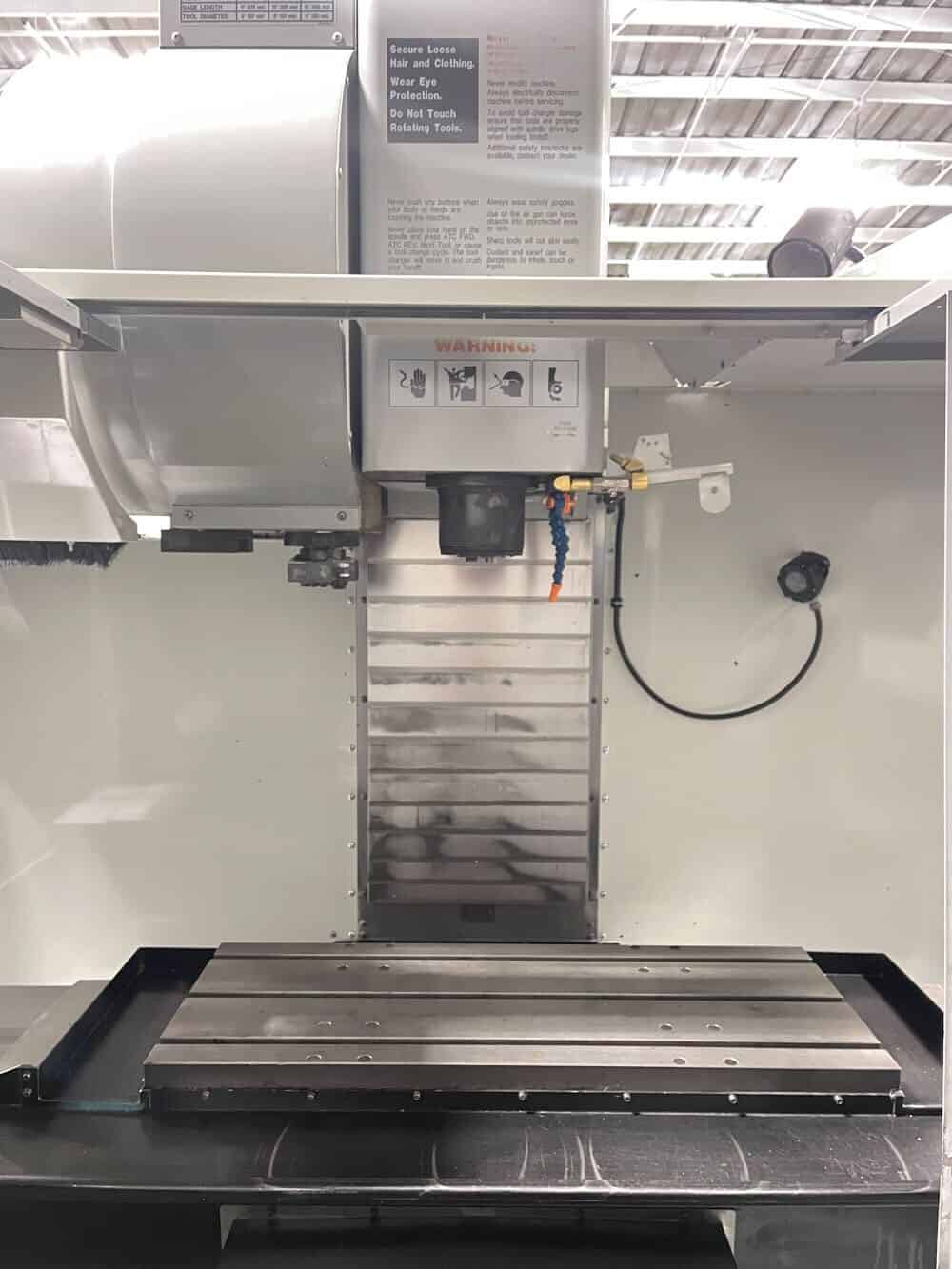

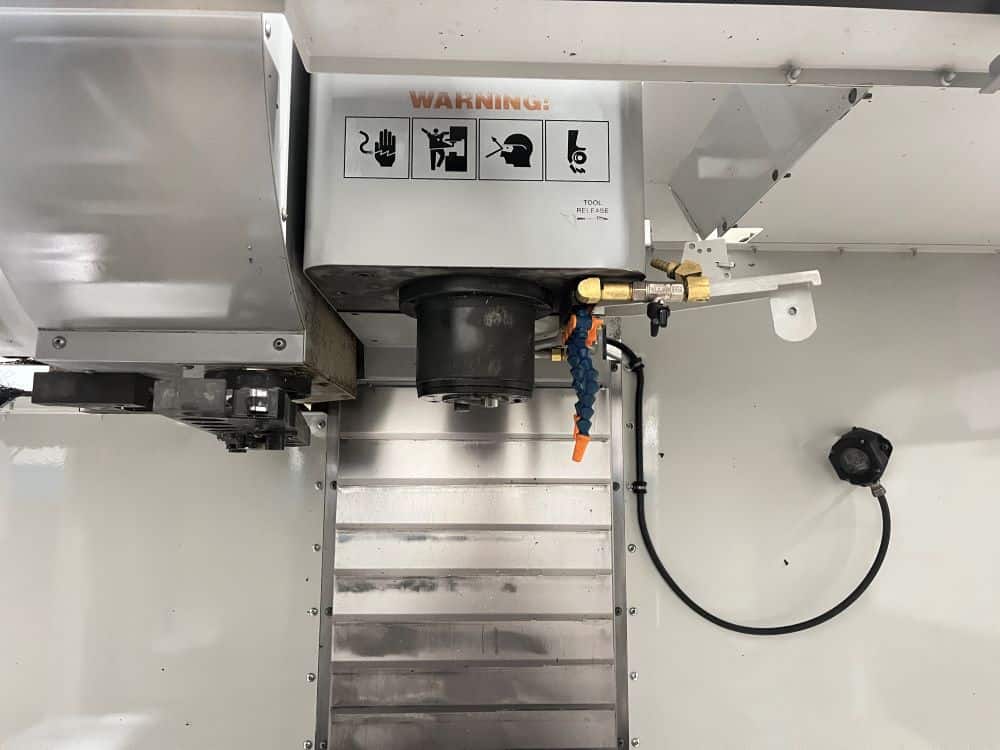

| Spindle: |
|---|
| Taper Size: BT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |

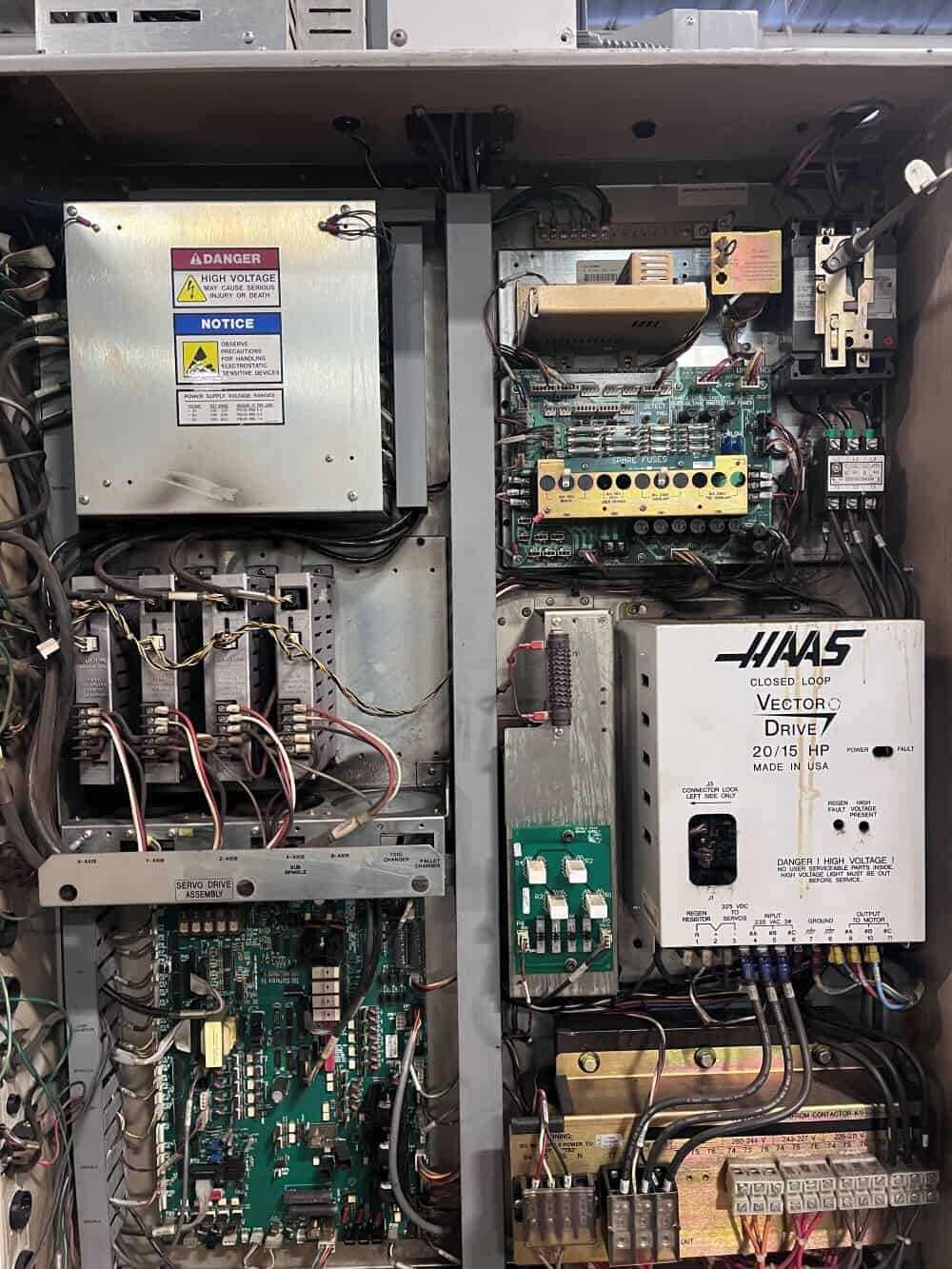

| Vector Drive Max Torque: 90 ft-lb @ 2000 RPM |

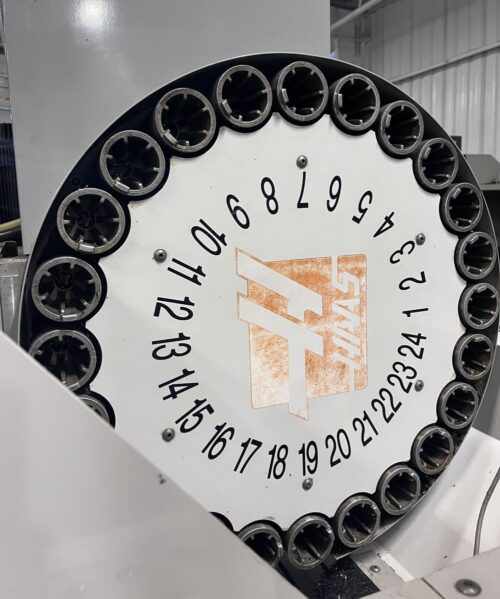

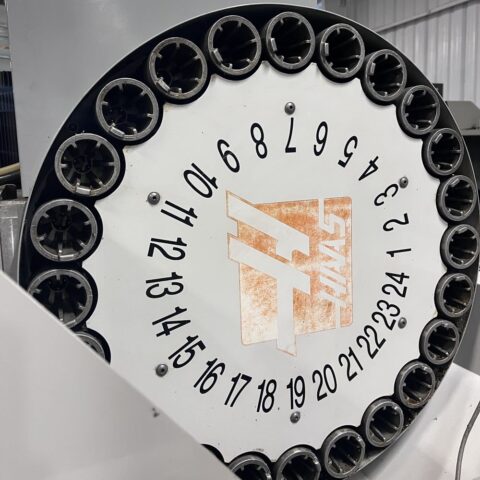

| Automatic Tool Changer: |
|---|
| Capacity: 24 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

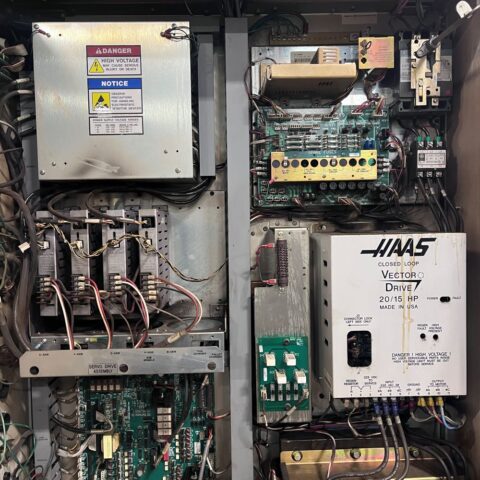

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Machine Weight: 8000 lbs |
