*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make | Haas |
| Model: | VF2 |
| Year: | 2017 (Installed in 2018) |
| Features: |
|---|

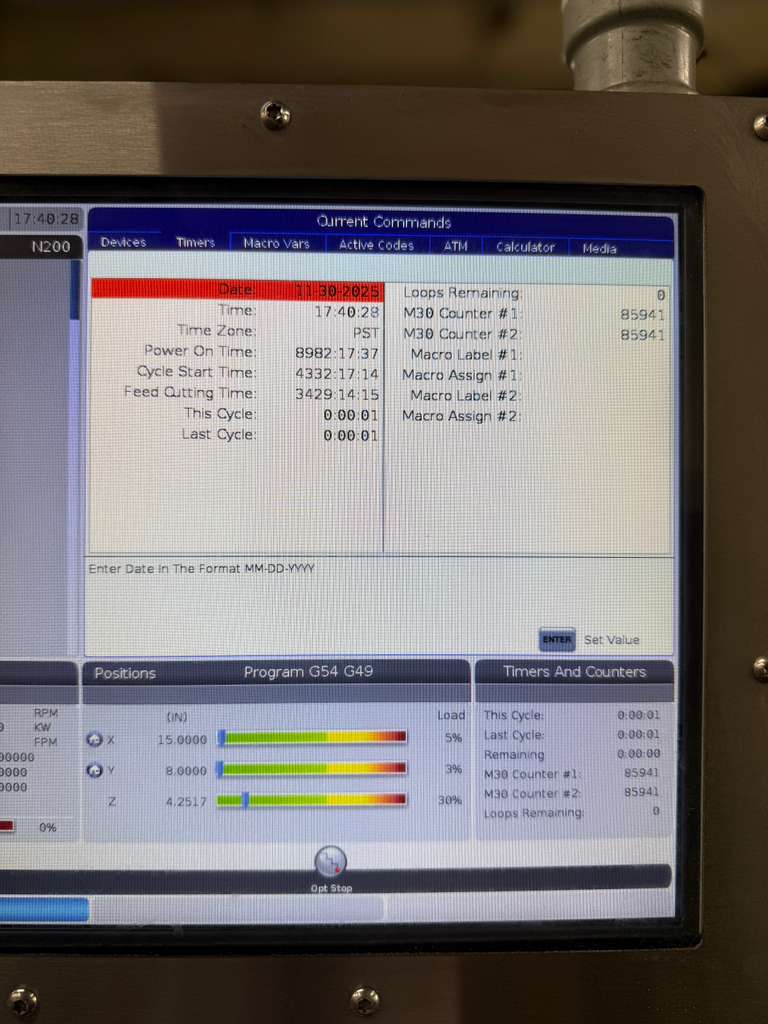

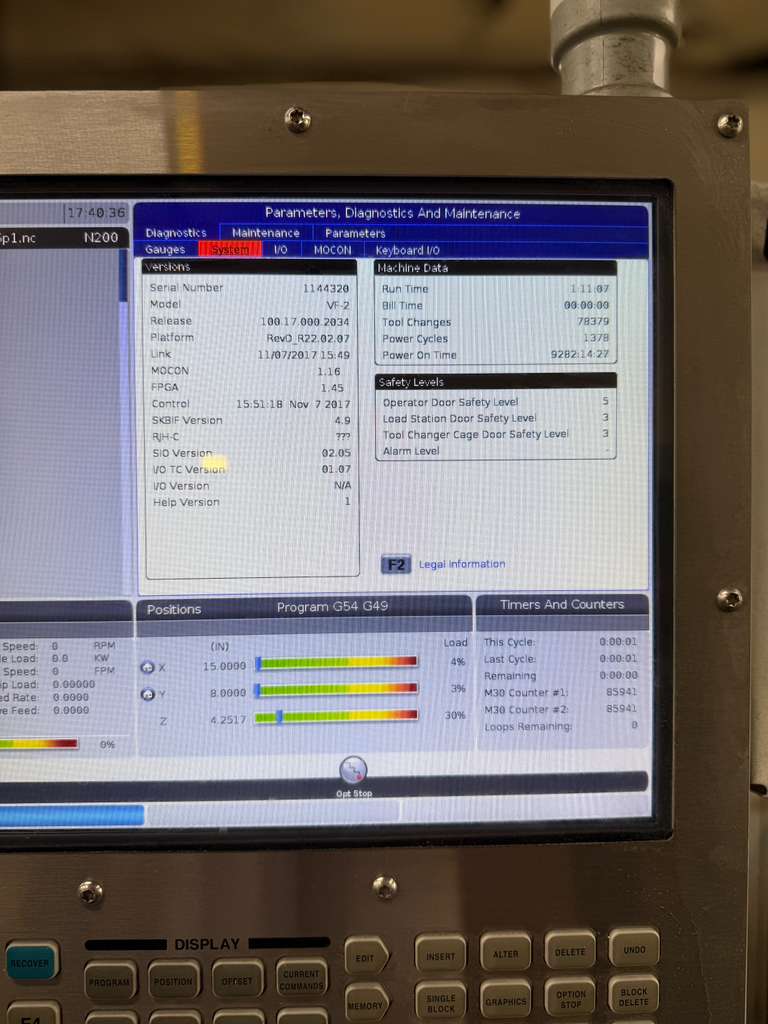

| Haas CNC Control |
| 8,100 RPM Spindle |
| 20 Station Tool changer |
| CAT-40 Taper Spindle |
| 30 HP High Torque Spindle |
| Media Display |
| 1 GB Max Memory |

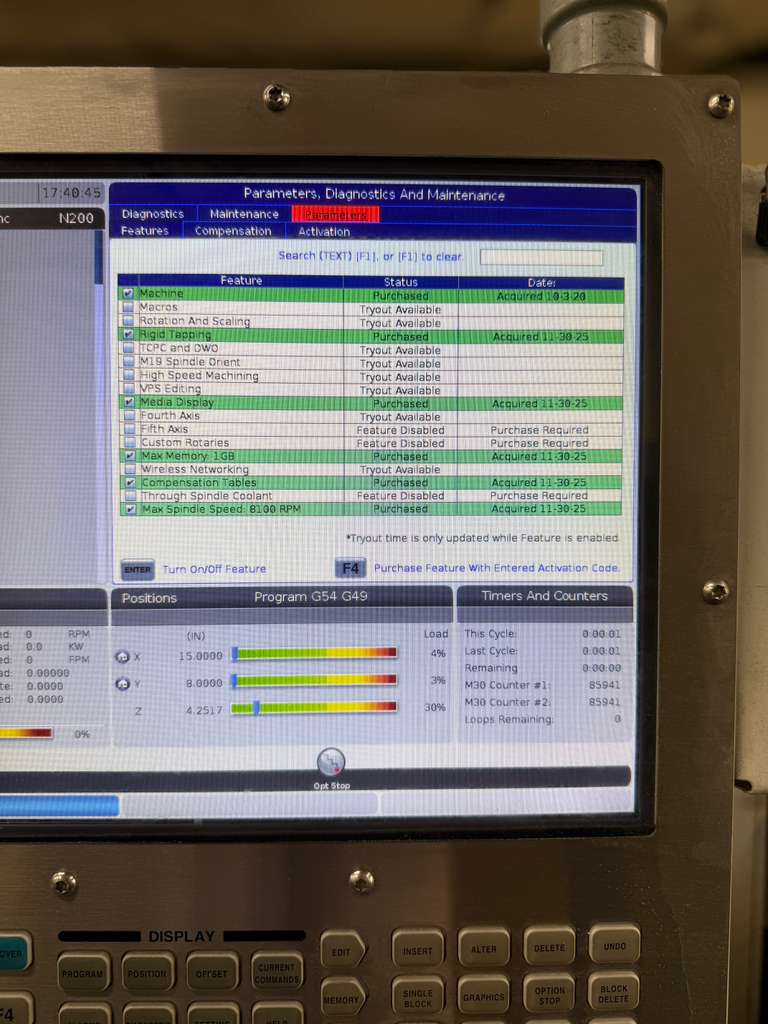

| Compensation Tables |
| Rigid Tapping |
| Coolant System |
| Chip Auger (Upgraded $4095 value Included) |
| Comes with 10 Tool Holders |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3000 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 8,100 RPM |
| Spindle Power: 30 HP |
| Vector Drive Max Torque: 90 ft-lb @ 2000 RPM |

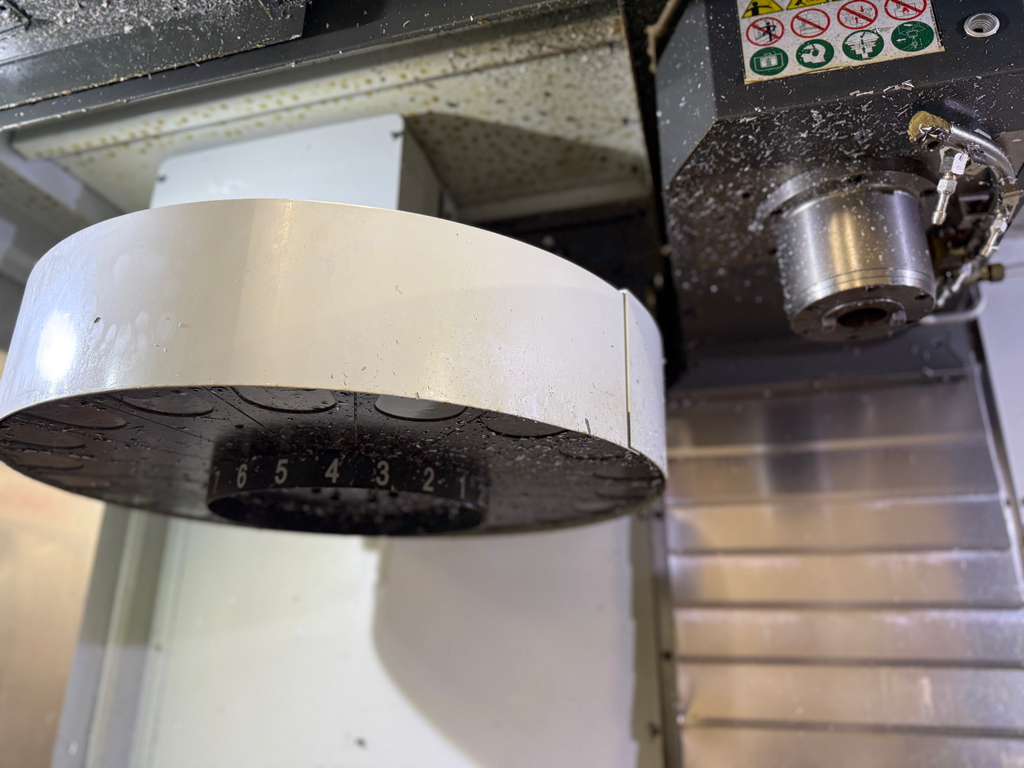

| Automatic Tool Changer: |
|---|
| Capacity: 20 Station Carousel Type |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

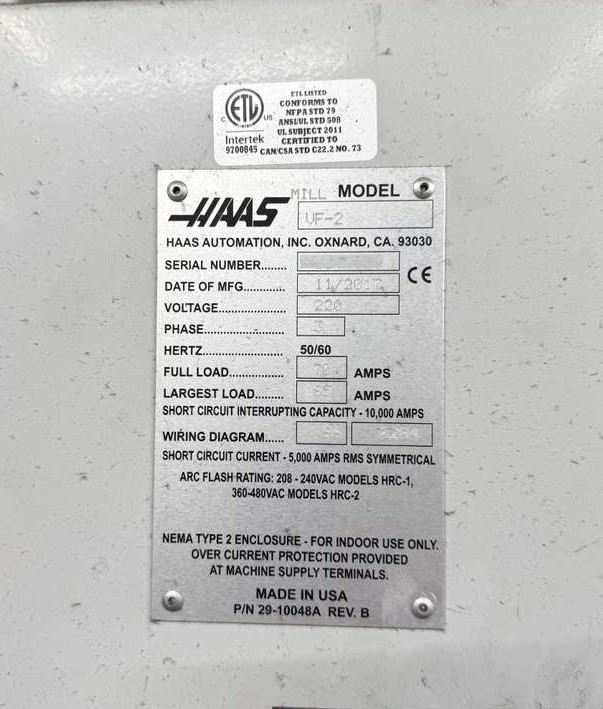

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Machine Weight: 7800 lbs |
