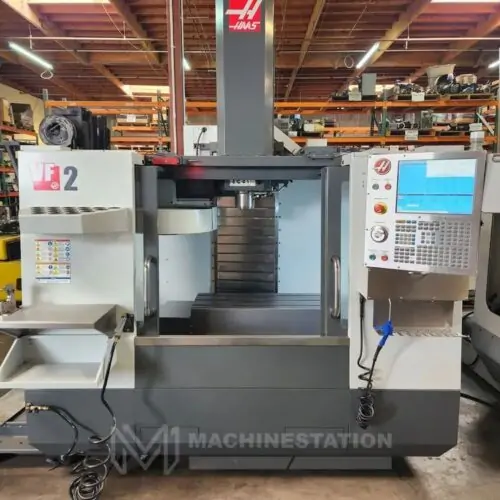

Used Haas VF-2 CNC Vertical Machining Center (2015)

Haas VF-2 CNC Vertical Machining Center – 5th Axis Ready, TSC Mill

SKU 115045

Make/Model Haas VF-2

Year 2015

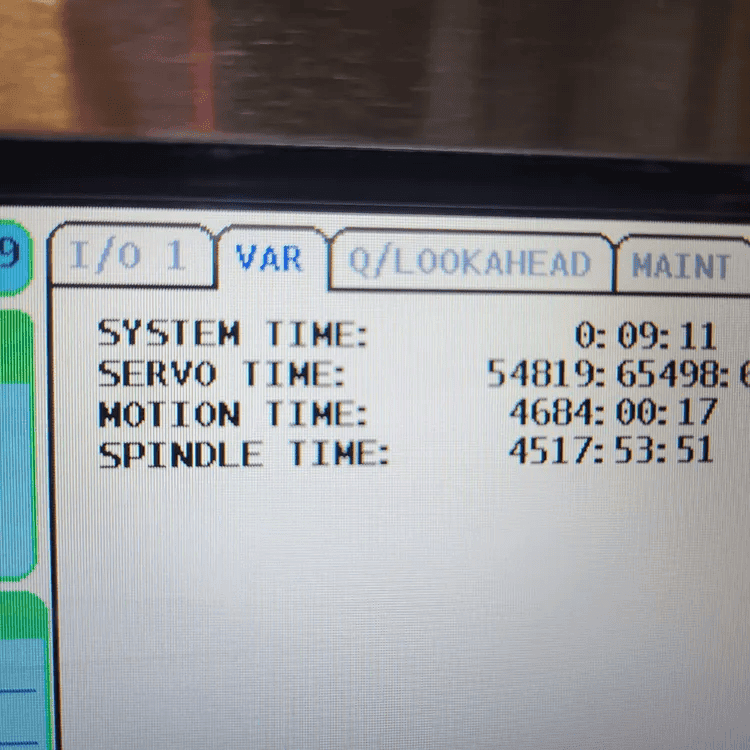

Spindle Time 4,517 Hours

Video No Video

Out of stock

SKU:	115045
Make/Model:	Haas VF-2
Year:	2015
Spindle Time:	4,517 Hours
Video:	No Video

SKU: 115045

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make	Haas
Model:	VF2
Year:	2015
Condition:	Used – Good

Features:

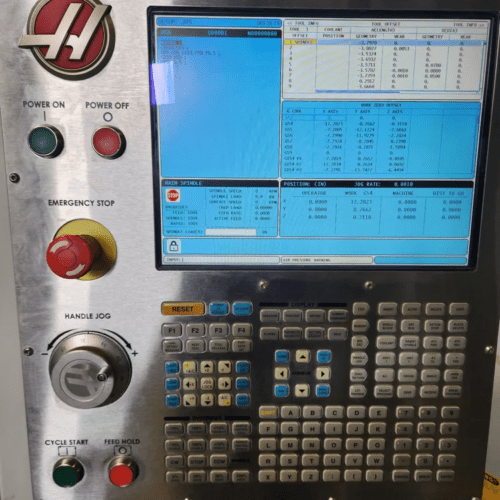

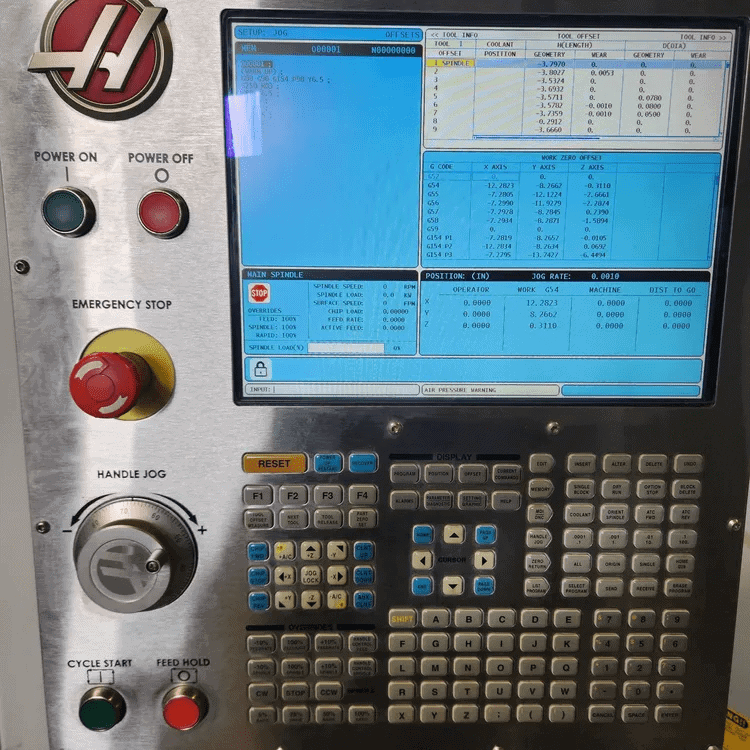

Haas CNC Control

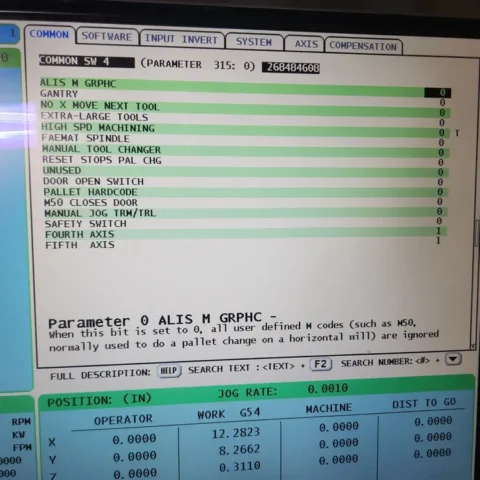

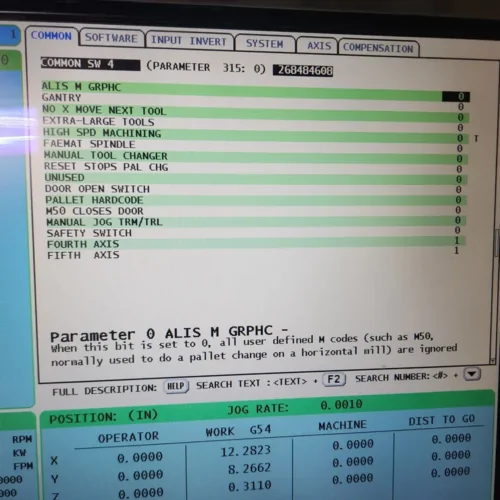

4th Axis Ready – Wiring and Drive (Upgraded $3,395 value Included)

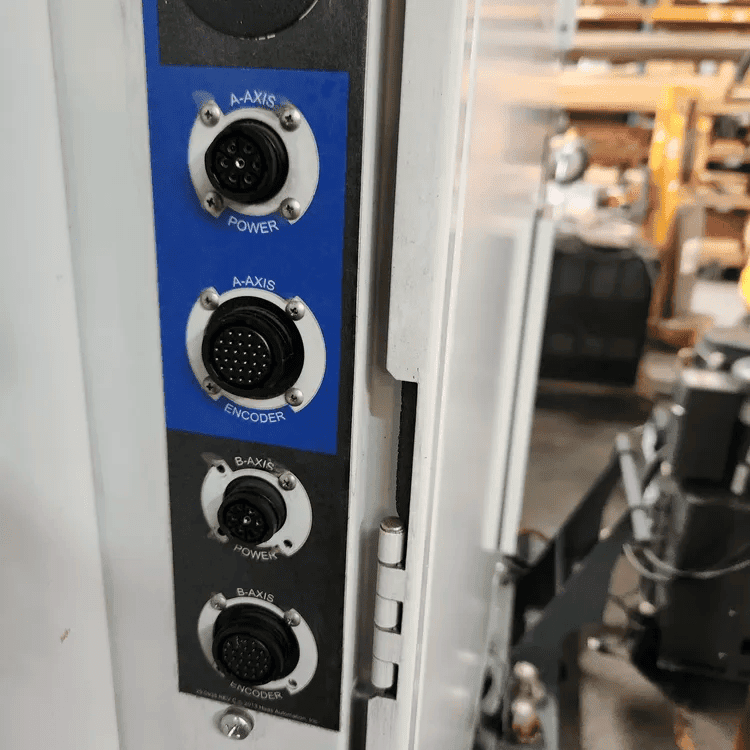

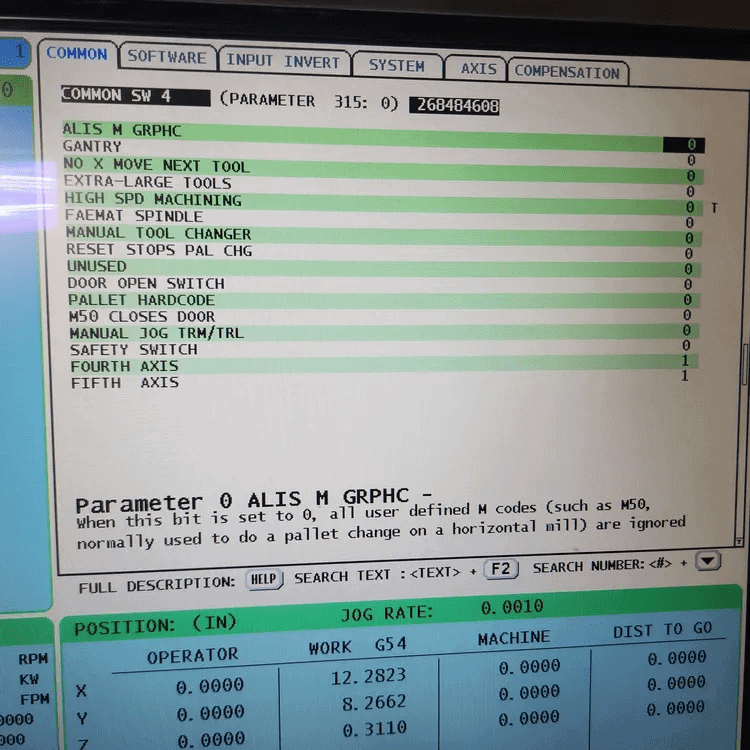

5th Axis Ready – Wiring and Drive (Upgraded $9,995 value Included)

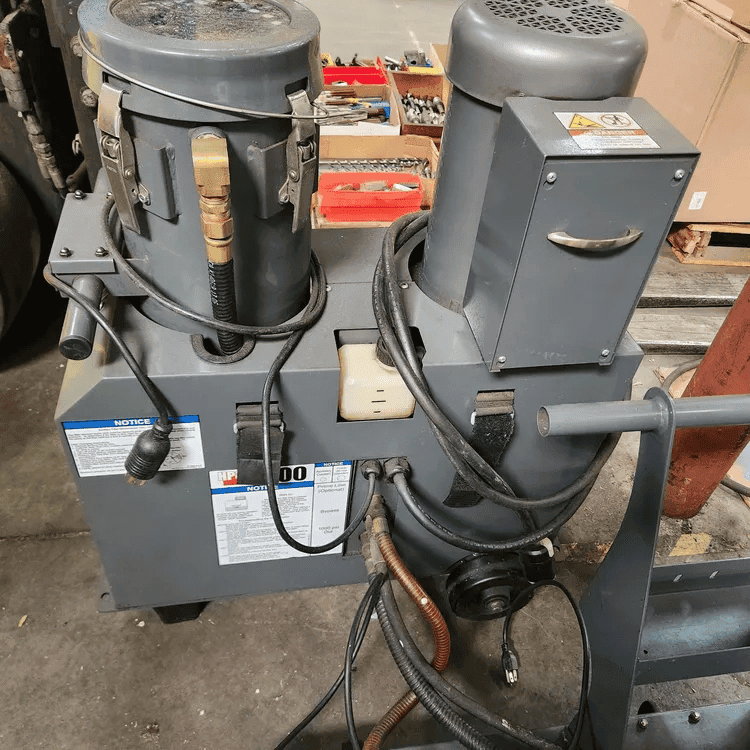

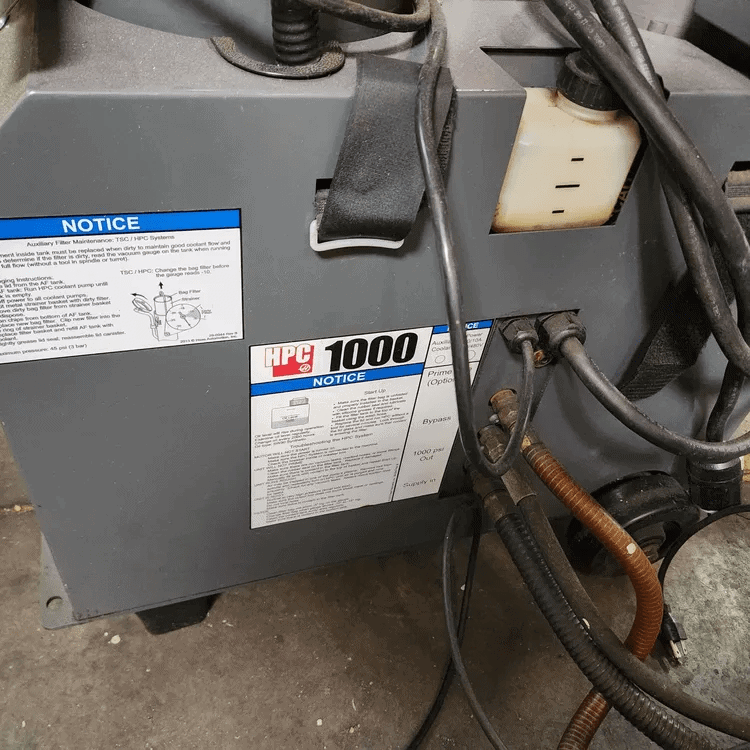

Through Spindle Coolant – 1000 psi (Upgraded $10,495 value Included)
8,100 RPM Spindle
20 Station Carousel Tool changer
30 HP High Torque Spindle
Rigid Tapping
USB Port
Coolant System

Travels:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Spindle Nose to Table (Min.- Max.): 4″ – 24″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute

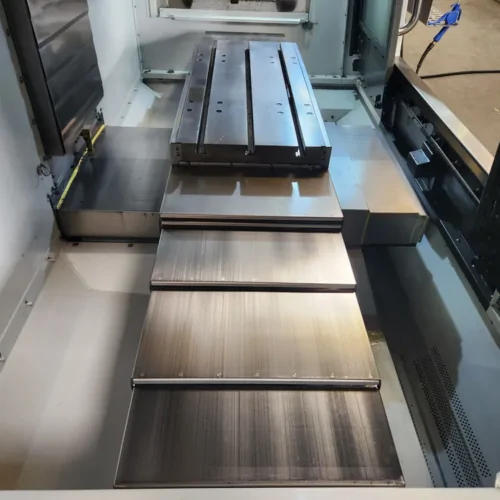

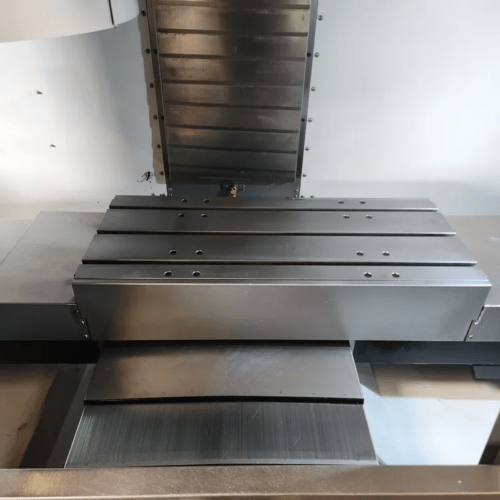

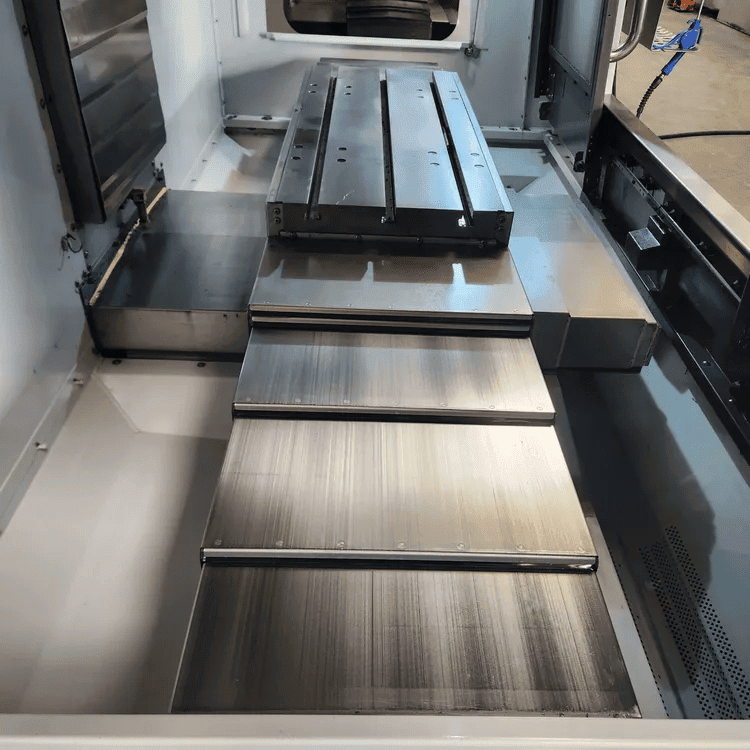

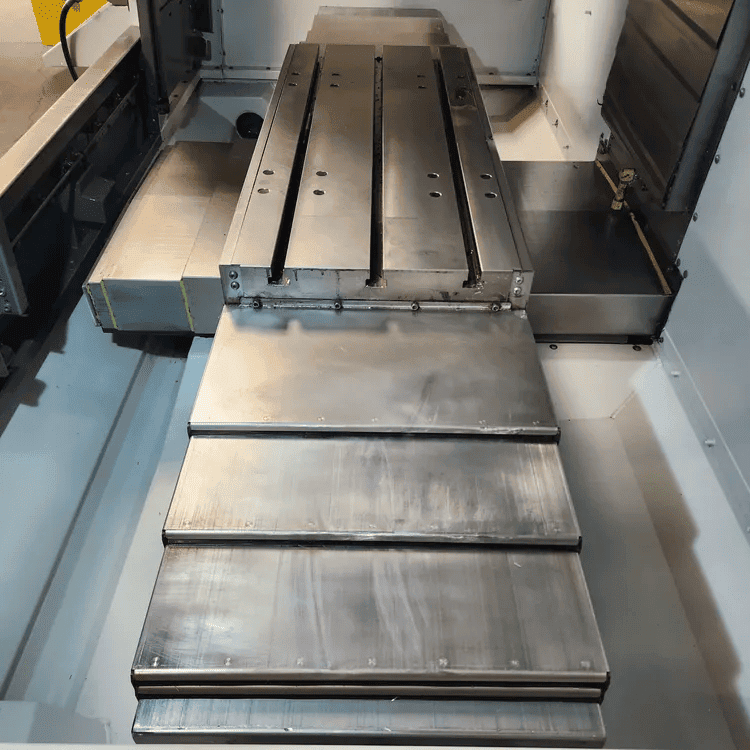

Table:
Length: 36.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 3000 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 8,100 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90 ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 20 Station Carousel Type
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Tool Changing Time: 4.2 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Machine Weight: 7800 lbs

Travels:
X-Axis: 762 mm
Y-Axis: 406 mm
Z-Axis: 508 mm
Spindle Nose to Table (Min.- Max.): 102 mm – 610 mm
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute

Table:
Length: 914 mm
Width: 356 mm
Number of Std T-Slots: 3
T-Slot Width: 5/203 mm
Max Weight on Table: 3000 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 8,100 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90 ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 20 Station Carousel Type
Max Tool Weight: 12 lbs
Max Tool Dia: 89 mm
Tool Changing Time: 4.2 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 2,565 mm x 2,515 mm x 2,565 mm High
Machine Weight: 7800 lbs

Make	Haas
Categories	Vertical Machining Center
Model	VF-2

Haas CNC Control
4th Axis Ready – Wiring and Drive (Upgraded $3,395 value Included)
5th Axis Ready – Wiring and Drive (Upgraded $9,995 value Included)
Through Spindle Coolant - 1000 psi (Upgraded $10,495 value Included)
8,100 RPM Spindle
20 Station Carousel Tool changer
30 HP High Torque Spindle
Rigid Tapping
USB Port
Coolant System
