*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | VF-2B |
| Year: | 2004 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | HAAS CNC Control |
| Features: |
|---|
| HAAS CNC Control |
| 20 HP Spindle Motor |
| 7,500 RPM Spindle |
| 40 Taper Spindle |
| 21-Station Automatic Tool Changer |
| 2-Speed Gear Drive |
| Programmable Coolant |
| Rigid Tapping |
| Enclosed Work Area |
| Coolant System |
| Chip Management System |
| Manual Pulse Generator |
| Table: |
|---|
| Table Size: 36″ × 14″ |
| Maximum Table Load: 3,000 lbs. |
| T-Slots: 3 |
| T-Slot Width: 0.63″ |
| T-Slot Center Distance: 4.92″ |
| Travels: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 20″ |
| Spindle Nose to Table: 4″–24″ |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z-Axis: 1,000 IPM |
| Maximum Cutting Feed: 650 IPM |
| Spindle: |
|---|
| Spindle Taper: CAT-40 |
| Spindle Speed: 7,500 RPM |
| Spindle Motor: 20 HP |
| Automatic Tool Changer: |
|---|
| Type: Carousel Automatic Tool Changer |
| Tool Capacity: 21 Stations |
| Maximum Tool Diameter: 3.5″ |
| Maximum Tool Weight: 12 lbs. |
| Tool-to-Tool Time: 4.2 sec. |
| General: |
|---|

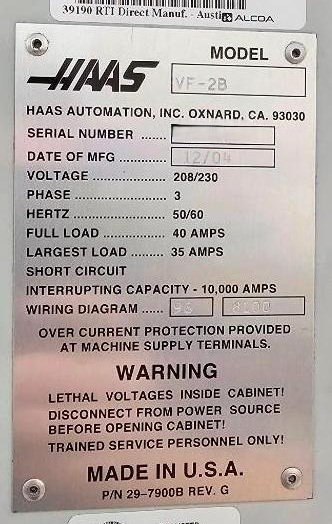

| Power Source: 208–230V / 3-Phase / 50–60 Hz |
| Machine Weight (Approx.): 7,800 lbs. |
| Overall Dimensions (Approx.): 100″ L × 92″ W × 96″ H |
