*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

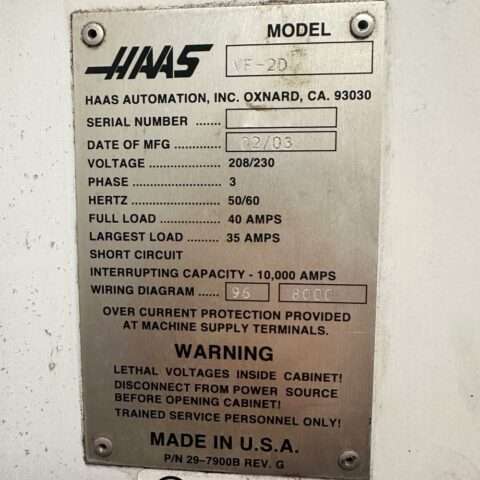

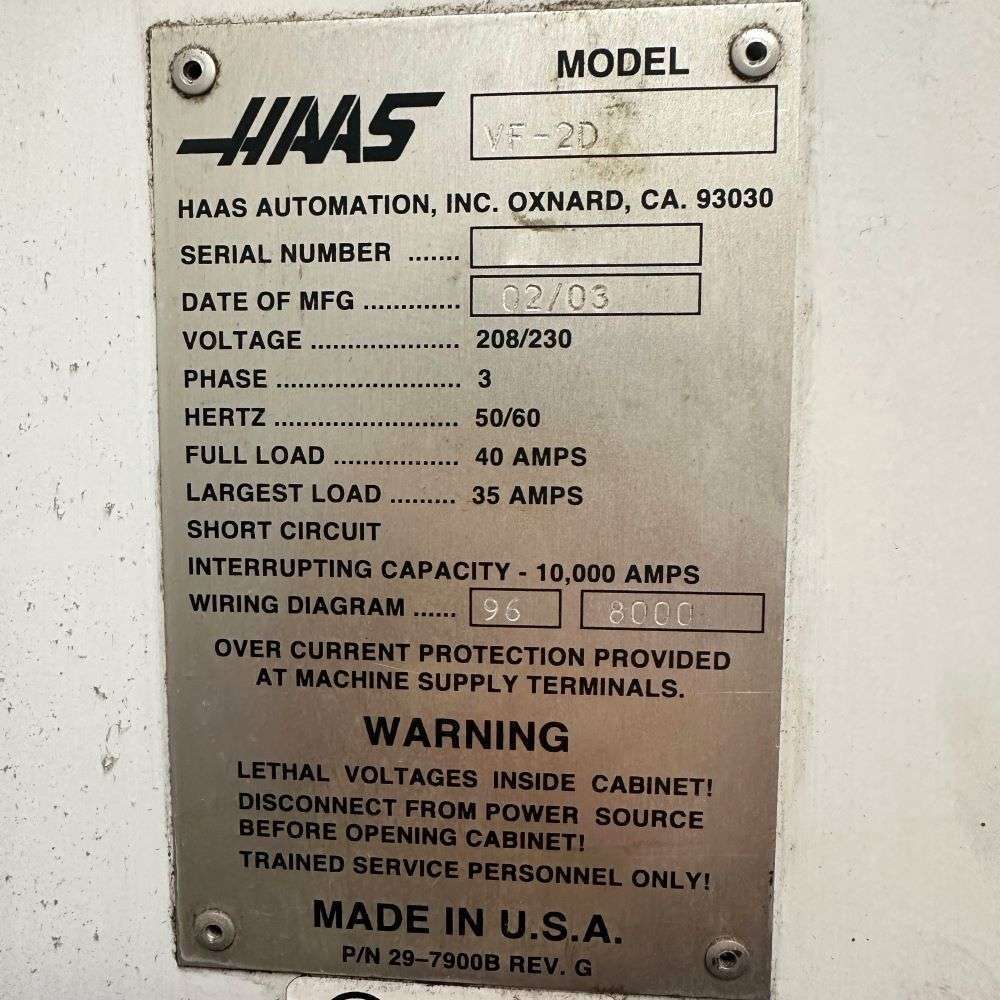

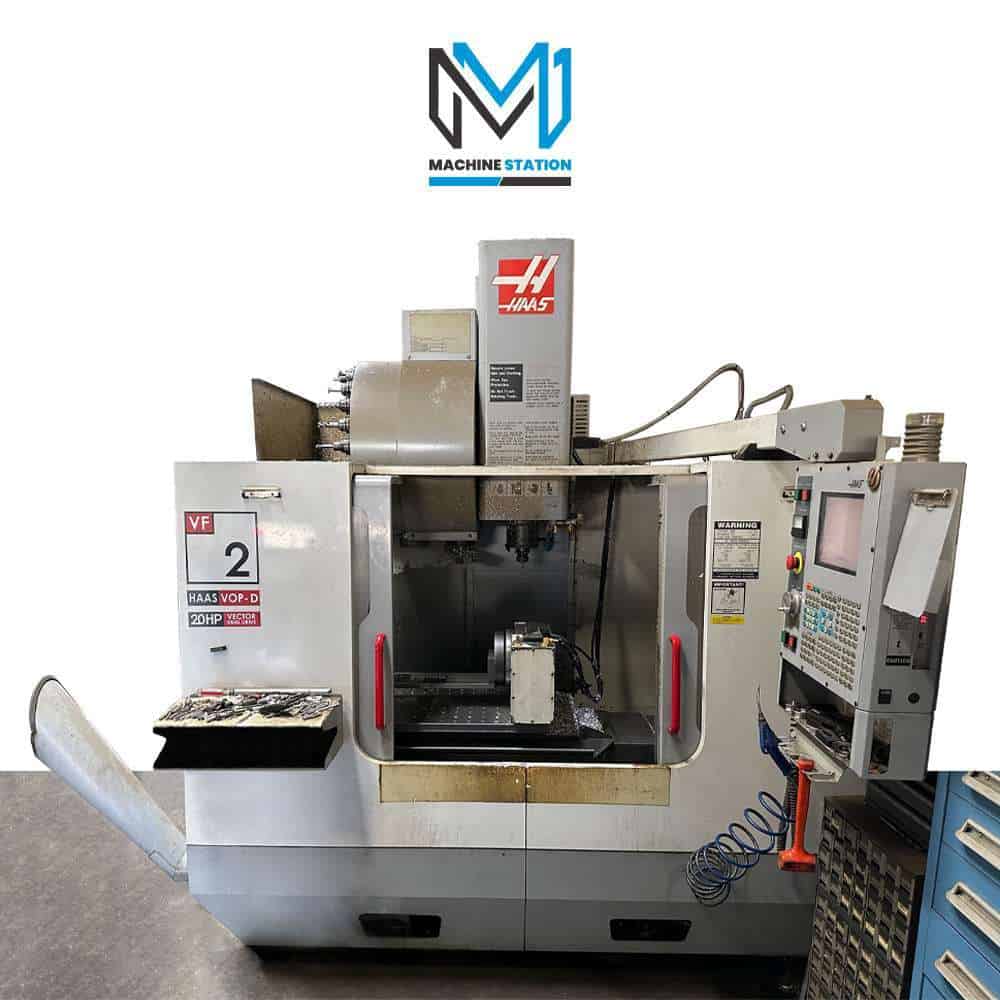

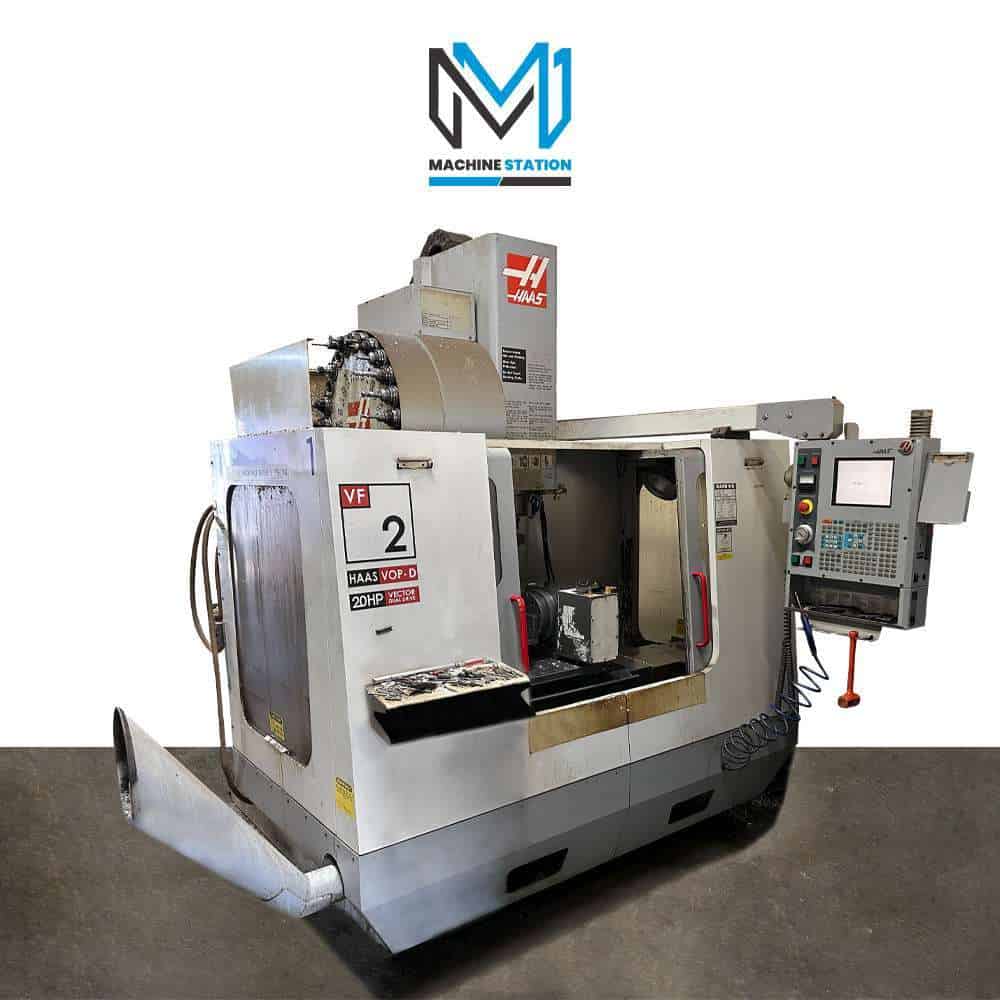

| Make: | HAAS |
| Model: | VF2D |
| Year: | 2003 |
| Condition: | Used – Good |
| Features: |
|---|

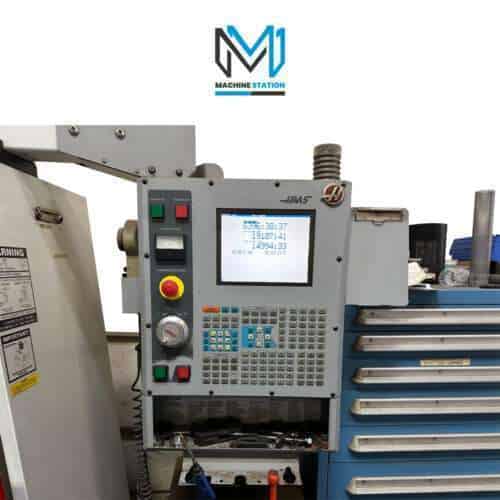

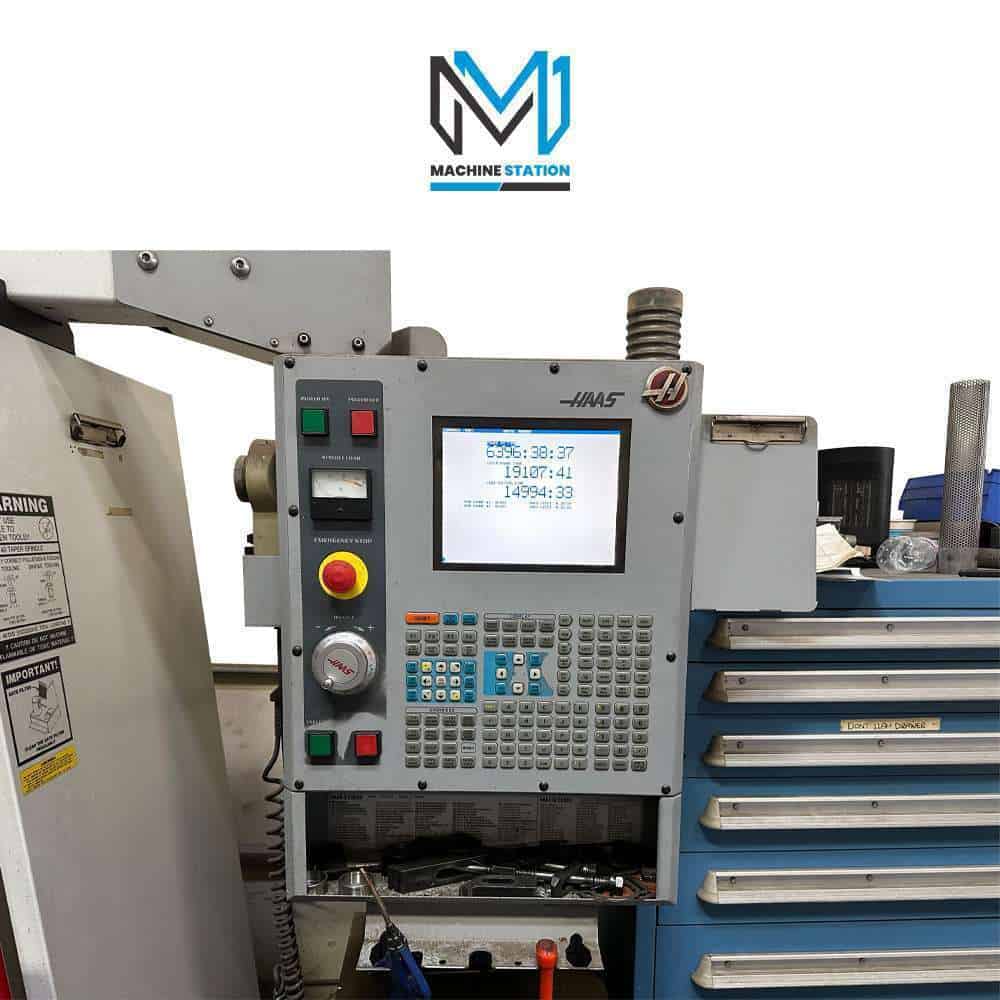

| Haas CNC Control |
| Haas VOP-D Package |
| 20 HP High Torque Spindle Motor |

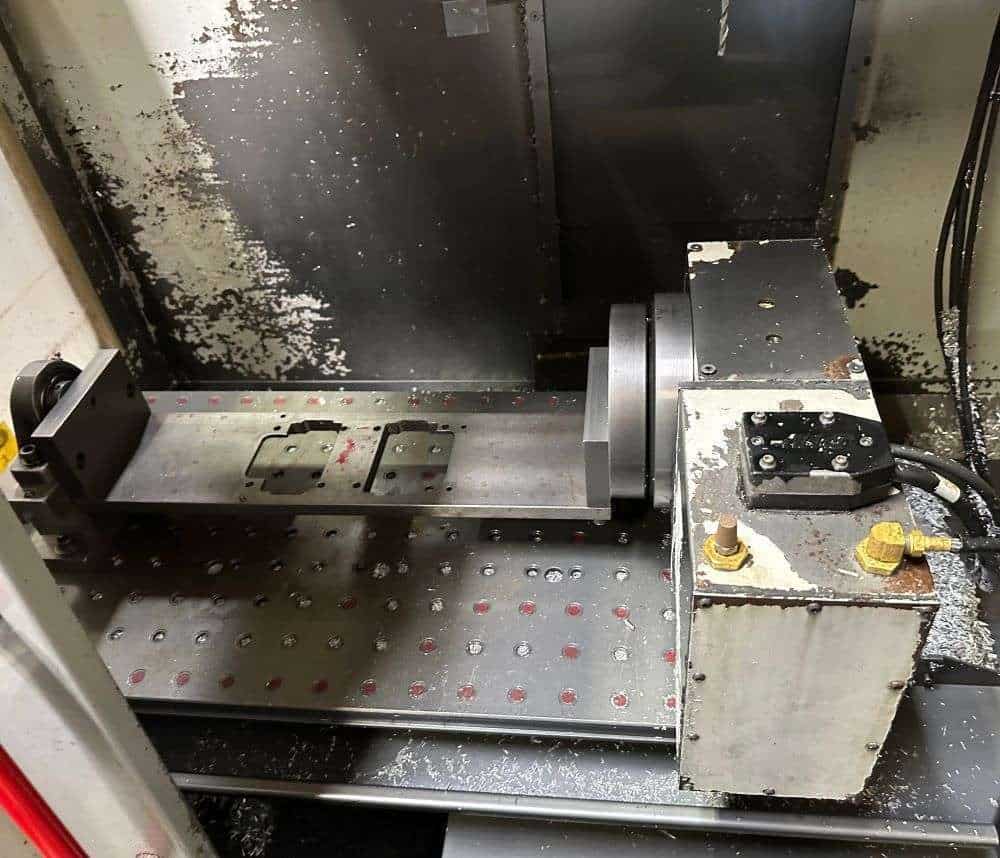

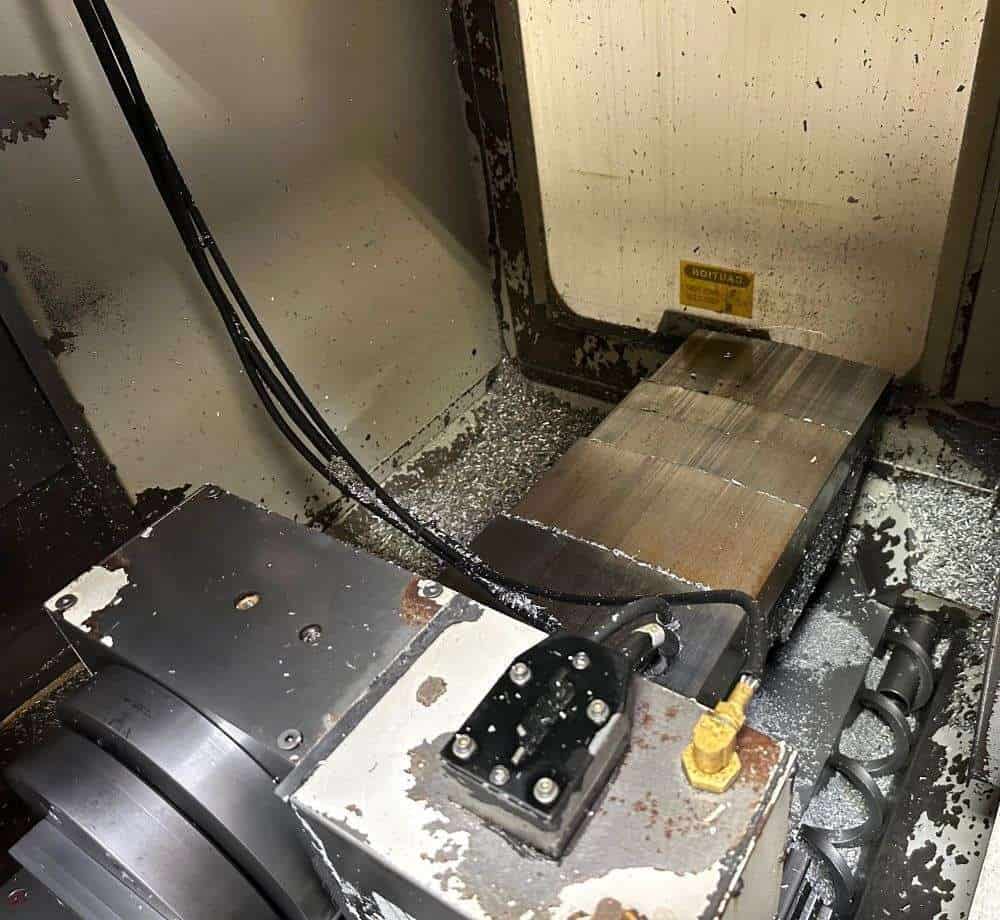

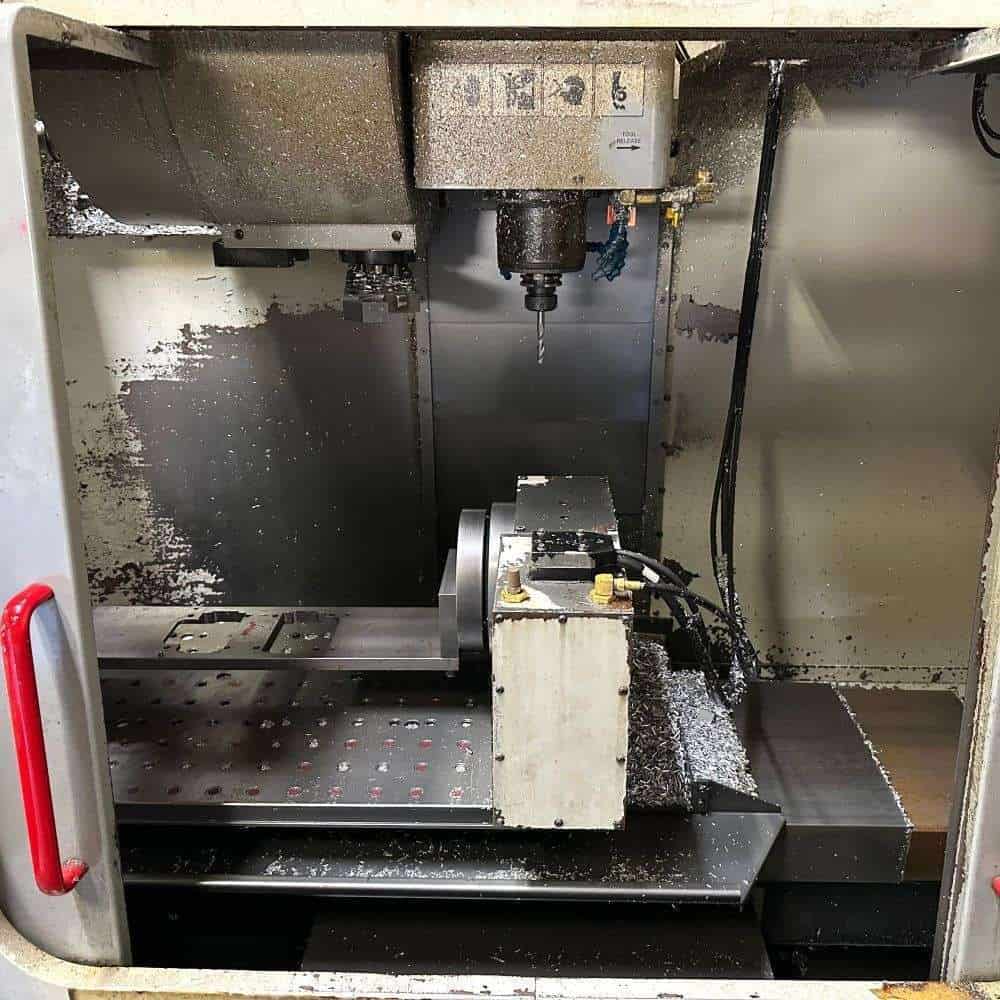

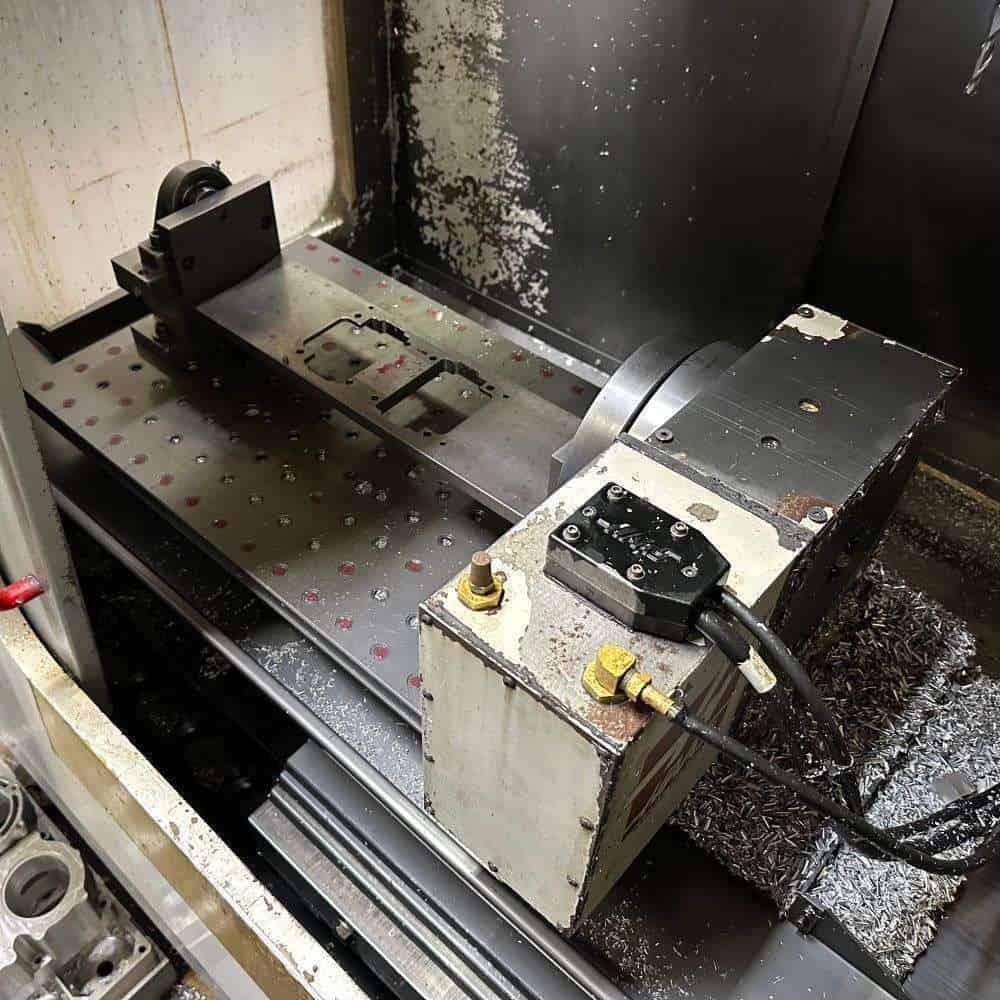

| 4th Axis Rotary Table with Trunnion |
| 7500 RPM Spindle |
| 24 Side Mount Automatic tool changer |
| 1000 inch per minute rapids |
| Rigid Tapping |
| Spindle Orientation |
| Coolant System |
| Brushless-type servo drive motors on all axis |
| Telescopic way covers |
| Chip auger |
| Tool Holder Rack |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |
| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1500 lbs |

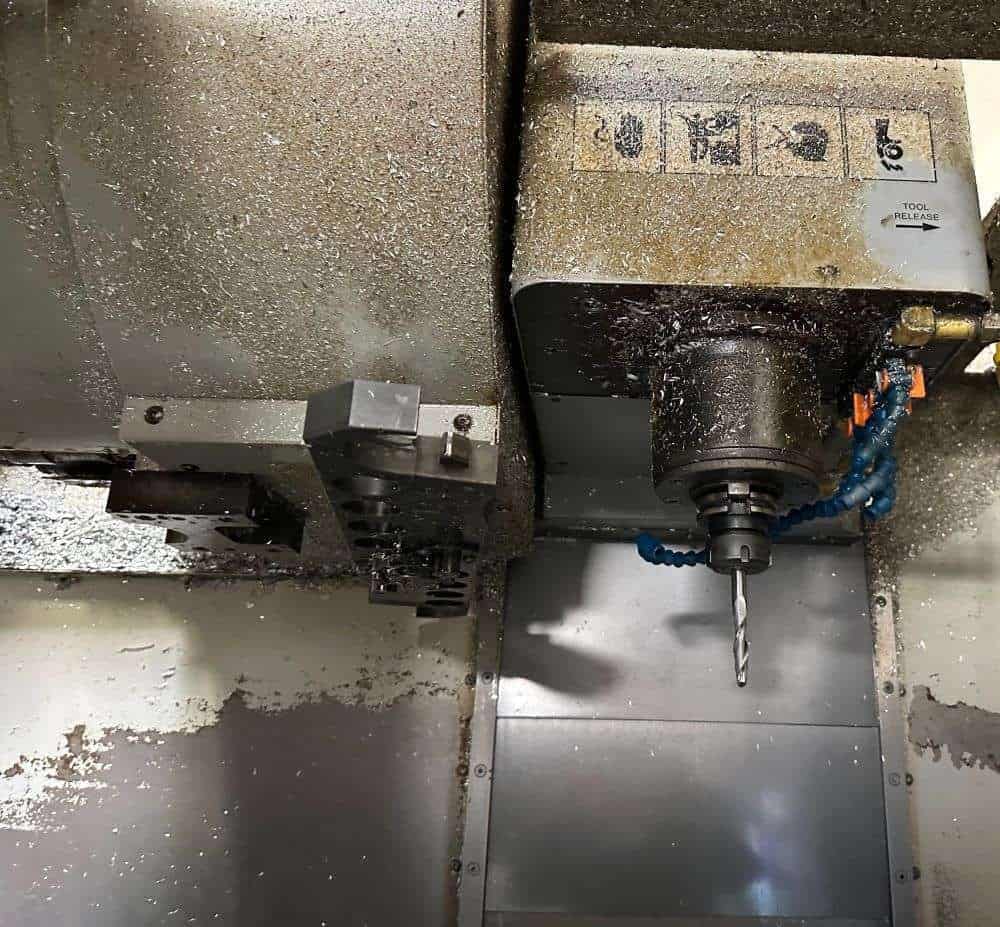

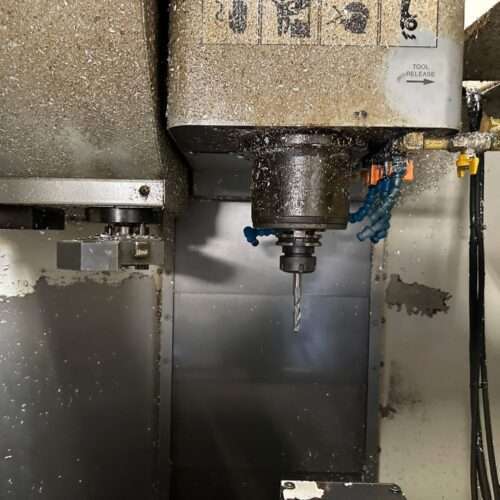

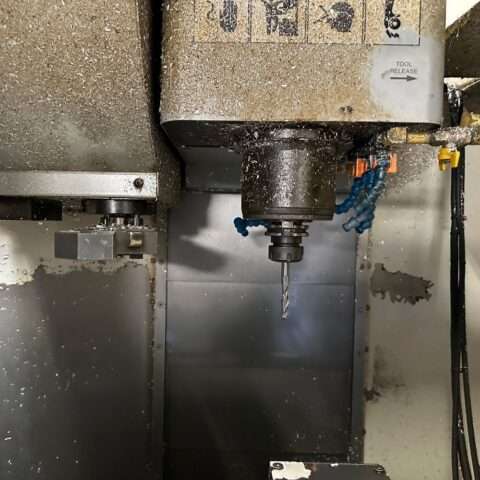

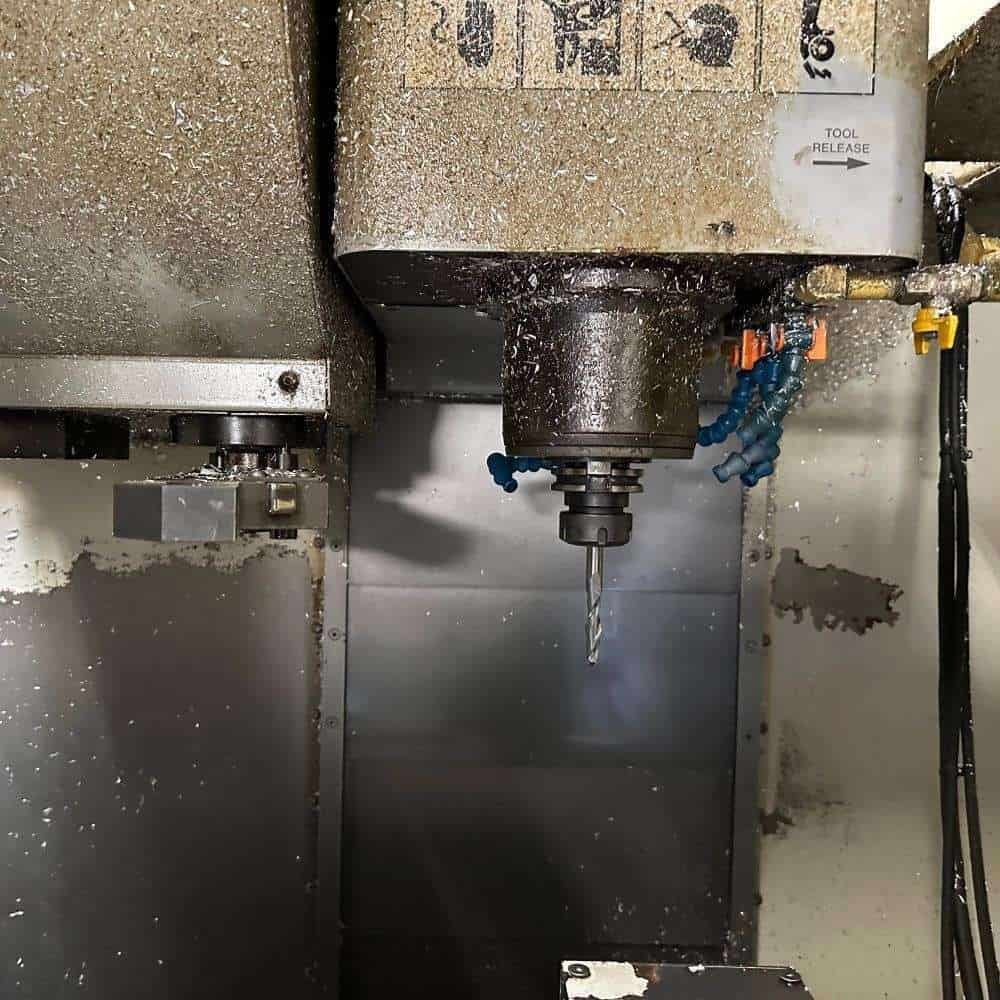

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 7500 RPM |
| Spindle Power: 20 HP |
| Vector Drive Max Torque: 90 ft-lb @ 2000 RPM |
| Automatic Tool Changer: |
|---|
| Capacity: 24 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Weight: 7800 lbs |
