*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | Mini Lathe |
| Year: | 2002 |
| Machine Type: | CNC Turning Center |
| CNC Control: | Haas CNC Control |
| Equipped With: |
|---|

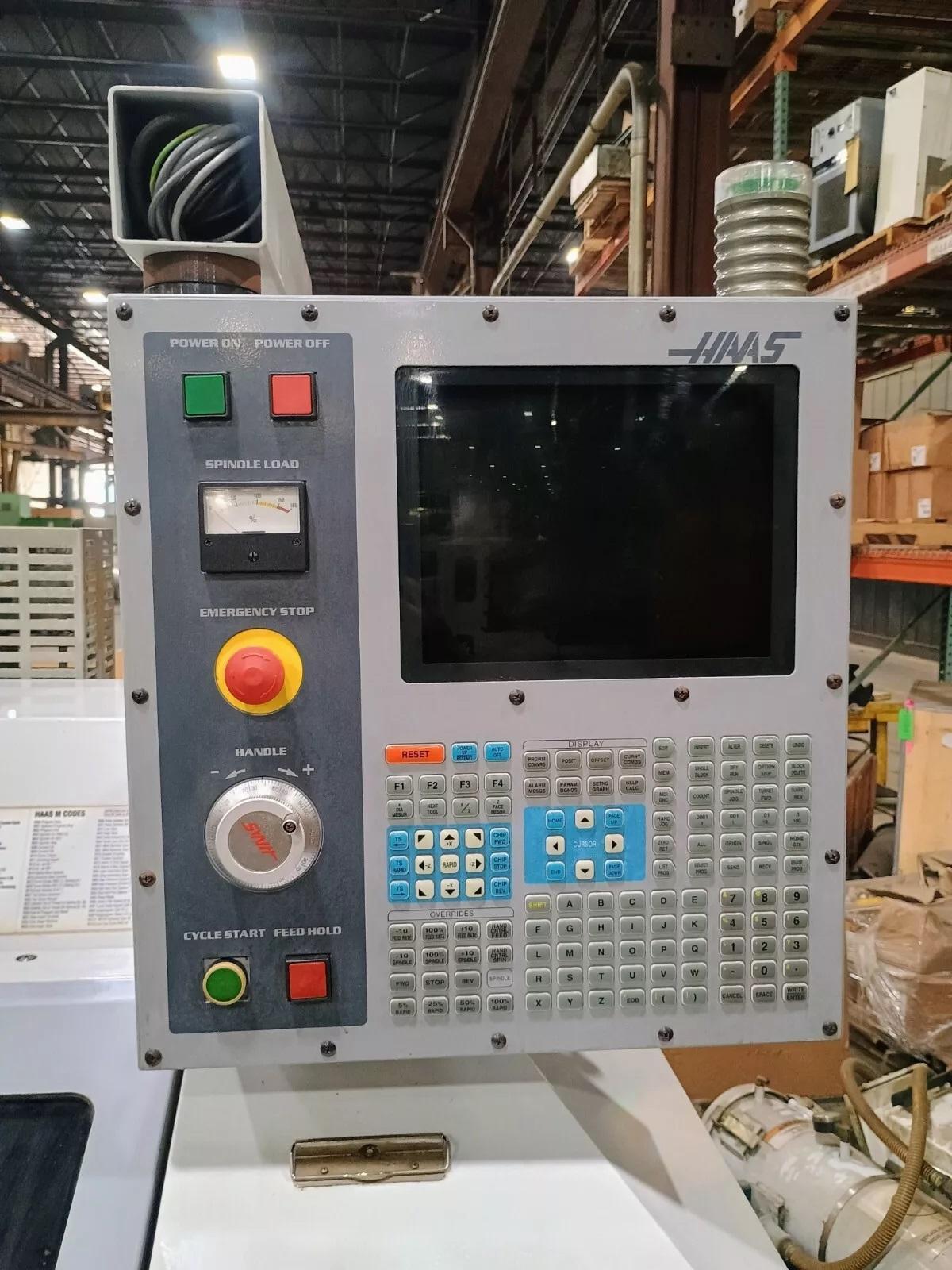

| Haas CNC Control |
| Electronic Handwheel |
| Spindle-Load Meter |
| Emergency-Stop Button |
| Enclosed Machining Area with Viewing Window |
| Workholding Spindle / Chuck Area |
| Coolant Delivery Nozzle Visible Inside the Work Area |
| Chip Collection Area Beneath the Machining Zone |
| Machine-Mounted Electrical Cabinet and Control System |
| Turning Capacity: |
|---|
| Maximum Swing: 10.5″ |
| Maximum Turning Diameter: 5.8″ |
| Maximum Machining Length: 8″ |
| Bar Capacity: 1.06″ |
| Travels: |
|---|
| X-Axis Travel: 12″ |
| Z-Axis Travel: 12″ |
| Feedrates: |
|---|
| Rapid Traverse Rate: 600 IPM |
| Spindle: |
|---|
| Maximum Spindle Speed: 6,000 RPM |
| Spindle Motor: 7.5 HP |
| Spindle Nose: A2-5 |
| Draw Tube Bore: 1.18″ |
| Electrical: |
|---|
| Voltage: 208/240 V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Full Load: 25/40 A |
| Largest Load: 15 A |
