*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | SL-30T |
| Year: | 2005 |
| Machine Type: | CNC Turning Center |

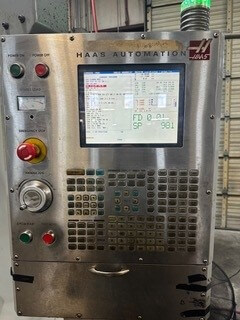

| CNC Control: | Haas CNC Control |
| Equipped With: |
|---|
| Haas CNC Control |
| 3,400 RPM Maximum Spindle Speed |
| 12″ 3-Jaw Hydraulic Chuck |
| 3″ Bar Capacity |
| 12-Station Turret |
| Hydraulic / Programmable Tailstock |
| Tool Pre-Setter |
| Parts Catcher |
| High-Intensity Machine Lighting |
| Chip Conveyor |
| Coolant Tank and Pump |
| Foot Pedal |
| 30 HP Spindle Motor |
| Capacity: |
|---|
| Maximum Swing Over Bed: 30″ |
| Maximum Turning Diameter: 17″ |
| Maximum Turning Length: 32″ |
| Distance Between Centers: 39″ |
| Chuck Size: 12″ 3-Jaw Hydraulic Chuck |
| Maximum Bar Capacity: 3″ |
| Travels: |
|---|
| X-Axis Travel: 11.3″–14″ |
| Z-Axis Travel: 34″ |
| X-Axis Rapid Traverse: 710 IPM |
| Z-Axis Rapid Traverse: 710 IPM |
| Spindle: |
|---|
| Maximum Spindle Speed: 3,400 RPM |
| Spindle Motor Power: 30 HP |
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Turret: |
|---|
| Turret Type: 12-Station Turret |
| Turret Capacity: 12 Stations |
| General: |
|---|
| Power Source:208/230v / 3-Phase / 50/60 Hz |
| Machine Weight (Approx.): 16,000 lbs |
| Machine Dimensions (Approx.): 126″ × 83″ × 74″ |
