*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | SL-10 |
| Year: | 2007 |
| Machine Type: | CNC Turning Center |
| CNC Control: | Haas CNC Control |
| Equipped With: |
|---|
| Haas CNC Control |
| 12-Station Turret |
| 6″ 3-Jaw Chuck |
| Tailstock |
| Tailstock Quill with 4″ Travel |
| Coolant System |
| Enclosed Machine Work Area |
| Capacity: |
|---|
| Maximum Swing: 16.25″ |
| Maximum Turning Diameter: 10″–11″ |
| Maximum Turning Length: 14″ |
| Bar Capacity: 1.75″ |
| Travels: |
|---|
| X-Axis Travel: 6.25″ |
| Z-Axis Travel: 14″ |
| Spindle: |
|---|
| Spindle Motor Power: 15 HP |
| Maximum Spindle Speed: 6,000 RPM |
| Spindle Nose: A2-5 |
| Spindle Bore: 2.3″ |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Type: Bolt-On |
| Tailstock: |
|---|
| Chuck: 6″ 3-Jaw Chuck |
| Tailstock Taper: No. 3 Morse Taper |
| Tailstock Quill Travel: 4″ |

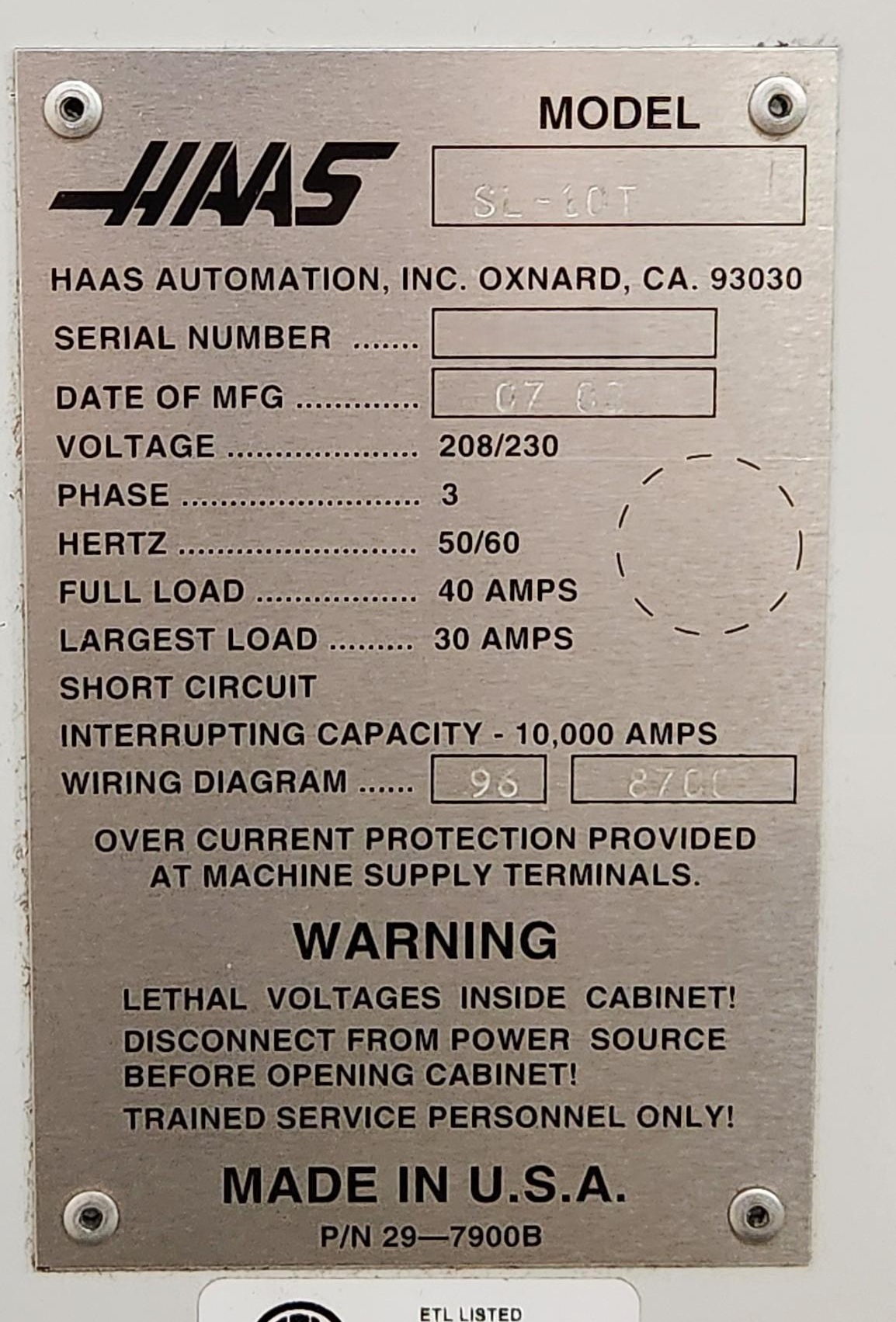

| Electrical: |
|---|
| Voltage: 208/230V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| General: |
|---|
| Machine Weight (Approx.): 6,000 lbs |
