*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | VF-2DCE |
| Year: | 2008 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Haas CNC Control |
| Features: |
|---|
| Haas CNC Control |
| BT40 Spindle |
| 15,000 RPM High-Speed Spindle |
| 24-Position Carousel Automatic Tool Changer |
| Automatic Tool Changer |
| 36″ × 14″ Table |
| 3 Standard T-Slots |
| Coolant System |
| Chip Conveyor |
| Enclosed Work Area |
| Rigid Tapping |
| Tooling as Shown |
| Table: |
|---|
| Table Size: 36″ × 14″ |
| T-Slots: 3 Slots |
| T-Slot Size: 0.71″ × 3.94″ |
| Maximum Table Load: 3,000 lbs. |
| Travels: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 20″ |
| Rapid Traverse: Approx. 1,000 IPM |
| Spindle: |
|---|
| Spindle Power: 20 HP |
| Maximum Spindle Speed: 15,000 RPM |
| Spindle Taper: BT40 |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Carousel |
| Tool Capacity: 24 Positions |
| Spindle Taper: BT40 |
| General: |
|---|

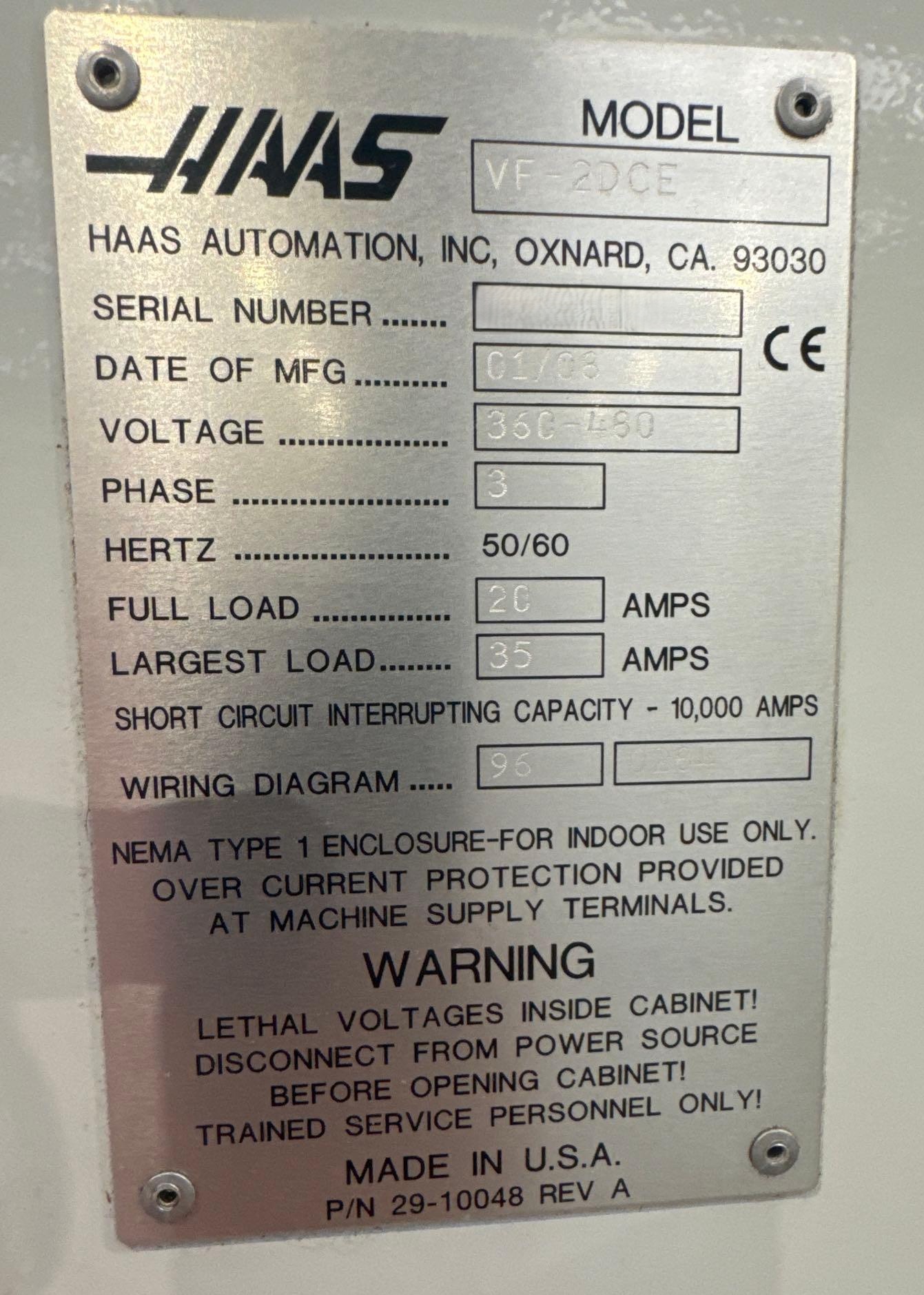

| Power Source: 360–480V / 3-Phase / 50/60 Hz |
| Machine Weight (Approx.): 7,800 lbs. |
| Machine Dimensions (Approx.): 101″ L × 99″ W × 101″ H |
