*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

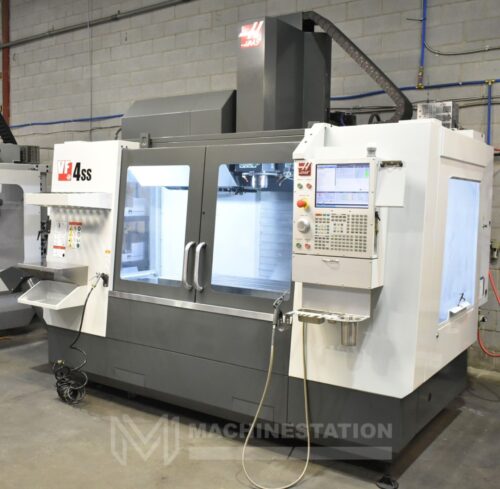

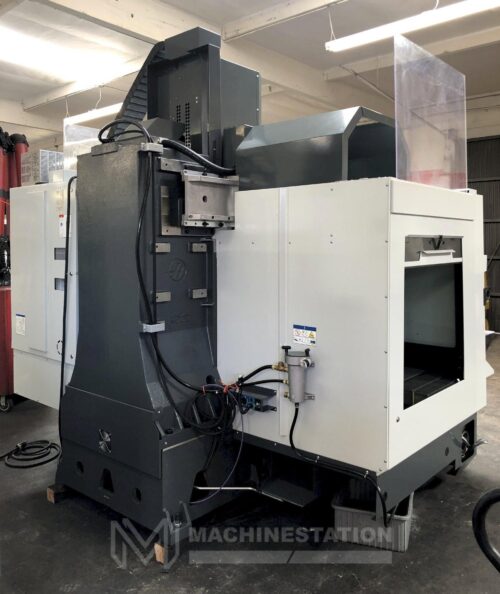

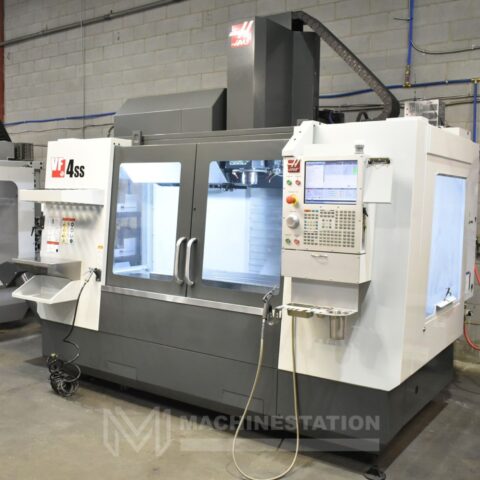

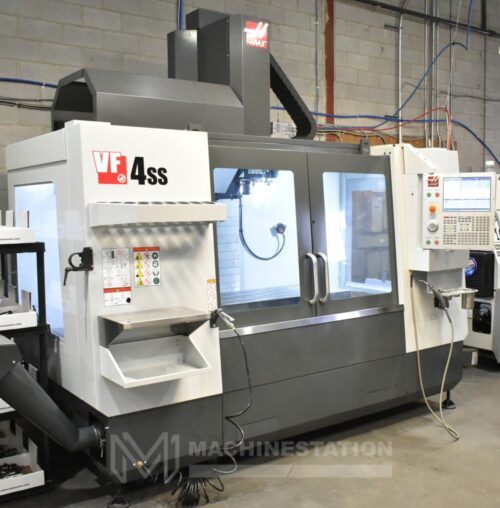

| Make: | HAAS |
| Model: | VF-4SS |
| Year: | 2022 |
| Condition: | Used – Excellent |
| Features: |
|---|

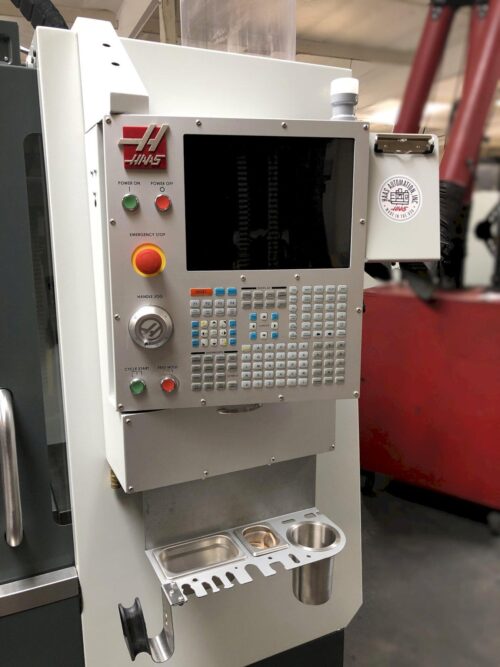

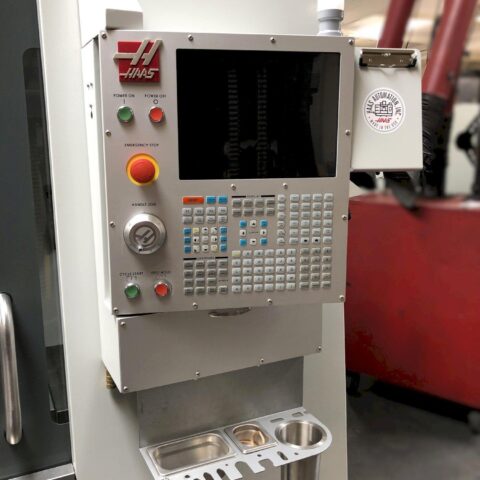

| Haas CNC Control |
| 12000 RPM Inline Direct Drive Spindle |

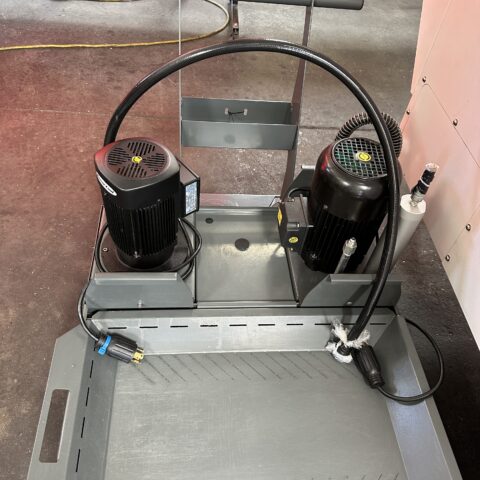

| Through Spindle Coolant (Upgraded $7095 Approx. value Included) – Provides High-Pressure Coolant Directly Through The Cutting Tool |
| WIPS-R Renishaw Probing System Ready (Probe Needed) (Upgraded $4095 Approx. value Included) – Reduced Scrap Rates, Minimized Downtime |
| Probe Riser Block (Upgraded $695 value Included) – Provides Additional Height For The Tool Probe |
| Programmable Coolant Nozzle (Upgraded $2395 value Included) – Automatically Directs Coolant Precisely At The Cutting Tool |
| 30 Station Super Speed Side Mount Tool changer |
| 1400 IPM Fast Rapid |
| Rigid Tapping |
| Spindle Orientation |
| Macros |
| Rotation and Scaling |
| VPS Editing |
| Media Display |
| 1GB Memory |

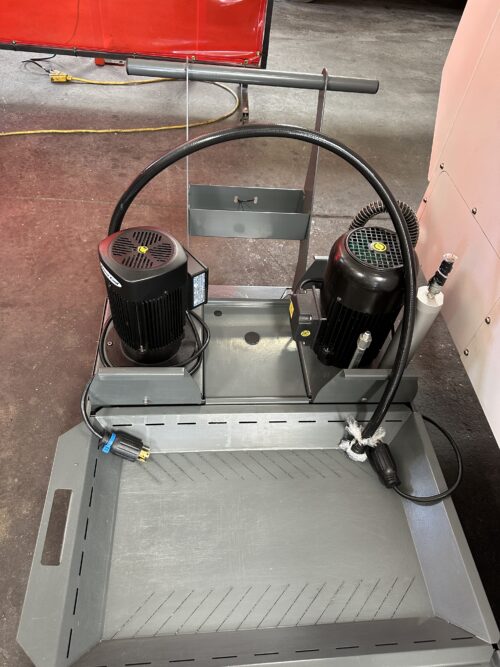

| Coolant System |

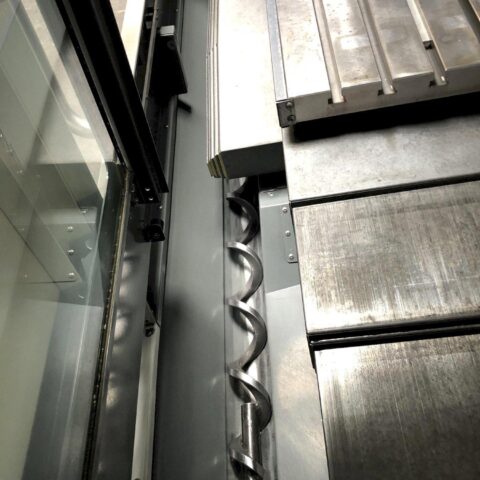

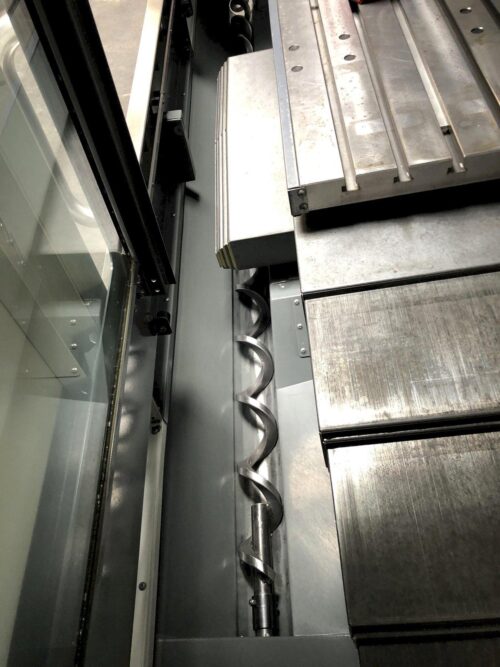

| Chip Auger (Upgraded $4095 value Included) – Automatically Removes Chips From The Machine |
| Levelling Pads |
| Travels: |
|---|
| X-Axis: 50.0″ |
| Y-Axis: 20.0″ |
| Z-Axis: 25.0″ |
| Rapid Traverse Rates Axis: 1400 IPM |
| Cutting Feed Rates: 833 IPM |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

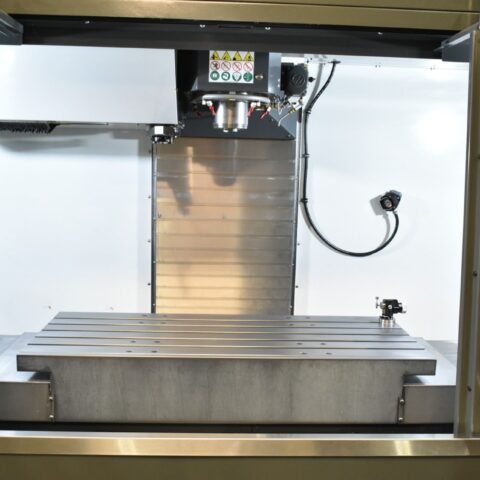

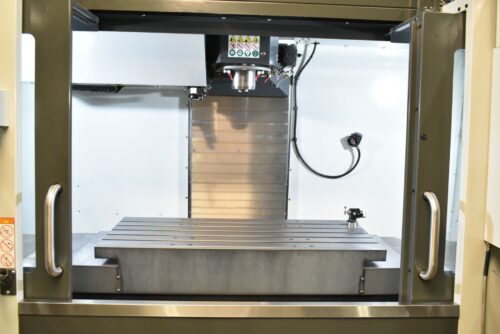

| Table |
|---|
| Length: 52.0″ |
| Width: 19.5″ |
| Max Weight on Table: 1750 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 13.0″ |
| Tool Changing Time : 1.8 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

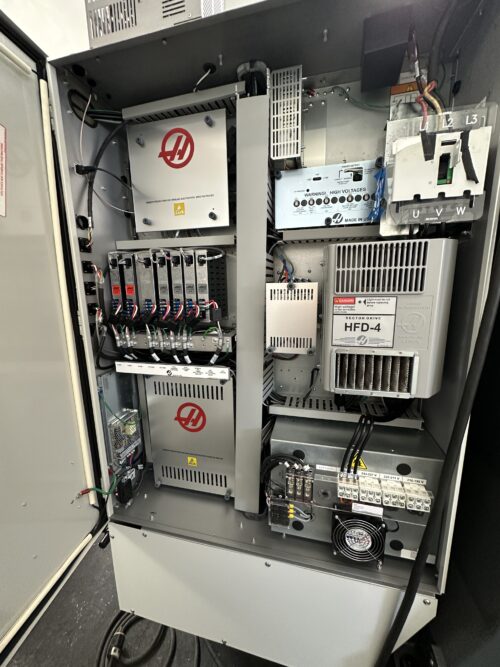

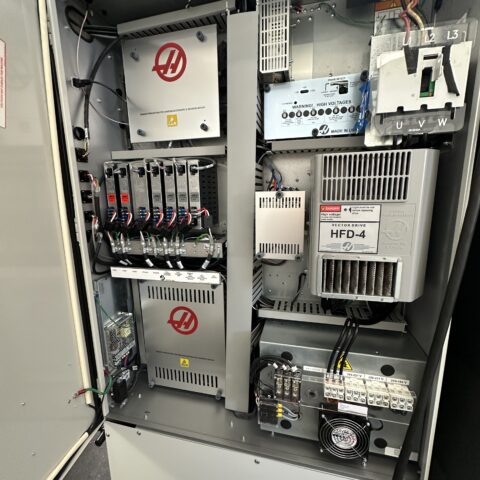

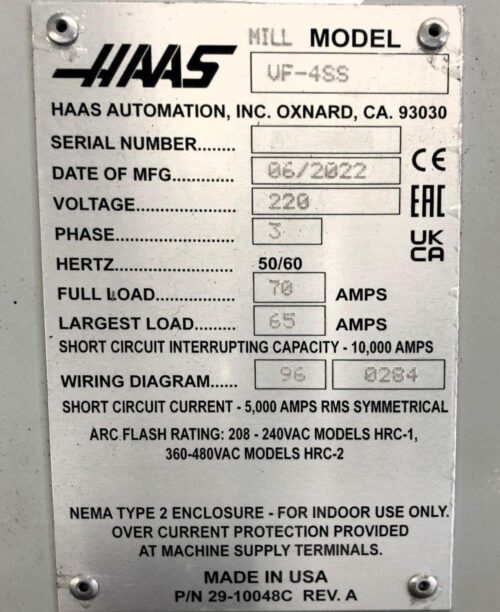

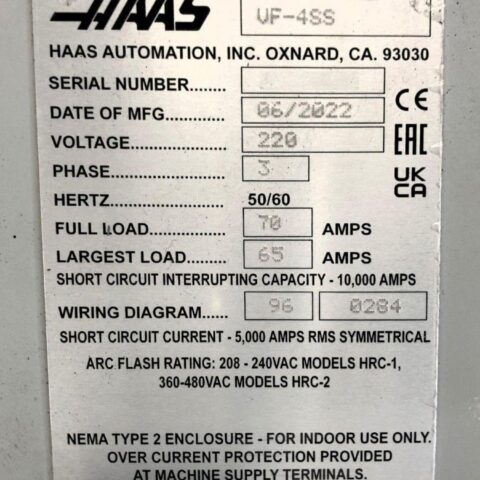

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 152″ x 99 x 106” High Approx. |
| Weight: 11,720 lbs. Approx. |
