*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | VM-2 |
| Year: | 2013 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | HAAS CNC Control |
| Features: |
|---|
| HAAS CNC Control |
| 4-Axis Machining Configuration |
| Digital Hand Wheel / Remote Jog Handle |
| 12,000 RPM Inline Direct-Drive Spindle |
| 24+1 Side-Mount Automatic Tool Changer |
| Renishaw Wireless Probing System |
| Renishaw OTS Wireless Tool Touch Probe |
| Rigid Tapping |
| Programmable Coolant Nozzle |
| Through-Spindle Coolant |
| High-Flow Coolant |
| Chip Auger |
| Enclosed Work Area |

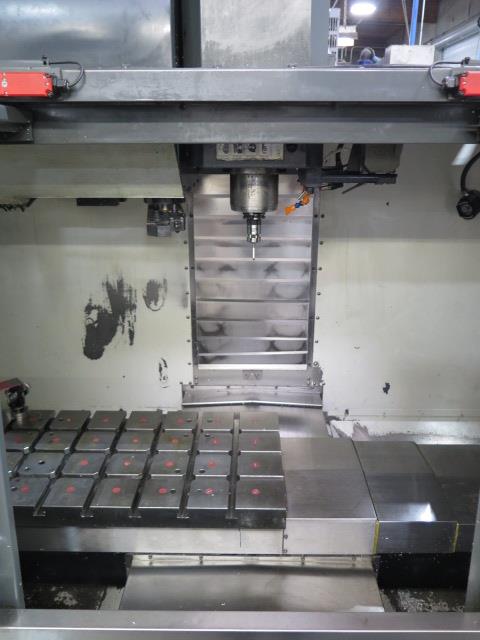

| Multi-Fixturing Mold & Die Table |
| Automatic Air Gun |
| Coolant System |
| Table: |
|---|
| Table Type: Mold & Die Multi-Fixturing Table |
| Table Length: 36″ |
| Table Width: 18″ |
| T-Slot Width: 0.63″ |
| T-Slot Center Distance: 4.38″ |
| Standard T-Slots: 7 in Y and 3 in X |
| Maximum Table Load: 3,000 lbs. |
| Travels: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 20″ |
| Spindle Nose to Table, Minimum: 4″ |
| Spindle Nose to Table, Maximum: 24″ |
| Rapid Traverse X/Y/Z-Axis: 710 IPM |
| Maximum Cutting Feedrate: 500 IPM |
| Spindle: |
|---|
| Spindle Type: Inline Direct Drive |
| Spindle Taper: 40 Taper / CT40 |
| Maximum Spindle Speed: 12,000 RPM |
| Spindle Motor Rating: 30 HP |
| Maximum Torque: 90 ft-lb @ 2,000 RPM |
| Spindle Speed: 12,000 RPM |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Side-Mount |
| Tool Capacity: 24+1 Stations |
| Maximum Tool Diameter, Full: 3″ |
| Maximum Tool Diameter, Adjacent Pocket Empty: 5″ |
| Maximum Tool Length: 11″ |
| Maximum Tool Weight: 12 lbs. |
| Tool-to-Tool Time: 2.8 sec. |
| General: |
|---|
| Power Source: 195–260V / 3-Phase / 60 Hz |
| Overall Dimensions (Approx.): 100″ L × 92″ W × 101″ H |
| Machine Weight (Approx.): 9,400 lbs. |
