*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*
| Make: | Hanland |
| Model: | TK611C/1 |
| Year: | 2008 |
| Machine Type: | CNC Horizontal Boring Mill |
| CNC Control: | FANUC Oi-Mate MC |
| Features: |
|---|
| FANUC Oi-Mate MC CNC Control |
| 4.33″ Boring Spindle |
| 52″ × 40″ T-Slotted Worktable |
| CNC Horizontal Boring & Milling Configuration |
| Facing Head |
| Manual Rotary Table |
| Heavy-Duty Table-Type Construction |
| Coolant System |
| Machine Enclosure |
| Table: |
|---|
| Table Size: 52″ × 40″ |
| Table Type: T-Slotted-7 |
| Maximum Table Load: 11,023 lbs. |
| Travels: |
|---|
| X-Axis Travel: 47.24″ |
| Y-Axis Travel: 35.43″ |
| Z-Axis Travel: 51.18″ |
| W-Axis Spindle Travel: 21.65″ |
| Spindle: |
|---|
| Spindle Diameter: 4.33″ |
| Spindle Taper: BT50 |
| Spindle Speed Range: 12–1,100 RPM |
| Maximum Boring Diameter: 9.45″ |
| Maximum Drilling Diameter: 1.97″ |
| Maximum Spindle Torque: 811 ft-lb |
| Facing Head: |
|---|
| Facing Head Radial Travel: 6.30″ |
| Facing Head Speed: 4–125 RPM |
| Maximum Facing Diameter: 24.80″ |
| Facing Head Feed: 0.2–330 mm/min |
| Feedrates: |
|---|
| X/Y/Z Rapid Traverse: 196.85 IPM |
| Spindle Axial Feed: 0.5–39.37 IPM |
| Facing Head Feed: 0.008–12.99 IPM |
| Facing Head Rapid: 53.94 IPM |
| General: |
|---|

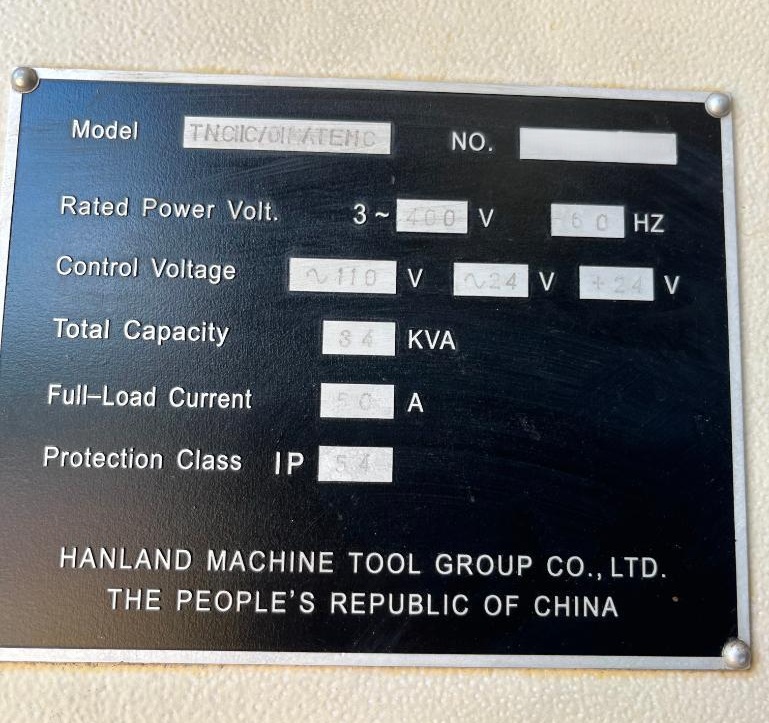

| Power Source: 400V / 3-Phase / 60 Hz |
| Machine Weight (Approx.): 26,455 lbs. |
| Machine Dimensions (Approx.): 210.5″ L × 118.9″ W × 113.8″ H |
