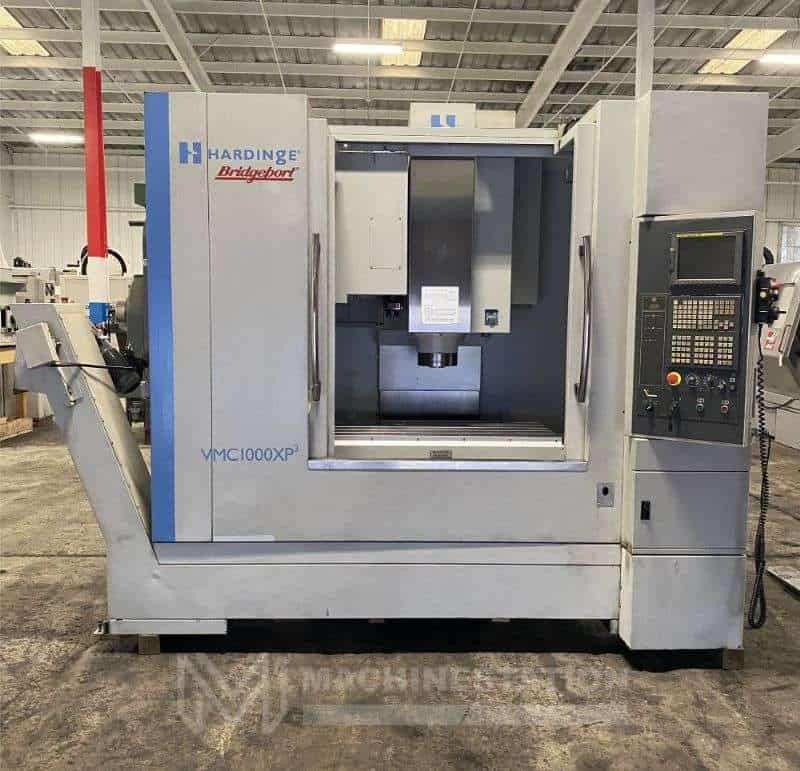

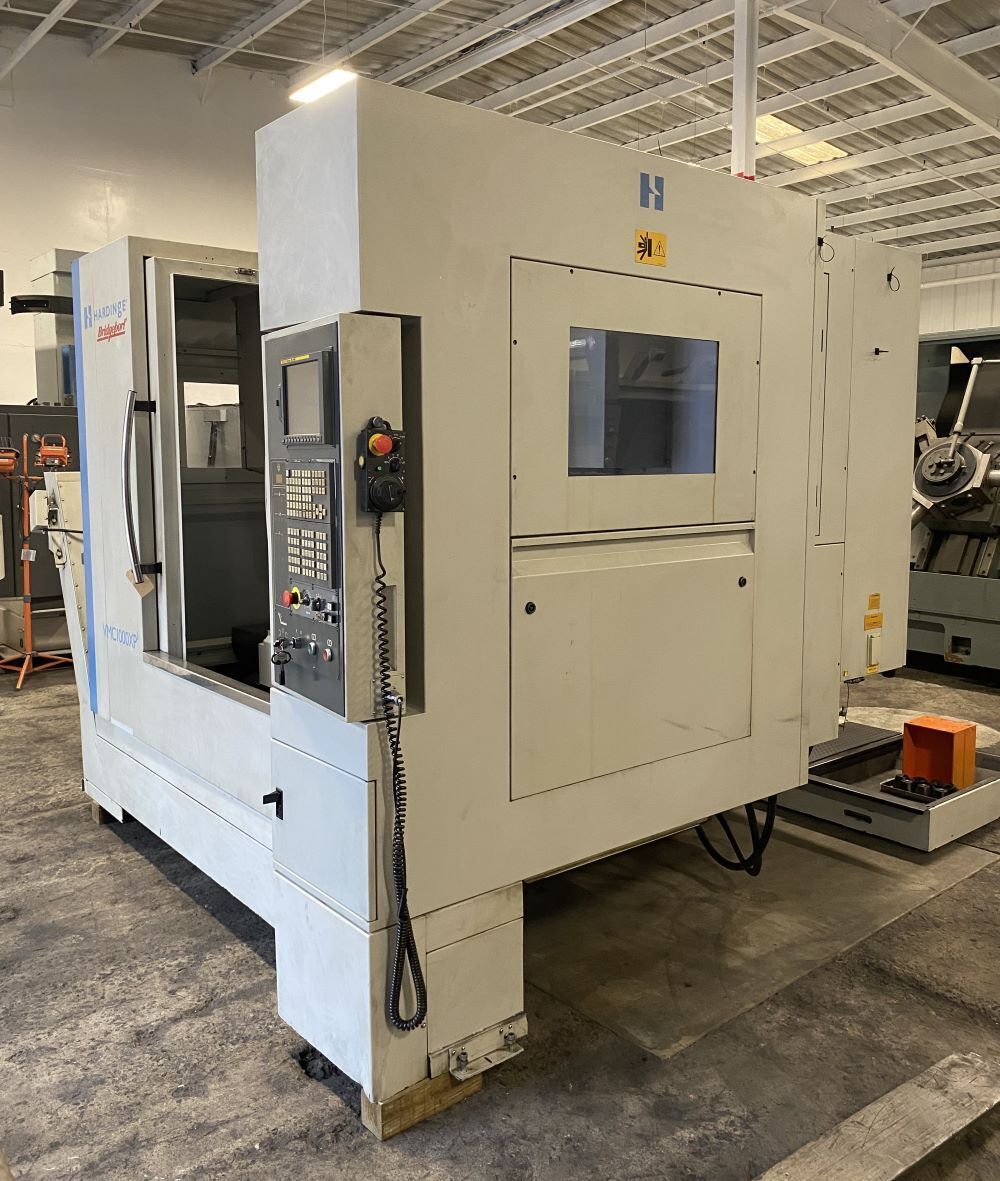

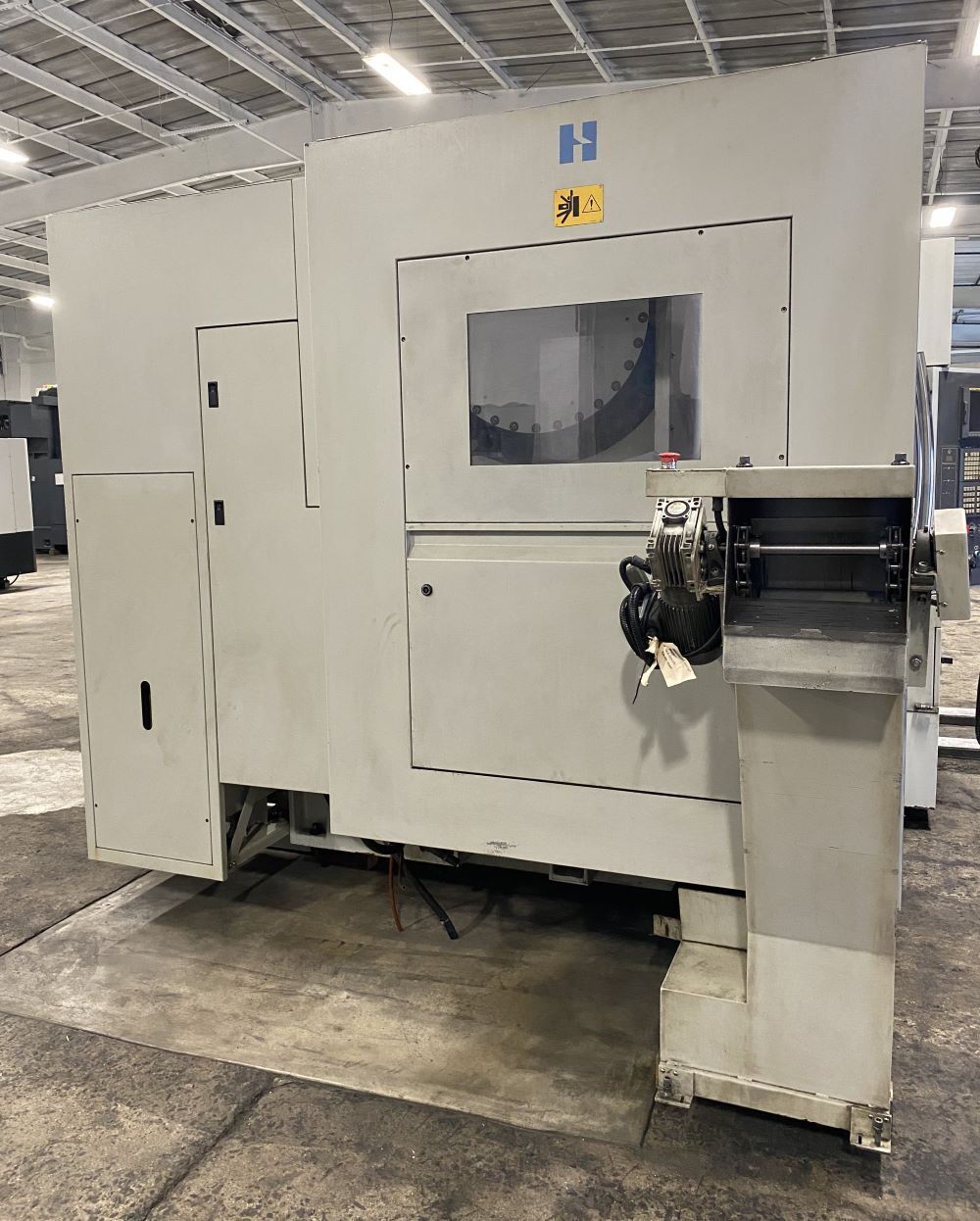

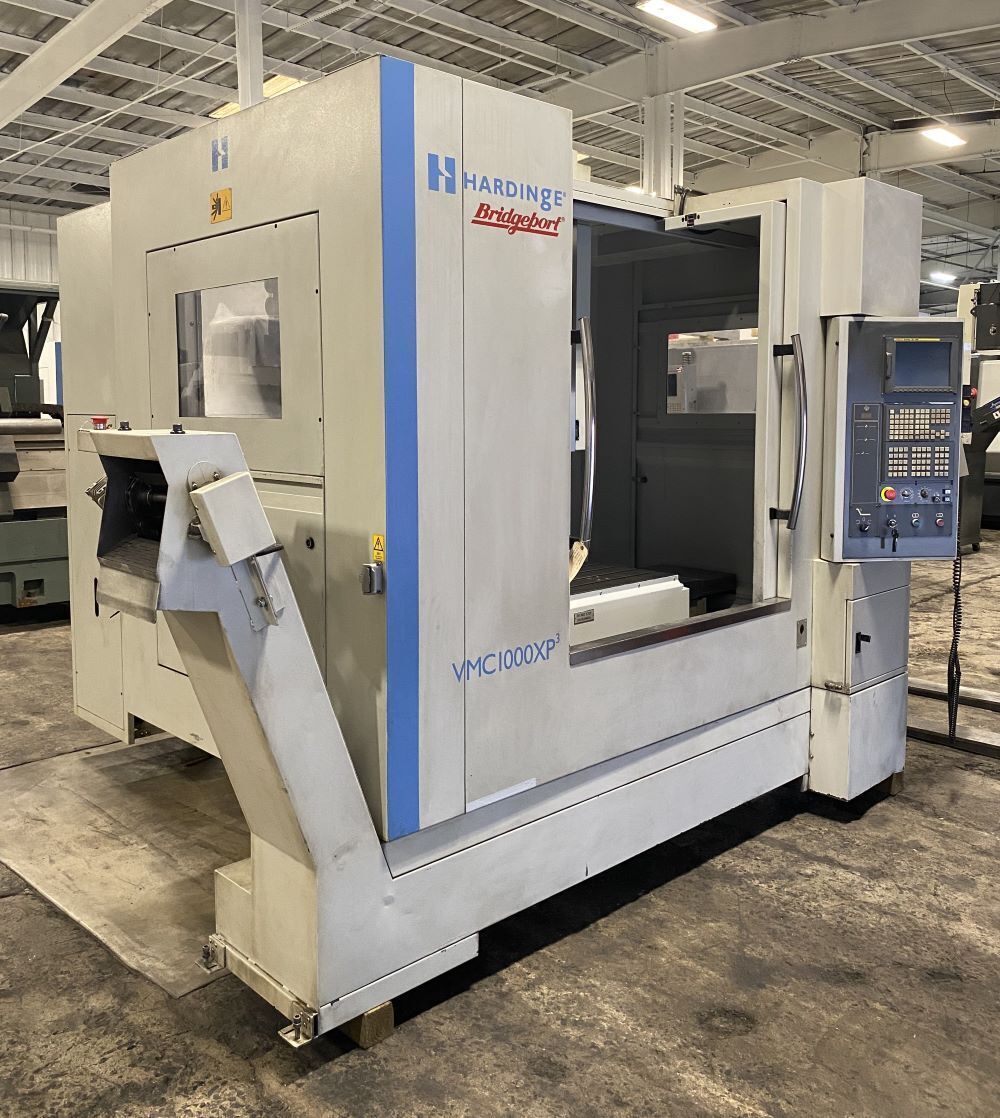

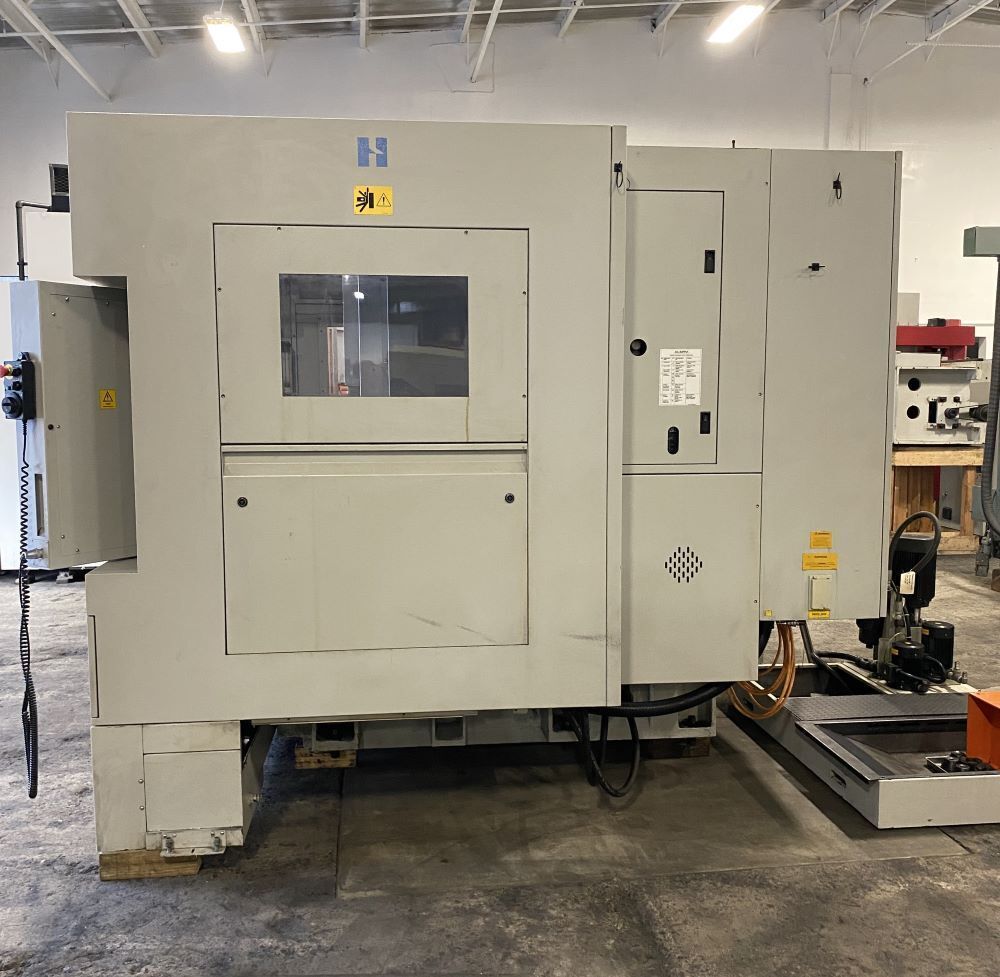

Hardinge Bridgeport 1000 XP3 CNC Vertical Machining Center

$456.00

1 in stock

Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.

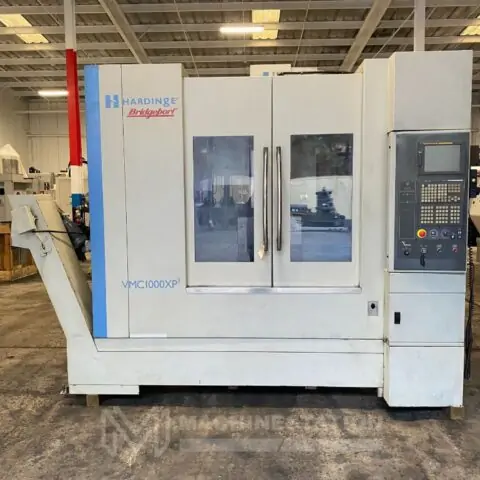

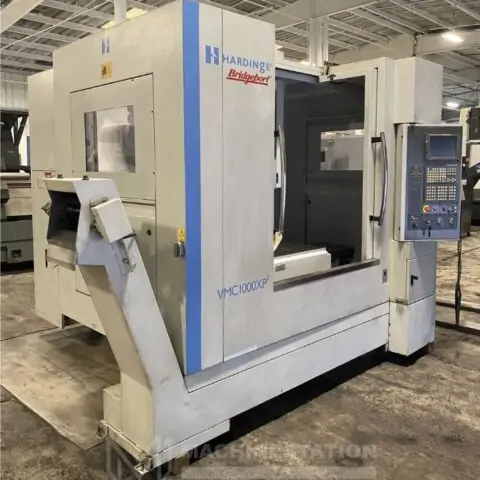

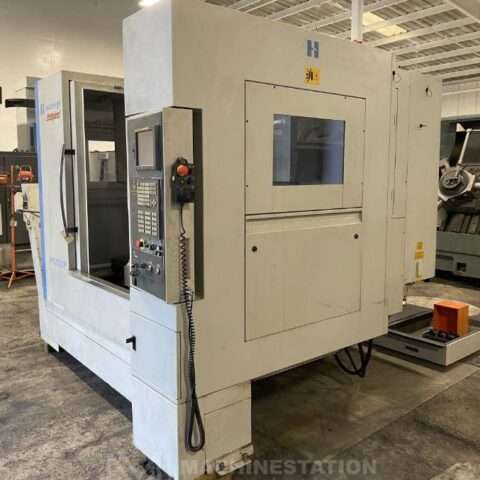

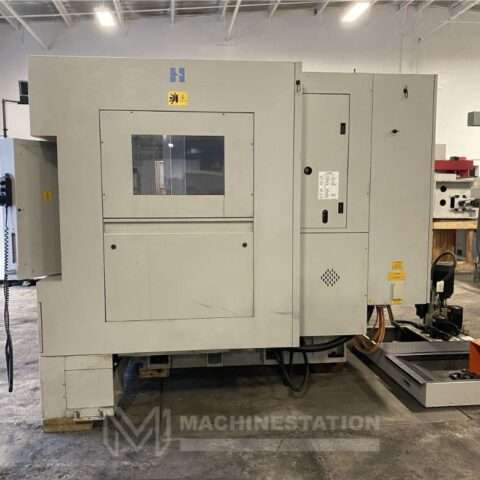

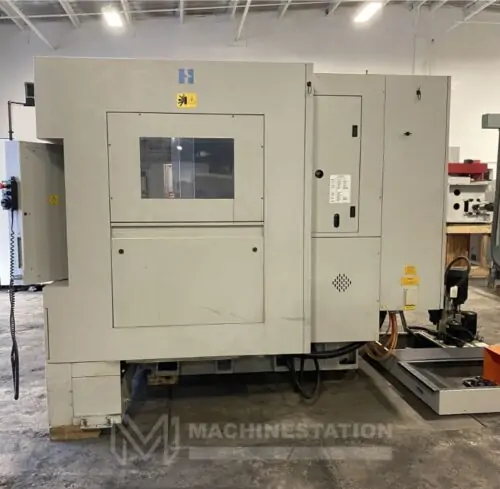

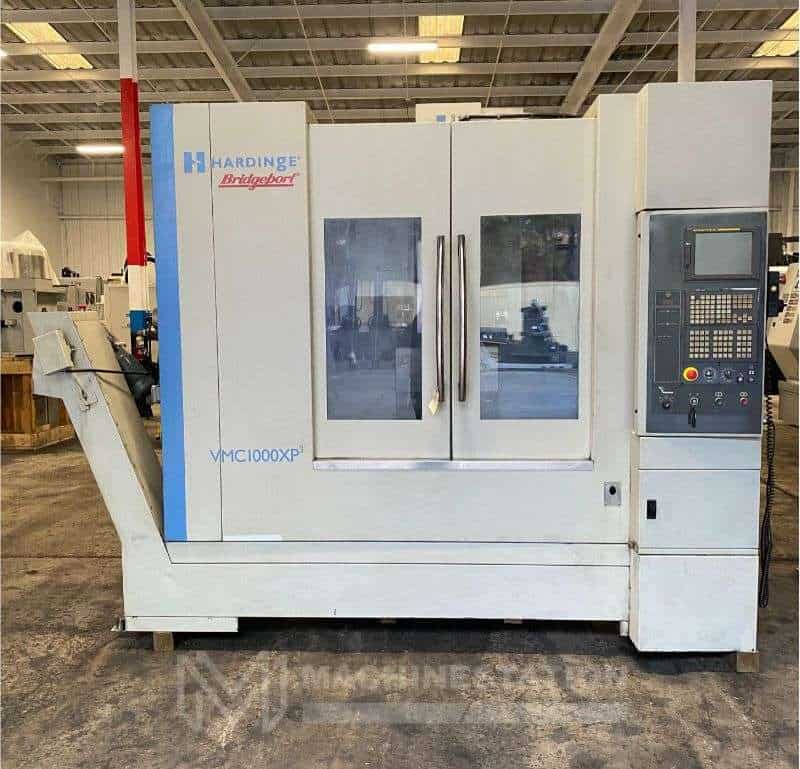

Used Hardinge Bridgeport 1000 XP3 CNC Vertical Machining Center for Sale.

Location: Lake Elsinore, CA
SKU: 2584

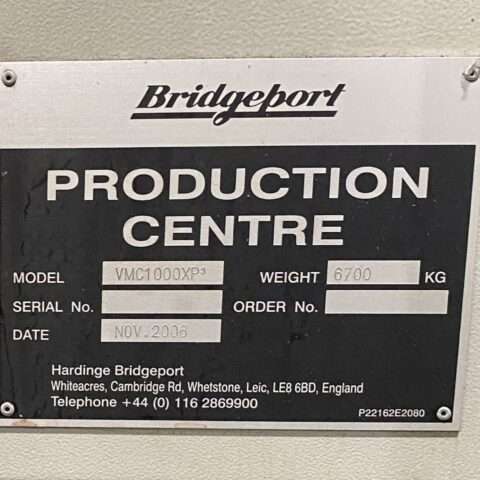

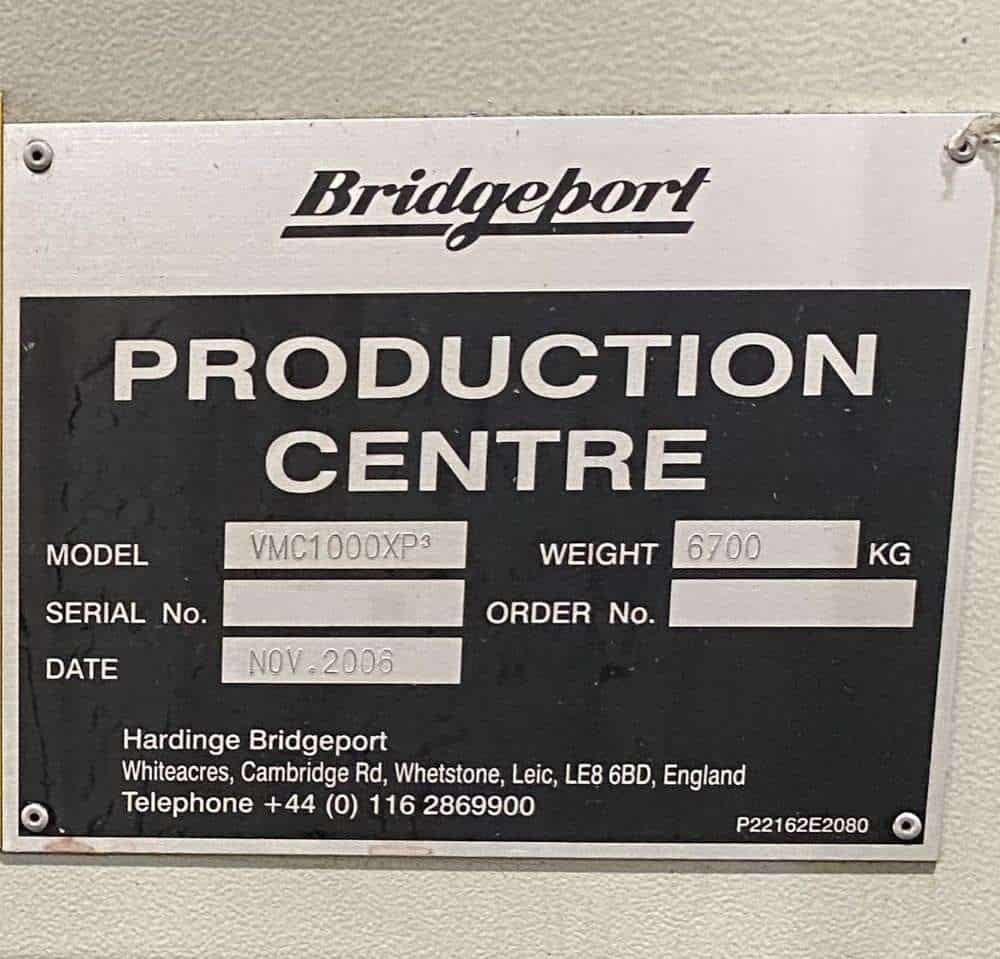

Make/Model: Hardinge Bridgeport 1000 XP3
Video: No Video
SKU: 2584

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2584
Make: Hardinge Bridgeport
Model: 1000-XP3
Year: 2006
Condition: Used – Good



Features:

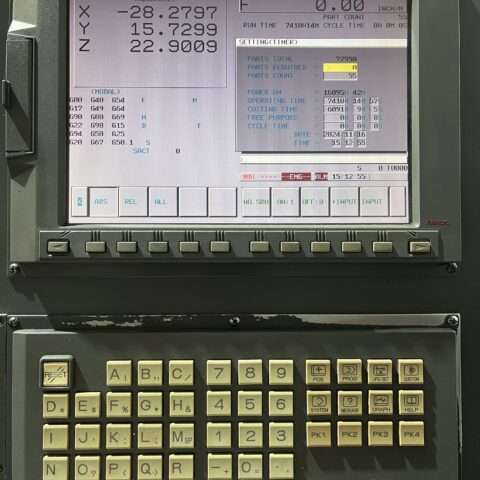

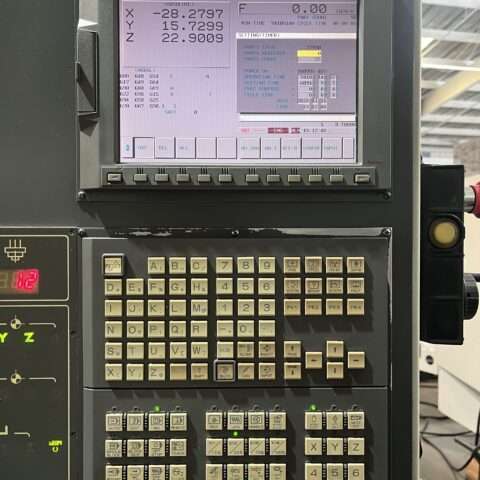

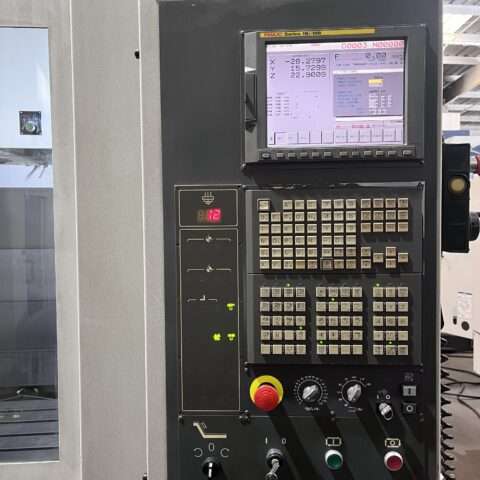

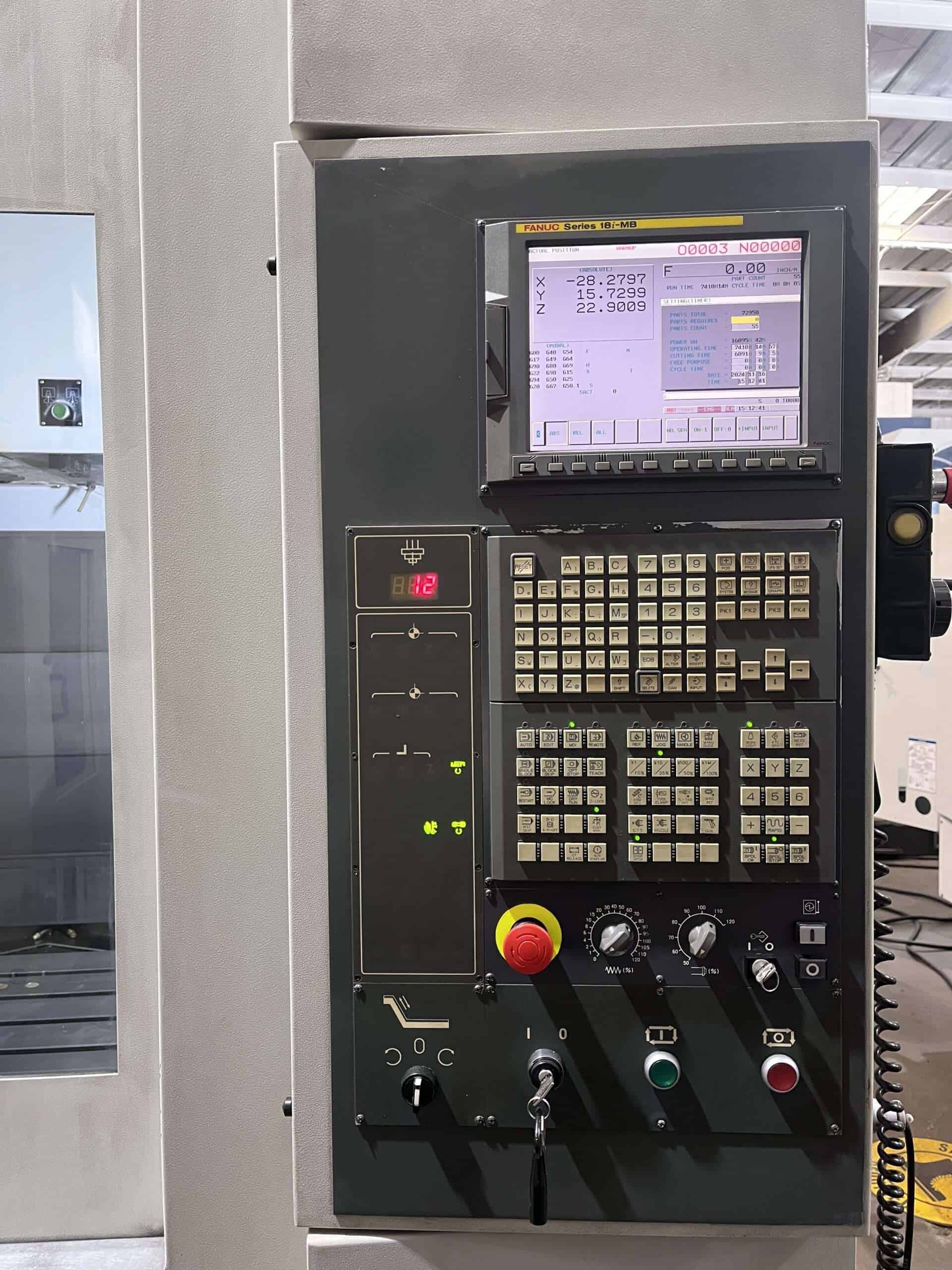

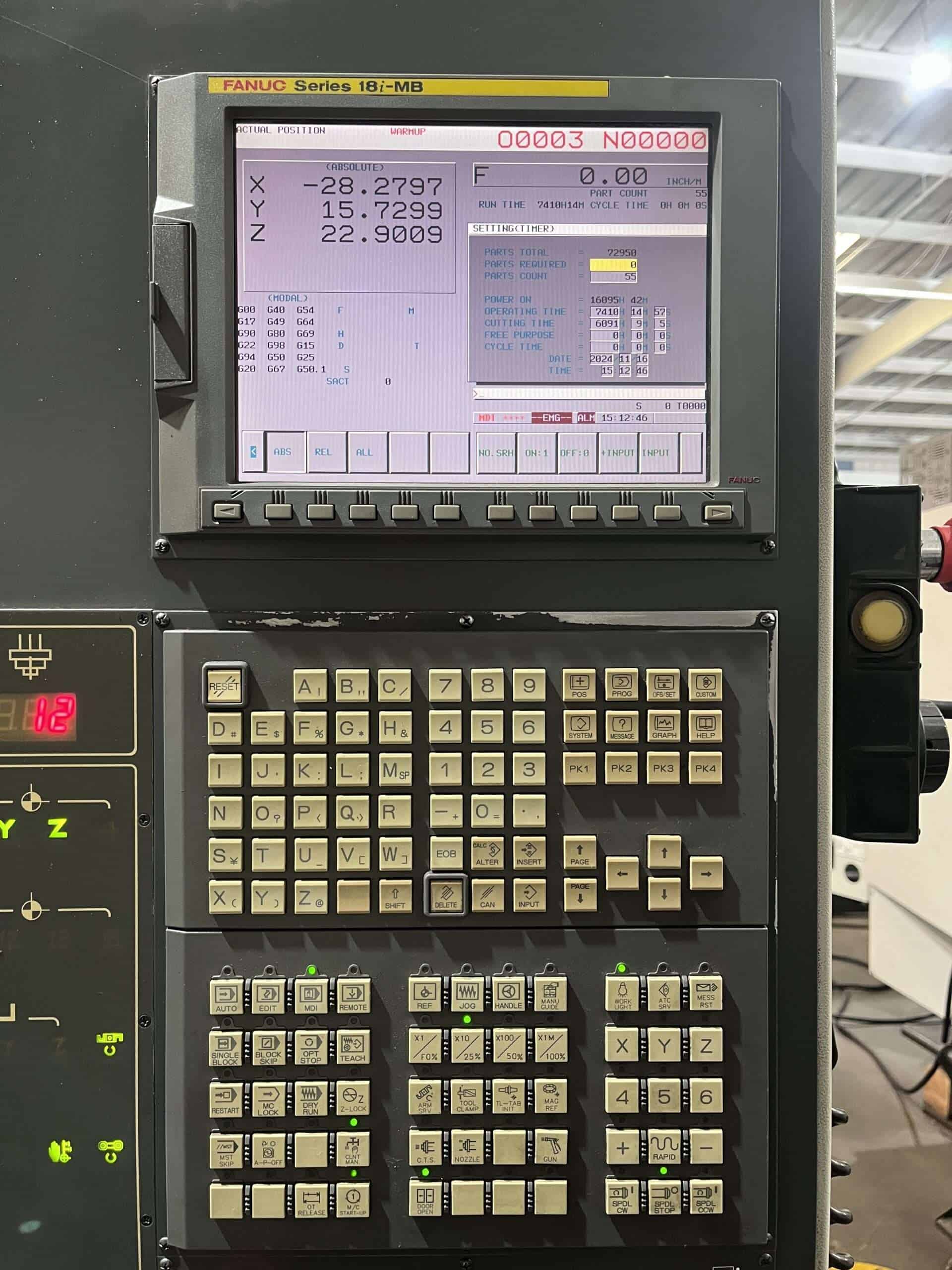

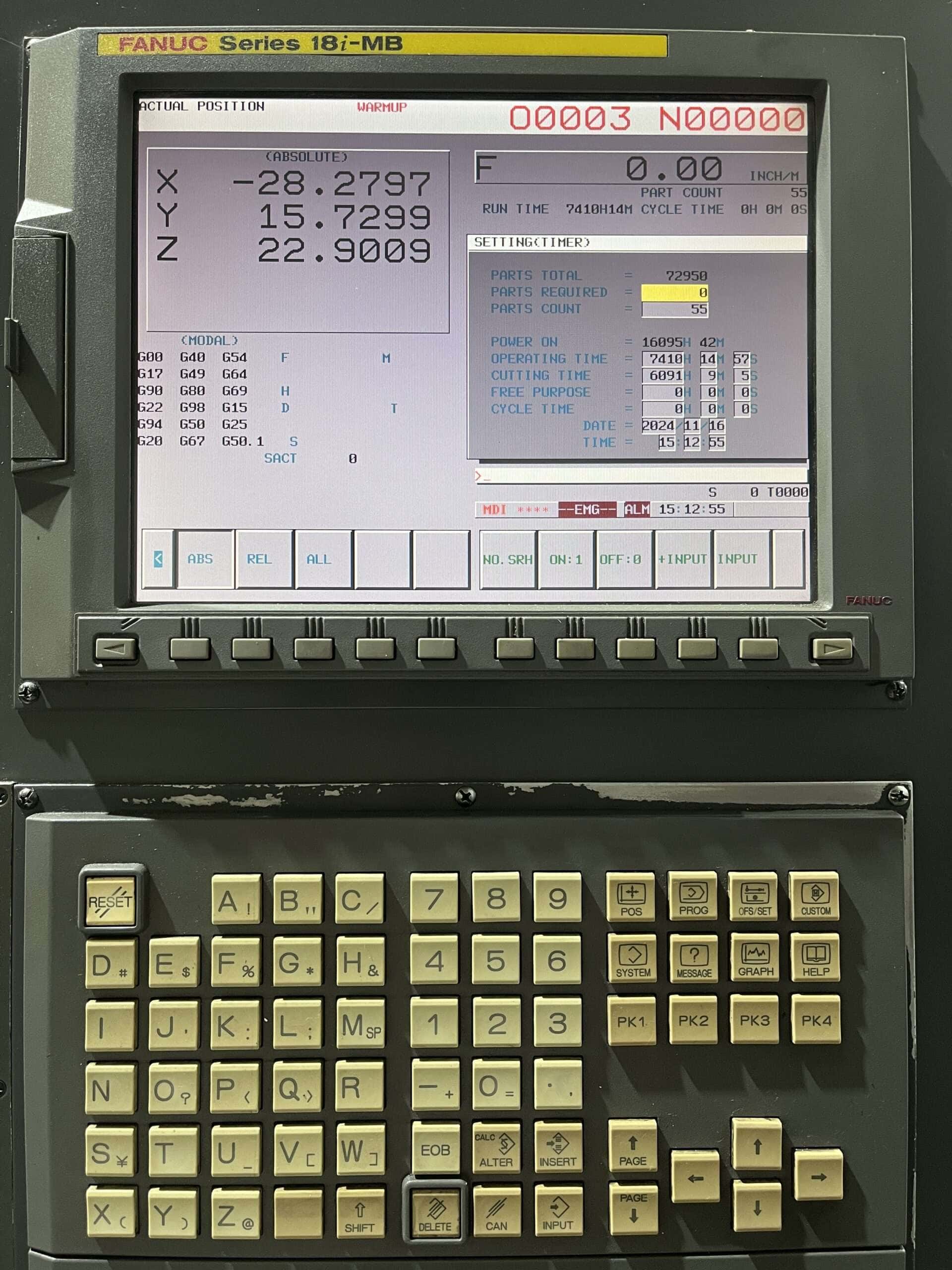

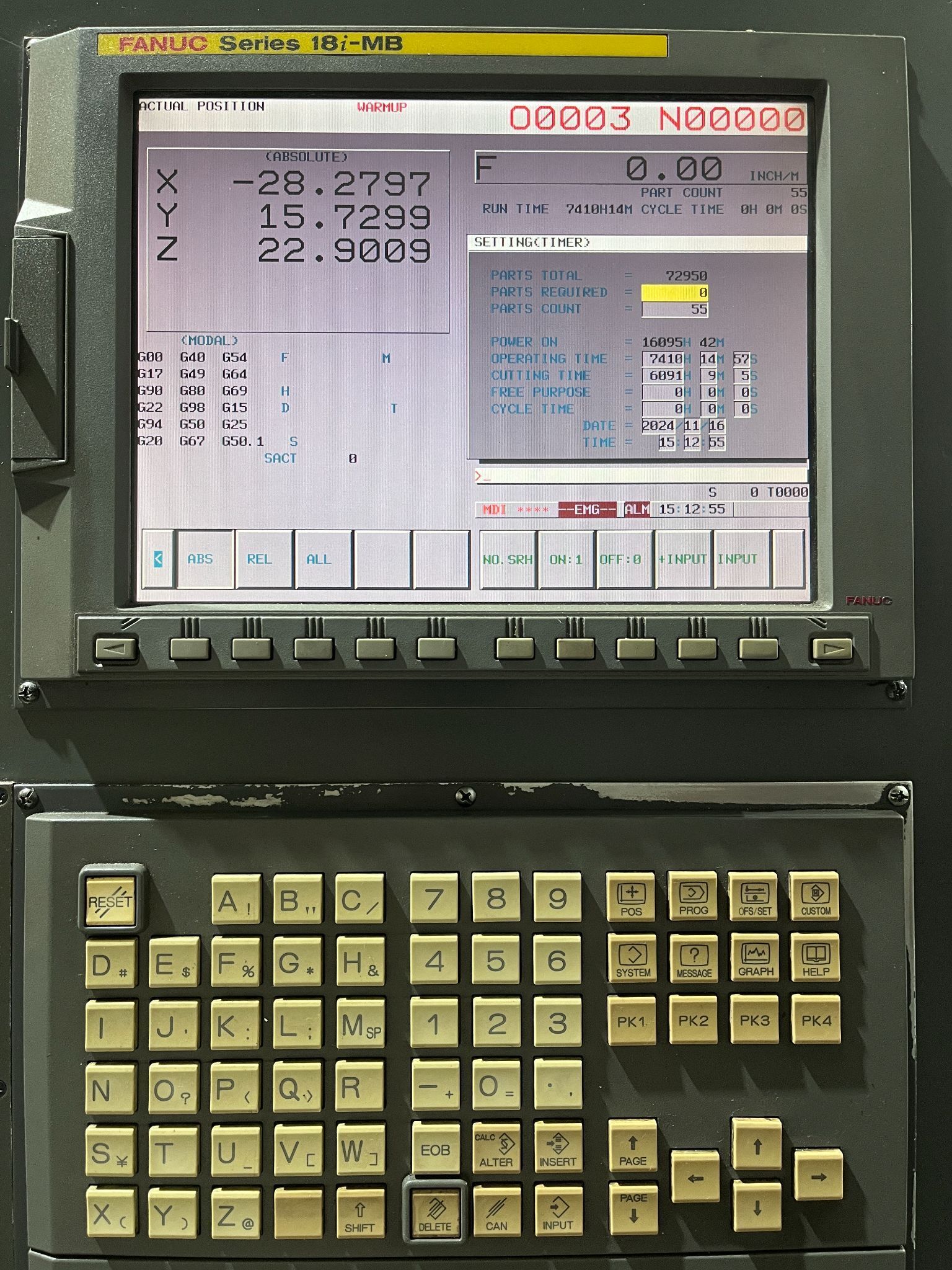

Fanuc 18i-MB Series CNC Control
12000 RPM High Precision Spindle

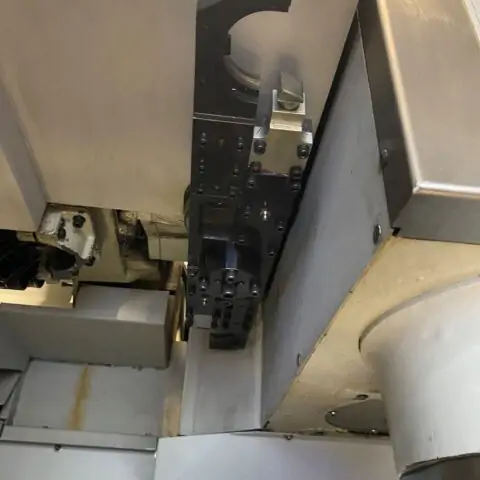

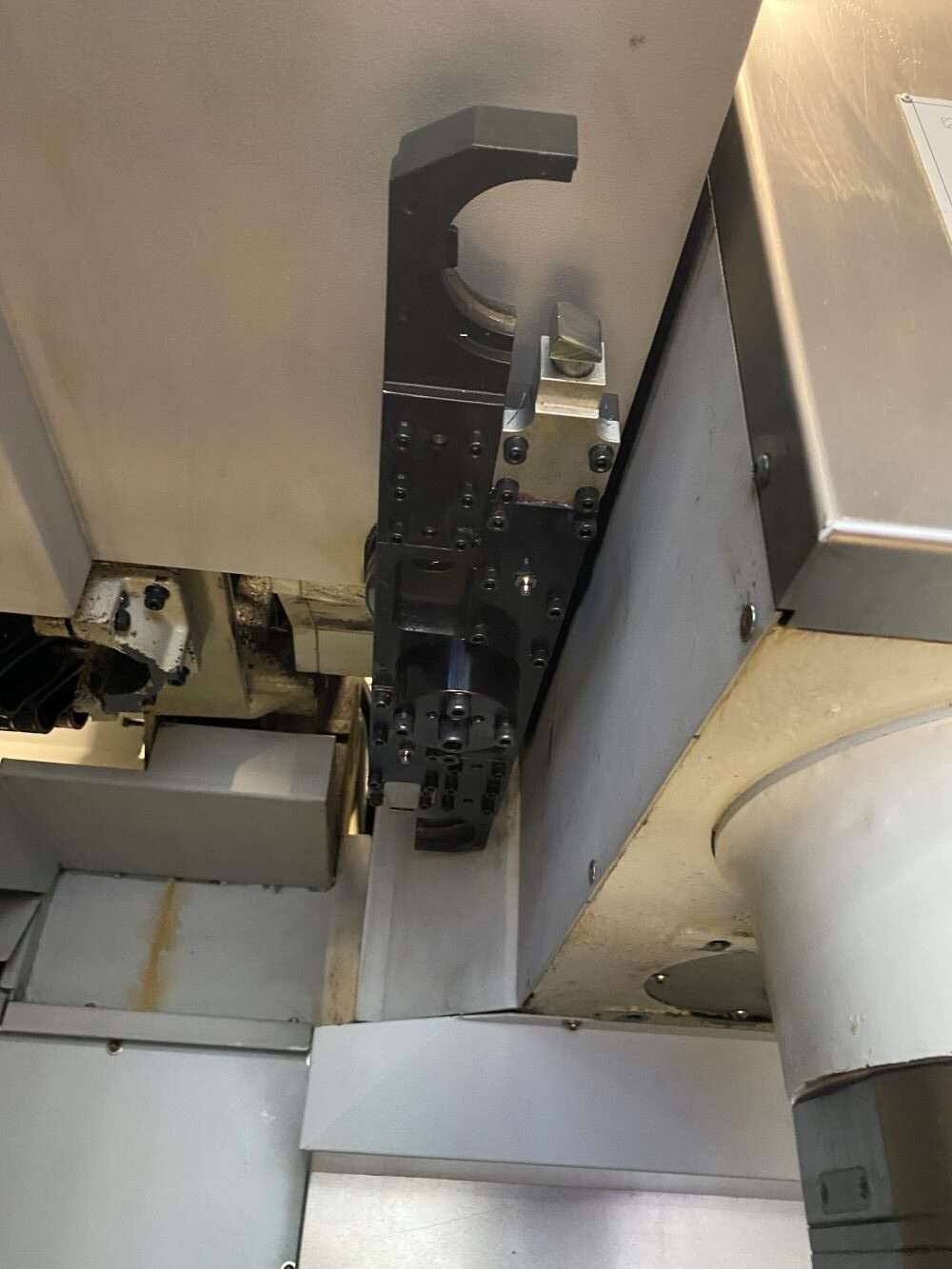

30 Station Side Mounted Automatic Tool changer
Through Spindle Coolant
PCMCIA Card Slot

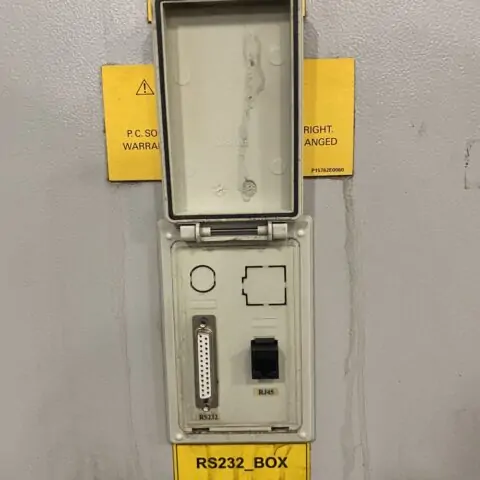

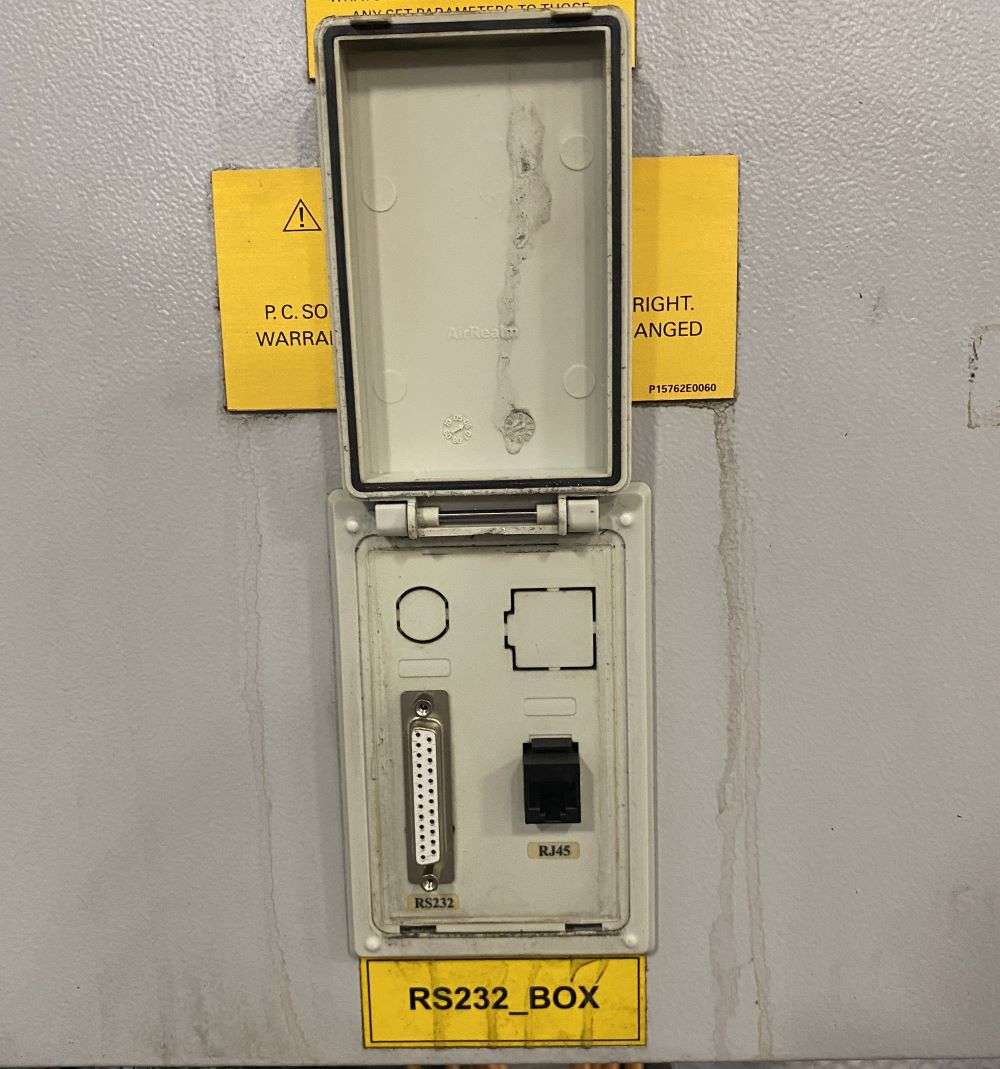

RS-232 Port
Hand Wheel MPG Control
Rigid Tapping
Telescopic way covers

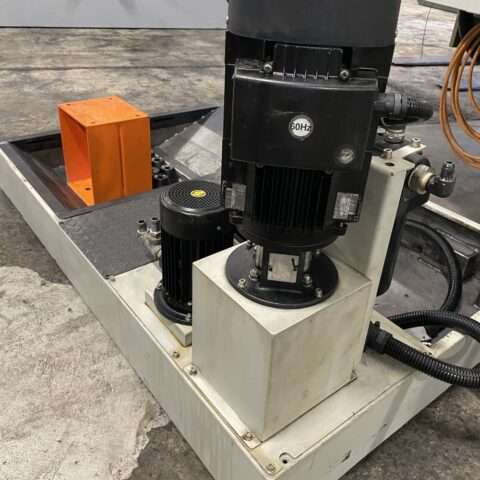

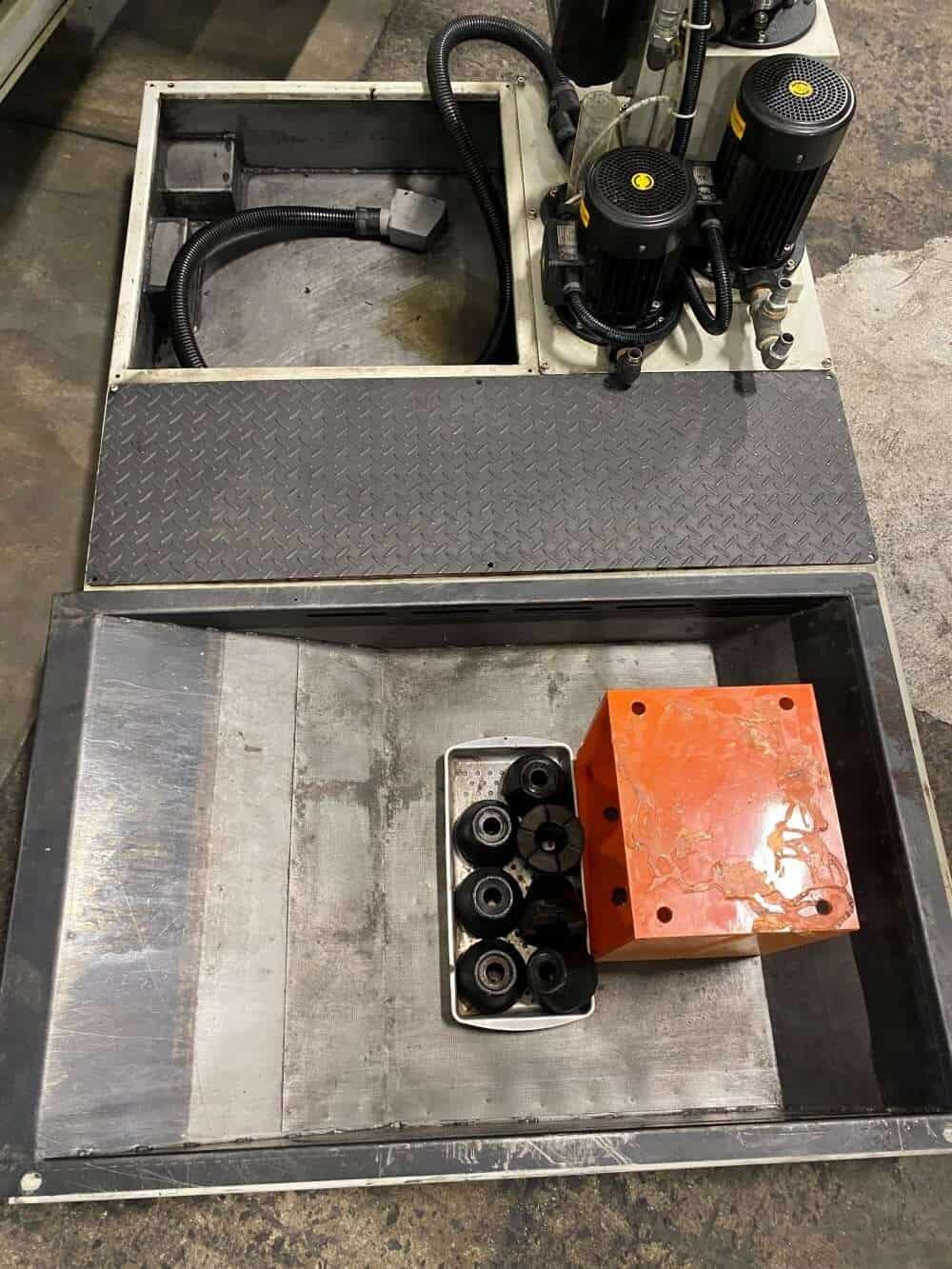

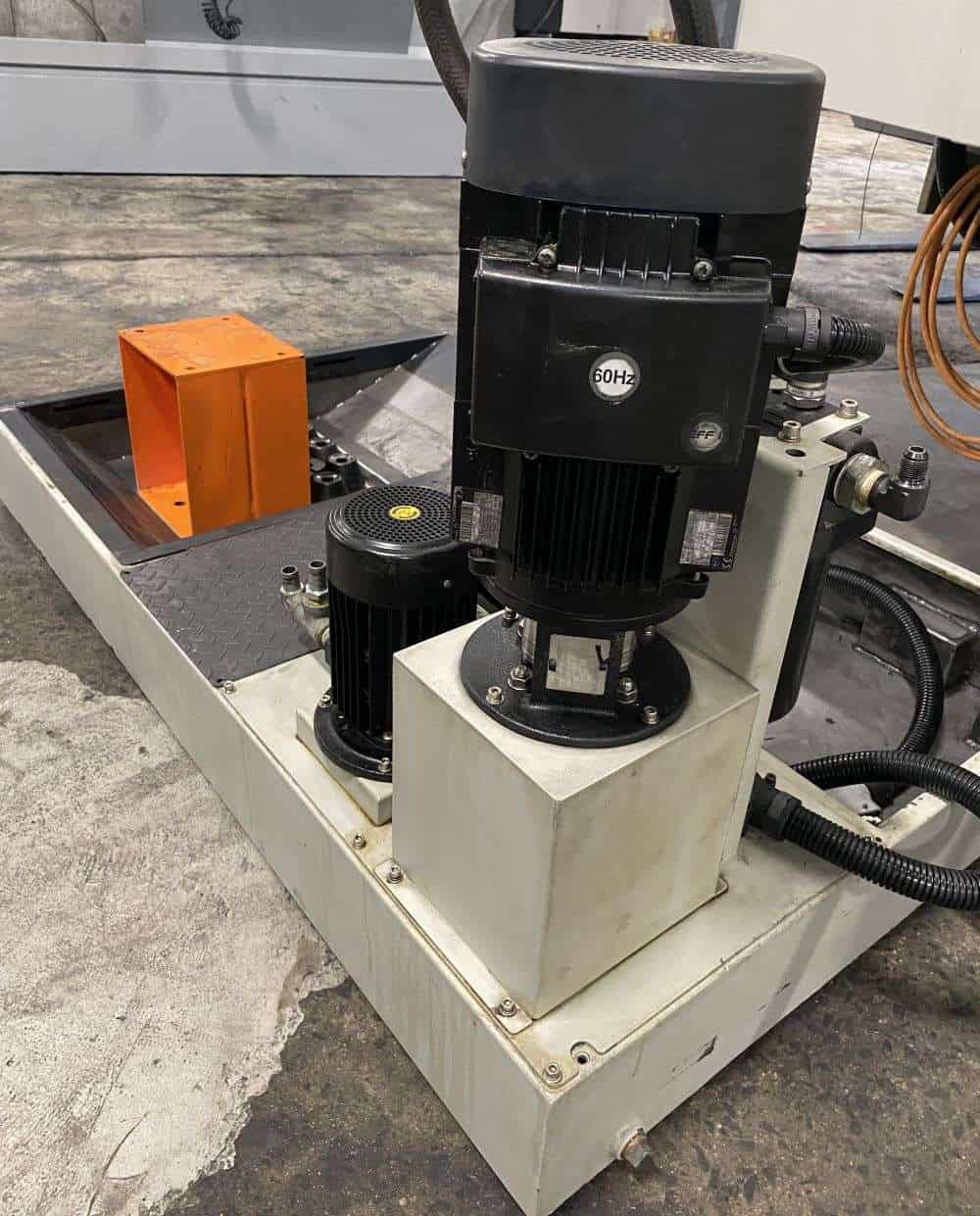

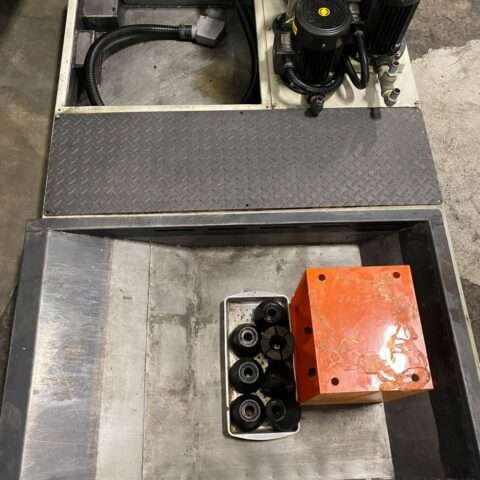

Coolant Tank

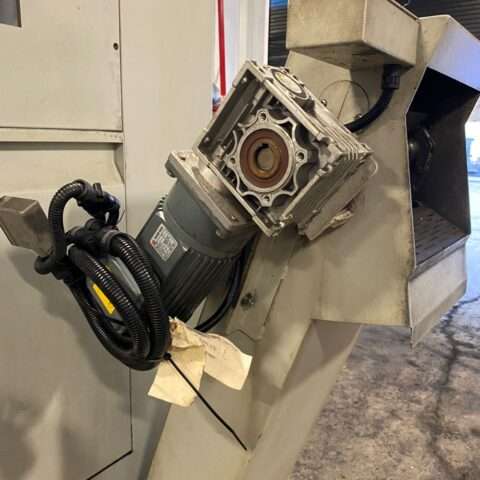

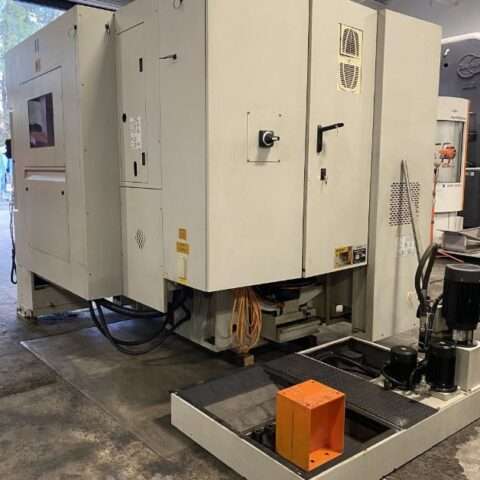

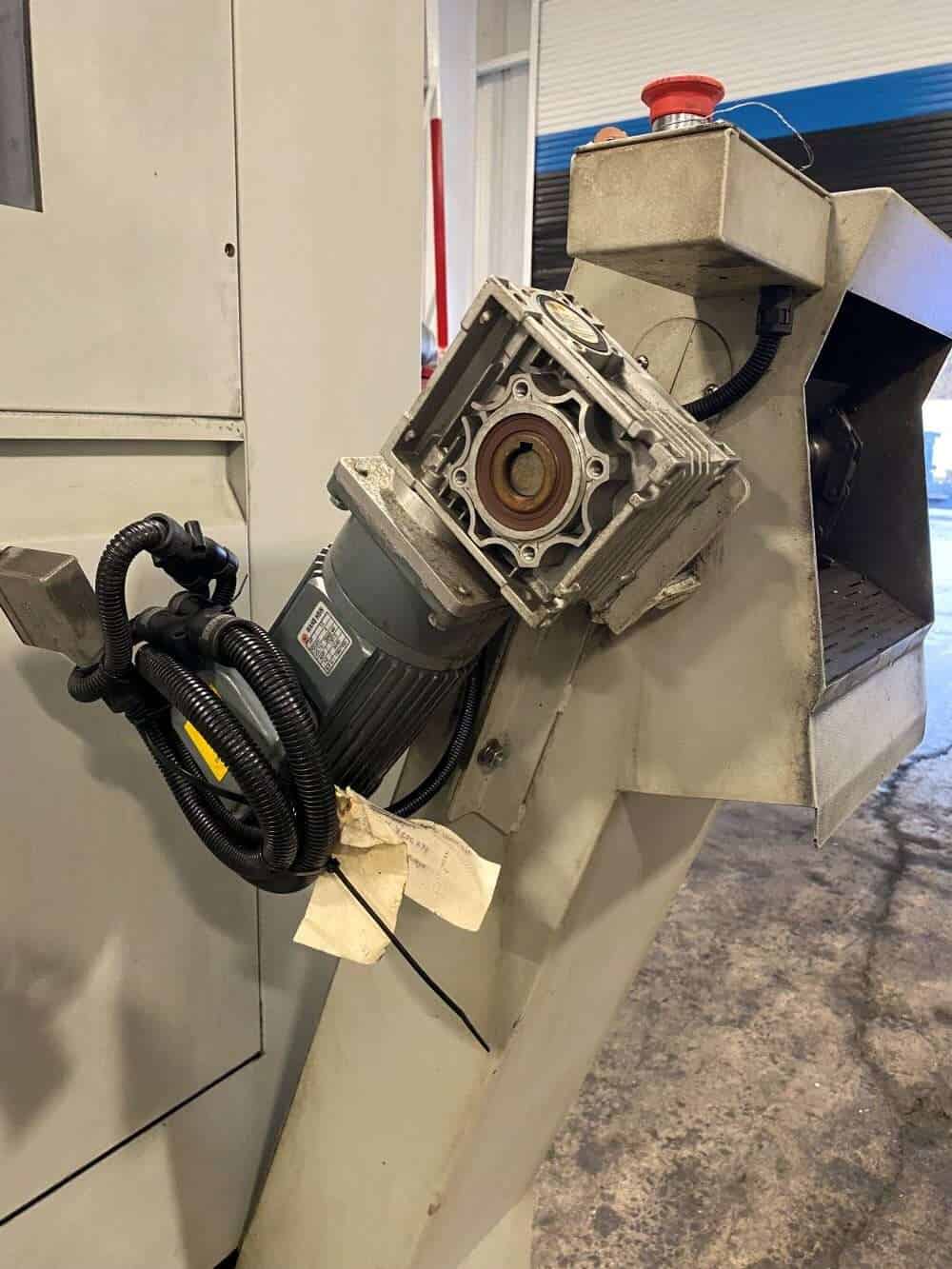

Chip Conveyor
Levelling Pads

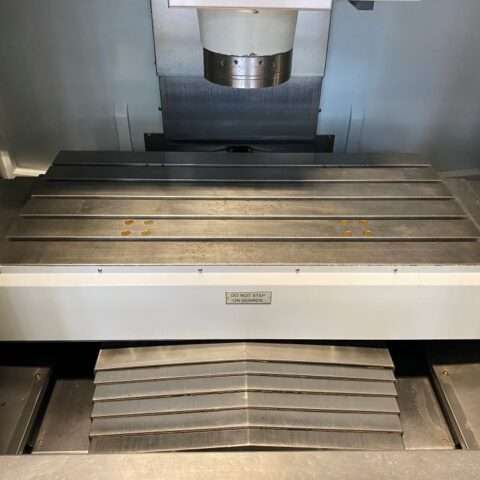

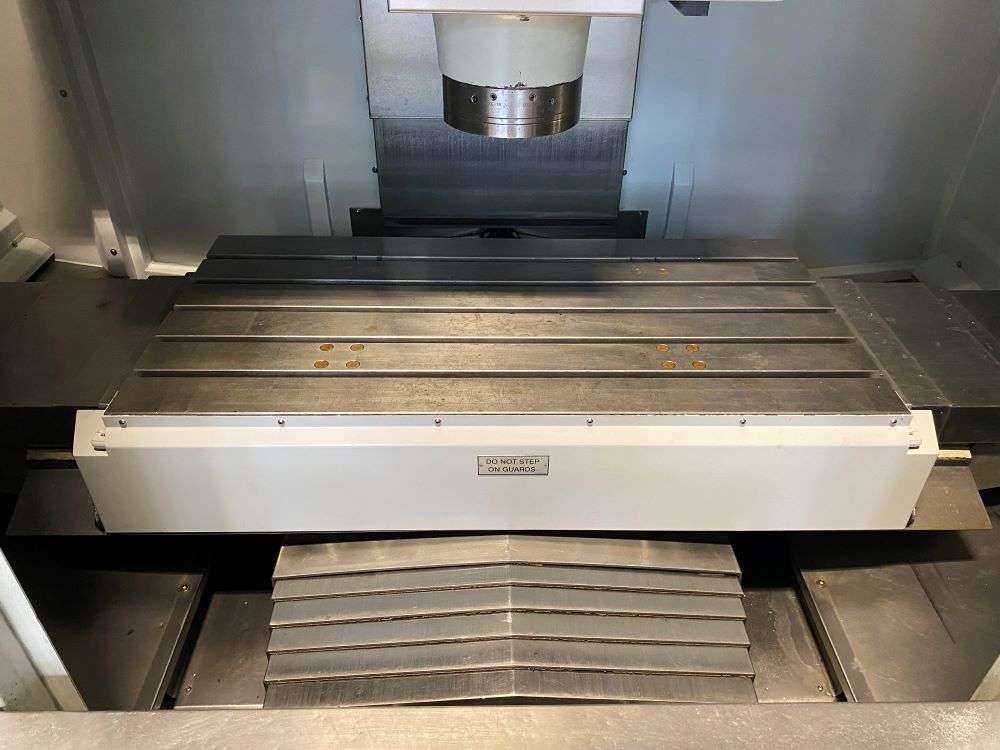

Table:
Length: 47.2″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 0.7″X 4.72″
Max Weight on Table: 1763 lbs



Travels:
X-Axis: 41″
Y-Axis: 24″
Z-Axis: 24″
Rapid Traverse Rates X & Y Axis: 1692 IPM
Rapid Traverse Rates Z Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 3.93″ – 27.95″

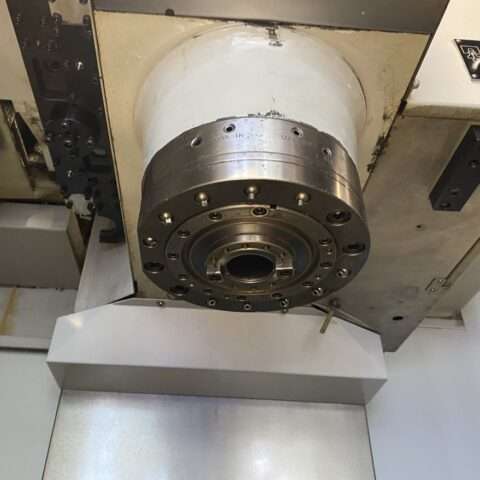

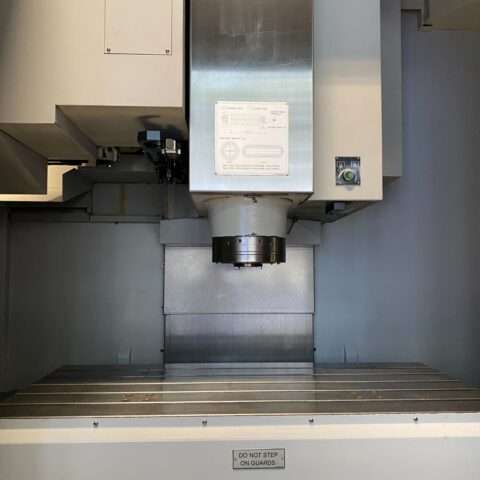

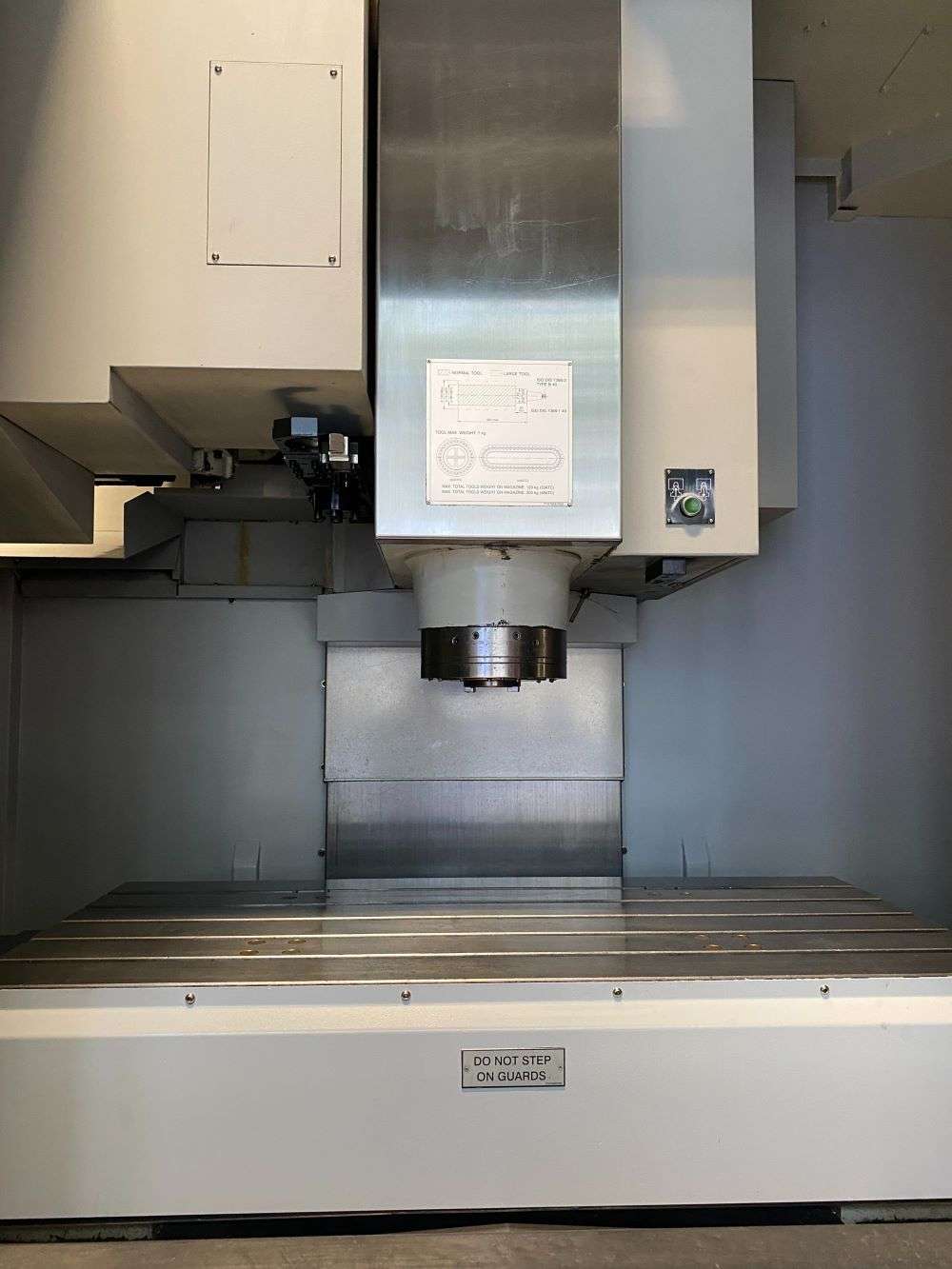

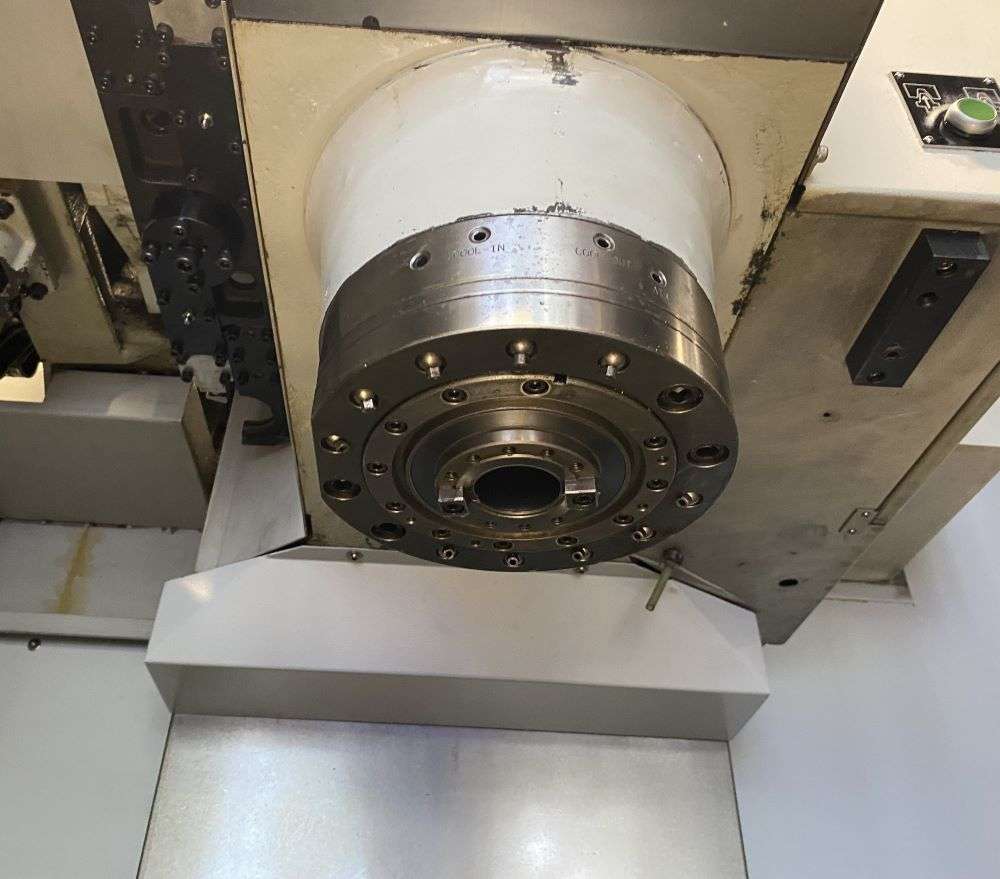

Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 25 HP

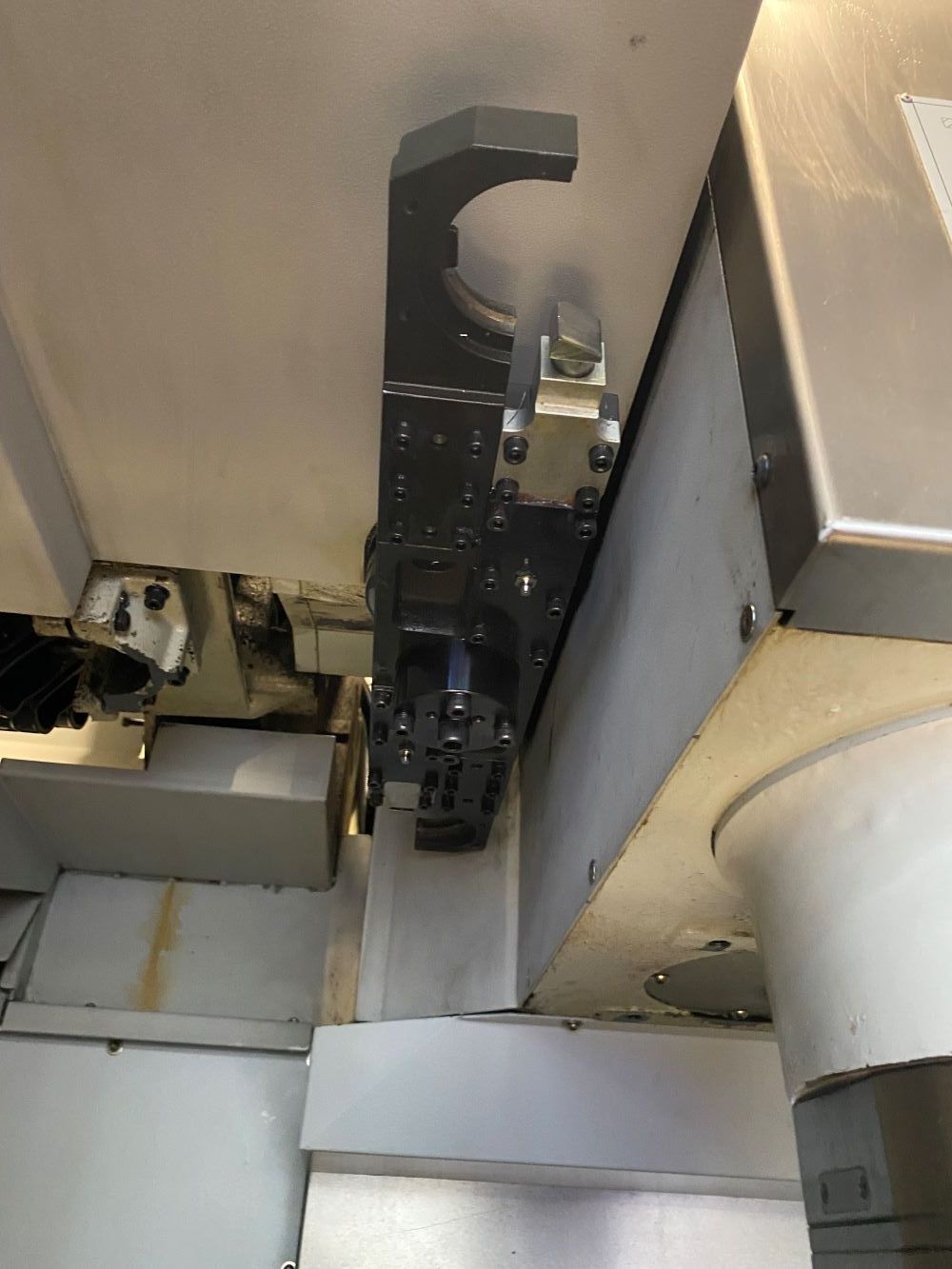

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15 lbs
Max Tool Dia: 3.38″
Max Tool Length: 11.81″
Tool Changing Time (Chip to Chip): 4 Seconds





General:
Air Required: 80 psi, 4 scfm
Power: 220v / 25 kva / 3-Phase
Overall Dimensions: 126″ x 112″ x 115″ High
Weight: 14770 lbs
