*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

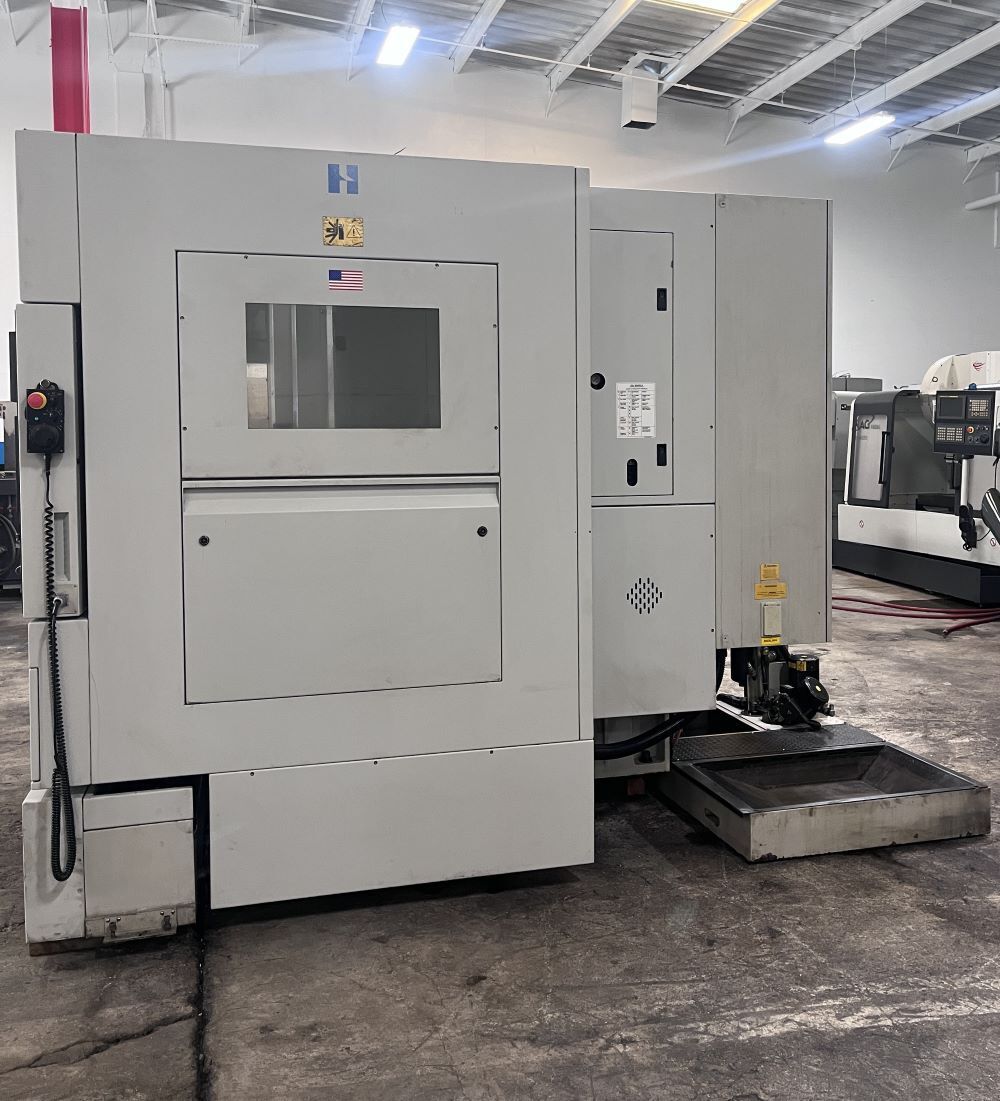

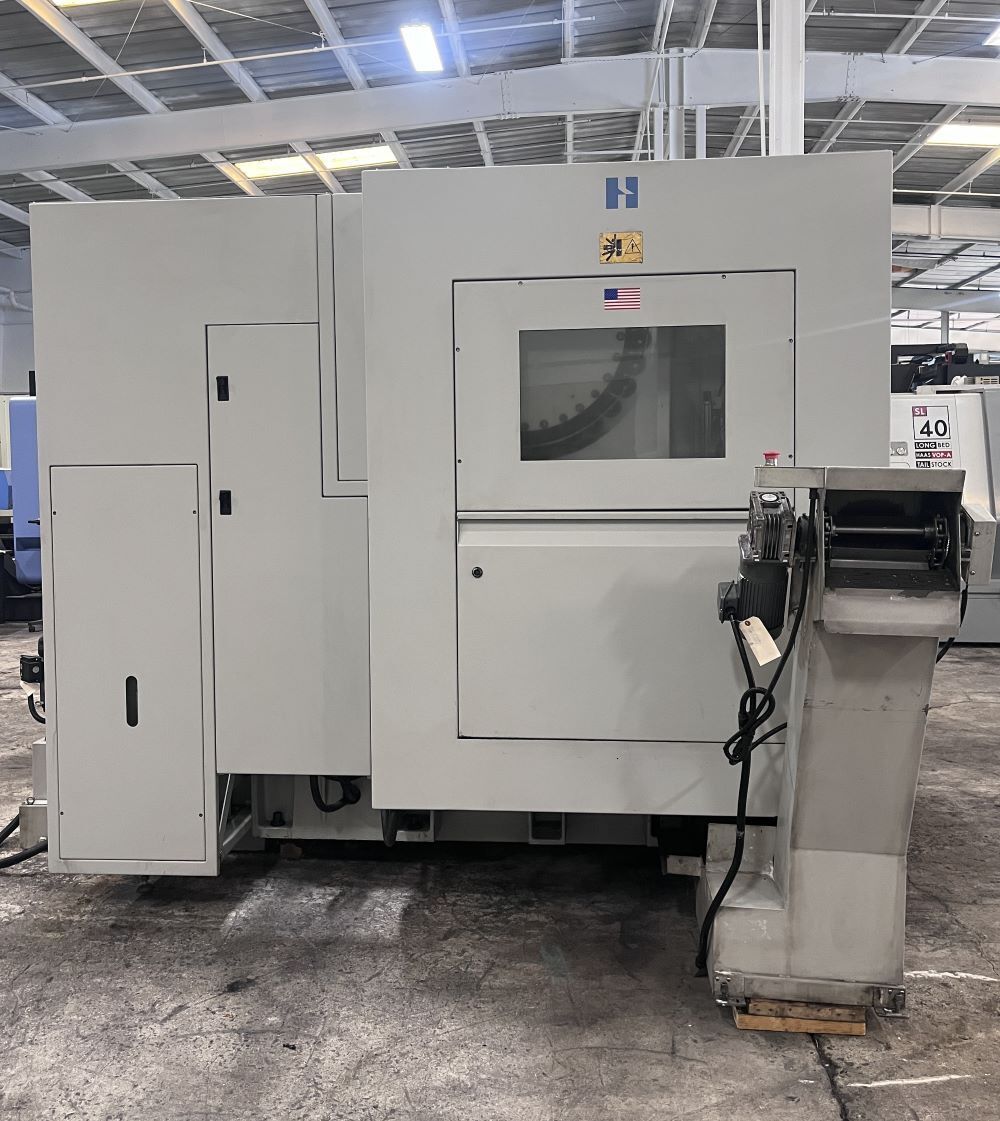

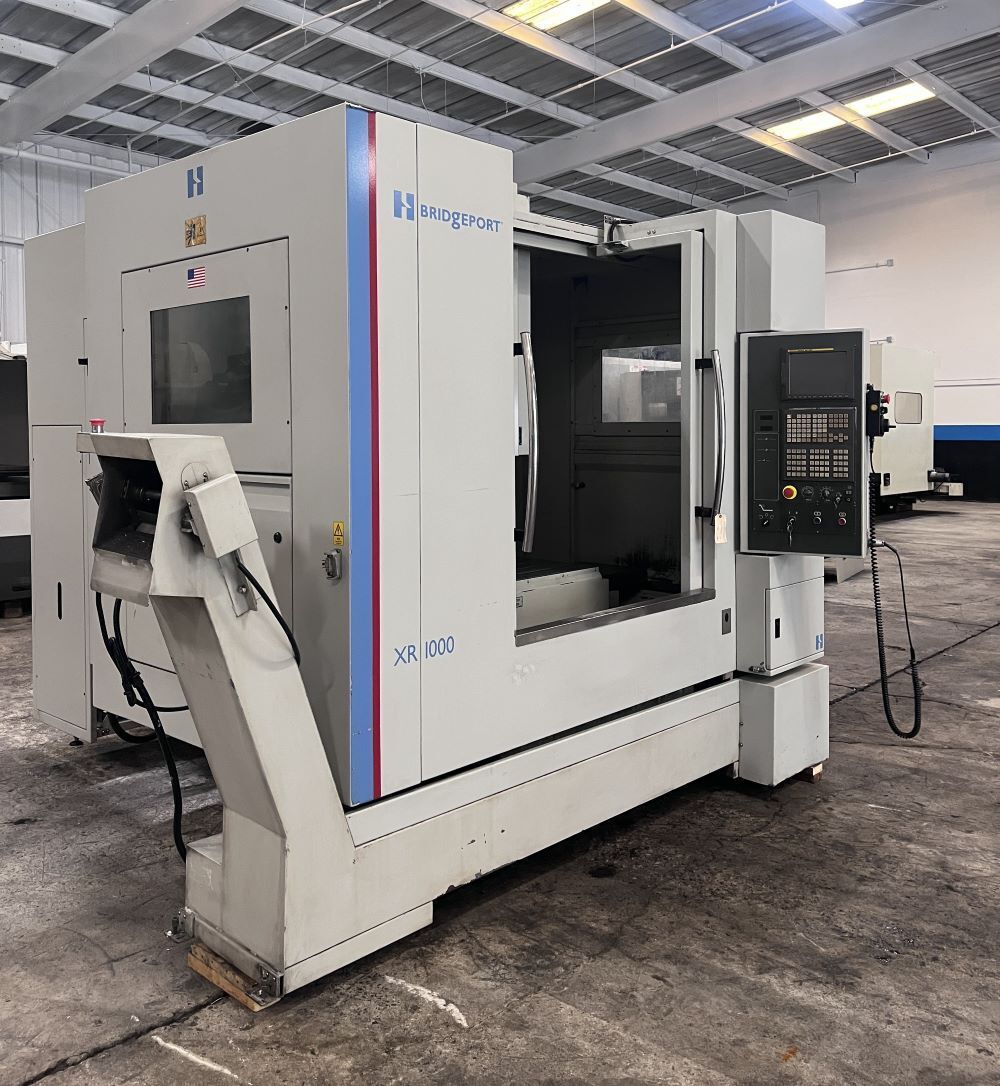

| SKU: | 2585 |

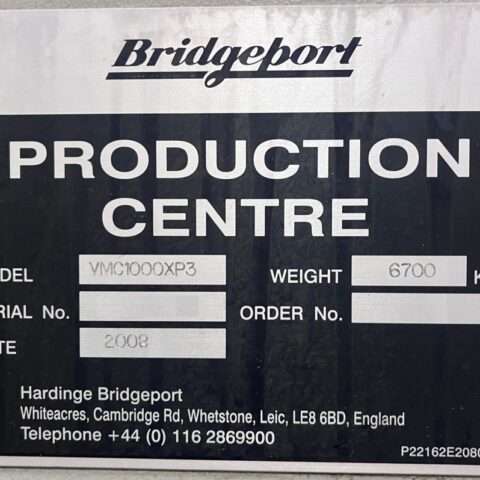

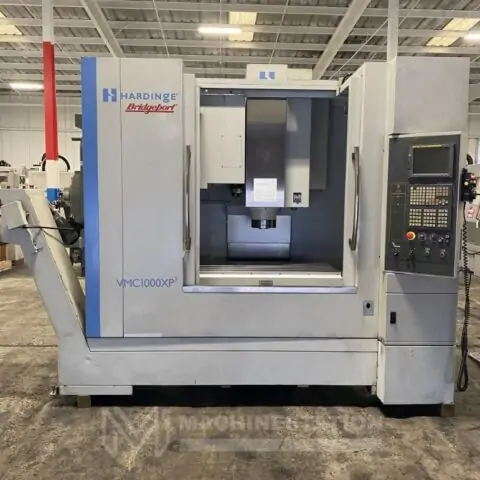

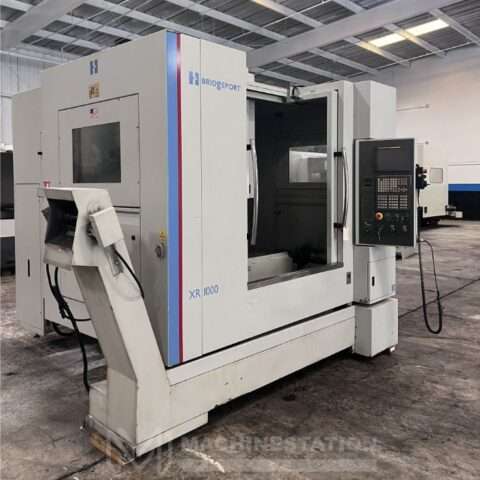

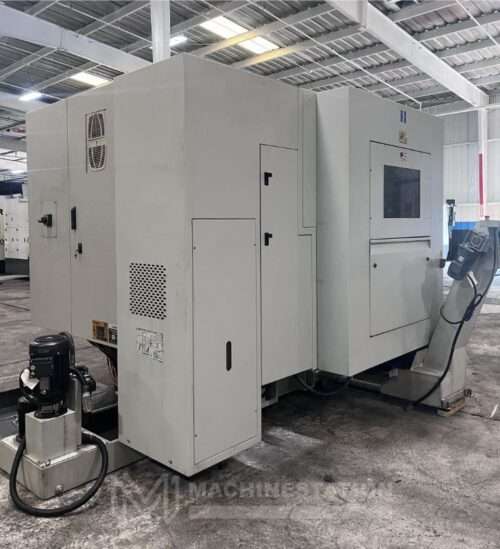

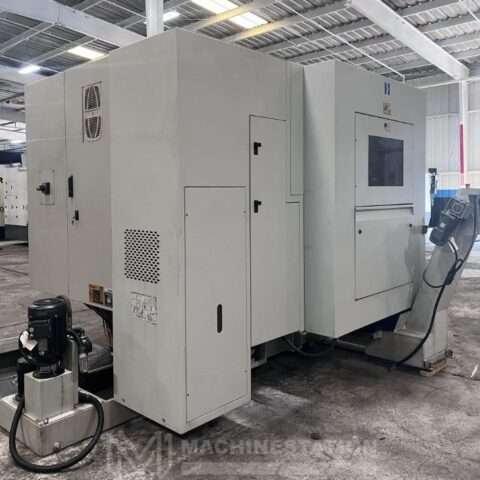

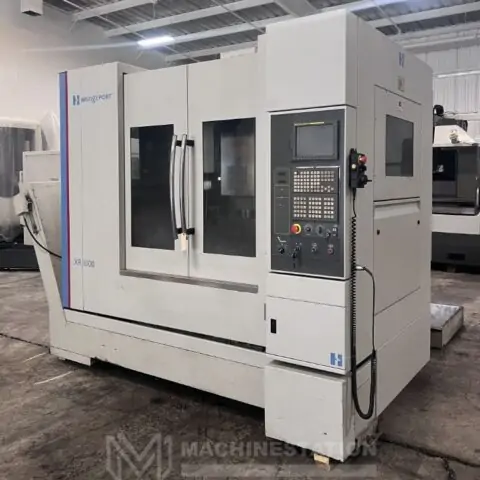

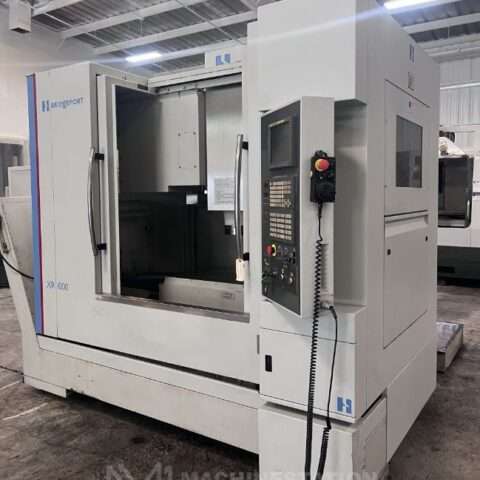

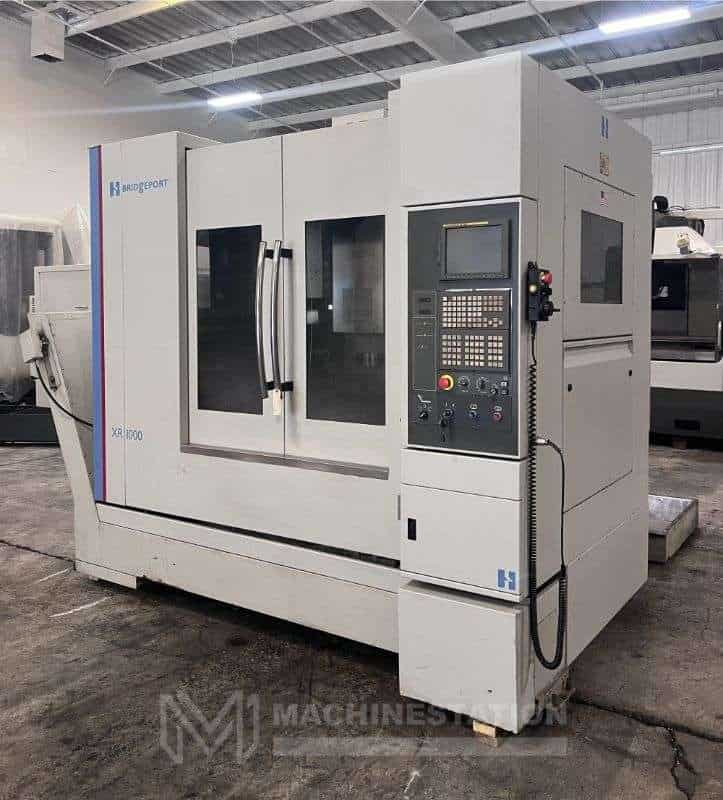

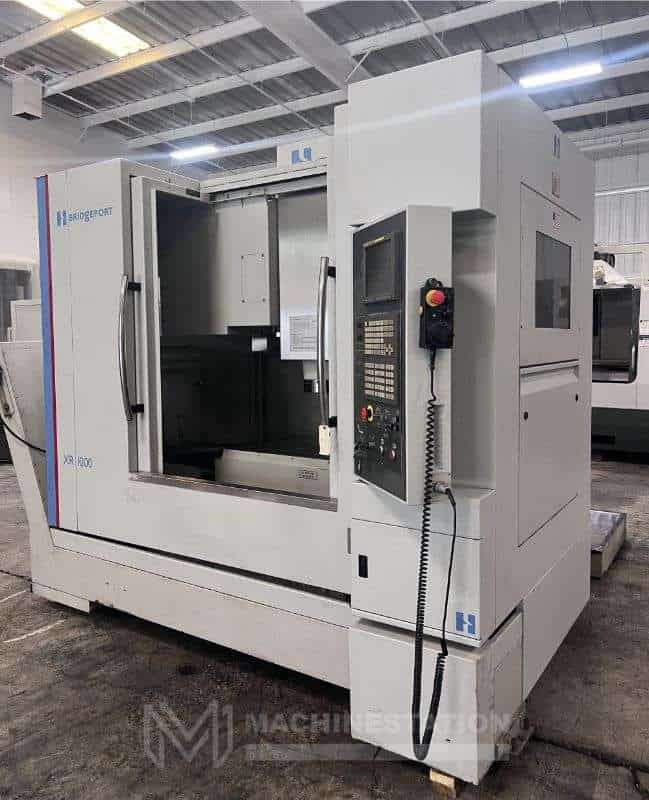

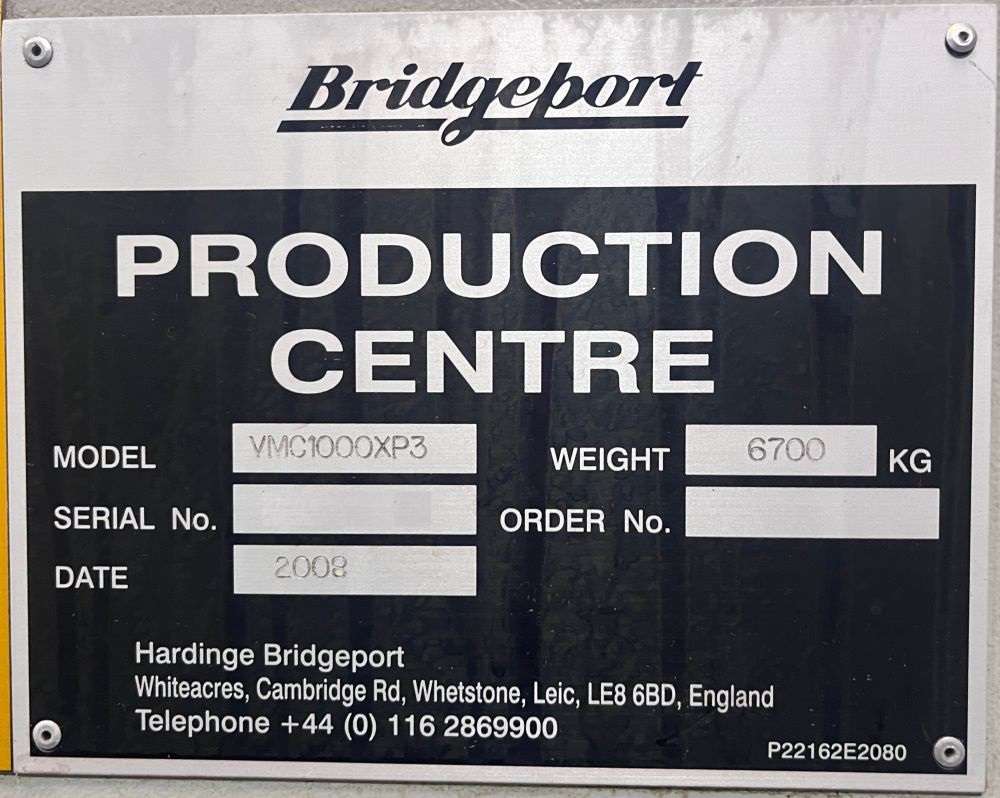

| Make: | Hardinge Bridgeport |
| Model: | 1000-XP3 |
| Year: | 2008 |
| Condition: | Used – Good |
| Features: |
|---|

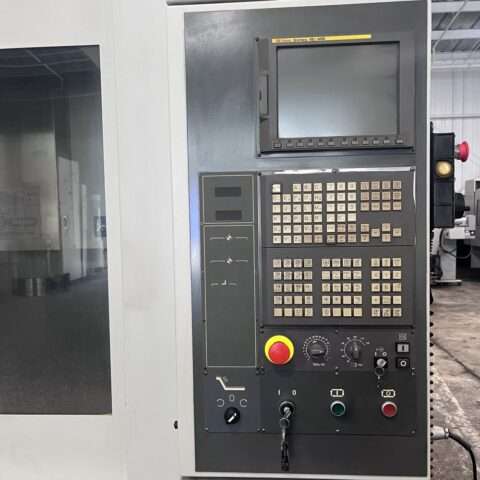

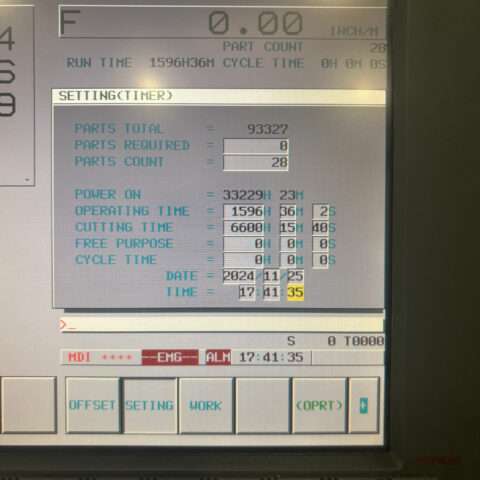

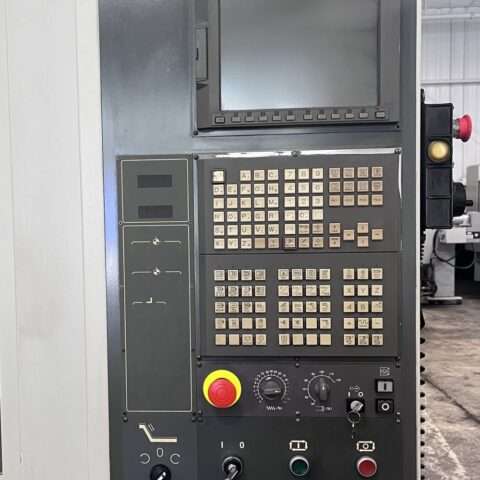

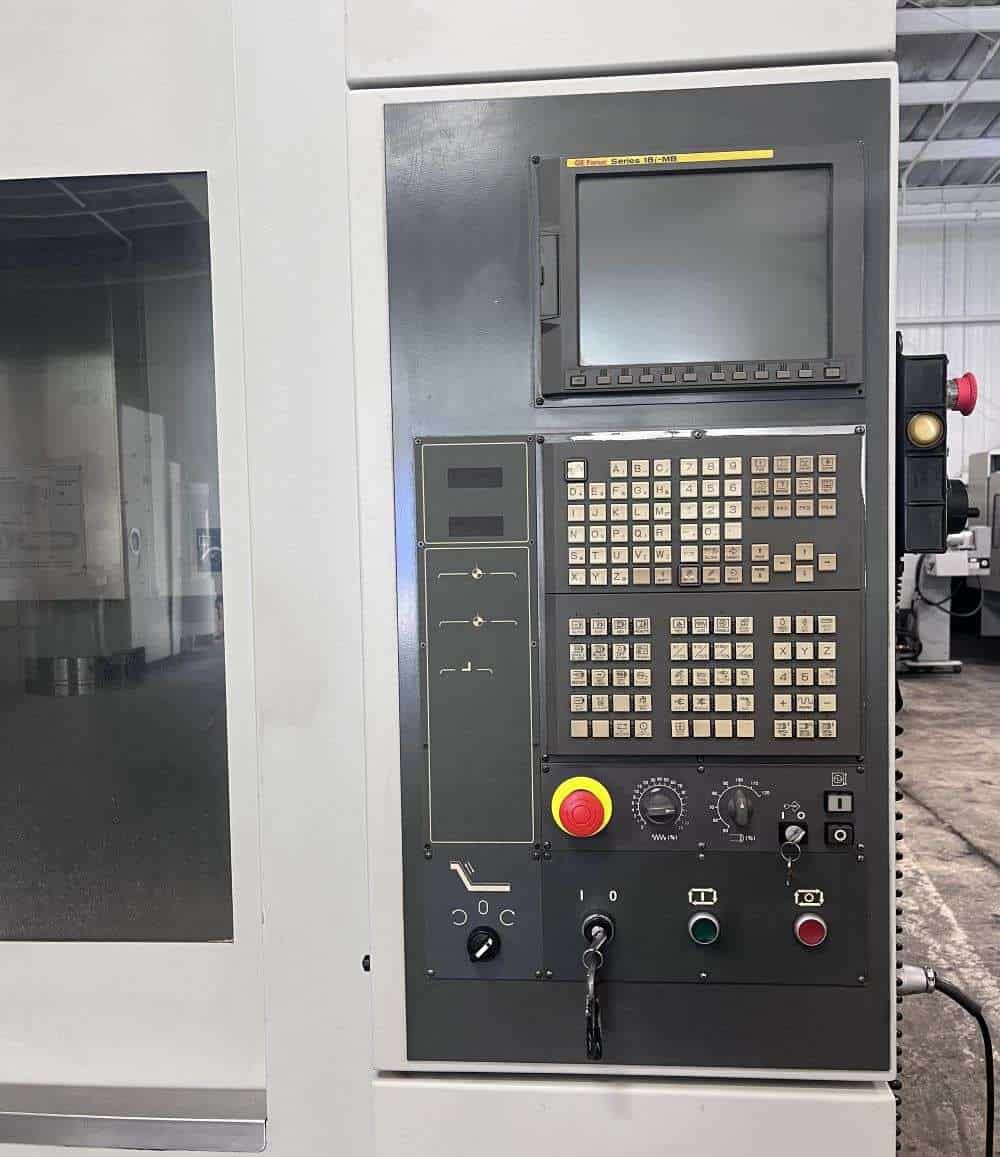

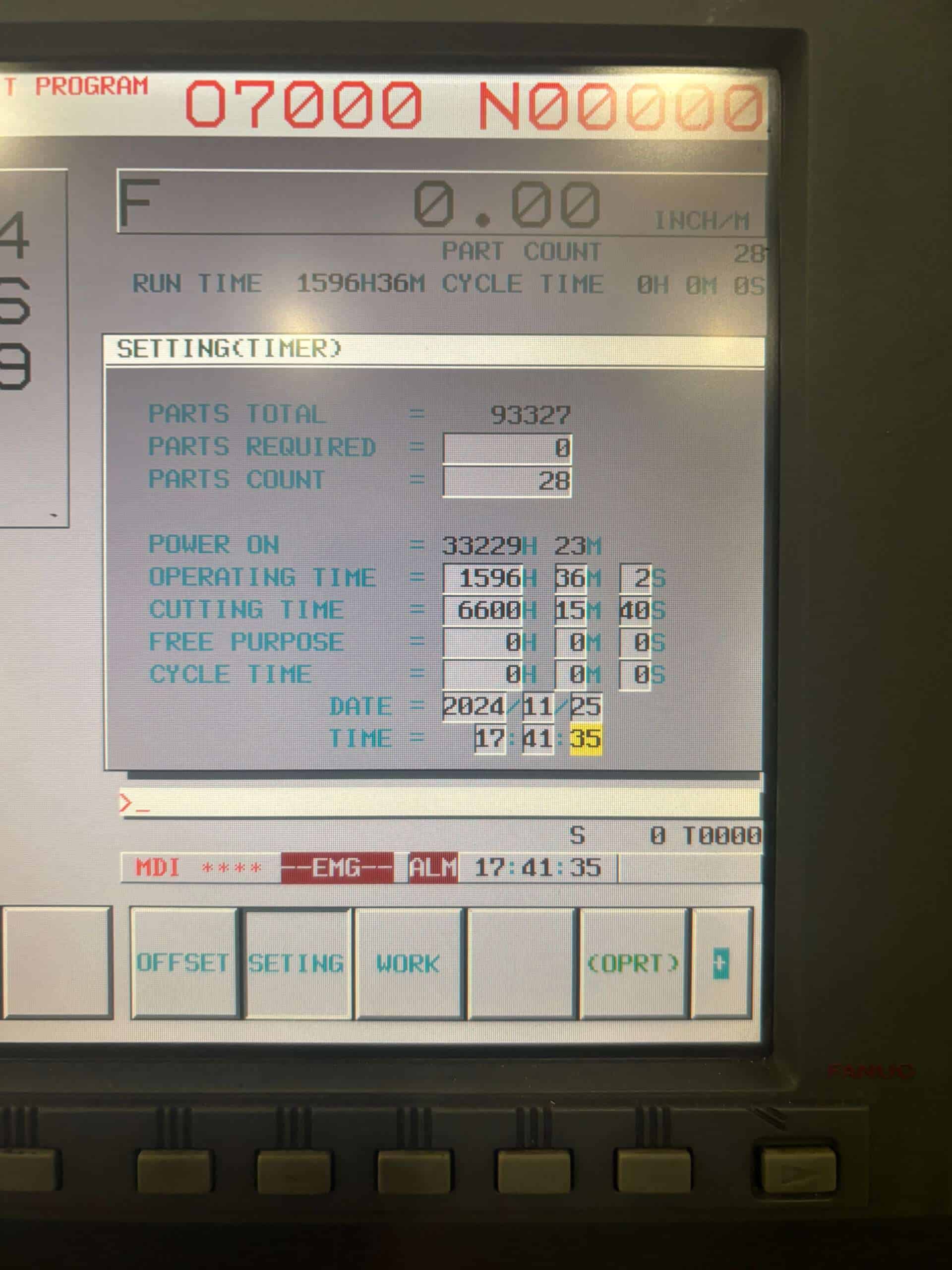

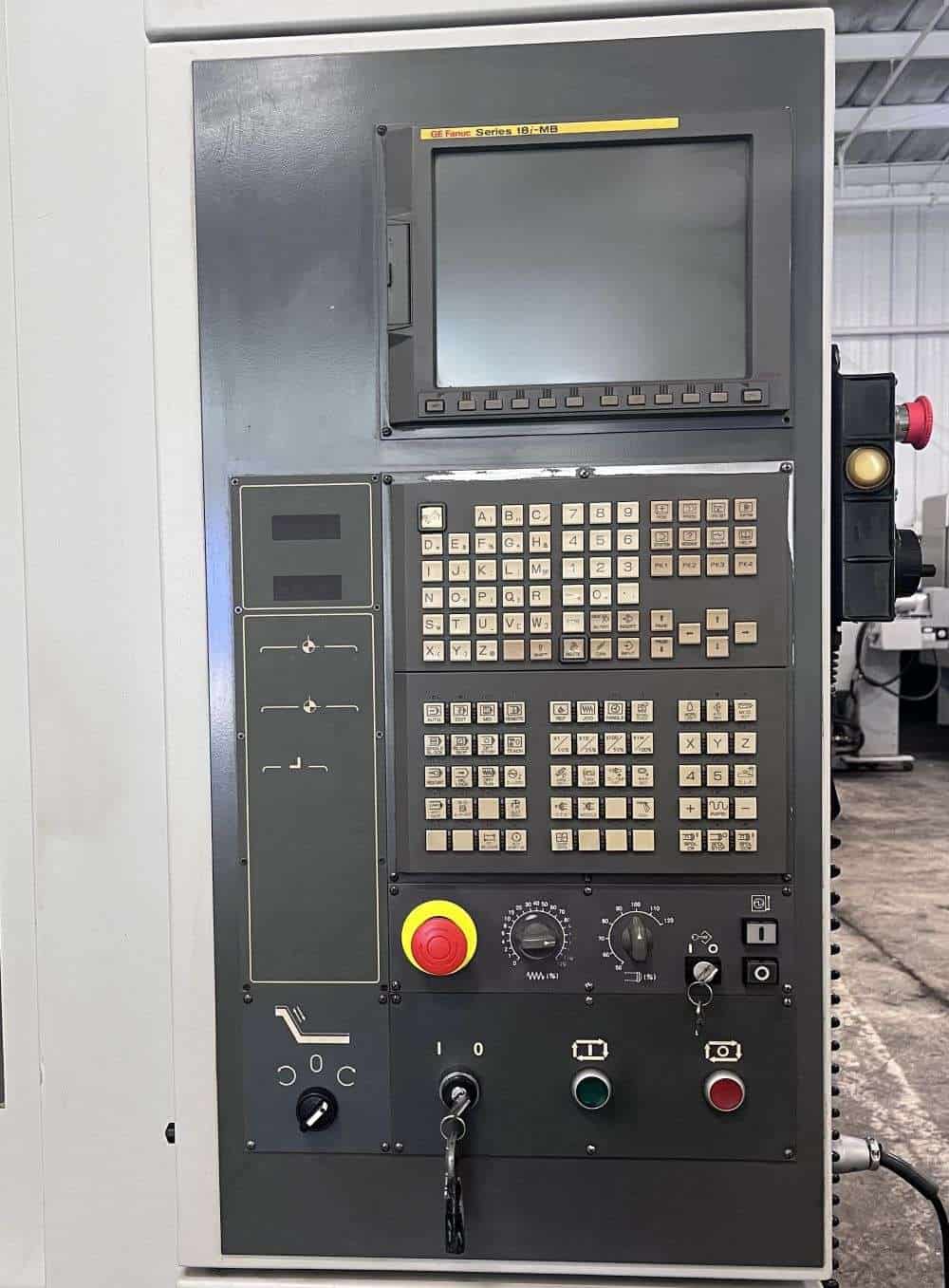

| Fanuc 18i-MB Series CNC Control |
| 12000 RPM High Precision Spindle |
| 30 Station Side Mounted Automatic Tool changer |

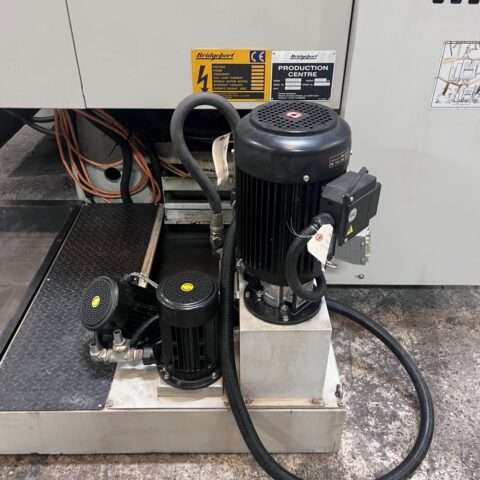

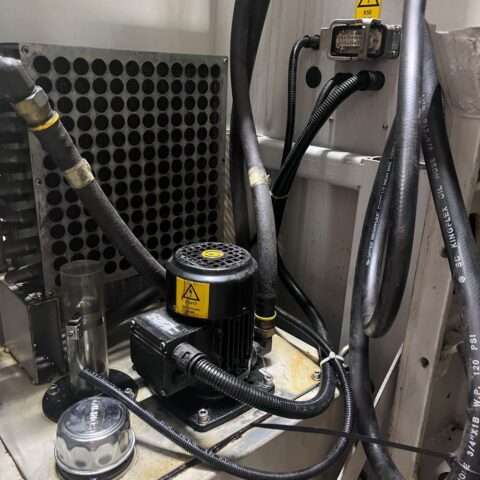

| Through Spindle Coolant |
| PCMCIA Card Slot |
| RS-232 Port |
| Hand Wheel MPG Control |
| Rigid Tapping |
| Telescopic way covers |

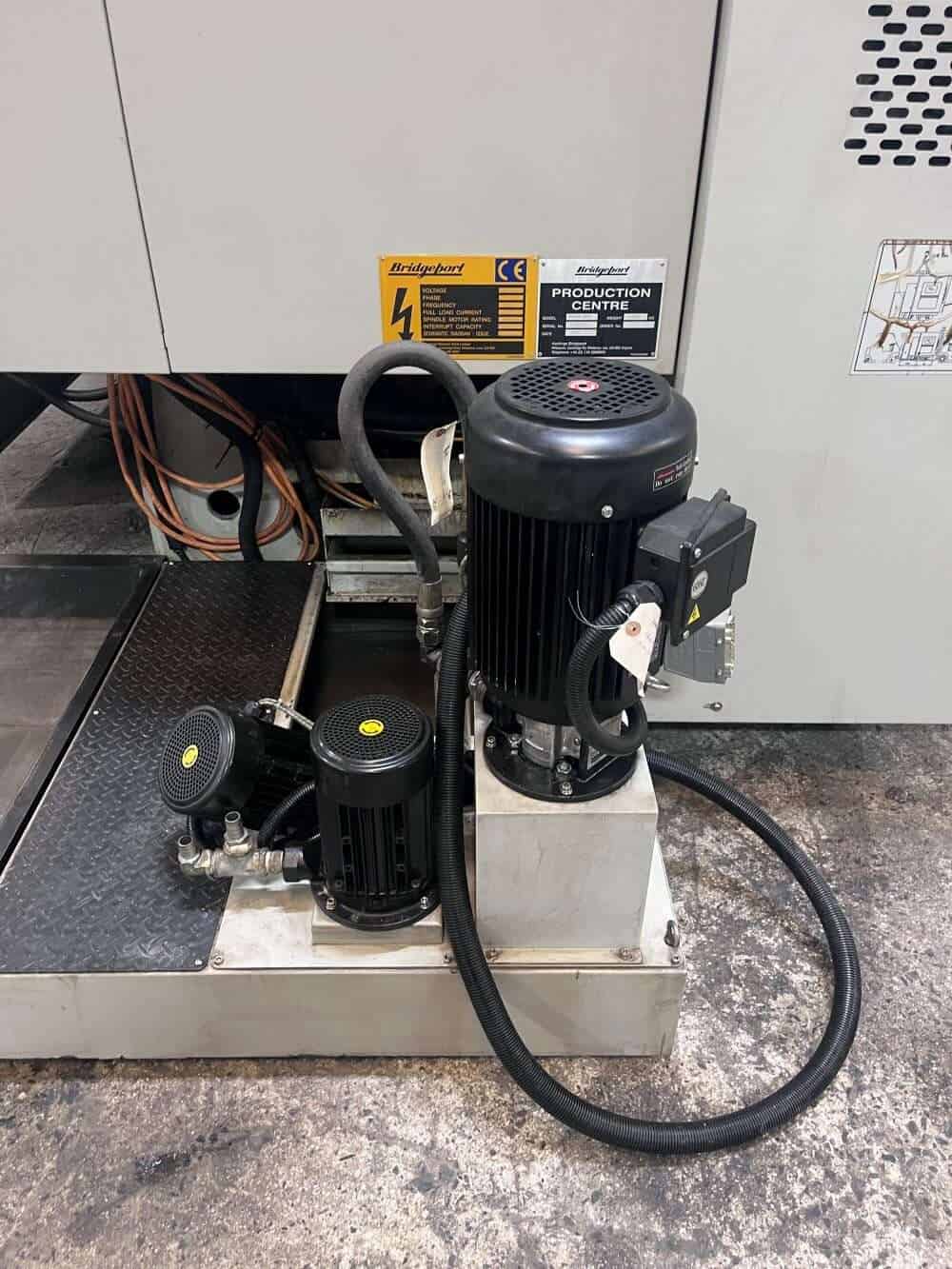

| Coolant Tank |

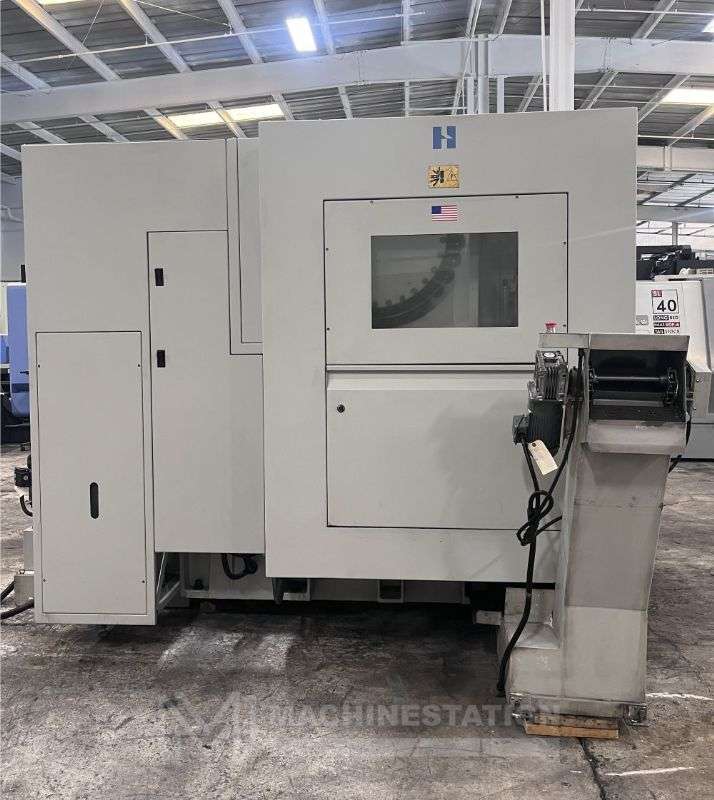

| Chip Conveyor |

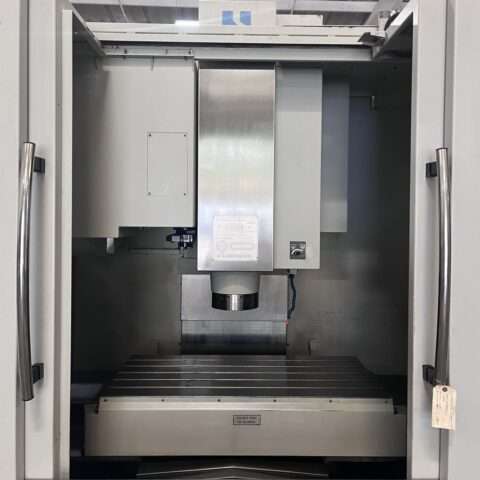

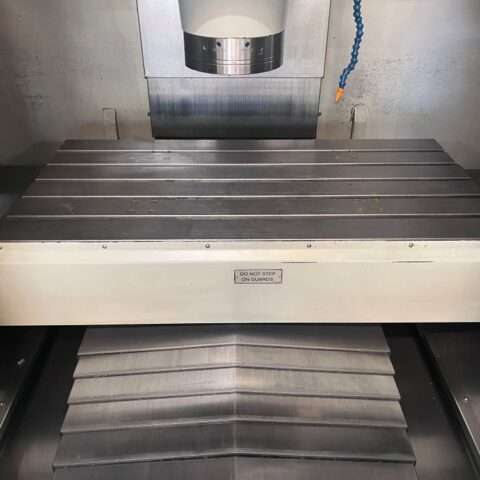

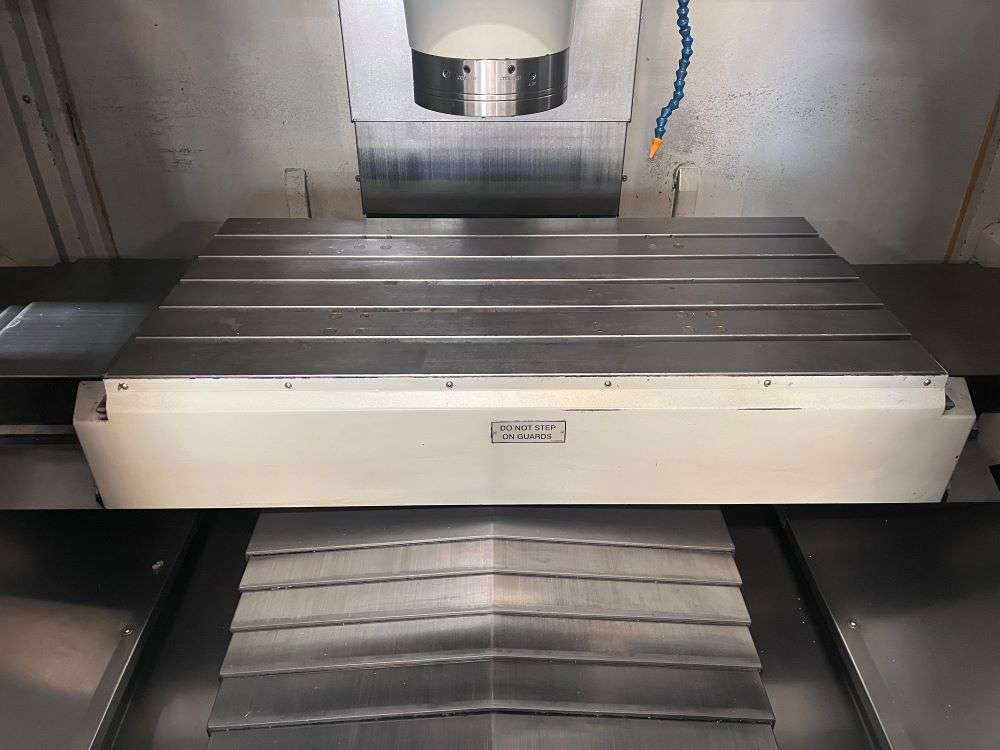

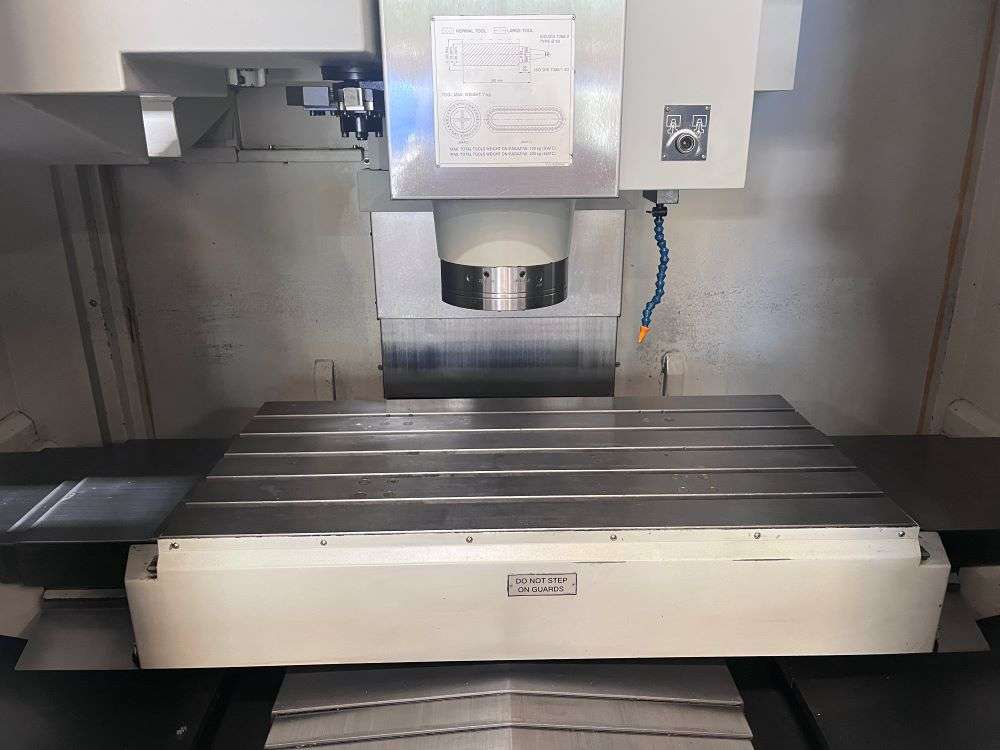

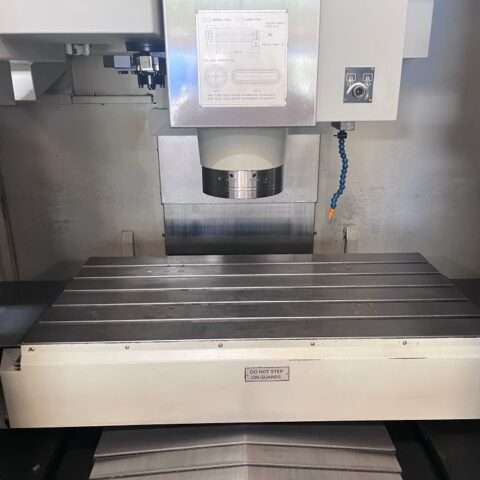

| Table: |
|---|
| Length: 47.2″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 0.7″X 4.72″ |
| Max Weight on Table: 1763 lbs |
| Travels: |
|---|
| X-Axis: 41″ |
| Y-Axis: 24″ |
| Z-Axis: 24″ |
| Rapid Traverse Rates X & Y Axis: 1692 IPM |
| Rapid Traverse Rates Z Axis: 1417 IPM |
| Cutting Feed Rates: 787 IPM |
| Spindle Nose to Table (Min.- Max.): 3.93″ – 27.95″ |

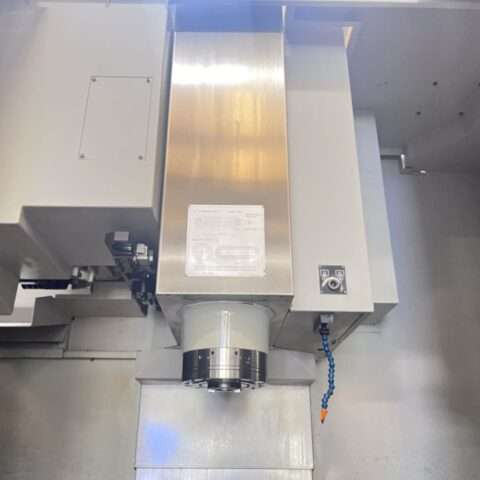

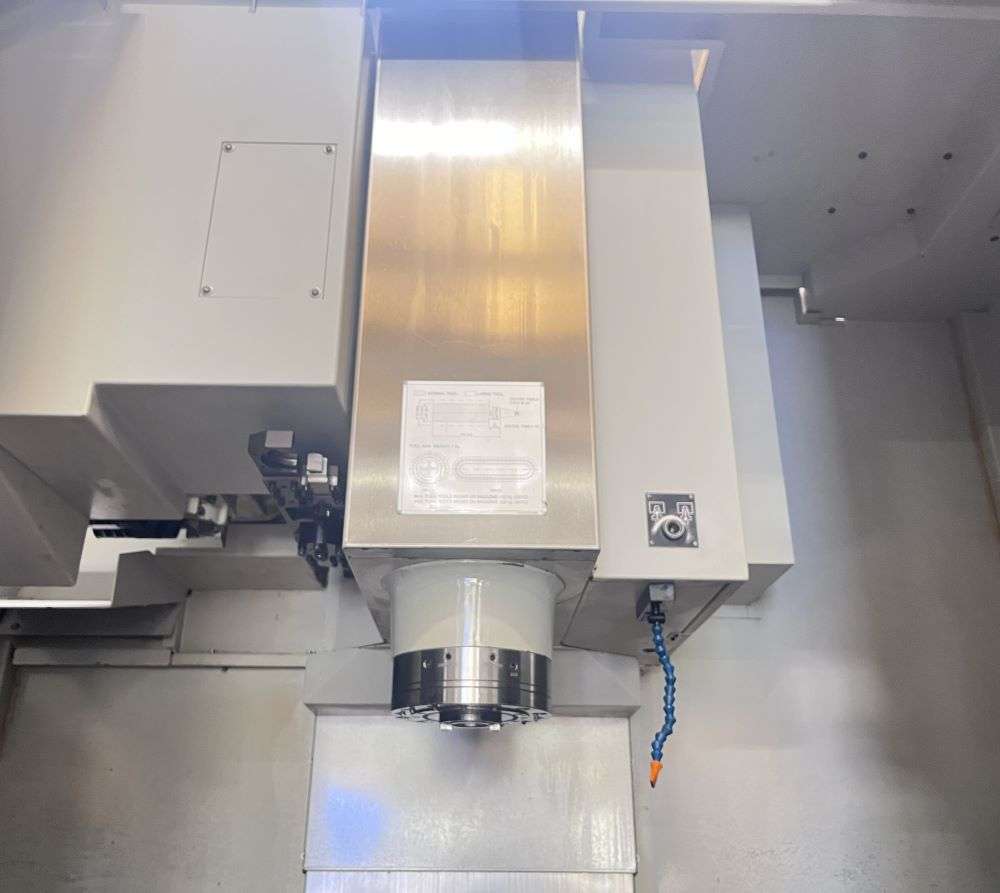

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 15 lbs |
| Max Tool Dia: 3.38″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time (Chip to Chip): 4 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 25 kva / 3-Phase |
| Overall Dimensions: 126″ x 112″ x 115″ High |
| Weight: 14770 lbs |
