*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | HOMAG |
| Model: | BMG 211 |
| Year: | 2017 |
| Machine Type: | CNC Router |
| CNC Control: | HOMAG CNC Control |
| Equipped With: |
|---|
| Mobile Gantry Construction |
| Pod-and-Rail / Console-Style Workholding System |
| Automatic Tool Changing System |
| High-Speed Drilling and Routing Capability |
| Dust Extraction System with Overhead Extraction Hoses |
| Automatic Workpiece Clamping System |
| Safety Enclosure / Guarding |

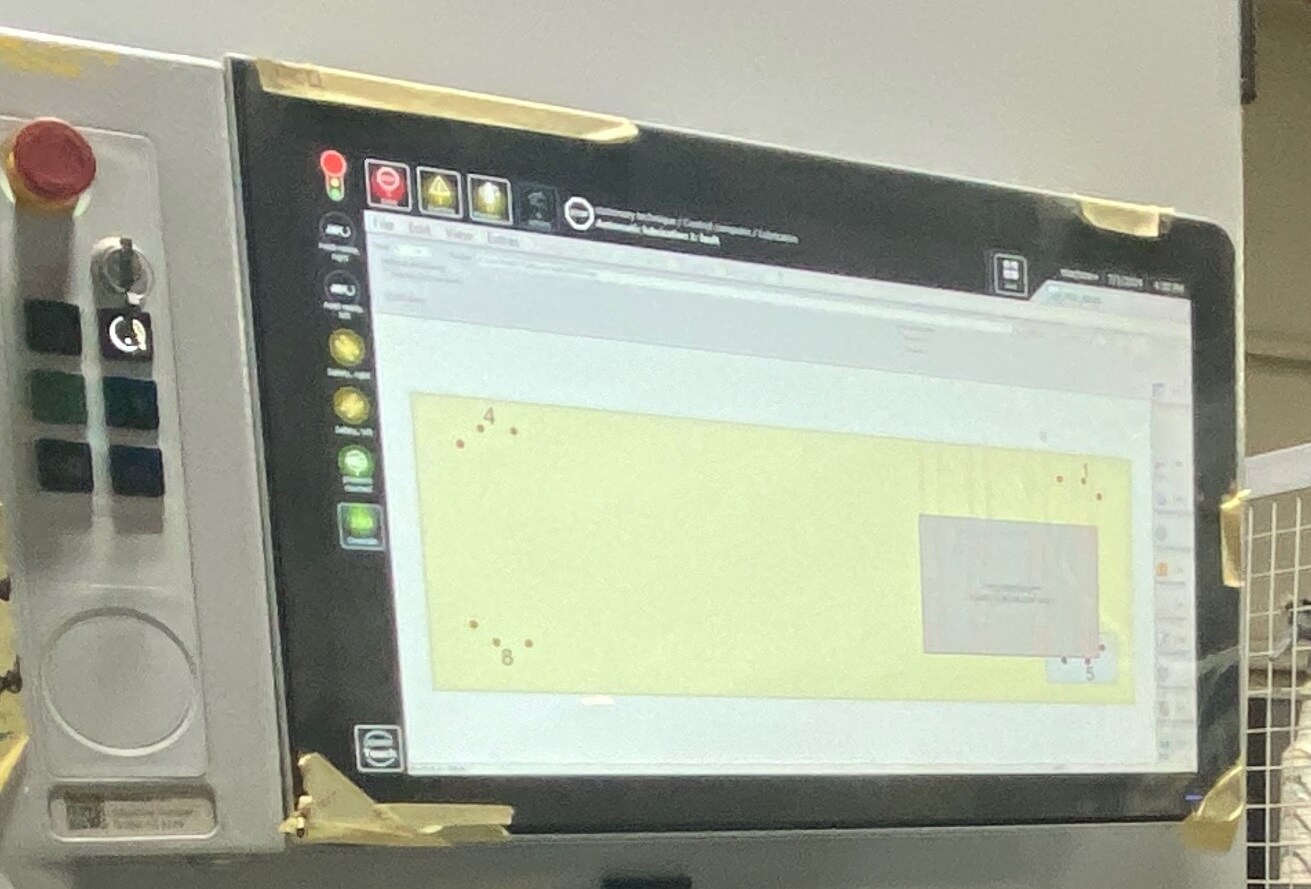

| Operator Control Station with Touchscreen Interface |
| Pneumatic Workholding and Positioning System |
| Multiple Vacuum / Clamping Zones |
| Industrial Dust Collection Connection |
| Capacity: |
|---|
| Working Dimension X: 127.95″ |
| Working Dimension Y: 62.99″ |
| Working Dimension Z: 4.92″ |
| Spindle: |
|---|
| Main Spindle Motor: 12 kW |
| Spindle Power: 16.1 HP |
| Maximum Spindle Speed: 24,000 RPM |
| Tool Interface: HSK-F63 |
| General: |
|---|
| Machine Weight (Approx.): 11,000 lbs. |
