*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hwacheon |
| Model: | Hi-TECH 230BL YSMC |
| Year: | 2018 |

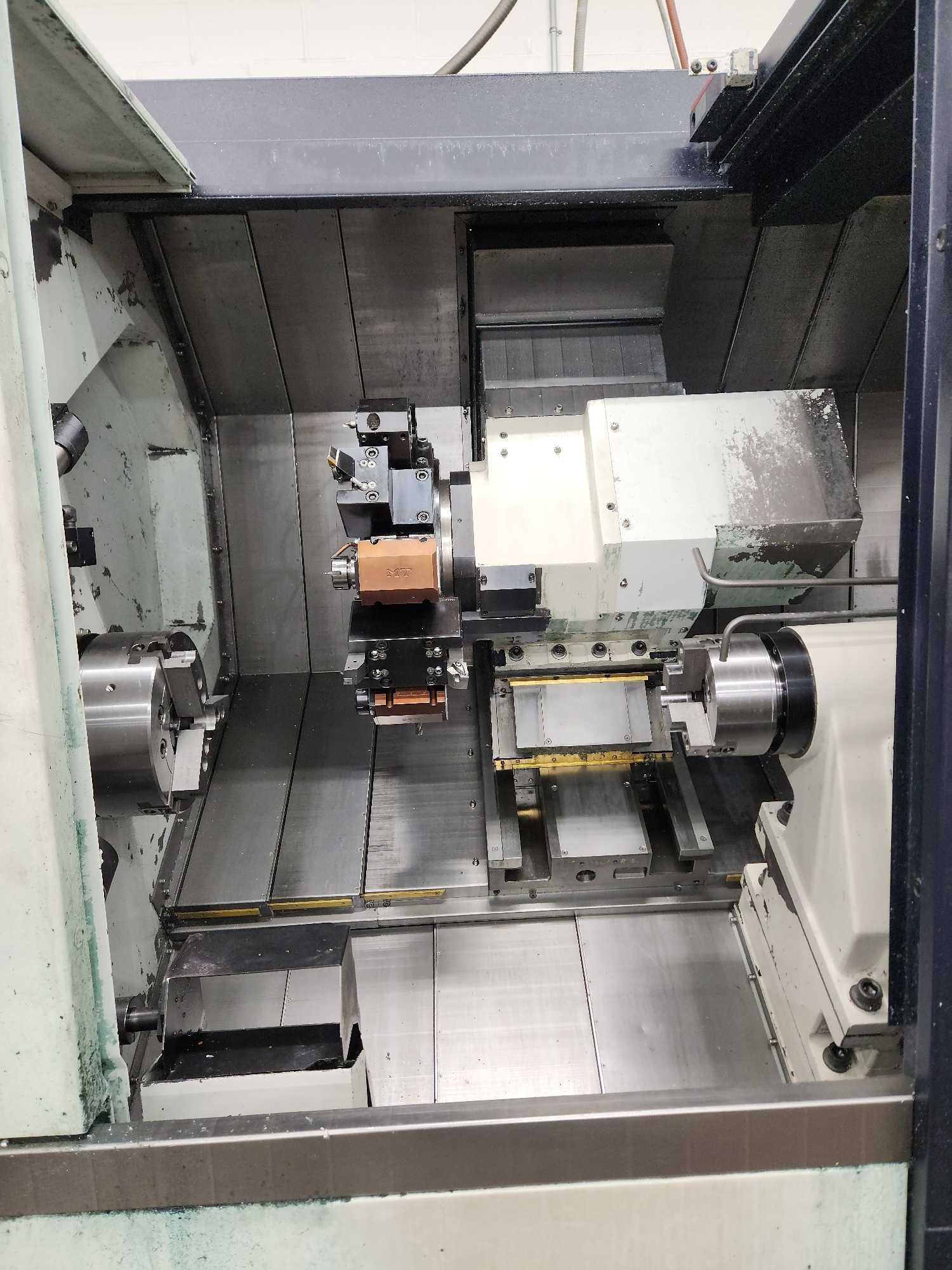

| Machine Type: | 4-Axis CNC Mill/Turn Multi-Tasking Turning Center |
| Control: | Fanuc i Series CNC Control |
| Equipped With: |
|---|
| 12 Live Tooling Stations |
| 24-Station Turret |
| Y-Axis Capability |
| C-Axis Main Spindle |
| B-Axis Sub-Spindle |
| 10″ 3-Jaw Hydraulic Chuck on Main Spindle |
| 6″ Hydraulic Chuck on Sub-Spindle |
| Renishaw Automatic Tool Setter |
| Parts Catcher |
| Chip Conveyor |

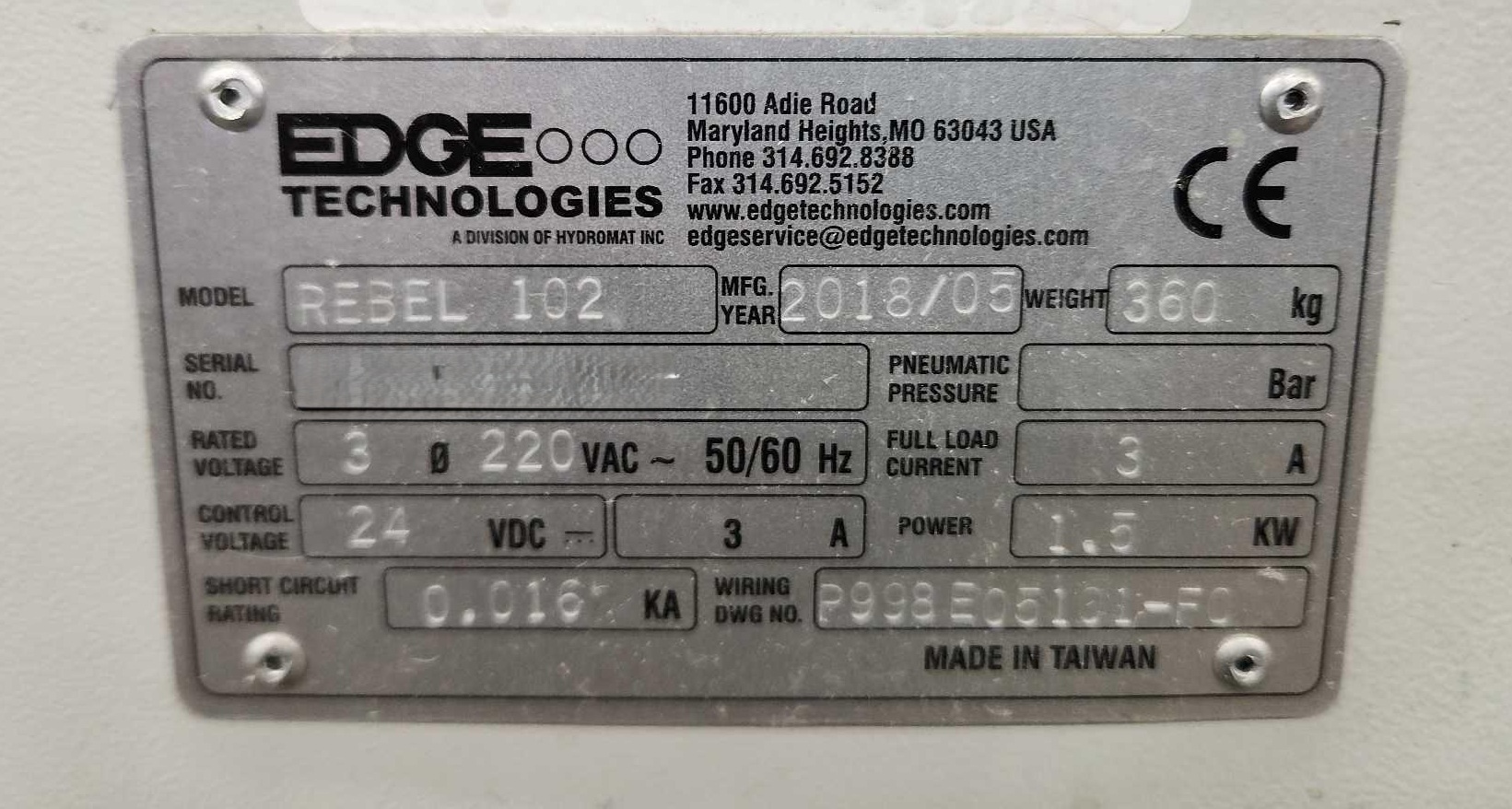

| 2018 Edge Technologies Rebel 102 Bar Feeder |
| Extended Coolant Collector |
| Rigid Box-Way Construction |
| Capacity: |
|---|
| Maximum Swing Over Bed: 29.55″ |
| Maximum Swing Over Carriage: 15.76″ |
| Maximum Cutting Diameter: 15.76″ |
| Maximum Cutting Length: 22.06″ |
| Spindle: |
|---|
| Main Spindle Chuck: 10″ Hydraulic |
| Sub-Spindle Chuck: 6″ Hydraulic |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.58″ |
| Main Spindle Bar Capacity: 3.19″ |
| Main Spindle Speed: 3,500 RPM |
| Sub-Spindle Speed: 5,000 RPM |
| Main Spindle Motor: 25 HP |
| Sub-Spindle Motor: 10 HP |
| Travels: |
|---|
| X-Axis Travel: 9.456″ |
| Y-Axis Travel: 4.728″ |
| Z-Axis Travel: 27.58″ |
| B-Axis Travel (Sub-Spindle): 25.216″ |
| Turret: |
|---|
| Turret Configuration: 12-Sided / 24 Stations |
| Live Tooling Stations: 12 |
| Rotary Tool Speed: 4,000 RPM |
| Rotary Tool Motor: 7.4 HP |
| Rapid Traverse: |
|---|
| X-Axis Rapid: 1,182 IPM |
| B-Axis Rapid: 945 IPM |
| Z-Axis Rapid: 1,182 IPM |
| General: |
|---|
| Machine Dimensions (Approx.): 116″ L × 74″ W × 73″ H |
| Machine Weight (Approx.): 12,500 lbs. |
| Power Supply: 40 kVA |
