*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

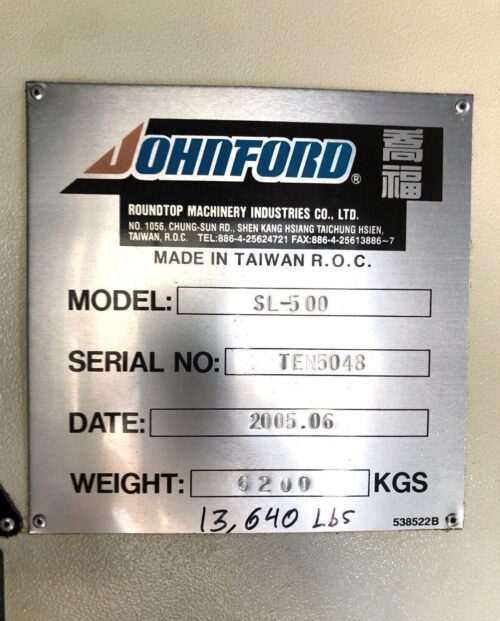

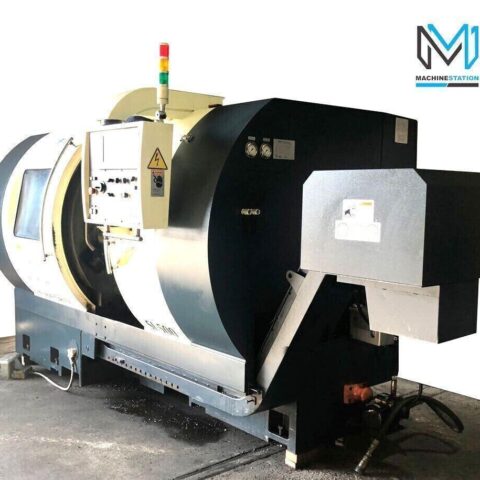

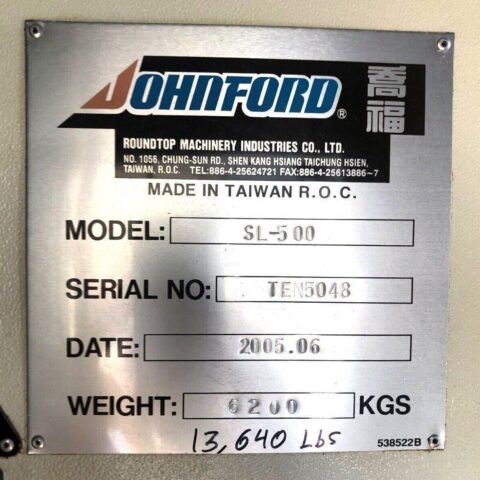

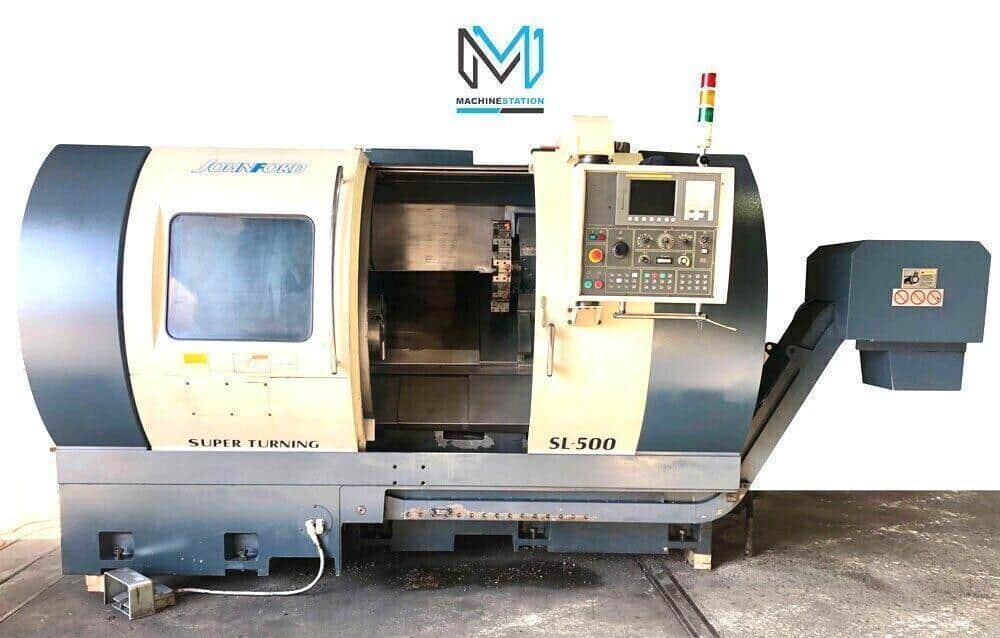

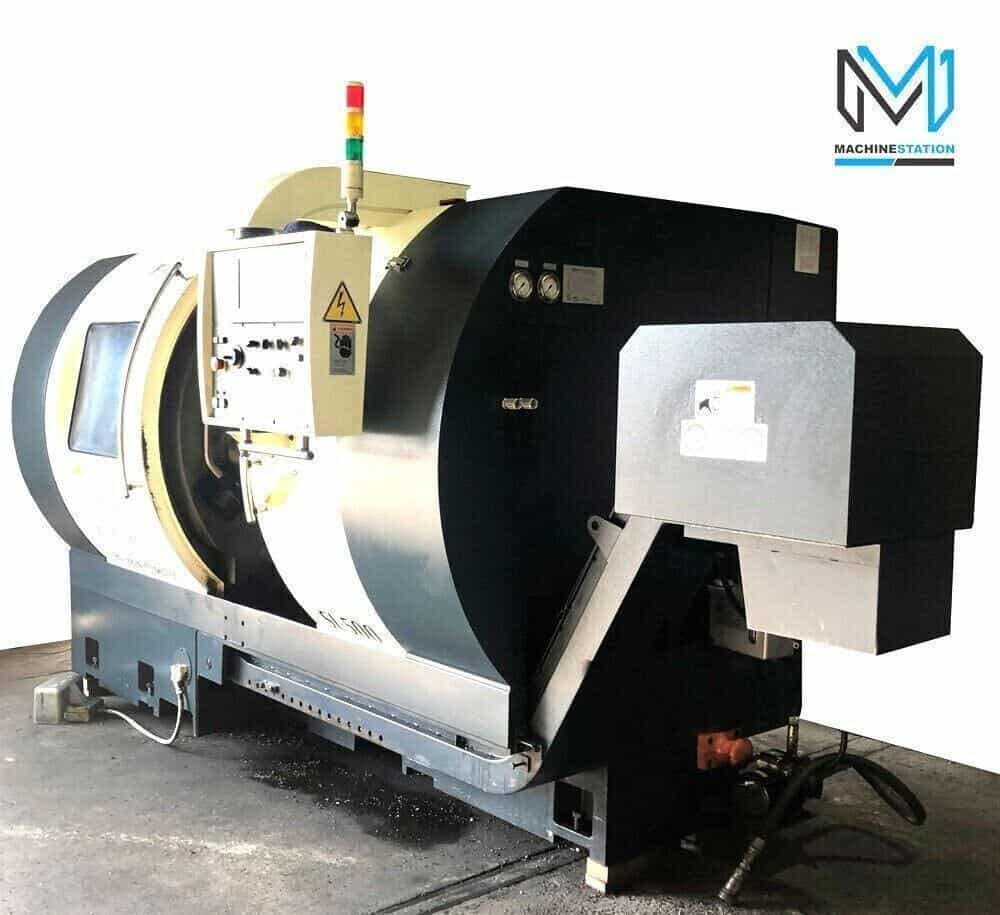

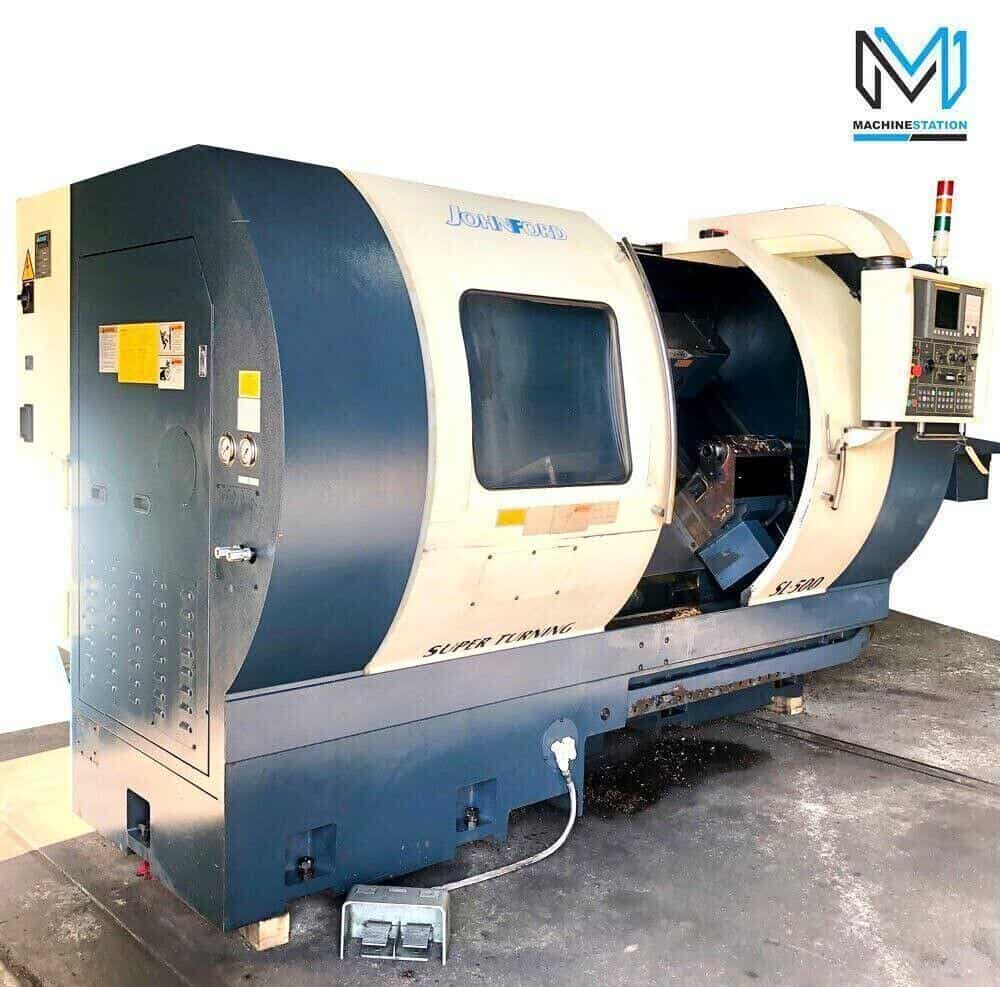

| Make: | JOHNFORD |
| Model: | SL-500 |
| Year: | 2005/2006 |
| Condition: | Good |
| Cutting Hours: | ONLY |
| Equipped With: |
|---|

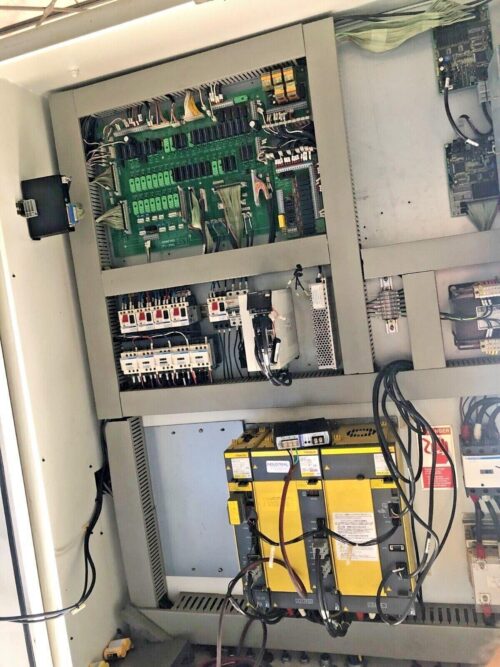

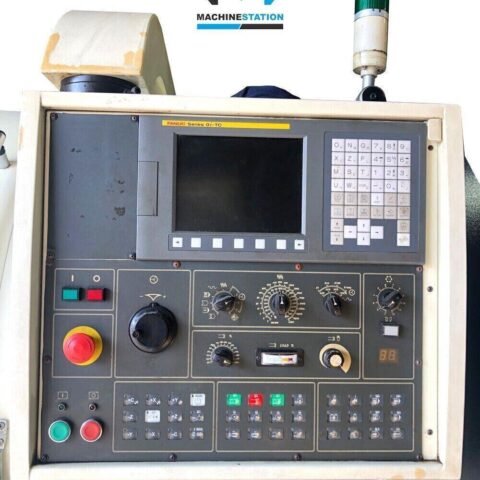

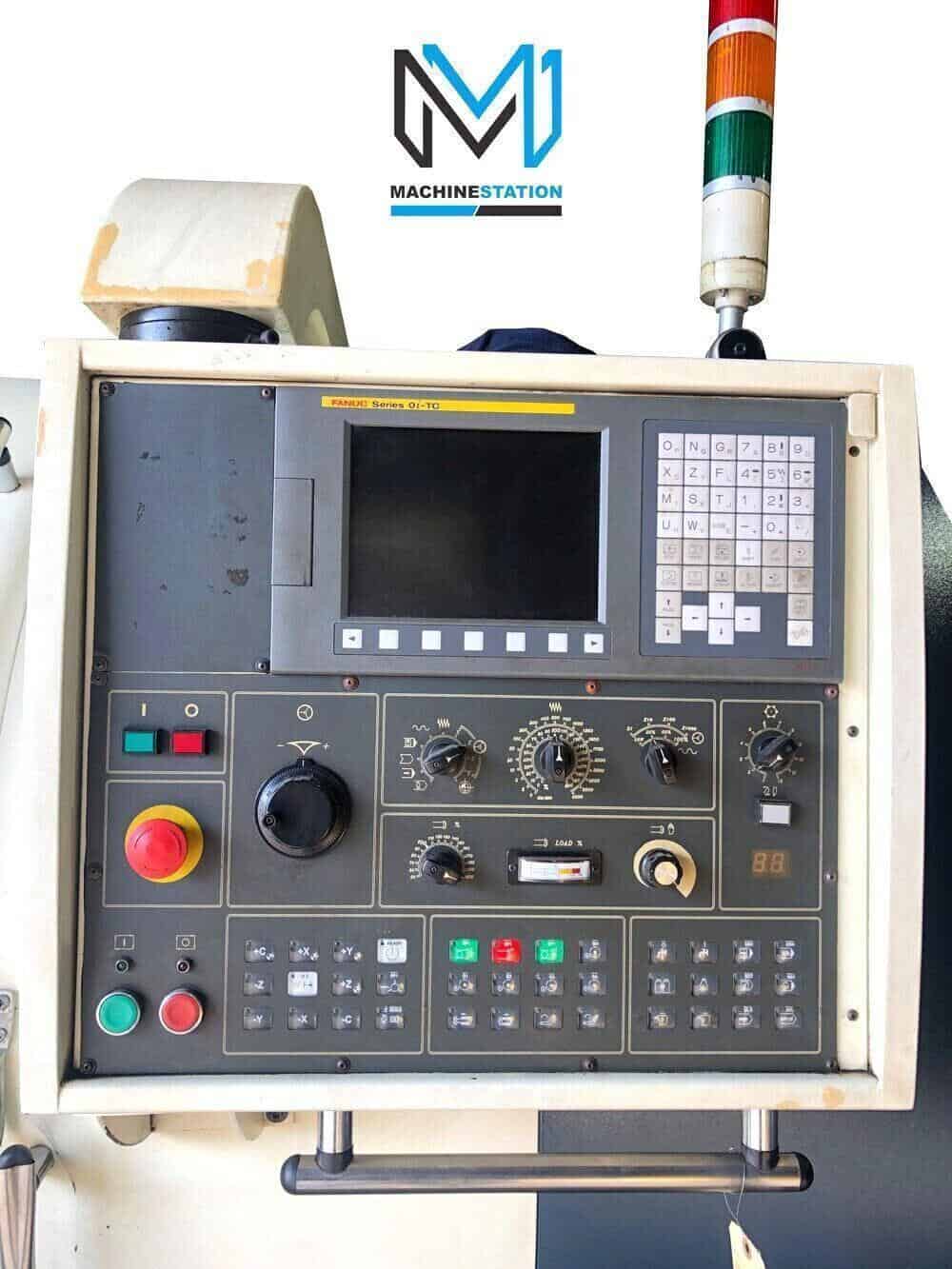

| Fanuc Oi-TC CNC Control |

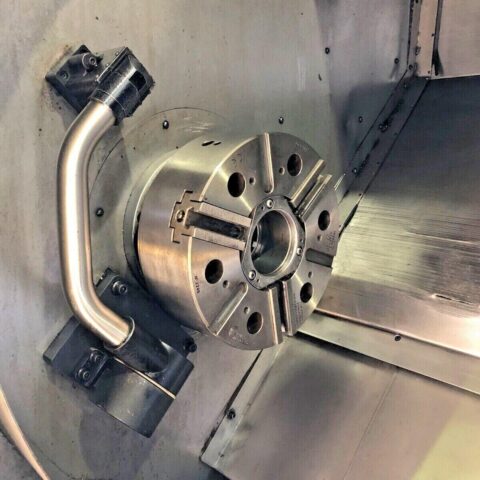

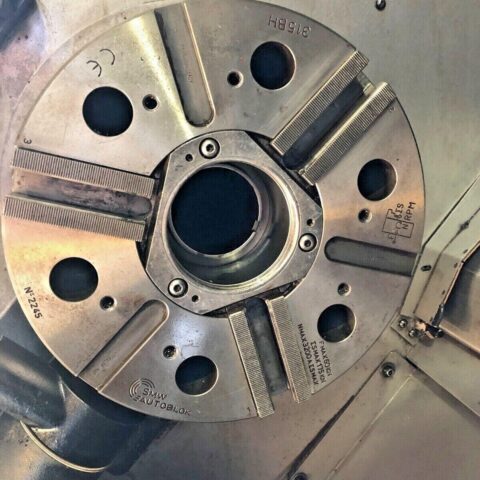

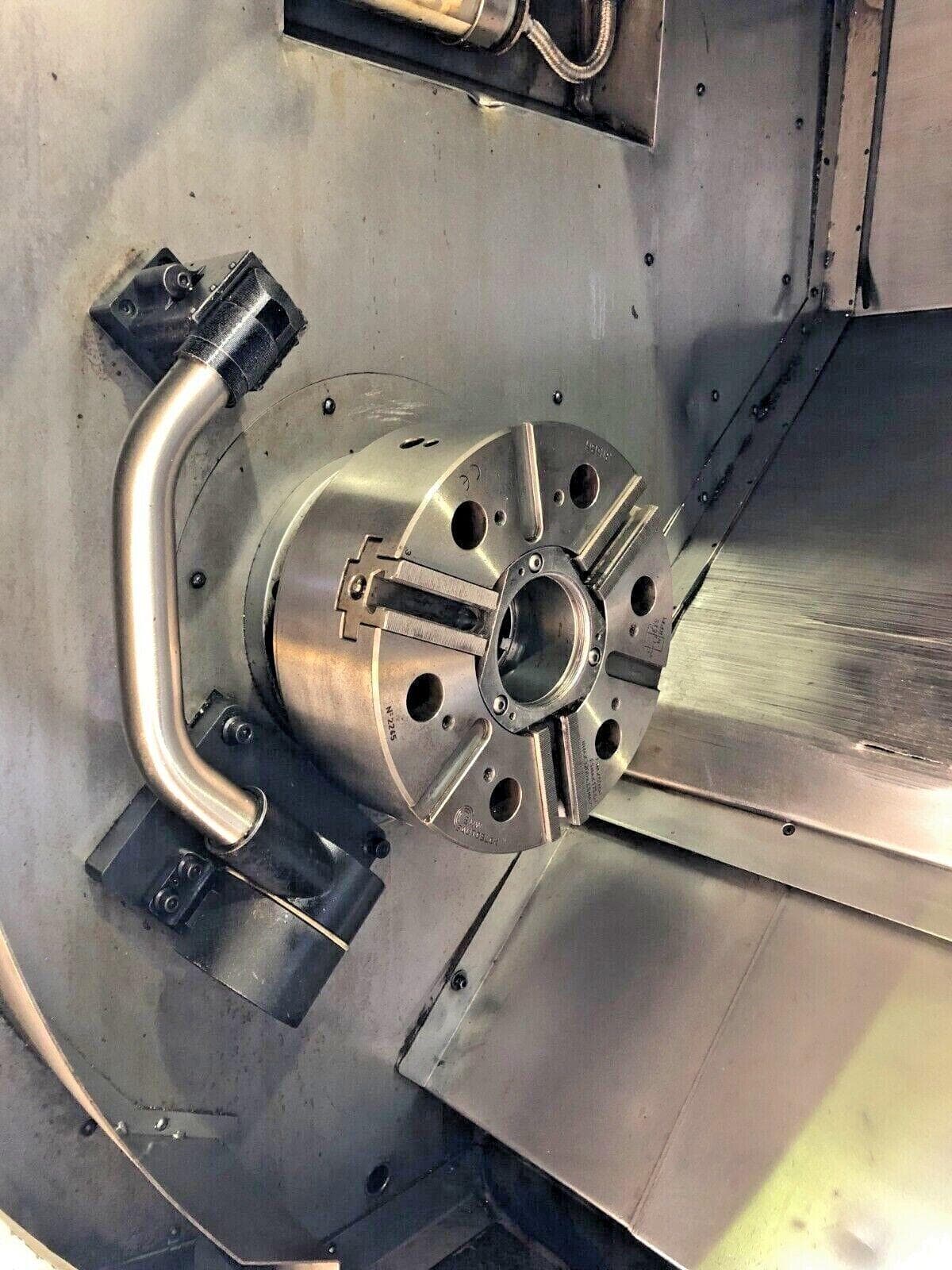

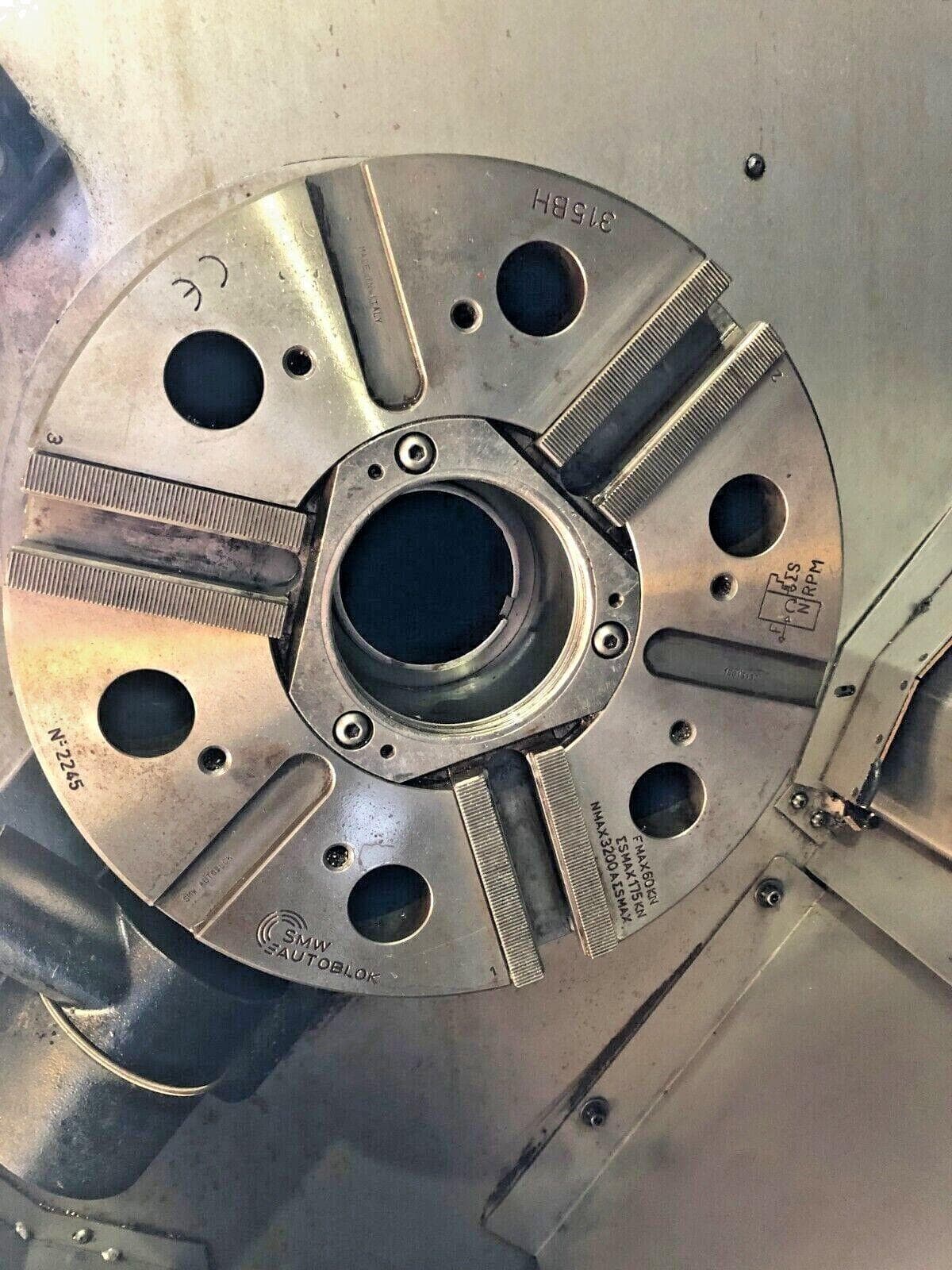

| 10” 3 Jaw Hydraulic Chuck |

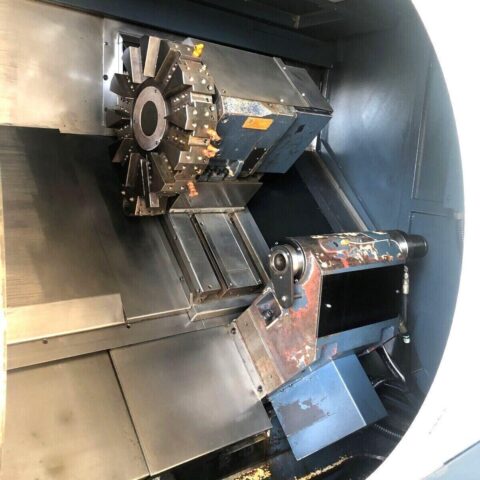

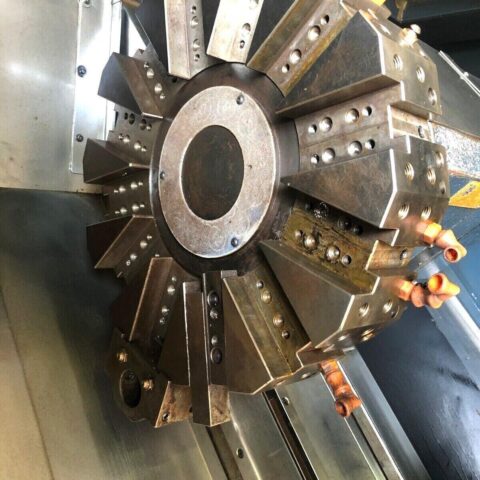

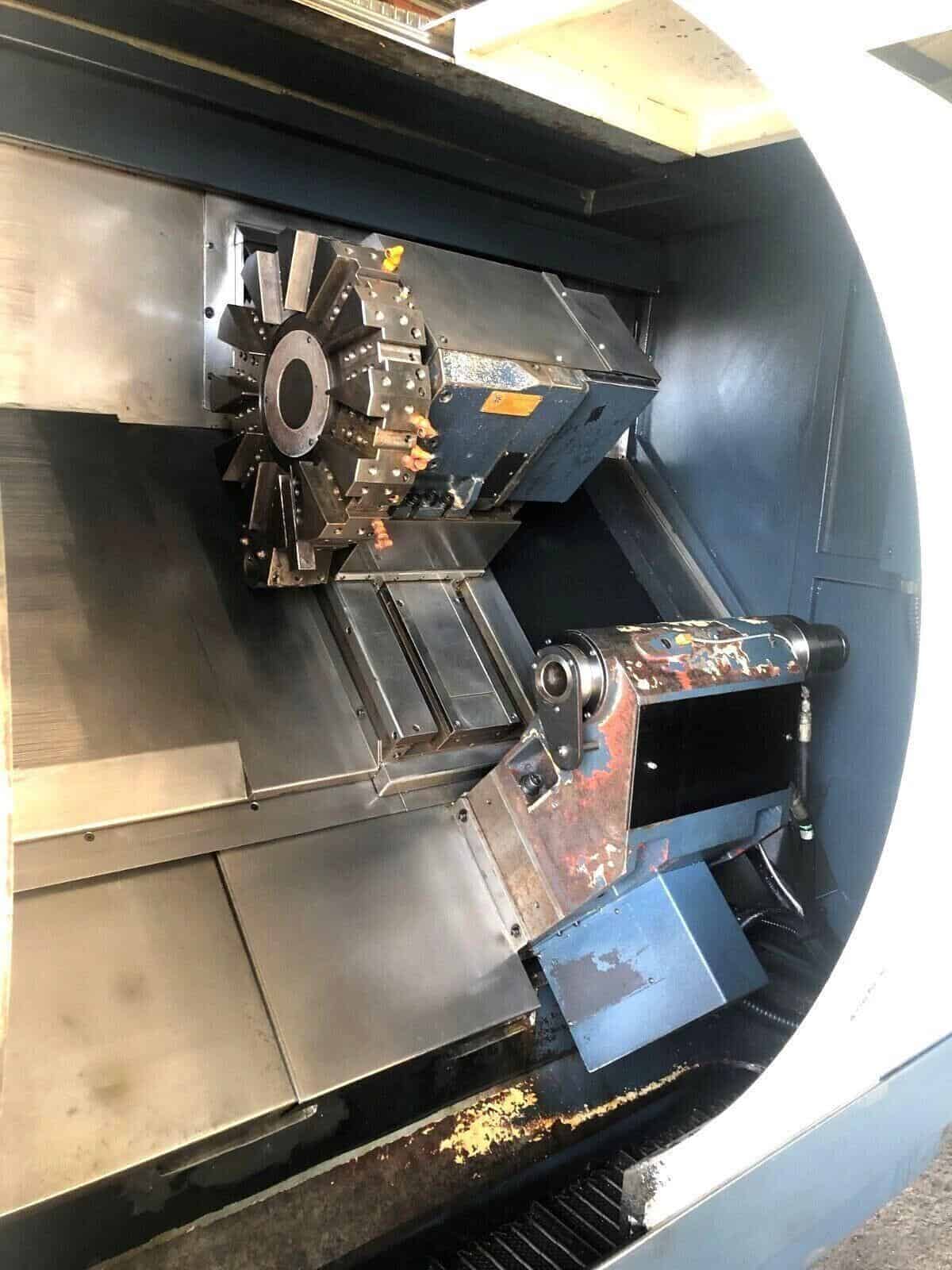

| 12-Station Turret |
| Box Ways Design |
| 2 Step Gear Spindle for Powerful Torque |
| Hydraulic Programmable Tailstock with Power Quill |
| Coolant System |
| Chip Pan and Chip Conveyor |
| Tool Presetter |
| Automatic Lubrication system |
| Foot Operated Control for Chuck and Tailstock |
| Capacity: |
|---|
| Max Turning Diameter: 17.7″ |
| Max Turning Length: 25.59″ |
| Max Bar Capacity: 3″ |
| Swing Over Saddle: 22.8″ |
| Distance Between Centers: 31″ |
| Travel: |
|---|
| X Axis Travel: 9.8″ |
| Z Axis Travel: 25.6″ |
| Rapid Traverse X Axis: 591 IPM |
| Rapid Traverse Z Axis: 791 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.4″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 25 HP |

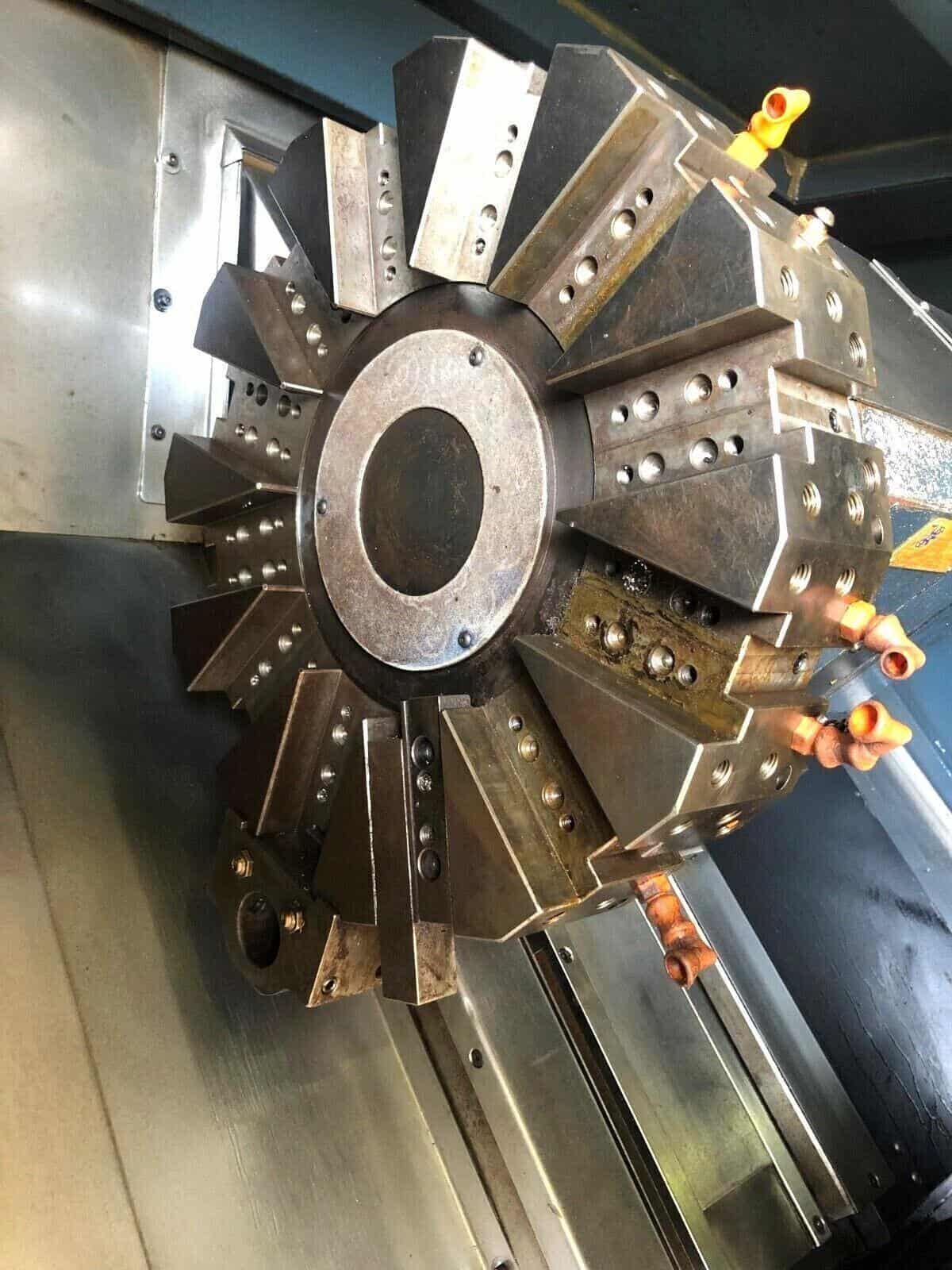

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 20.9″ |
| Tailstock Quill Dia.: 3.1″ |
| Tailstock Quill Stroke: 3.5″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 35 kva |
| Overall Dimensions: 167″ x 92″ x 87″ High |

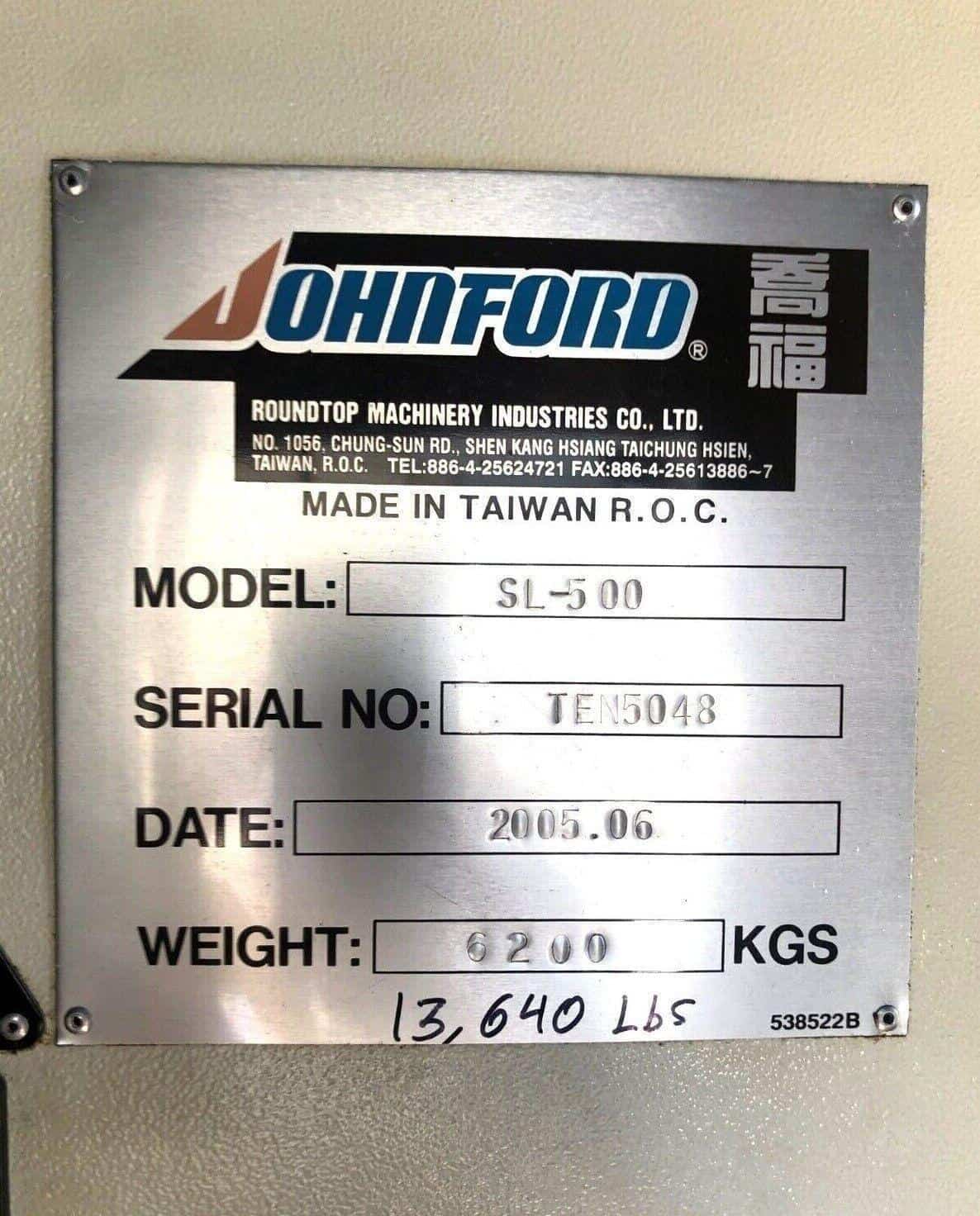

| Weight : 13640 lbs Approx. |
