*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112553 |

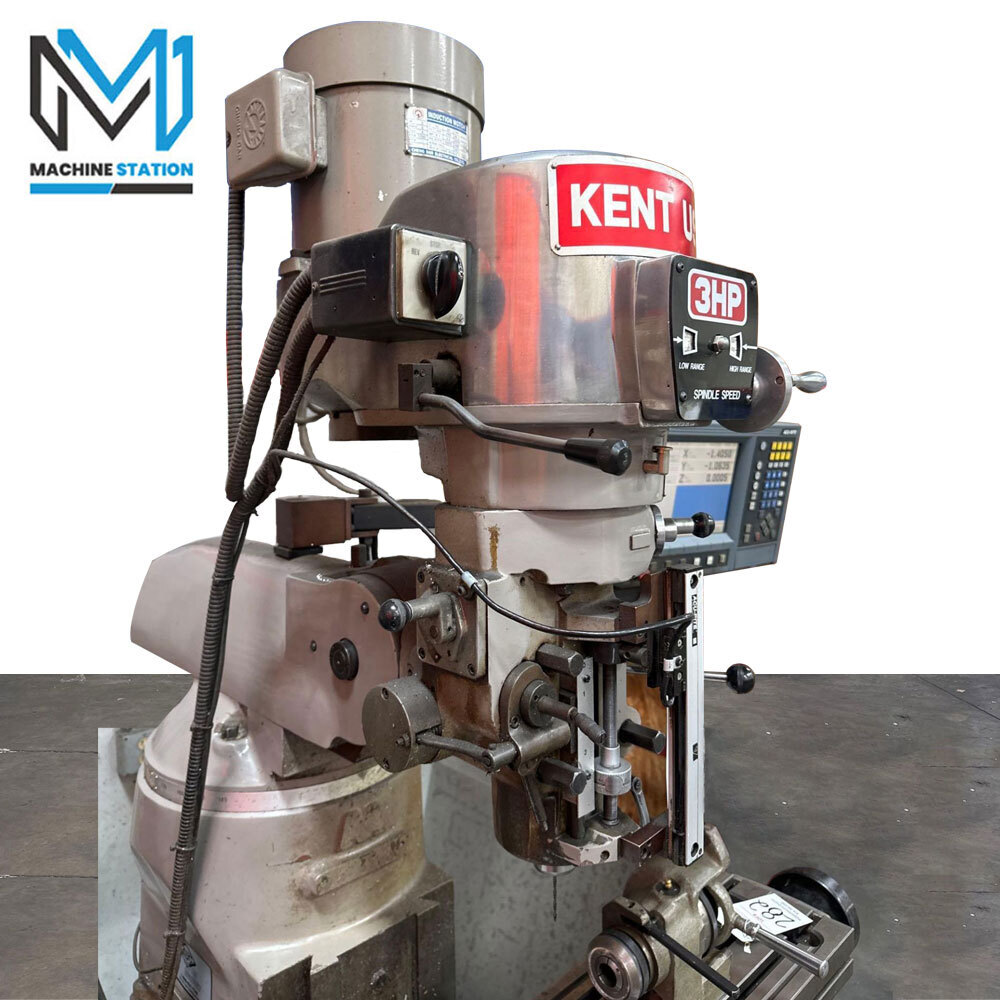

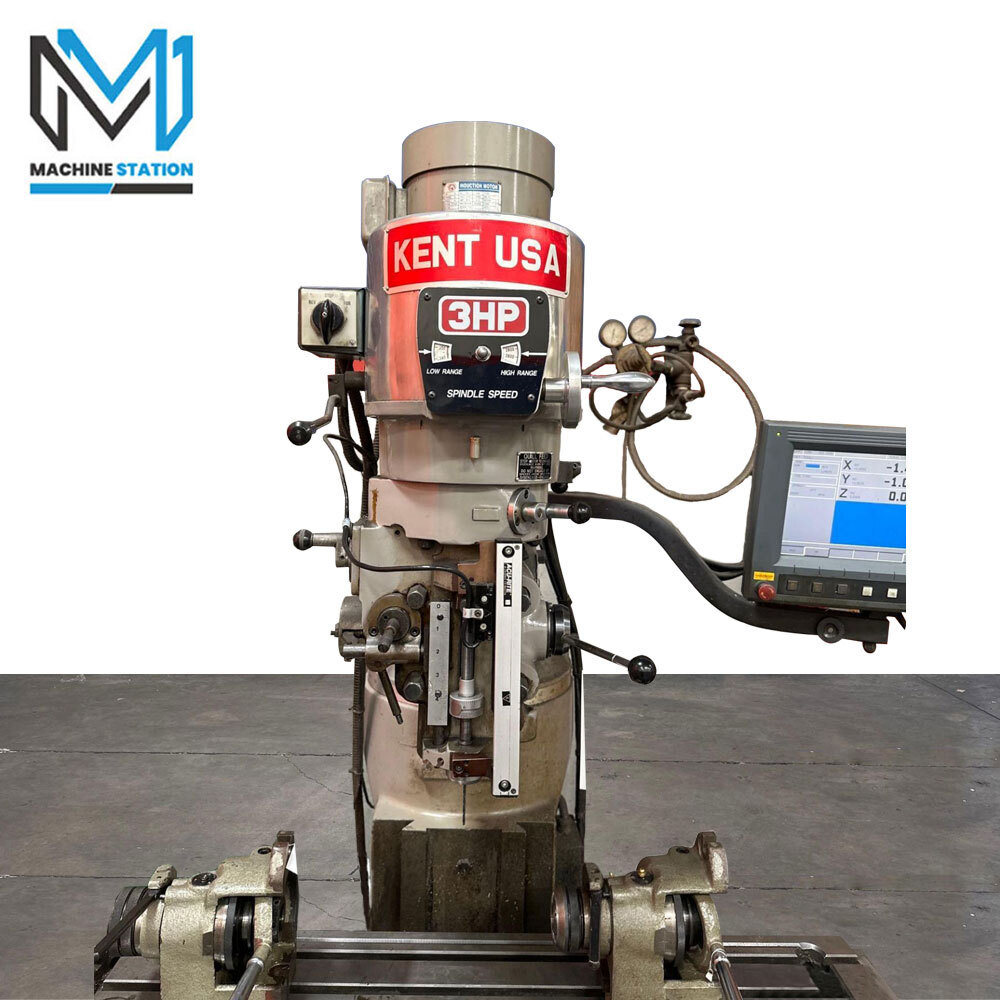

| Make: | Kent |

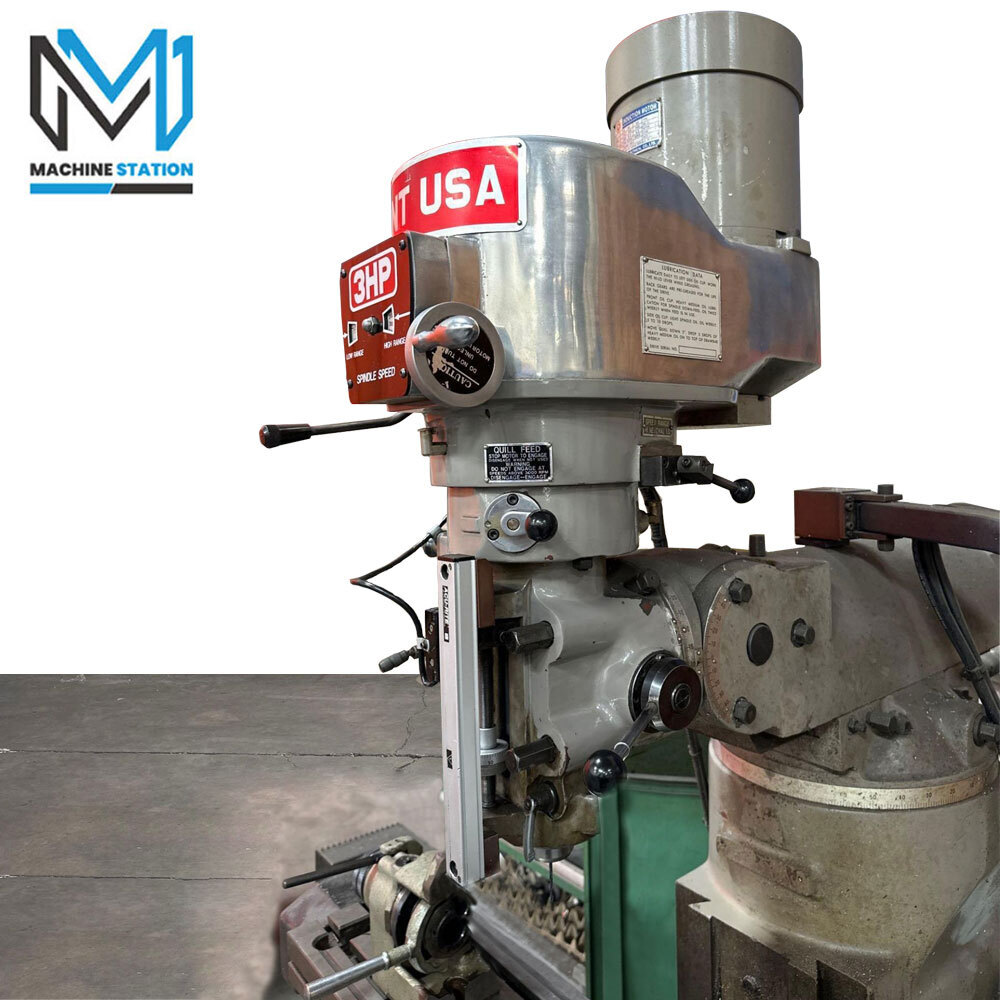

| Model: | KTM3VS |
| Features: |
|---|

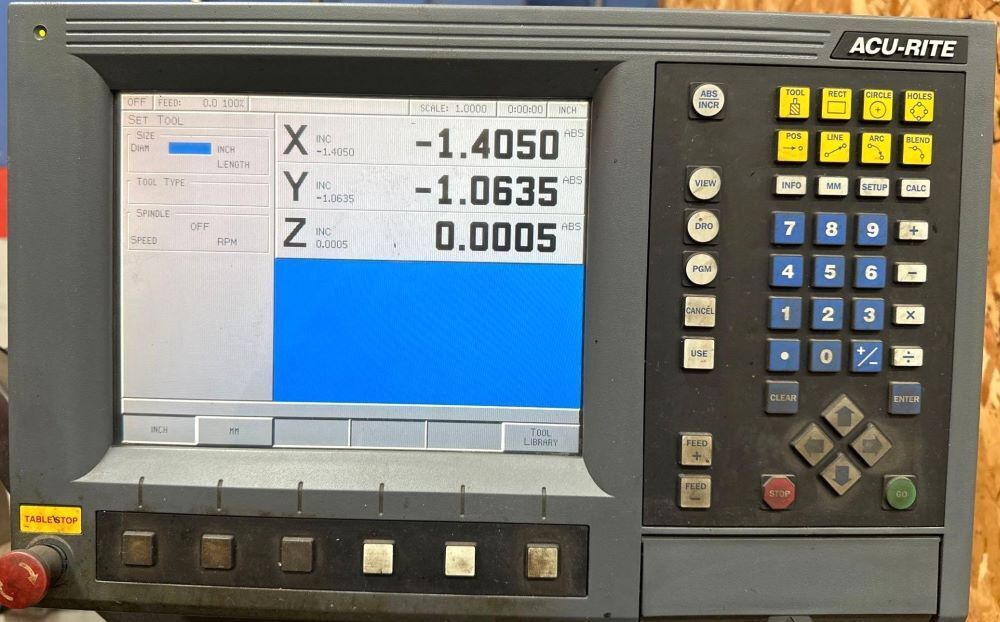

| ACU-RITE 3-Axis CNC Control |

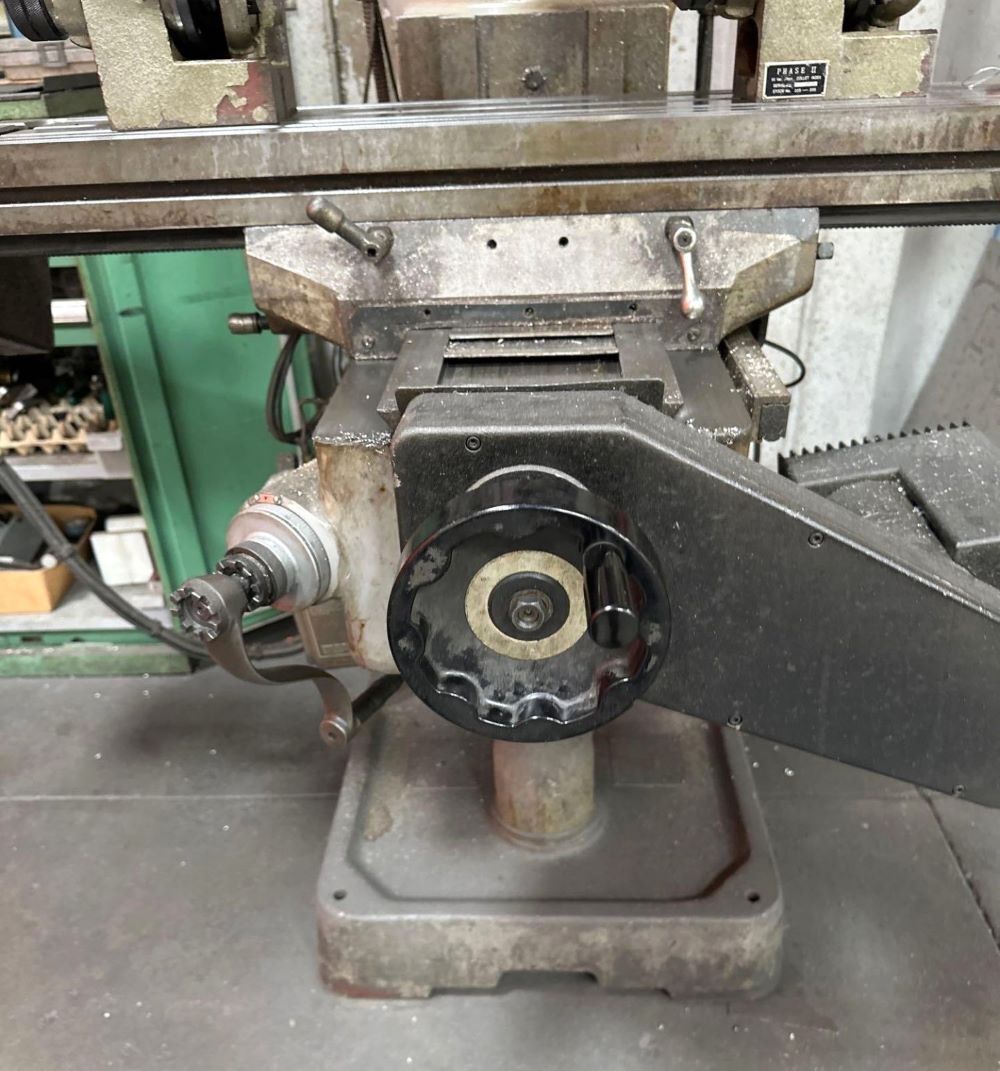

| Hardened and ground table surface, saddle, and knee |
| 60 – 4200 RPM Variable Spindle Speed |
| 90° | 45° Head Movement (Right or Left | Front or Back) |
| 3 HP Spindle Motor |
| Capacity: |
|---|
| Maximum Table Longitudinal Travel: 35″ |
| Maximum Table Cross Travel : 12″ |
| Maximum Knee Travel: 15″ |
| Maximum Ram Travel: 14.5″ |
| Maximum Spindle Travel: 5″ |
| Head Movement (Right or Left | Front or Back): 90° | 45° |
| Spindle to Column (min-max): 6-3/4″ – 18-1/2″ |
| Spindle Nose to Table (min-max): 3-1/4″ – 18-1/4″ |
| Table: |
|---|
| Working Surface: 9″ x 42″ |
| T-Slot Number, Size: 3, 5/8″ |
| Spindle: |
|---|
| Spindle Taper: R-8 |
| Spindle Motor: 3 HP |
| Range of Spindle Speeds : Low: 60 – 500 High: 500 – 4,200 RPM |
| Quill Down Feed Rates: .0015 – .003 – .006 (IPR) |
| Diameter of Quill: 3-3/8″ |
| Number of Spindle Speeds: Mechanical Variable Speed |
| Head Tilt (Right to left each way): 90 Degrees |
| Head Tilt (Front and Back each way): 45 Degrees |
| General: |
|---|
| Overall Machine Dimensions (WxDxH): 86″ x 67″ x 84″ |
| Electrical: 220/440V, 3 phase, 60 Hz |
| Net Weight (approx.): 2450 lbs |
