*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

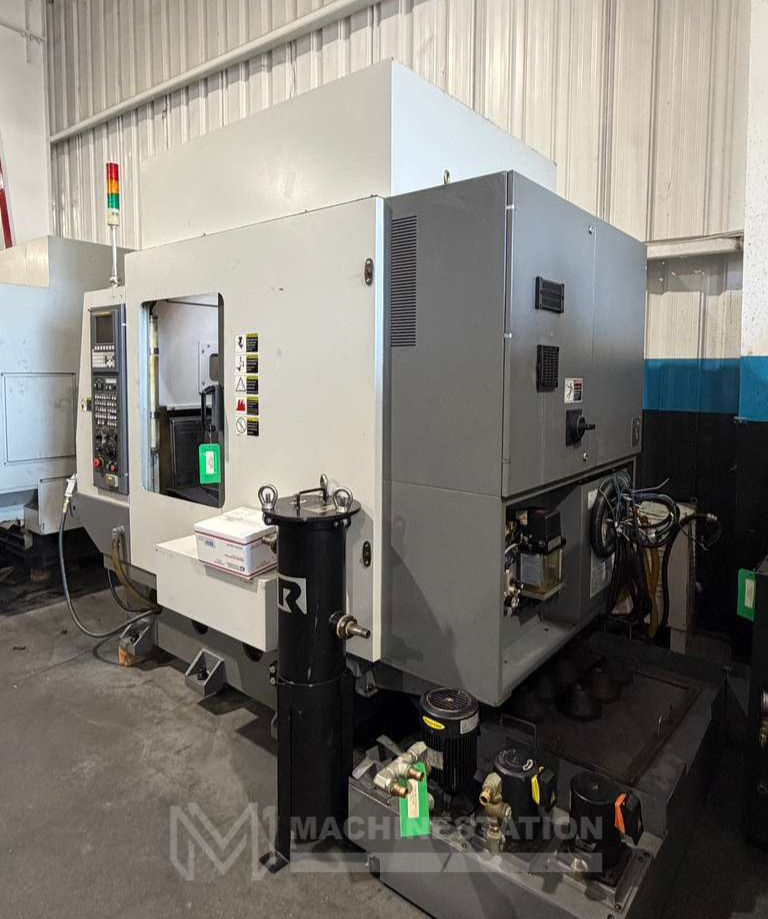

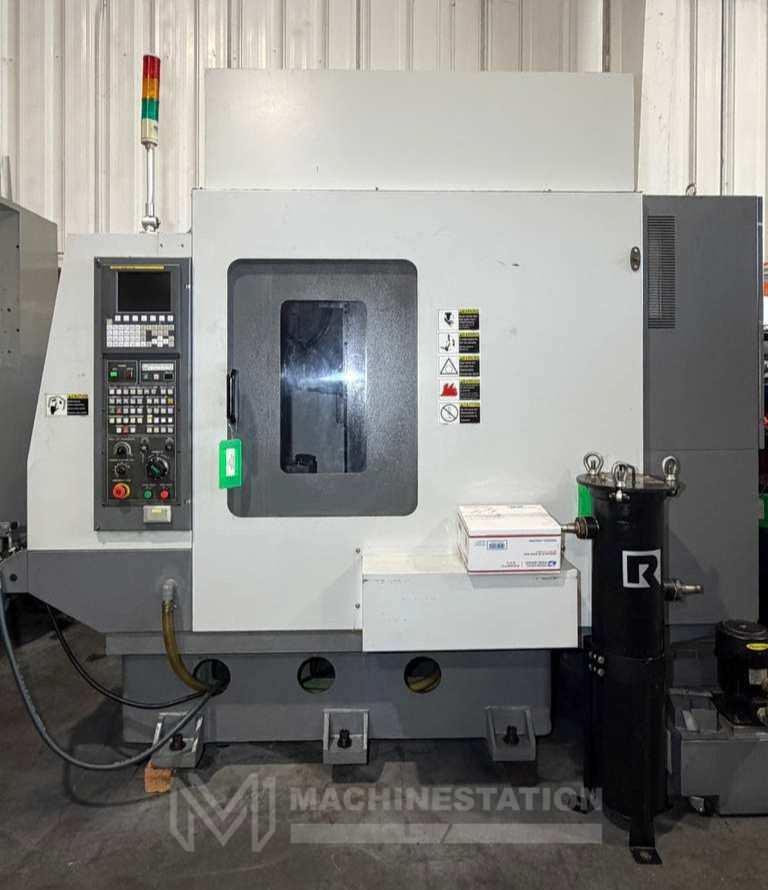

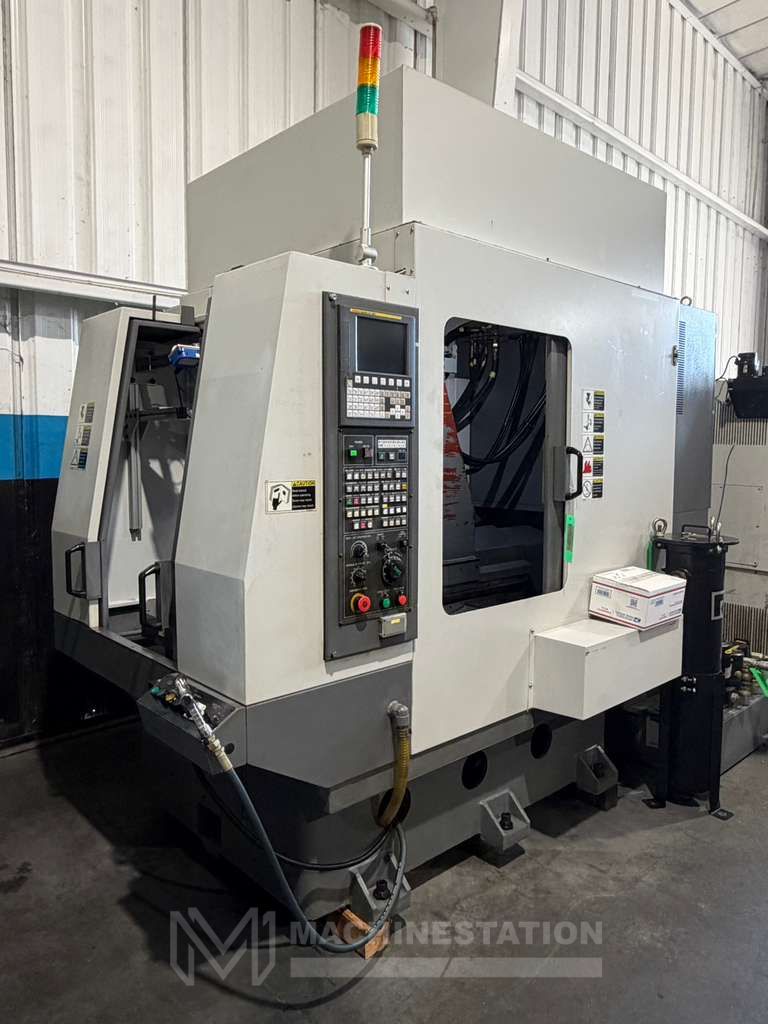

| Make: | DMC |
| Model: | DT32CD |
| Year: | 2013 |
| Features: |
|---|

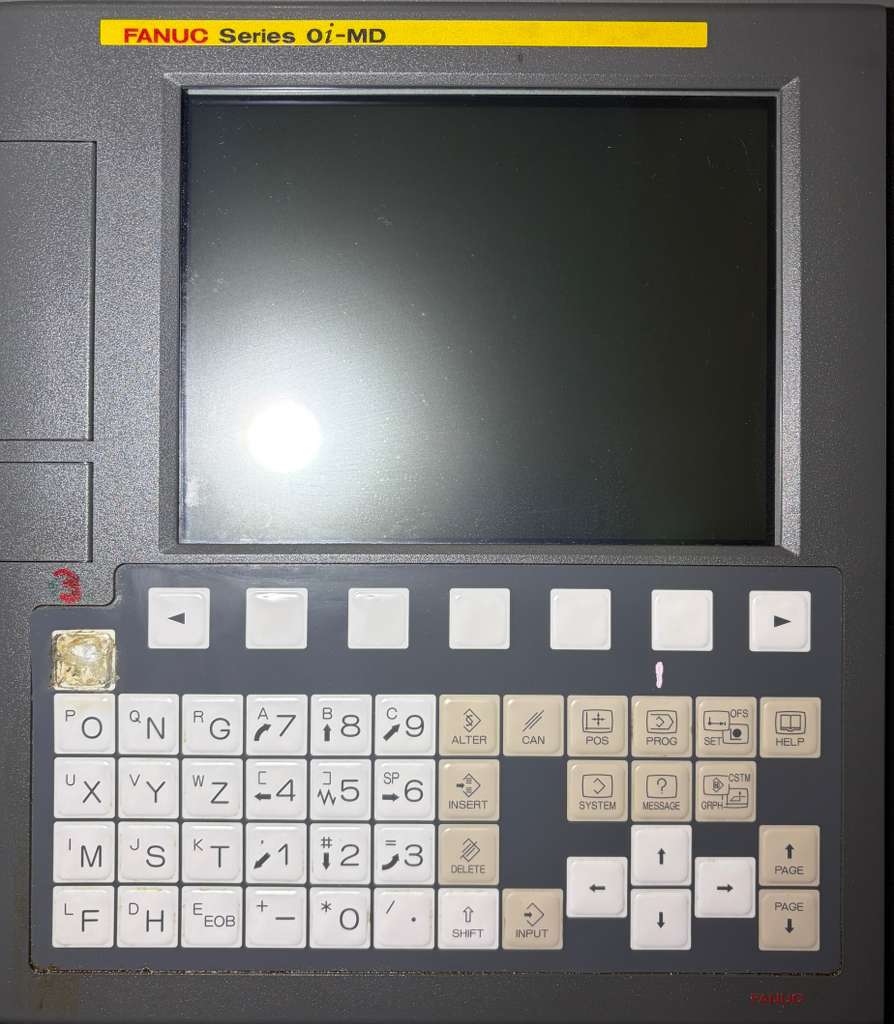

| Fanuc Oi-MD Series CNC Control |
| Rotary Pallet Changer |
| 10,000 RPM High Speed Spindle |
| BT-30 Taper Spindle |
| 24 Station Automatic Tool Changer |
| Through Spindle Coolant |
| PCMCIA Card Interface |
| Spindle Chiller Unit |
| Rigid Tapping |

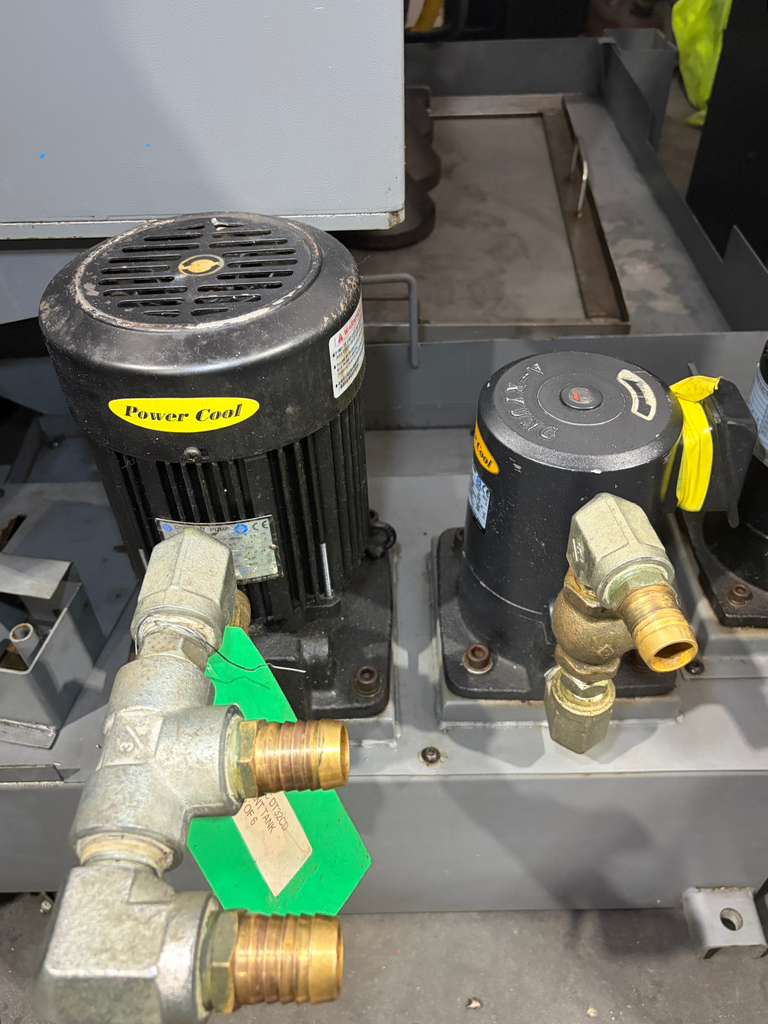

| Coolant System |
| Levelling Pads |
| Travels: |
|---|
| X-Axis: 20.47″ |
| Y-Axis: 12.59″ |
| Z-Axis: 11.81″ |
| Rapid Traverse Rates X, Y, Z Axis: 1,890 IPM |
| Spindle Nose to Table (Min. – Max.): 7.87″ – 19.69″ |

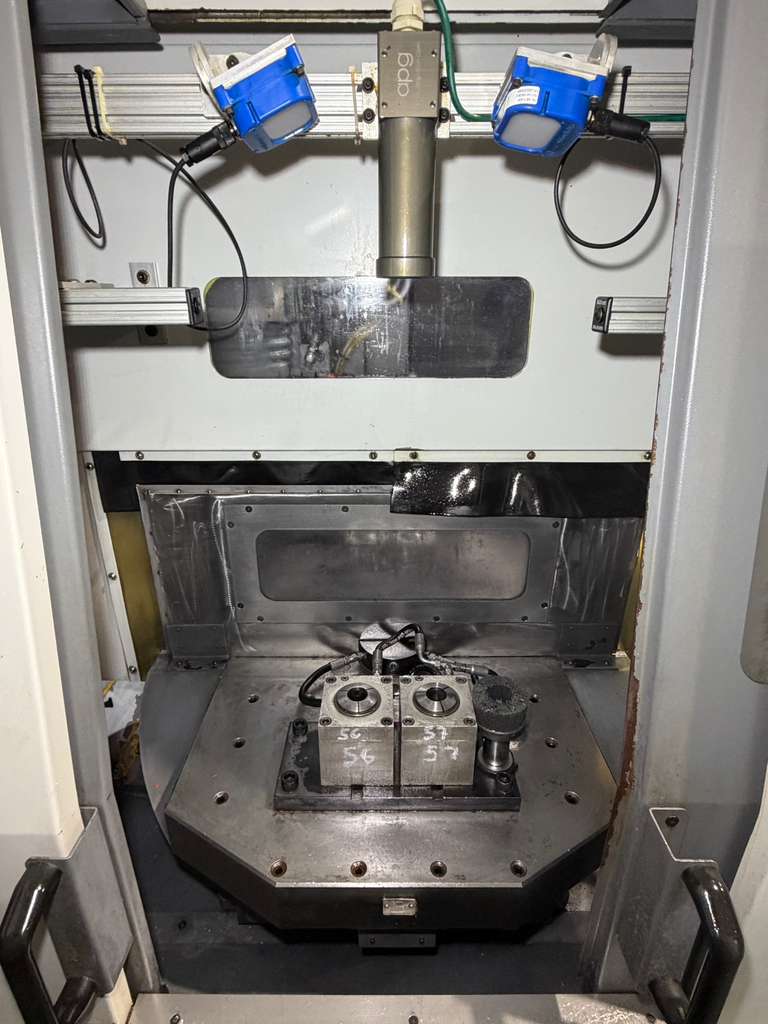

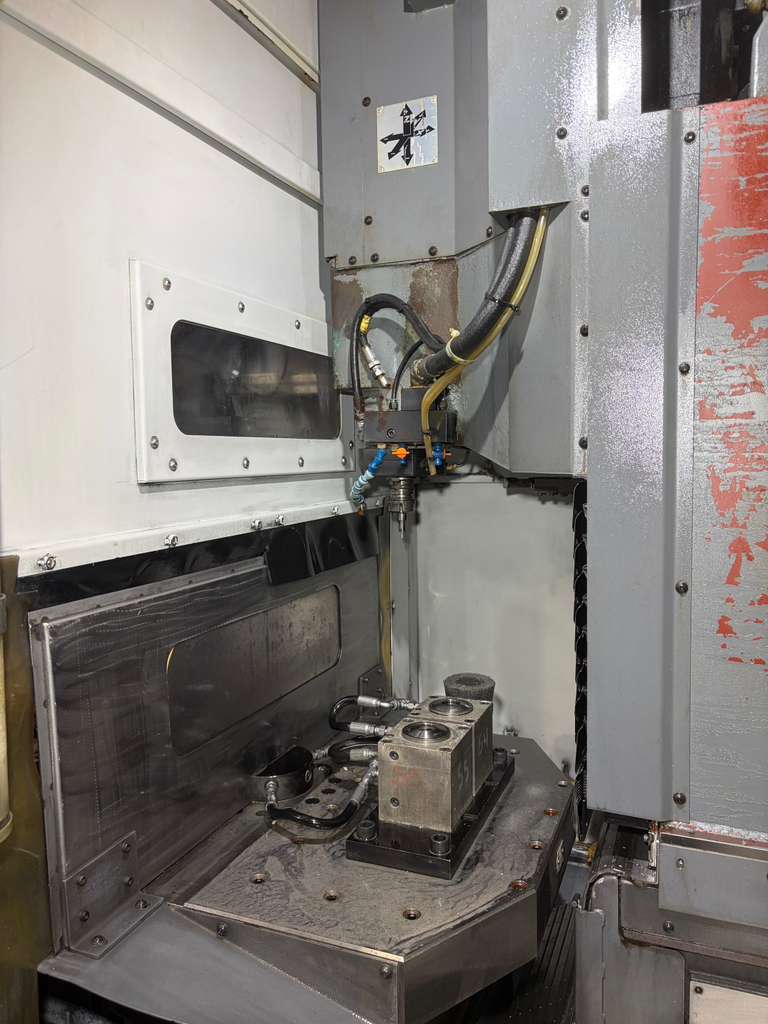

| Table: |
|---|
| Number of Pallets: 2 |
| Length: 23.62″ |
| Width: 14.76″ |
| Number of T-Slots: 4 |
| Max Weight on Table: 882 lbs |

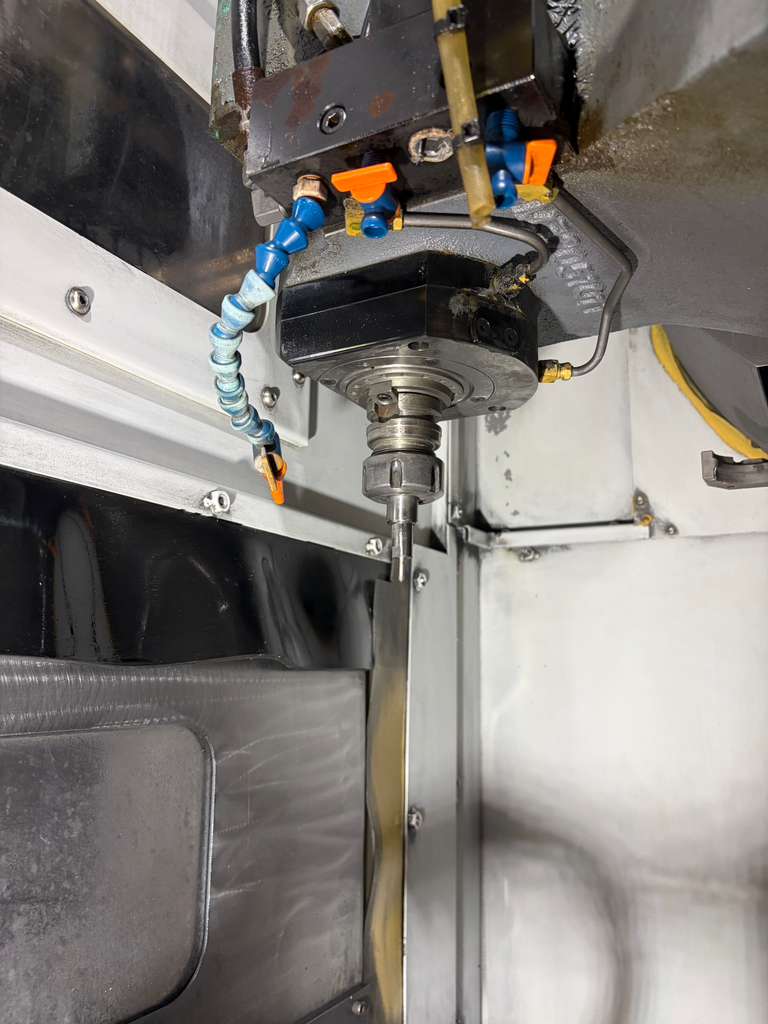

| Spindle: |
|---|
| Spindle Type: Direct Drive |
| Taper Size: BT-30 |
| Speed Range: 10,000 RPM |
| Spindle Power: 7.5 HP |

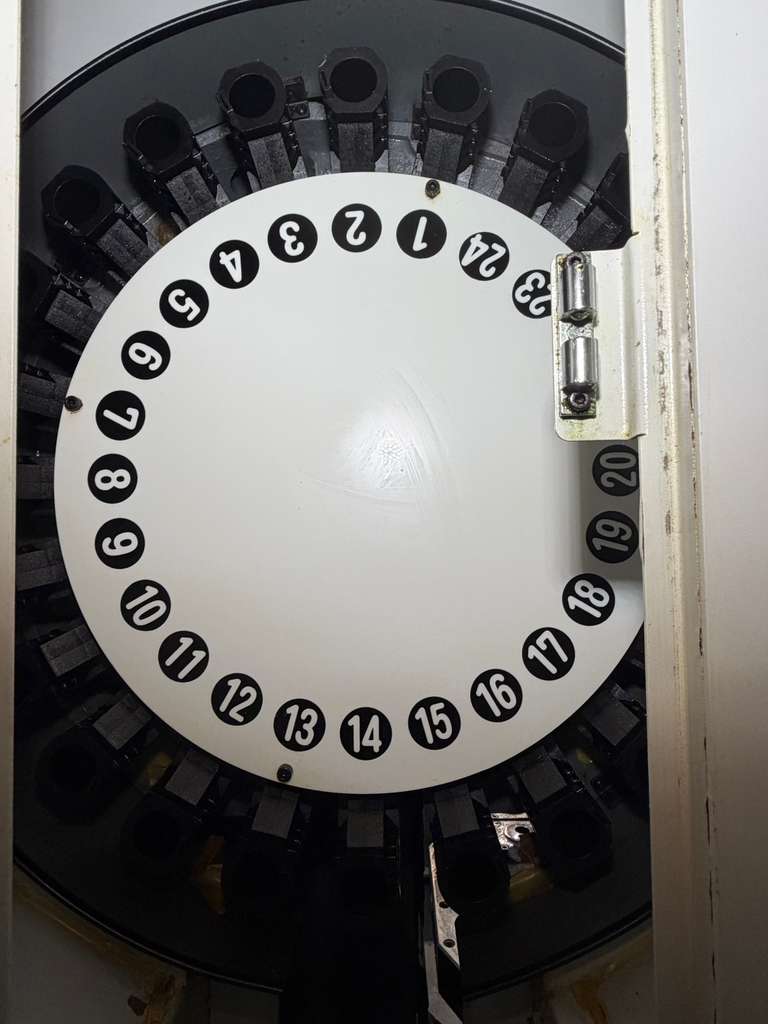

| Automatic Tool Changer: |
|---|
| Capacity: 24 Station |
| Max Tool Diameter: 2.75″ – 4.72″ |
| Max Tool Length: 7.87″ |
| Max Tool Weight: 11.02 lbs |
| Tool Changing Time (Tool-to-Tool): 0.84 Sec |
| General: |
|---|
| Power: 220v / 3-phase / 20 kva |
| Overall Dimensions: 110.23″ x 74.80″ x 96.46″ High |
| Weight: 8,157 lbs |
