All specifications are approximations and are subject to verification.
“This One Owner Machine has very low Cutting Hours, 10000rpm, 20 tool Side Mount Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”

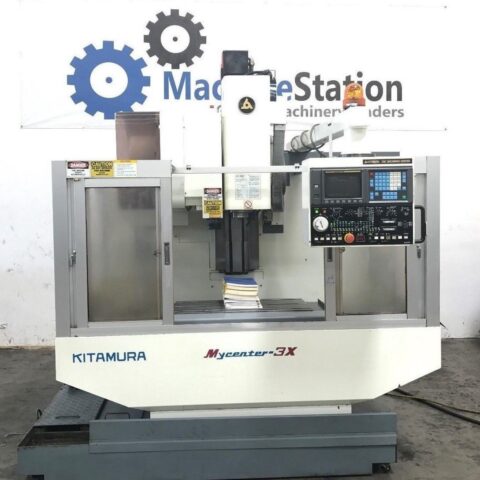

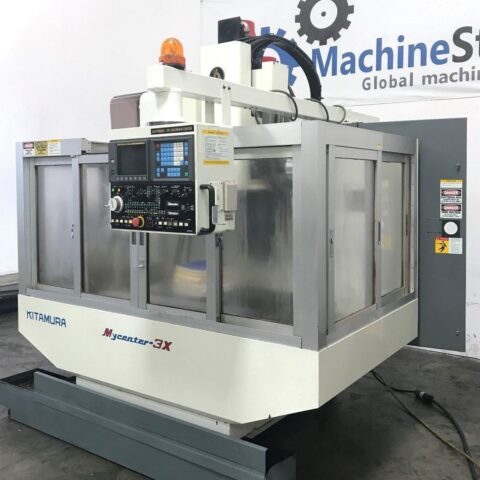

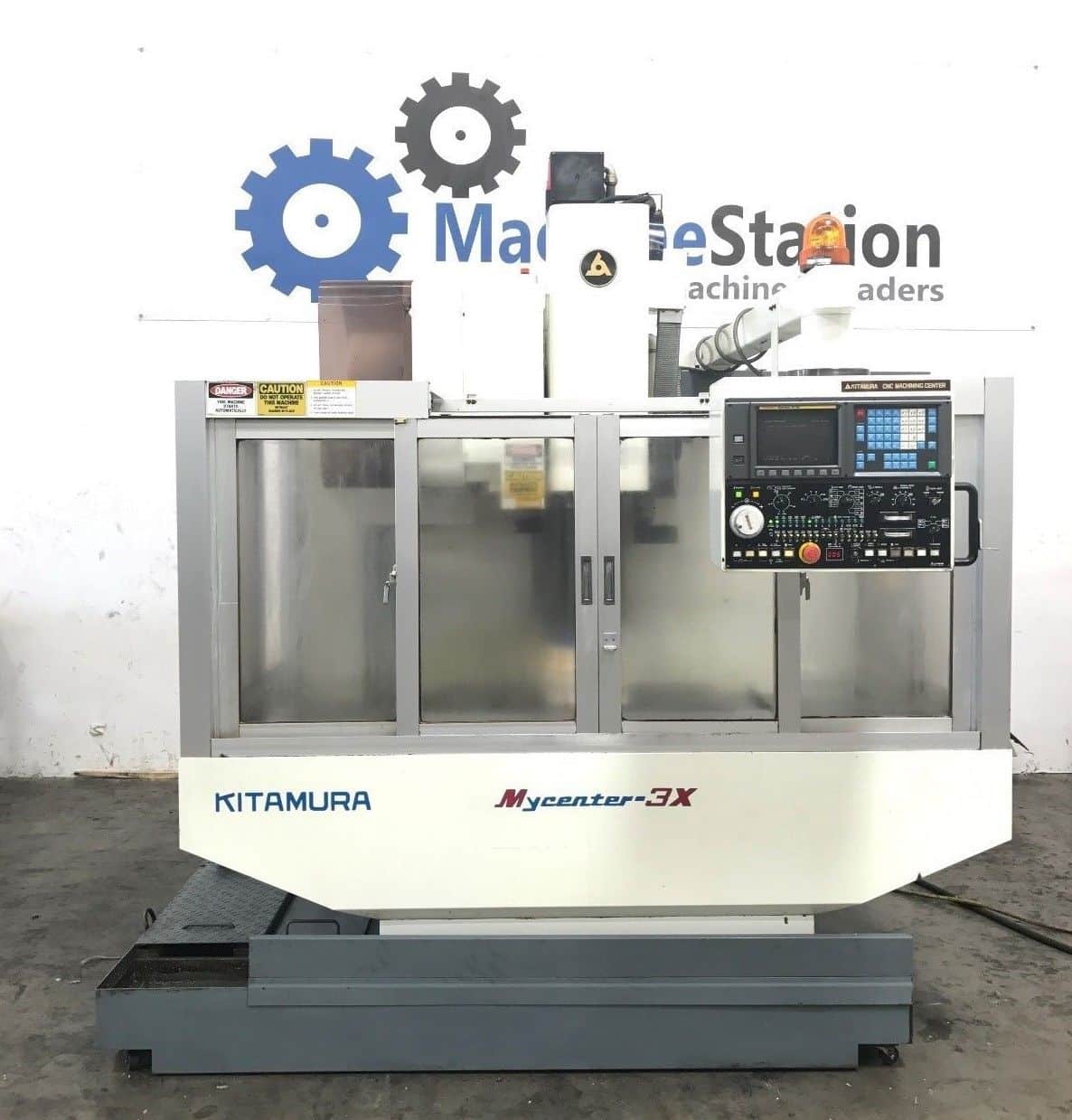

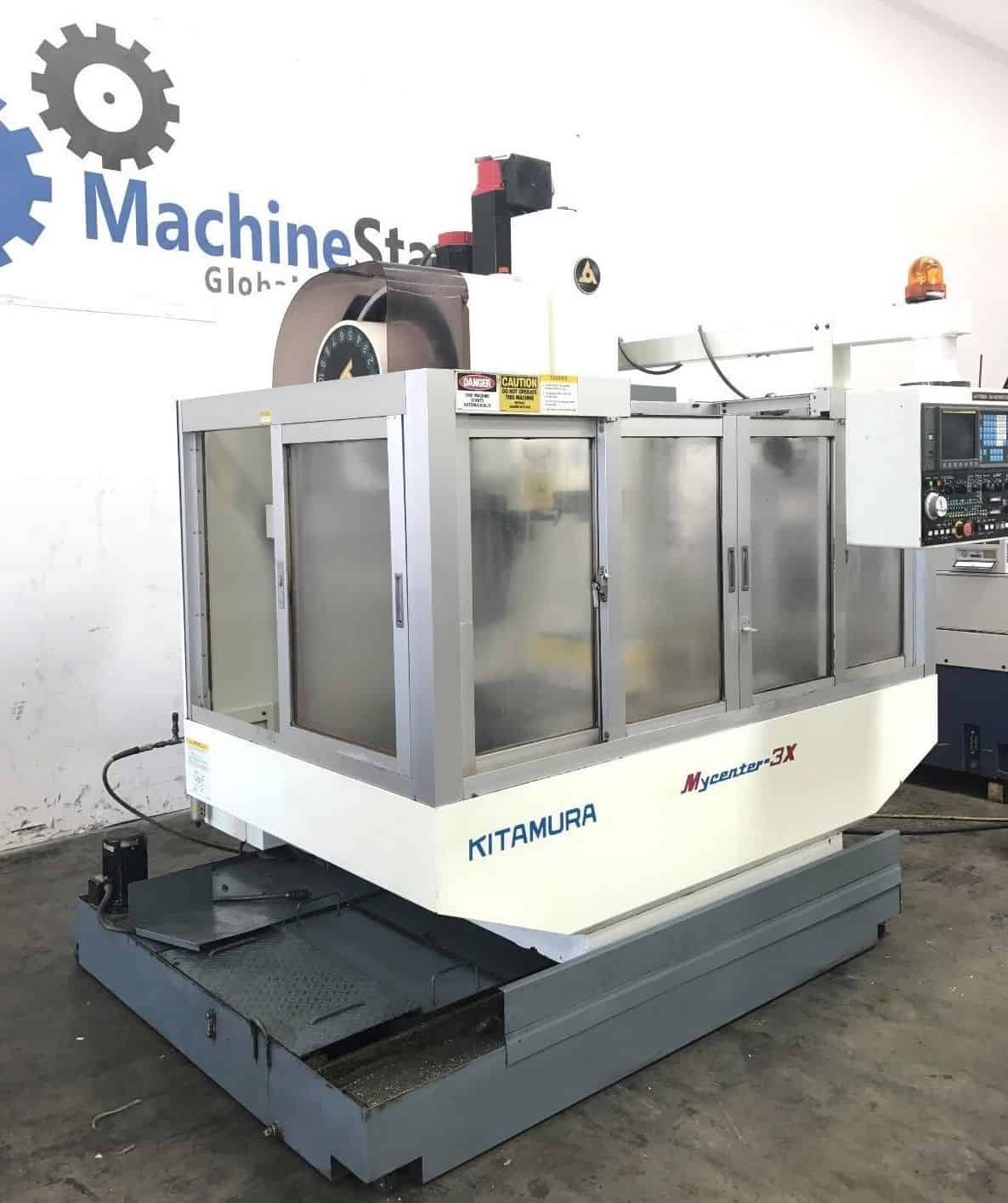

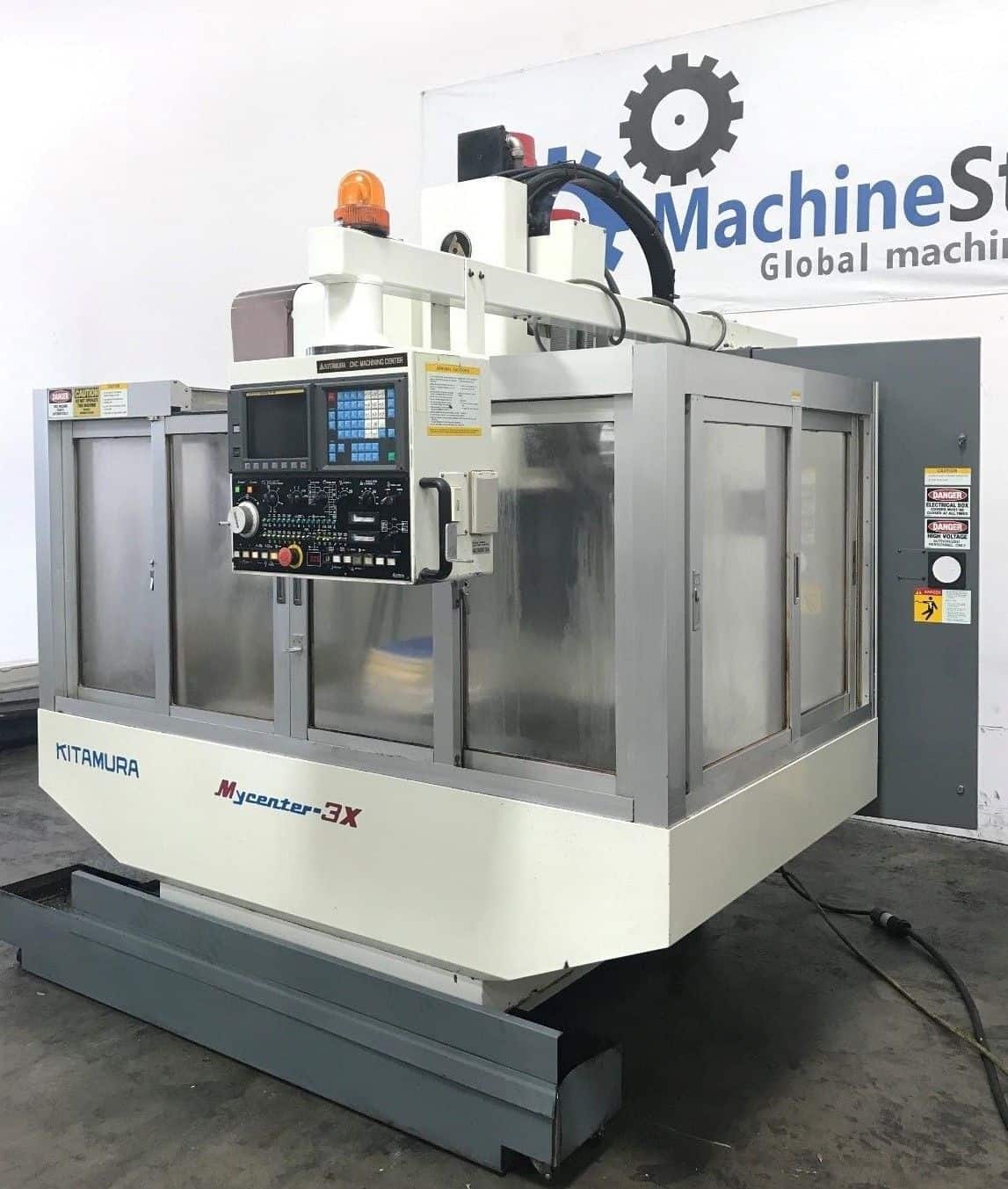

KITAMURA MYCENTER 3X Features:

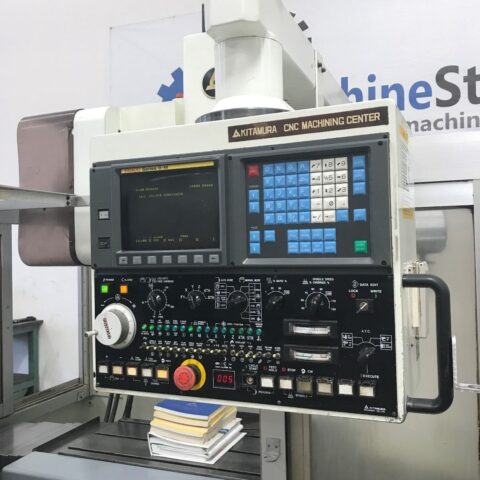

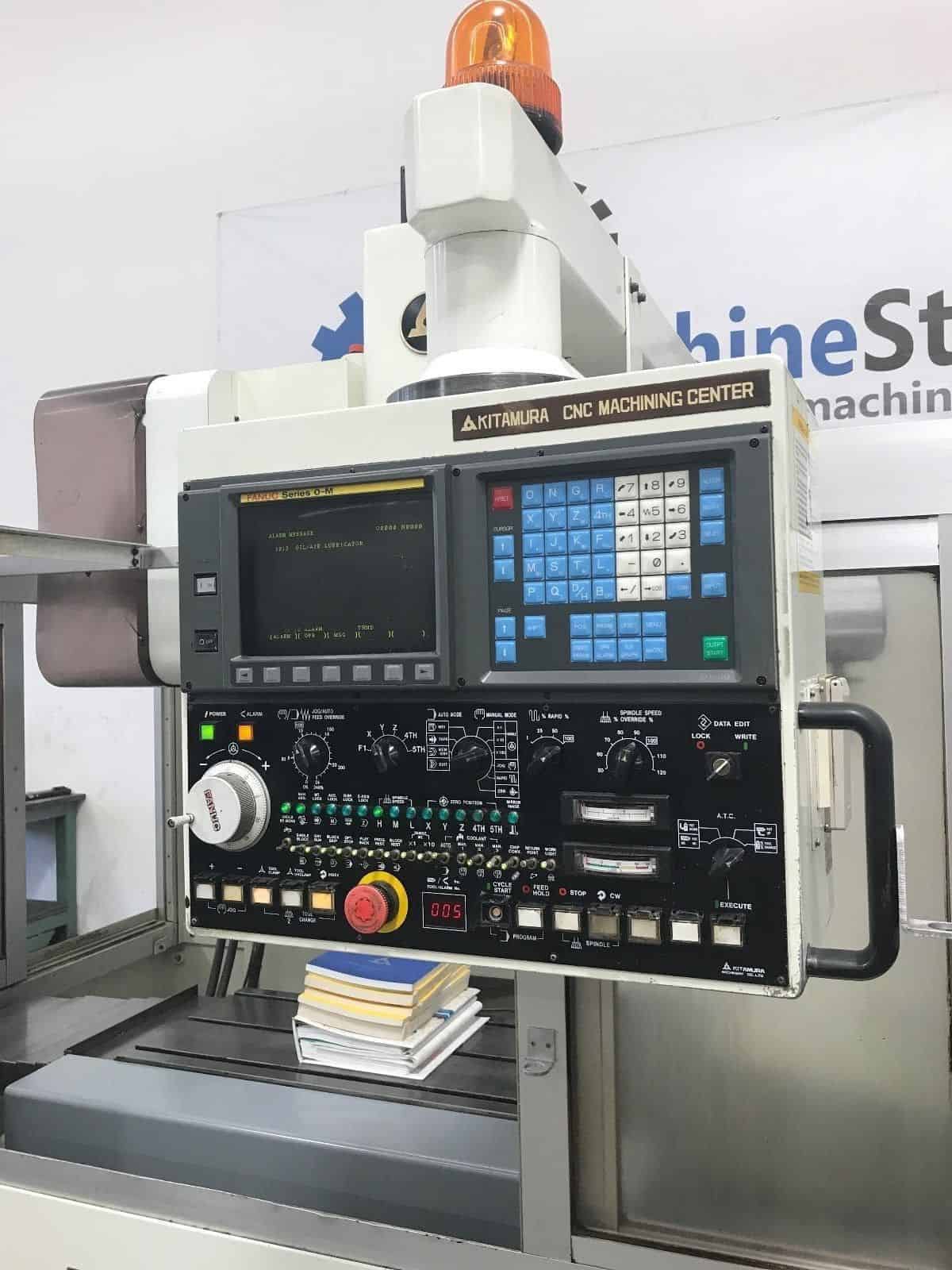

- Fanuc 0MC CNC Control

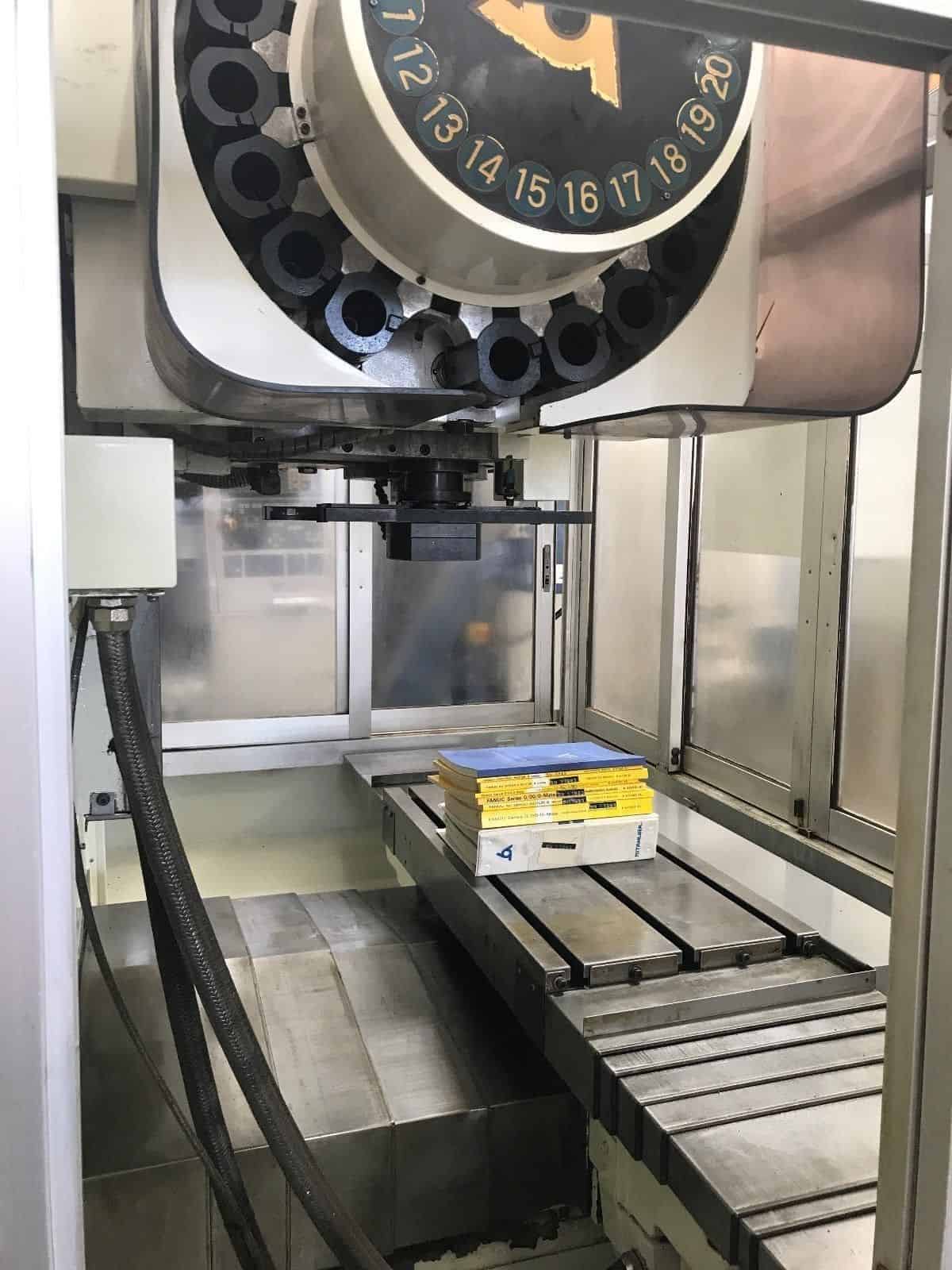

- 20 Tools Side Mount Bidirectional Tool Changer
- High precision 10,000 RPM Spindle
- Box Way Construction All Axis
- Powerful 15 hp high torque spindle motor
- Spindle Chiller
- Spindle Orientation
- Rigid Tapping
- Absolute Incremental Programming
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Chip Auger
- Work light

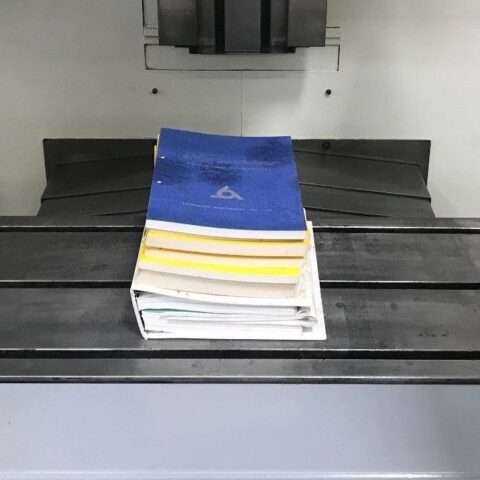

- Original Books and Manuals
KITAMURA MYCENTER 3X Specifications:
- Travels:
- X-Axis: 30″
- Y-Axis: 18″
- Z-Axis: 18″
- Spindle Nose to Table (Min.- Max.): 5″ – 23″
- Column to Table Center: 8.5″ – 26.4″

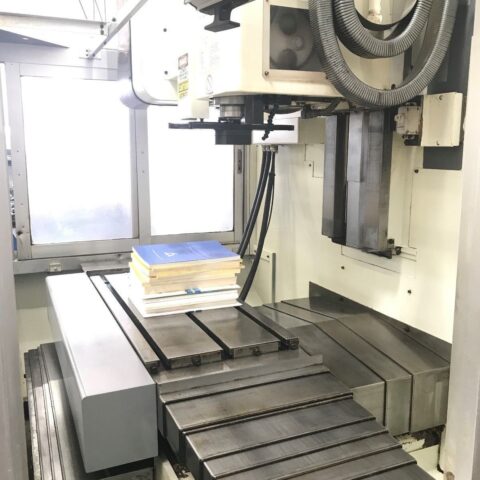

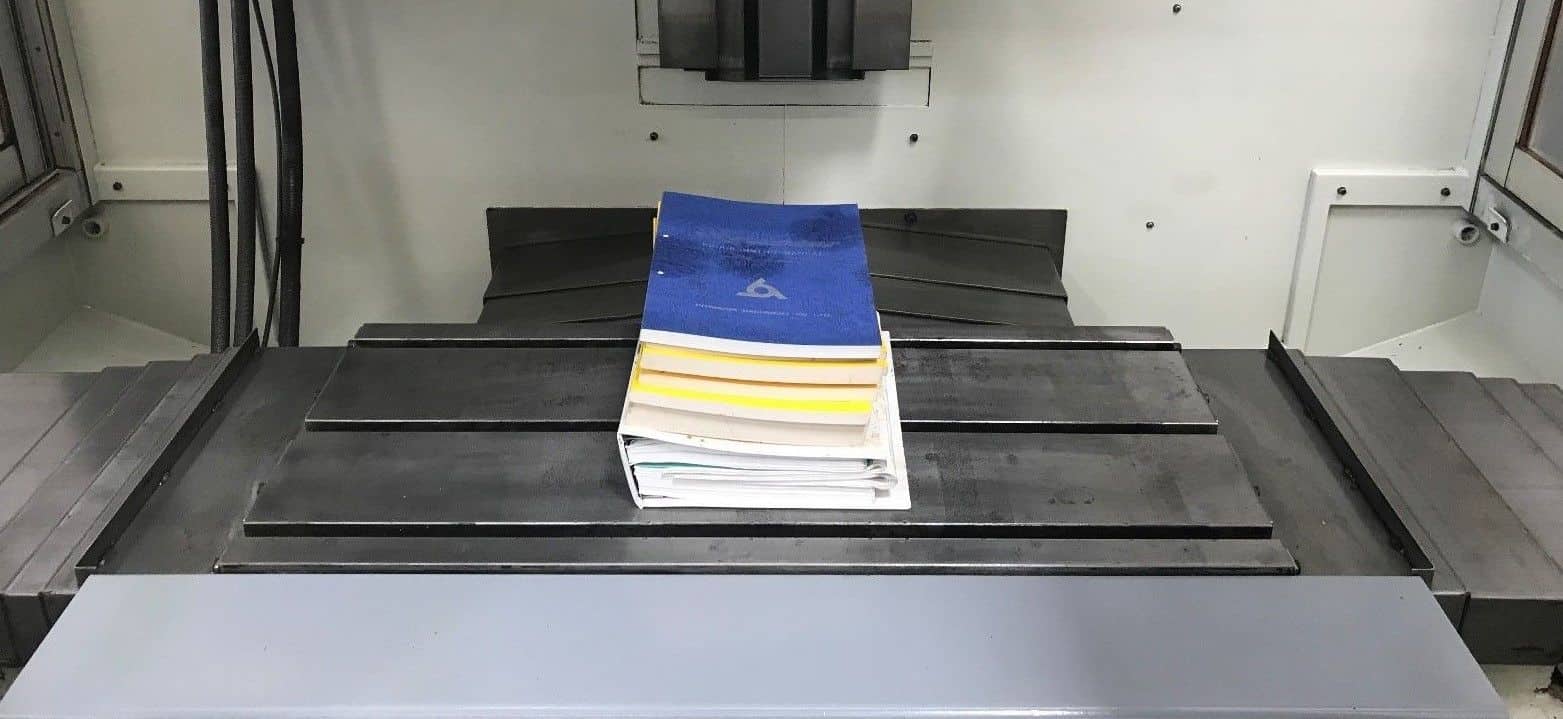

Table:
- Length: 35.4″
- Width: 16.1″
- Max Weight on Table: 1100 lbs
Spindle:
- Taper Size: 40
- Speed Range: 20 – 10,000 RPM
- Spindle Power: 15 HP
Feed rates:
- Rapid X,Y & Z: 1181/945 inch/P.M
- Cutting Feedrate: 393″ inch/ P.M
Automatic Tool Changer:
- 40 Taper
- Capacity: 20
- Max Tool Weight: 17.6 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 3.1″
- Tool Change Time: 1.7 Second
General:
- Air Required: 80 psi, 4 scfm
- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: High
- Weight: 12000 lbs
