*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

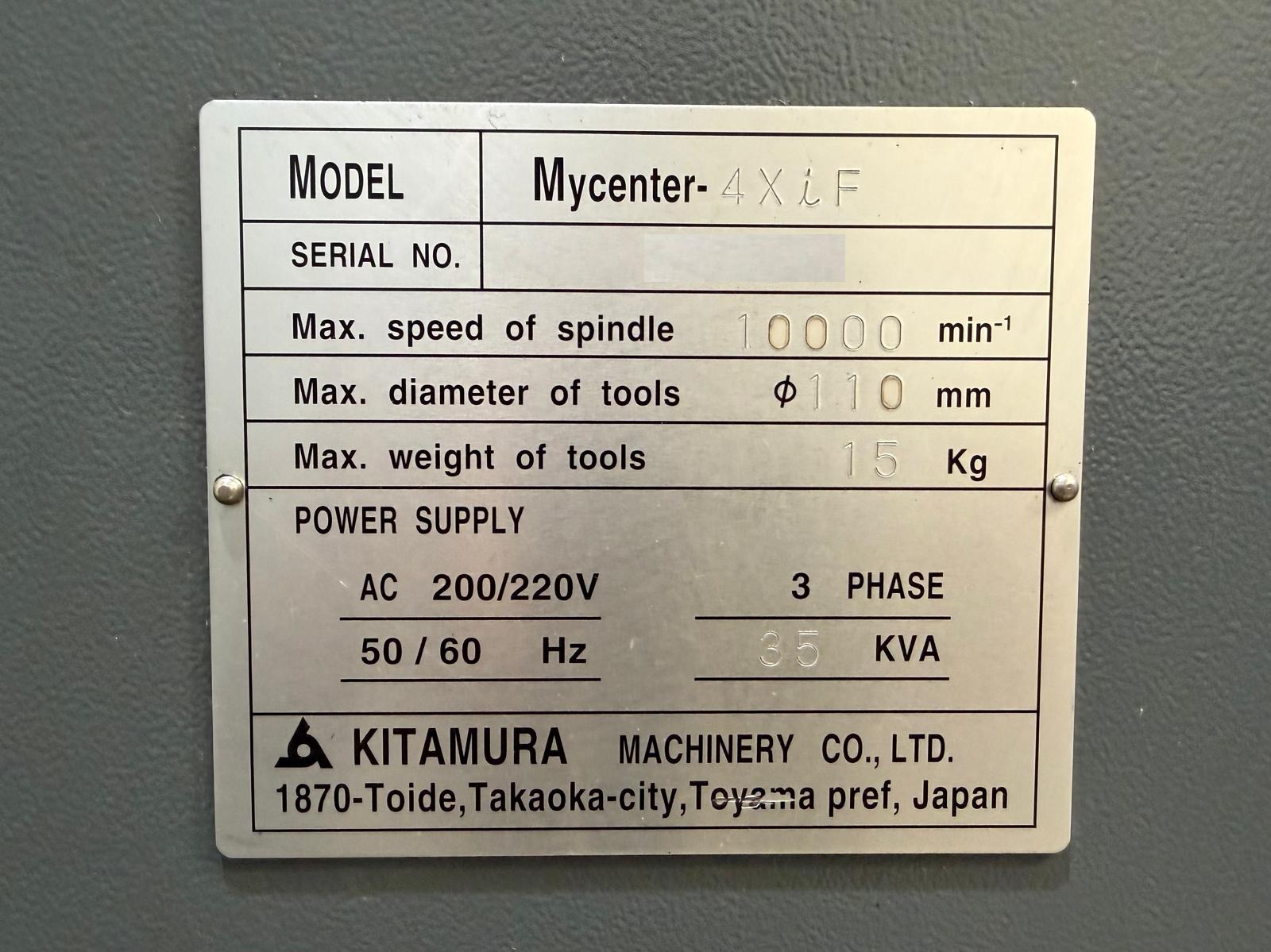

| Make: | Kitamura |
| Model: | Mycenter 4XiF |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|
| Fanuc 16i-MB Series CNC Control |
| Heavy Duty Box Ways Construction |
| 10,000 RPM High Torque Spindle |
| Through Spindle Coolant |

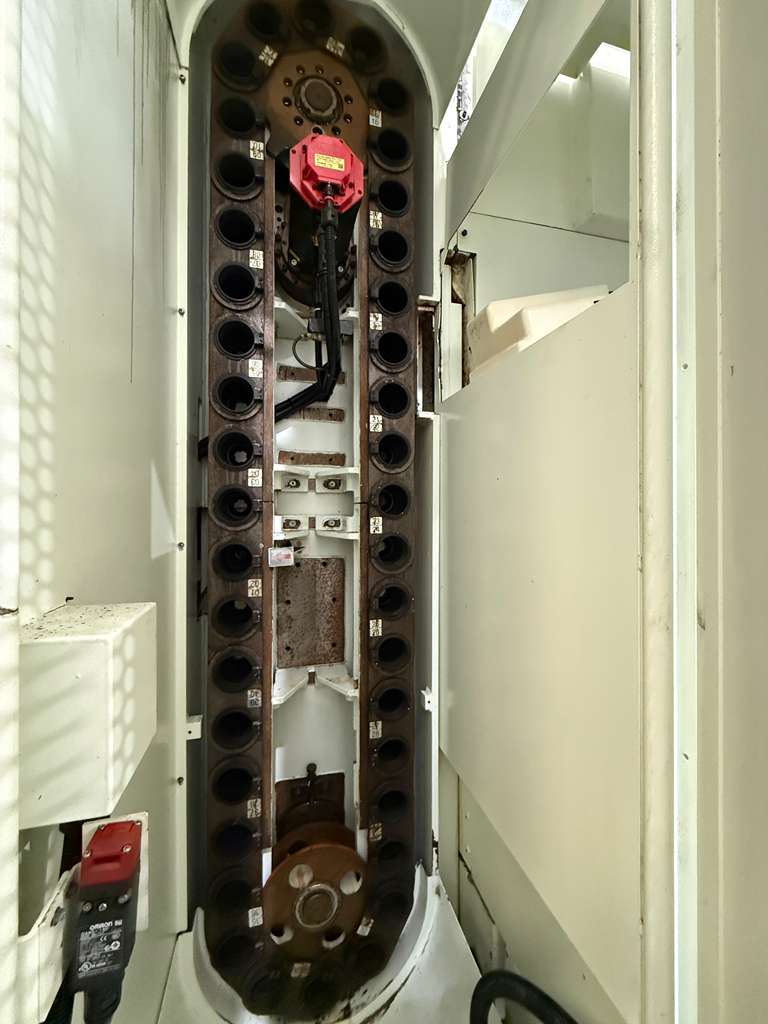

| 40 Station Automatic tool changer |
| 20 HP High Torque Spindle Motor |

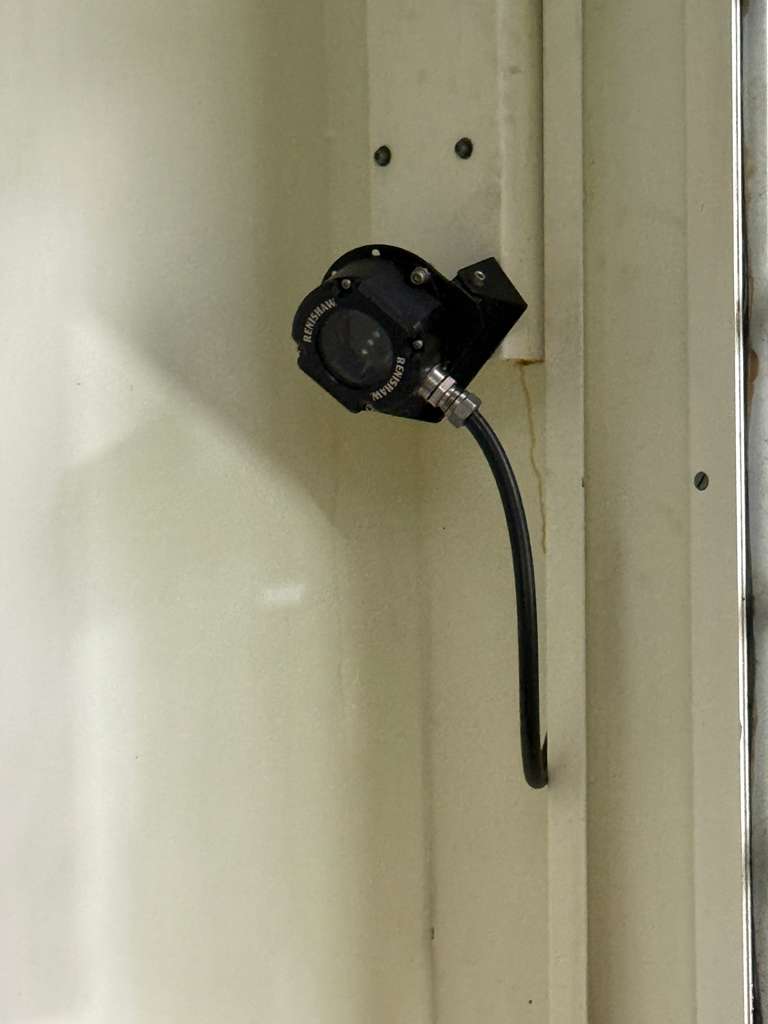

| Renishaw Receiver Installed |
| Renishaw OMP60 Tool Probe |
| CAT-50 Taper |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Chiller Unit |

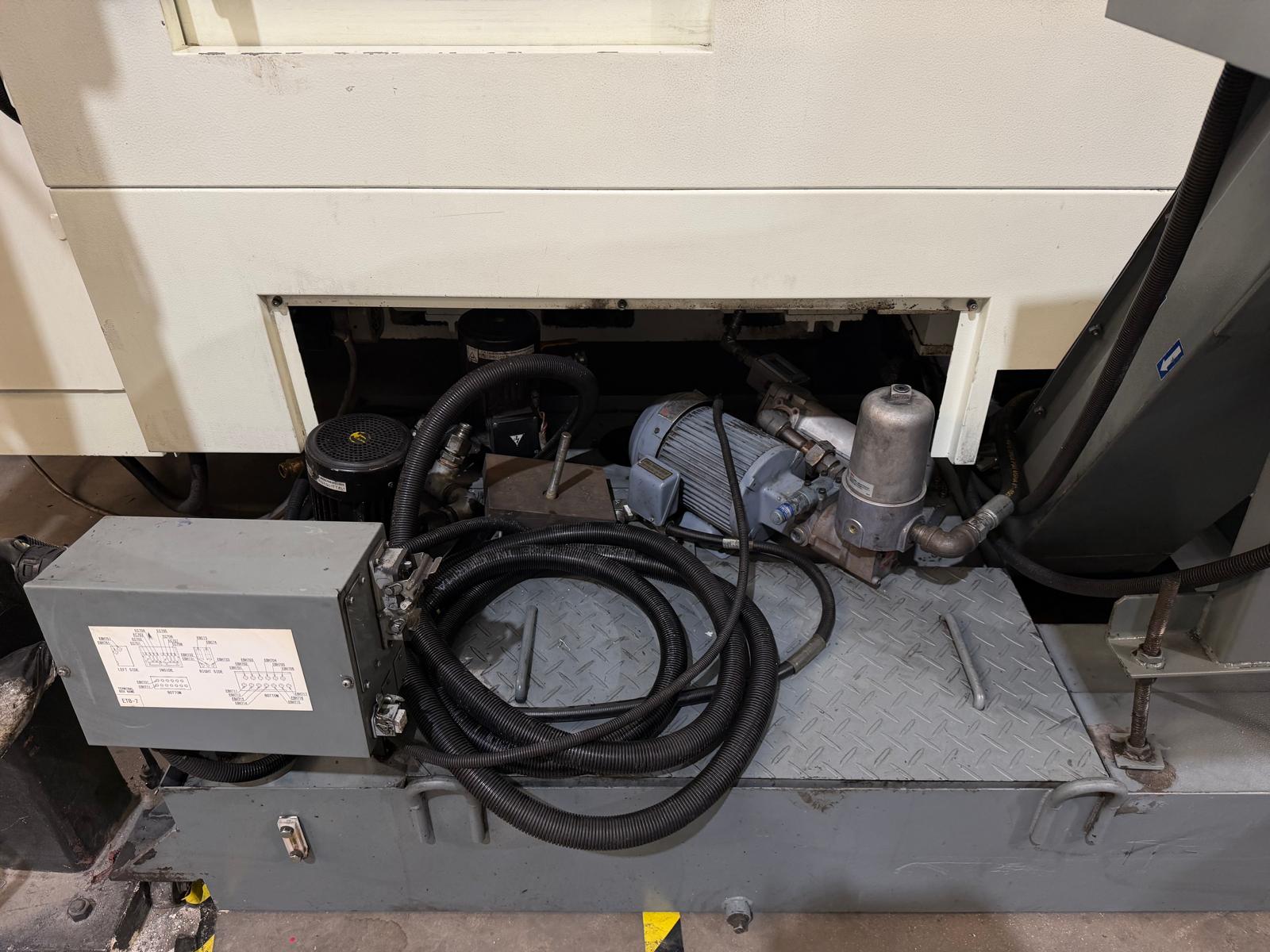

| Coolant System |

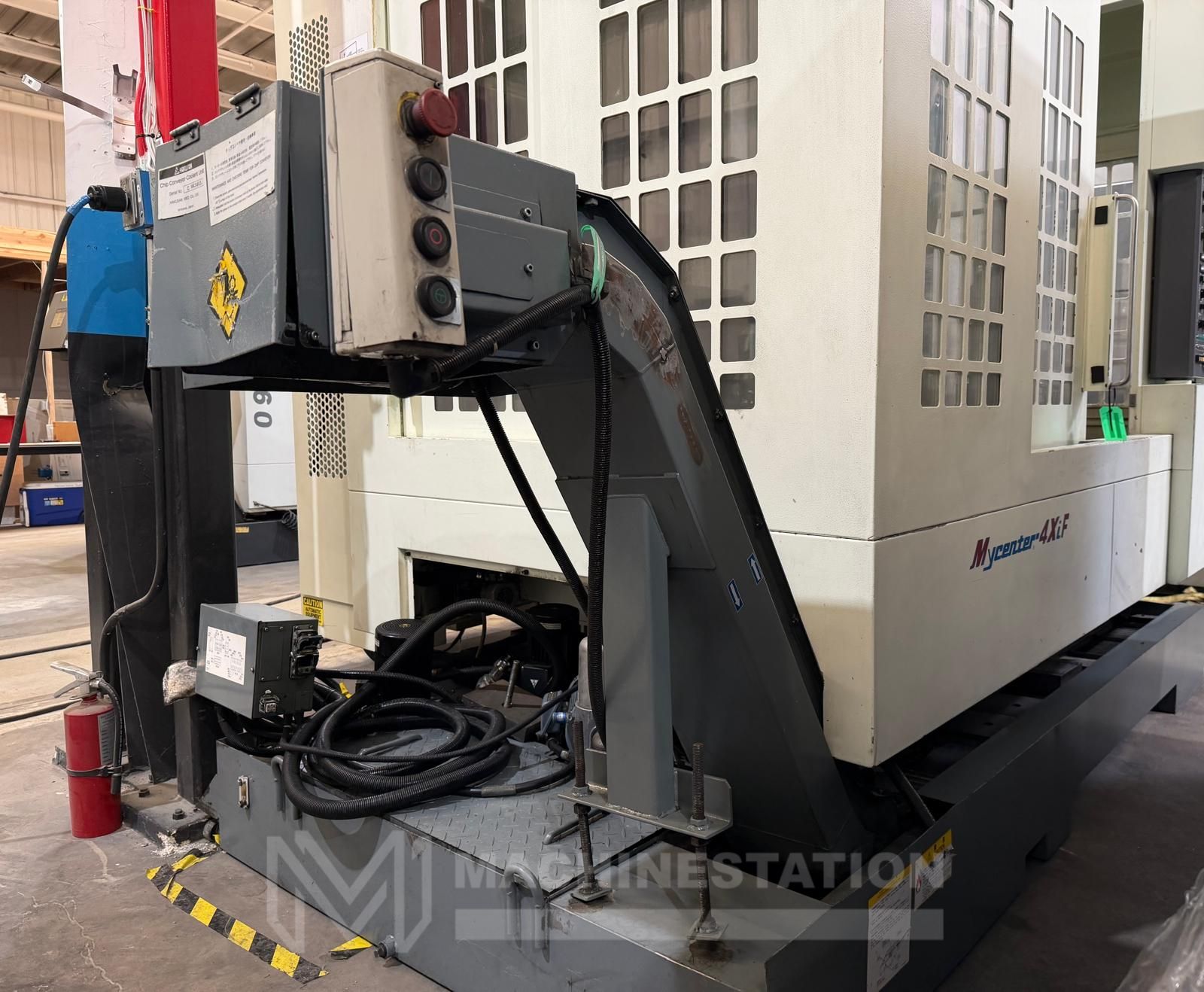

| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 20″ |
| Spindle Nose to Table (Min.-Max): 5.9″ – 27″ |

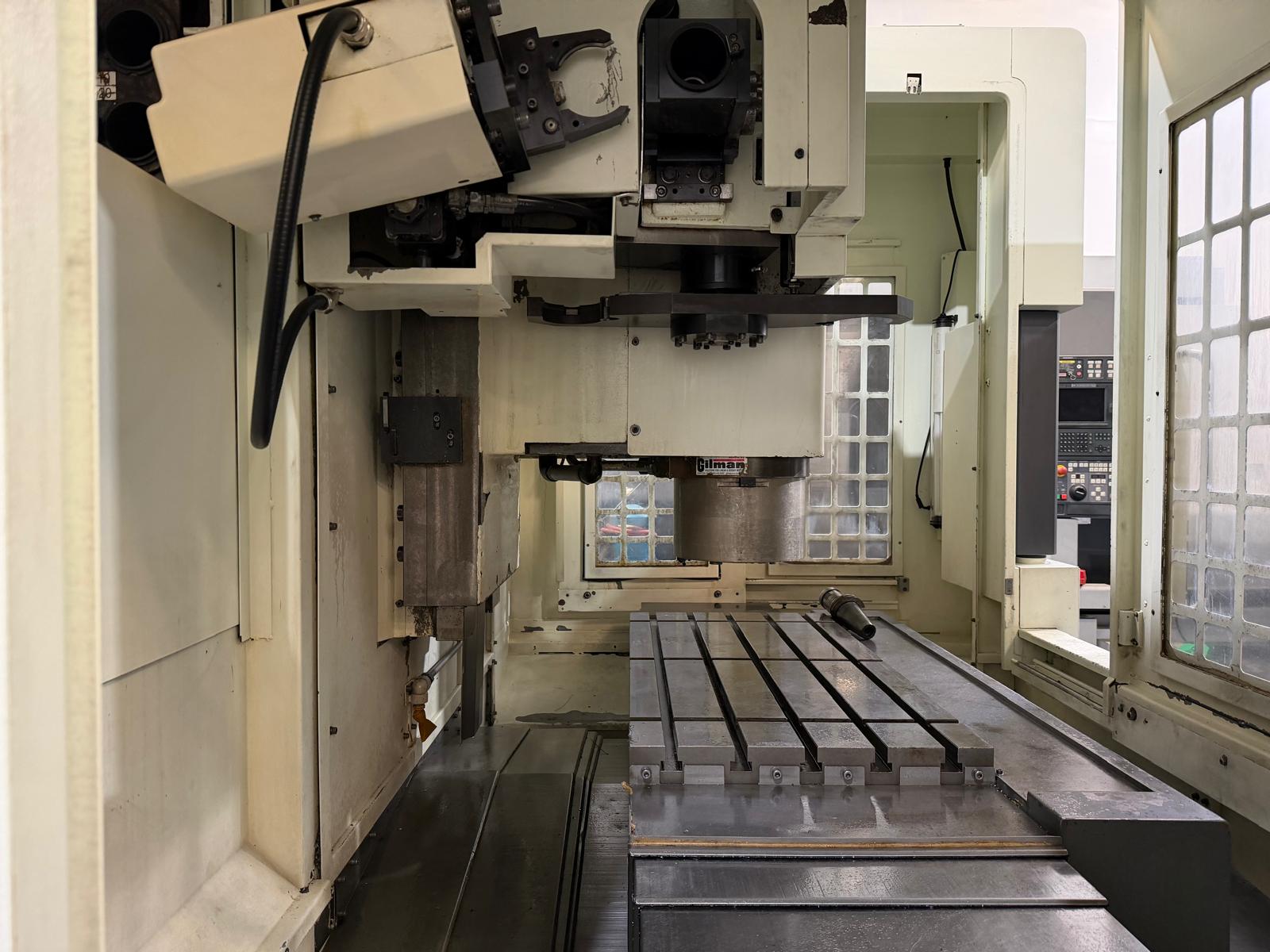

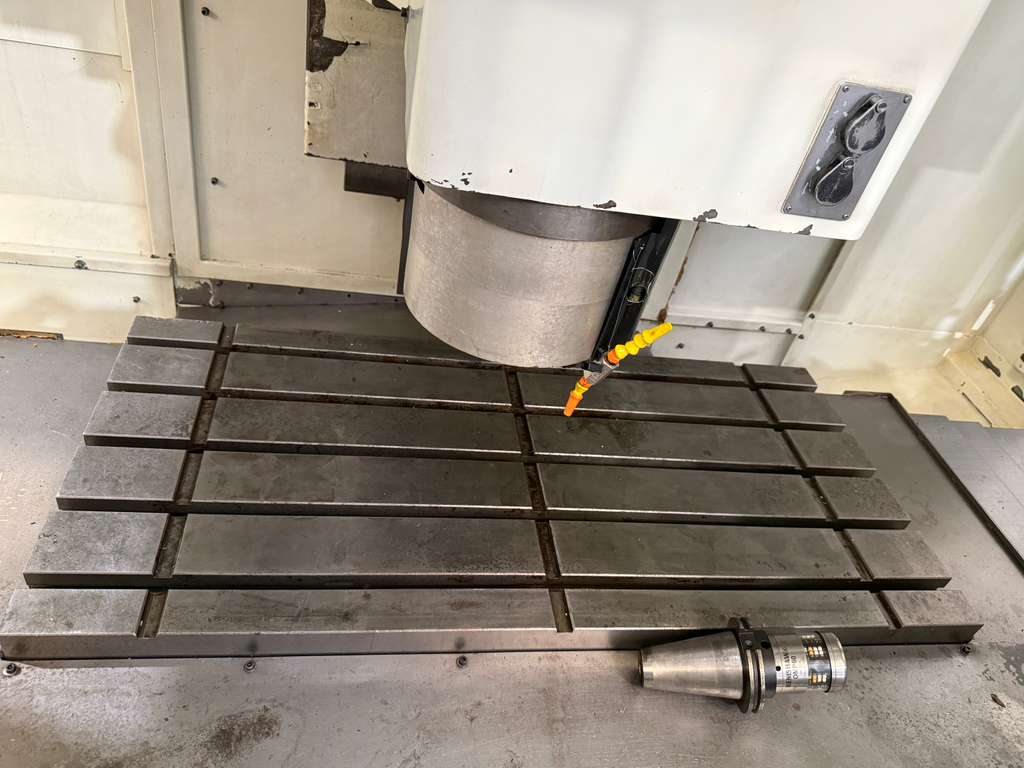

| Table: |
|---|
| Length: 43.0″ |
| Width: 20.5″ |
| Max Weight on Table: 1320 lbs |
| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 10000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 40 Station Side Mounted |
| Tool Weight: 33 Ibs |
| Max Tool Length: 11.8″ |
| Max Tool Dia.: 4.33″ |
| Feed Rates: |
|---|
| Rapid Traverse Rates X & Y Axis: 1969 IPM |
| Rapid Traverse Rates Z Axis: 1417 IPM |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v/ 3-Phase, 35Kva |
| Overall Dimensions: 140″ x 116″ x 120″ High |
| Weight: 18,000 lbs |
