*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

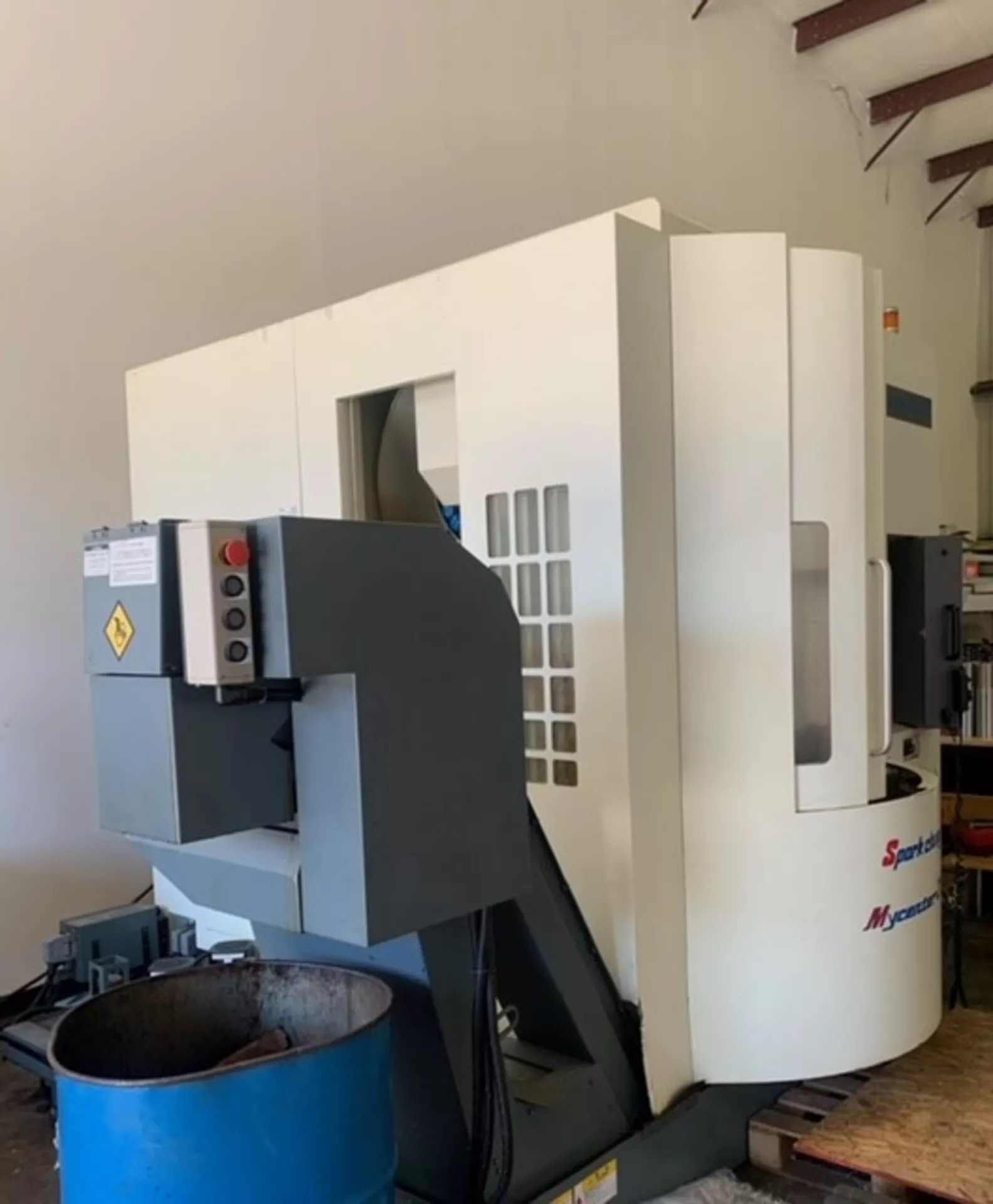

| Make: | Kitamura |
| Model: | Mycenter 2XiF |
| Year: | 2008 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |
| Control: | Fanuc 16i-MB CNC Control |
| Features: |
|---|
| Dual 14″ x 22″ Automatic Pallet Changer |
| 20,000 RPM High-Speed Spindle |
| 24 Position Automatic Tool Changer |
| Chip Conveyor |
| Spindle Chiller Unit |
| CAT-40 Toolholders Included |
| (2) 8″ Chucks Included |
| Kurt Precision Vise Included |
| High-Speed Machining Package |
| Full Machine Enclosure |
| Travels: |
|---|
| X-Axis Travel: Approx. 20″ |
| Y-Axis Travel: Approx. 14″ |
| Z-Axis Travel: Approx. 18″ |
| Table: |
|---|
| Pallet Size: (2) 14″ x 22″ |
| Maximum Table Load: 440 Lbs |
| Spindle: |
|---|
| Spindle Taper: CAT-40 |
| Spindle Speed: 20,000 RPM |
| Spindle Motor: 20 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 24 Tools |
| Maximum Tool Diameter: 3.15″ |
| Maximum Tool Weight: 17.6 Lbs |
| General: |
|---|

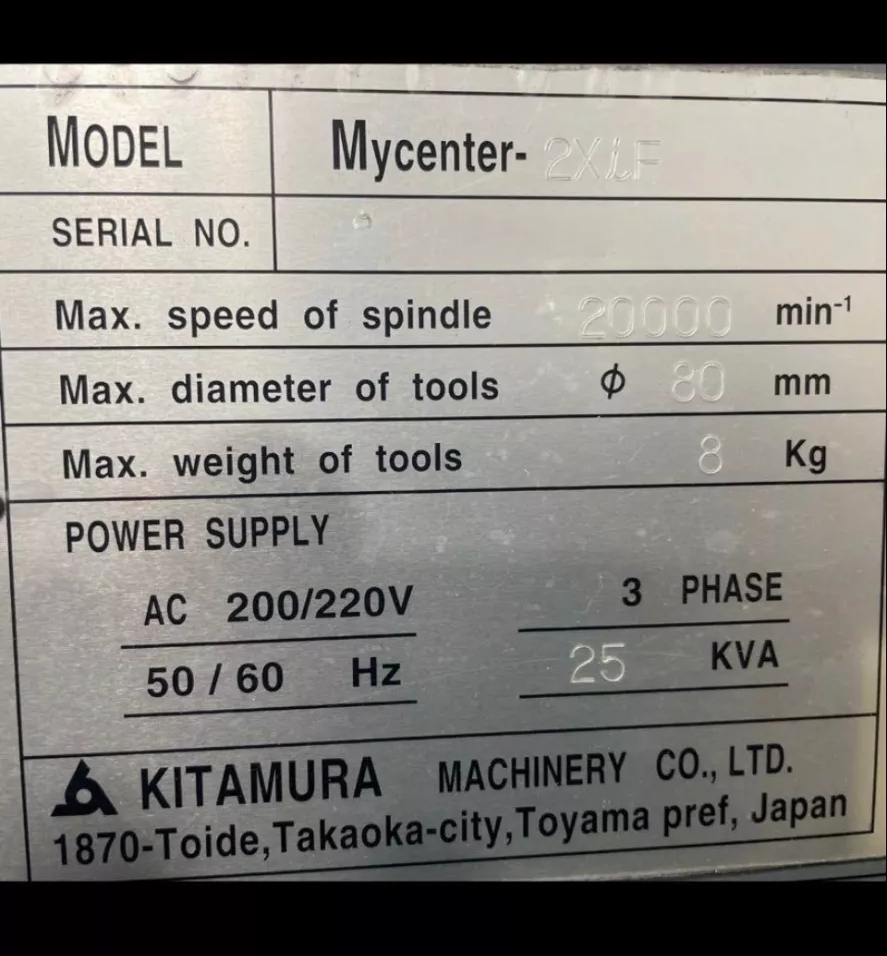

| Power: 200/220V / 50/60 Hz / 3 Phase / 25 KVA |
| Overall Dimensions: Approx. 84″ L x 94″ W x 106″ H |
| Machine Weight: Approx. 12,500 Lbs |
