*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

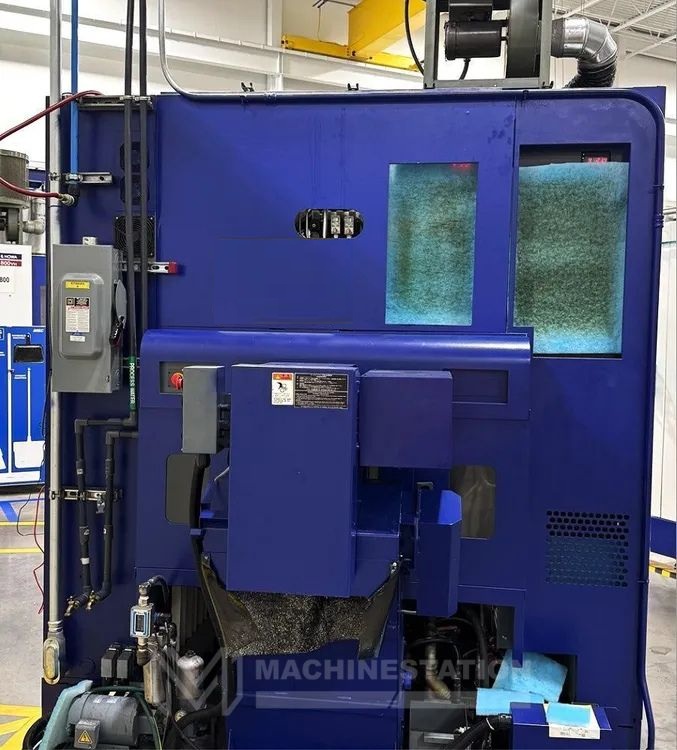

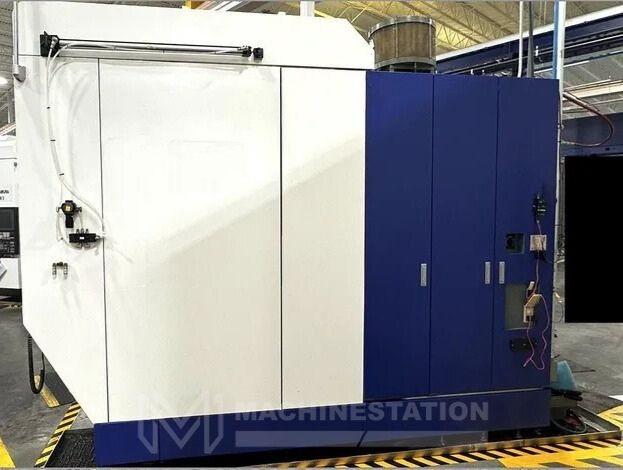

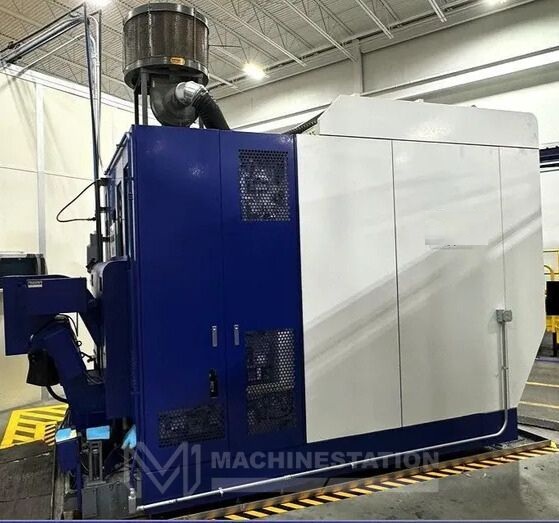

| Make: | Kitamura |
| Model: | Mytrunnion 5 |
| Condition: | Used – Good |
| Features: |
|---|
| Fanuc Series 30i-Model B CNC Control |
| Heavy Duty Box Ways Construction |
| 5-Axis Simultaneous Machining |
| 24.8″ Diameter Trunnion Table |
| 20,000 RPM High Speed Spindle |
| 50 Station High-Speed Automatic Tool Changer |
| Through-Spindle Coolant |
| CAT-40 Spindle Taper |
| 30 HP Spindle Motor |
| PCMCIA Card Slot |
| 128 MB Memory |
| Spindle Chiller |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Absolute Incremental Programming |
| Fast Rapid Traverse Rate |
| Flood coolant with large separate coolant tank |
| Chip Conveyor |
| Work light |
| Travels: |
|---|
| X-Axis Travel: 32.1″ |
| Y-Axis Travel: 29.3″ |
| Z-Axis Travel: 19.7″ |
| A-Axis Travel: −120° to +30° |
| C-Axis Rotation: 360° Full 5th Axis |
| Distance From Table Surface to Spindle Nose: 3.9″ – 23.6″ |
| Rapid Traverse (X/Y): 1,969 Inches Per Minute |
| Rapid Traverse (Z): 984 Inches Per Minute |
| Cutting Feedrate (X/Y/Z): 945 Inches Per Minute |
| A-Axis Speed: 6000 Deg/Min |
| C-Axis Speed: 2160 Deg/Min |

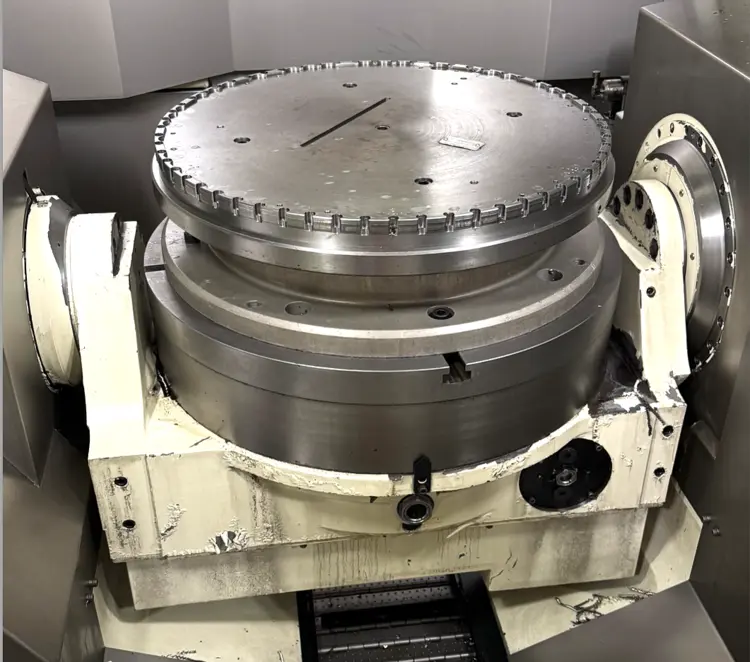

| Table: |
|---|
| Table Size: 24.8″ Diameter |
| Maximum Table Load: 880 lbs |
| Maximum Workpiece Diameter: 24.8″ |
| Maximum Workpiece Height: 19.7″ |
| Indexing: 0.001° (4th & 5th Axes) |
| Spindle: |
|---|
| Spindle Speed: 20,000 RPM |
| Spindle Taper: CAT-40 |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 50 Tools |
| Max Tool Diameter: 3.0″ |
| Max Tool Diameter (Adjacent Pots Empty): 5.9″ |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 22 lbs |
| Tool-to-Tool Time: 4.9 Seconds |
| General: |
|---|
| Power Requirement: 45 kVA / 200V AC / 3-Phase |
| Machine Dimensions: 95.6″ × 183.7″ × 129.0″ High |
| Machine Weight: 38,280 lbs |
