*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Kitamura |
| Model No.: |
Mycenter HX400iG |
| Year of Manufacture: |
2018 |
| Machine Type: |
CNC Horizontal Machining Center (HMC) |
| CNC Control: |

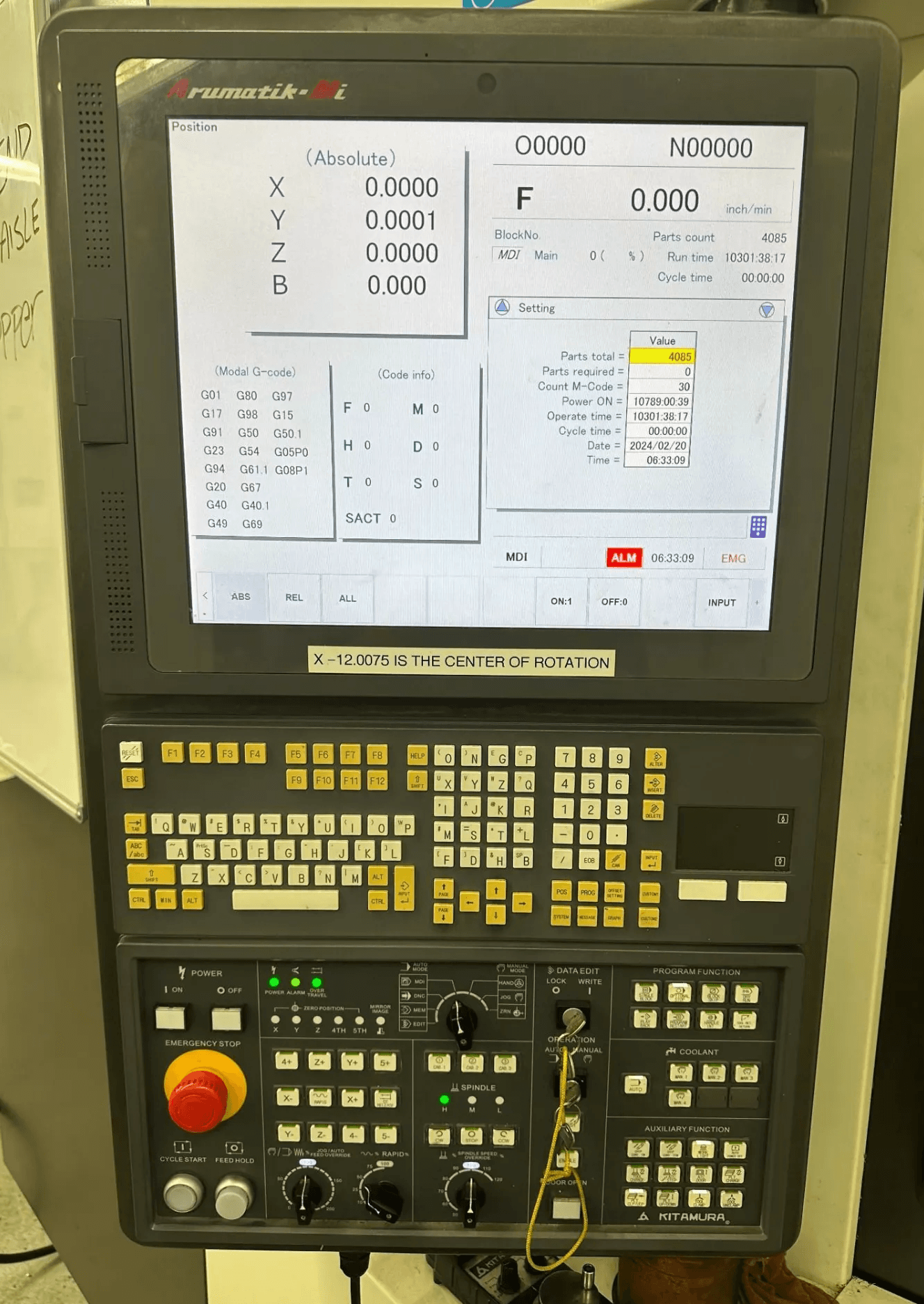

Arumatik-Mi CNC Control |
| Country of Origin: |
Japan |
| Equipped With: |
| Arumatik-Mi CNC Control |
| Full 4th Axis Rotary Table (Integral Motor, 125 RPM) |
| 2-Station Rotating Pallet System |
| Renishaw Touch Probe |
| Through Spindle Coolant (220 PSI) |
| Chip Conveyor |
| Linear Scale Feedback |
| Tool Life Management |
| USB / CF Data Server (2GB) |
| Background Editing |
| Helical Interpolation |
| Work Light & Cycle Finish Lamp |
| Full Enclosure |
| Capacity: |
| Pallet Size: 15.75″ x 15.75″ |
| Pallet Load Capacity: 350 lbs |
| Number of Pallets: 2 |
| Travels: |
| X-Axis Travel: 24″ |
| Y-Axis Travel: 24″ |
| Z-Axis Travel: 24″ |
| Spindle: |
| Spindle Speed: 15,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 30 HP |
| Coolant Through Spindle: 220 PSI |
| Tool Changer: |
| Tool Capacity: 50 Tools |
| Type: Automatic Tool Changer |
| Feed Rates: |
| Rapid Traverse (X/Y/Z): 2362 IPM |
| Electrical: |
| Voltage: 200-220V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Power Requirement: 50 kVA |
