KIWA KH-45G CNC Horizontal Machining Center

KIWA KH-45G CNC Horizontal Machining Center – 2006, Fanuc Control

SKU 11339

Make/Model KIWA KH-45G

Year 2006

Video On Request

Out of stock

SKU:	11339
Make/Model:	KIWA KH-45G
Year:	2006
Video:	On Request

SKU: 11339

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	KIWA
Model No.:	KH-45G
Year of Manufacture:	2006
Machine Type:	CNC Horizontal Machining Center

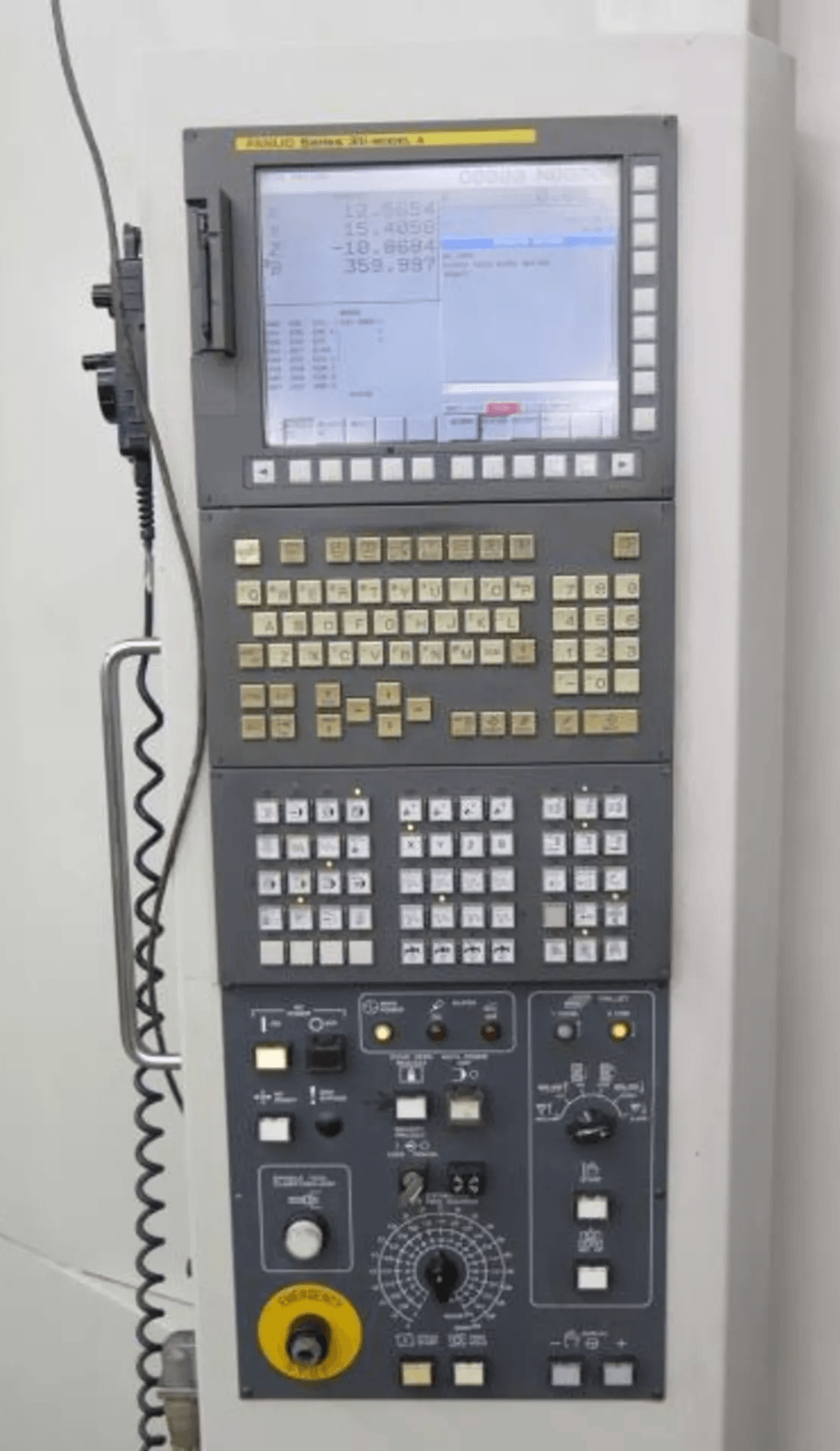

CNC Control:	Fanuc CNC Control
Country of Origin:	Japan

Equipped With:
Fanuc CNC Control
2-Pallet Automatic Pallet Changer (APC)
40 Station Automatic Tool Changer
Full Enclosure
Coolant System
Chip Conveyor (If Equipped)
Rigid Tapping
Manual Pulse Generator (MPG)

Capacity:
Pallet Size: 15.7″ x 15.7″ (400 x 400 mm)
Pallet Load Capacity: 1,100 lbs
Max Workpiece Size: Approx. 29.5″ Dia x 39.4″ Height

Travels:
X-Axis Travel: 25.2″
Y-Axis Travel: 24″
Z-Axis Travel: 26.8″
B-Axis: 360° Indexing (0.001° Increment)

Spindle:
Spindle Speed: 10,000 RPM
Optional Speed: Up to 12,000 – 15,000 RPM
Spindle Taper: CAT40 / BT40
Spindle Motor: 30 HP

Tool Changer:
Tool Capacity: 40 ATC
Optional ATC: 60 / 80 / 120 / 220 Tools
Tool Change Time: Approx. 0.9 Seconds
Max Tool Diameter: 5.5″
Max Tool Length: 15.7″
Max Tool Weight: 17.6 lbs

Feed Rates:
Rapid Traverse (X/Y/Z): 2,300 – 4,700 IPM (Approx.)
B-Axis Rapid Speed: Approx. 33 RPM
Cutting Feed Rate: Programmable

Electrical:
Voltage: 220V (Verify)
Phase: 3 Phase
Frequency: 50/60 Hz

General:
Machine Weight: Approx. 9.9 Tons
Construction: Box Way Design
Application: Heavy Duty Production Machining

Equipped With:
Fanuc CNC Control
2-Pallet Automatic Pallet Changer (APC)
40 Station Automatic Tool Changer
Full Enclosure
Coolant System
Chip Conveyor (If Equipped)
Rigid Tapping
Manual Pulse Generator (MPG)

Capacity:
Pallet Size: 399 mm x 399 mm (400 x 400 mm)
Pallet Load Capacity: 1,100 lbs
Max Workpiece Size: Approx. 749 mm Dia x 1,001 mm Height

Travels:
X-Axis Travel: 640 mm
Y-Axis Travel: 610 mm
Z-Axis Travel: 681 mm
B-Axis: 360° Indexing (0.001° Increment)

Spindle:
Spindle Speed: 10,000 RPM
Optional Speed: Up to 12,000 – 15,000 RPM
Spindle Taper: CAT40 / BT40
Spindle Motor: 30 HP

Tool Changer:
Tool Capacity: 40 ATC
Optional ATC: 60 / 80 / 120 / 220 Tools
Tool Change Time: Approx. 0.9 Seconds
Max Tool Diameter: 140 mm
Max Tool Length: 399 mm
Max Tool Weight: 17.6 lbs

Feed Rates:
Rapid Traverse (X/Y/Z): 2,300 – 4,700 IPM (Approx.)
B-Axis Rapid Speed: Approx. 33 RPM
Cutting Feed Rate: Programmable

Electrical:
Voltage: 220V (Verify)
Phase: 3 Phase
Frequency: 50/60 Hz

General:
Machine Weight: Approx. 9.9 Tons
Construction: Box Way Design
Application: Heavy Duty Production Machining
