*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Kuraki |
| Model: | KBT-13A |
| Year: | 2011 |
| Features: |
|---|
| Fanuc Series 31i-A5 CNC Control |

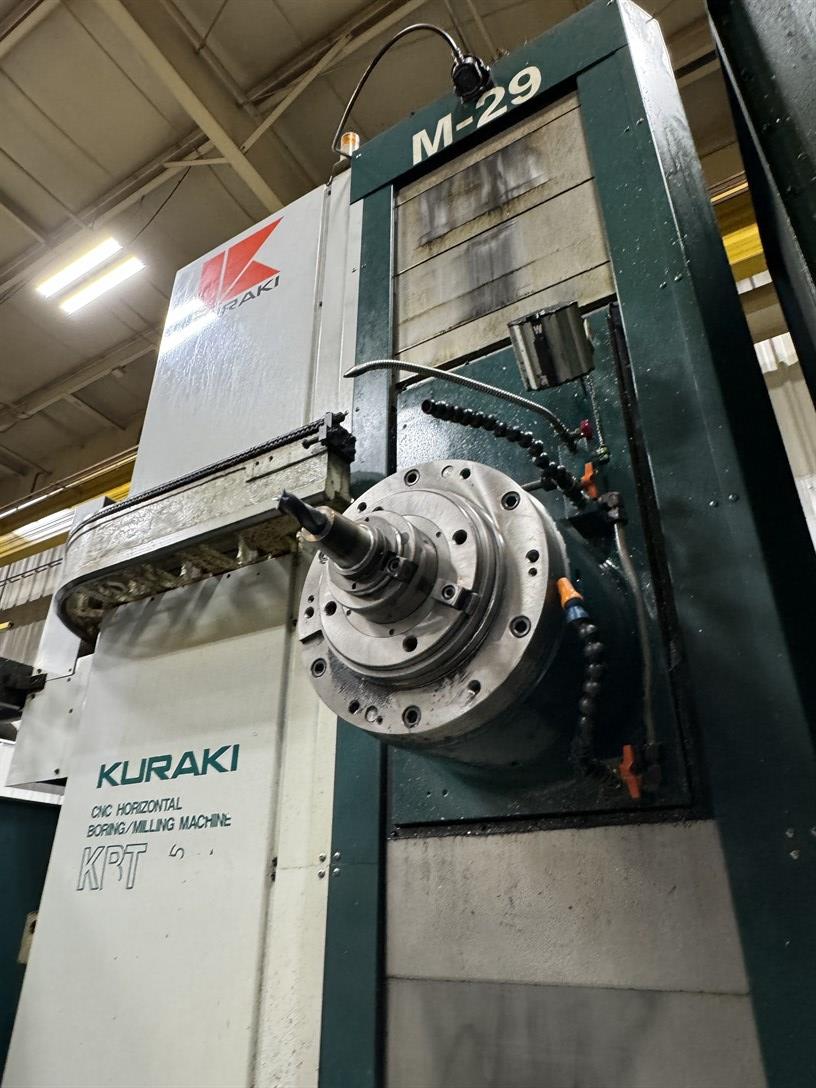

| 5.12″ Boring Spindle |
| 70.86″ × 86.61″ B-Axis Rotary Table |
| B-Axis Rotary Table with 0.001° Indexing |

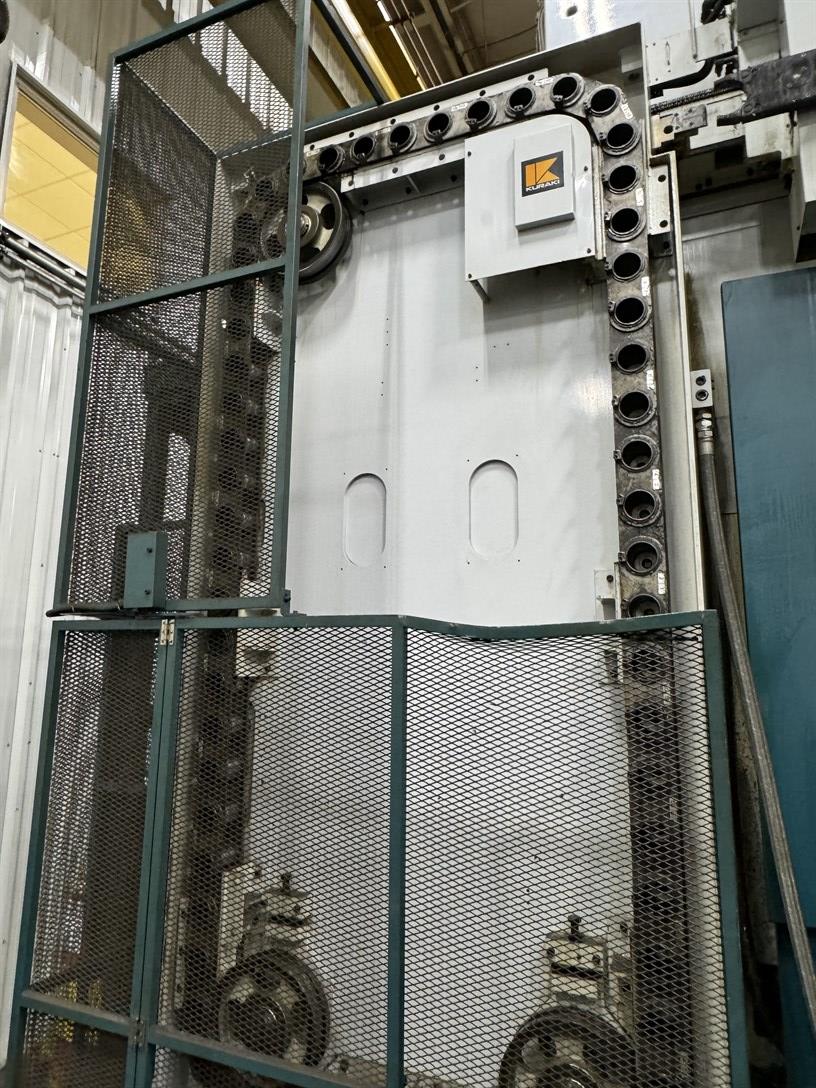

| 60-Position Automatic Tool Changer |
| CAT 50 Spindle Taper |
| Chip Blaster High-Pressure Coolant System |
| Through-Spindle Coolant (TSC) |
| Full Chip Enclosure |
| Full Chip Conveyor |
| 40 HP Spindle Motor |
| Capacity: |
|---|
| Table Size: 70.86″ × 86.61″ |
| Table Load Capacity: 44,000 lbs |
| Travels: |
|---|
| X-Axis Travel: 118.1″ |
| Y-Axis Travel: 90″ |
| Z-Axis Travel (Saddle): 51″ |
| W-Axis Travel (Spindle): 27.5″ |
| Spindle: |
|---|
| Spindle Diameter: 5.12″ |
| Spindle Speed Range: 5 – 2,500 RPM |
| Spindle Motor: 40 HP |
| Spindle Taper: CAT 50 |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 60 Tools |
| Table: |
|---|
| Table Size: 70.86″ × 86.61″ |
| Table Capacity: 44,000 lbs |
| General: |
|---|
| Power Requirement: 220 V / 3 Phase / 50/60 Hz |
| Connected Load: 80 kVA |
| Machine Dimensions (Approx.): 370″ × 220″ × 215″ |
| Machine Weight (Approx.): 88,000 lbs |
