*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

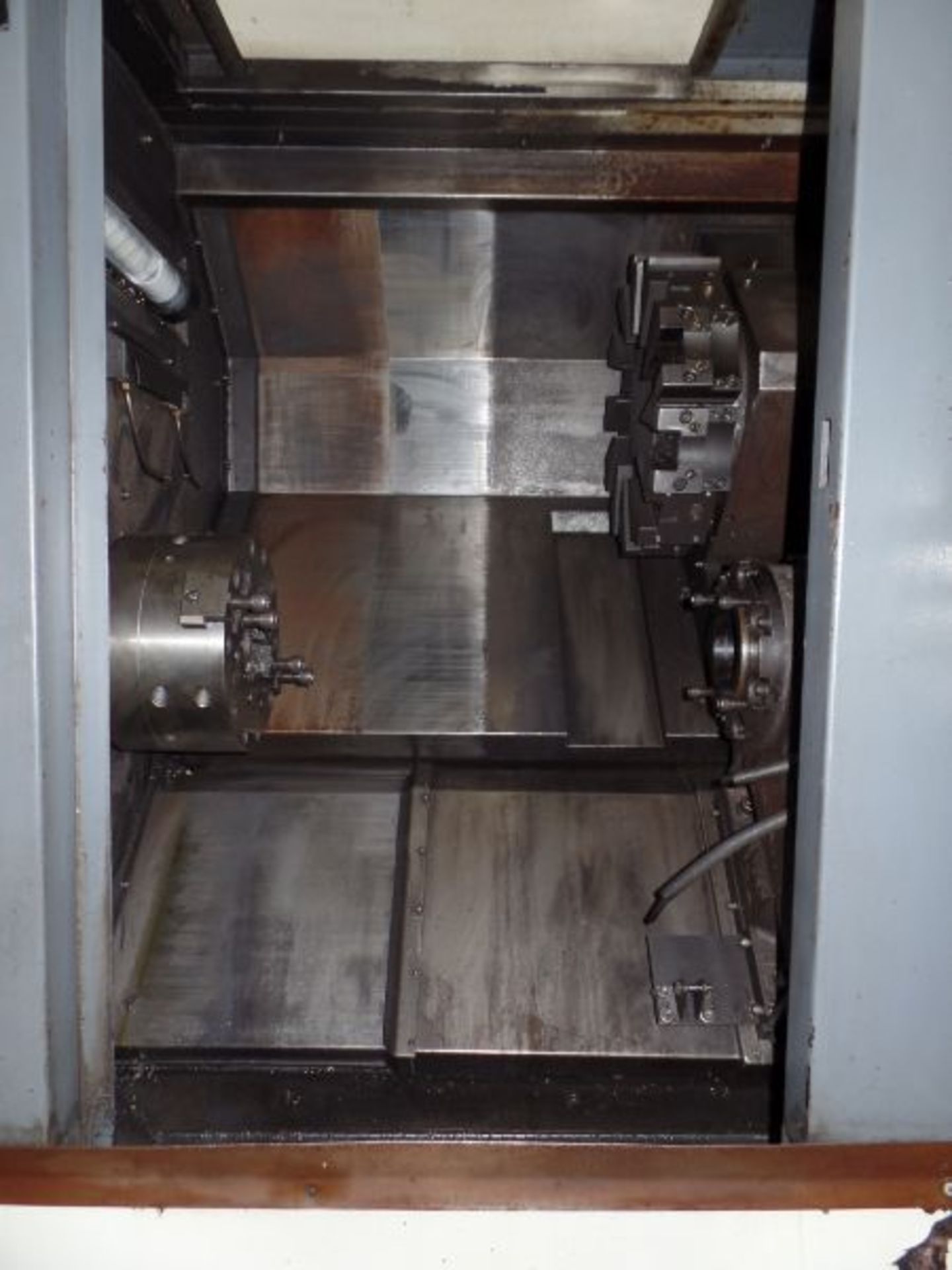

| Make: | Leadwell |
| Model: | T-7 |
| Year: | 2012 |
| Machine Type: | CNC Slant Bed Lathe |
| Equipped With: |
|---|
| Fanuc CNC Control |
| 8″ Chuck |
| 12-Station Turret |
| Tailstock |
| Tool Presetter |
| Chip Conveyor |
| Parts Catcher |
| Capacity: |
|---|
| Swing Over Bed: 20.4″ |
| Maximum Turning Diameter: 13.8″ |
| Maximum Machining Length: 23.5″ |
| Chuck Size: 7.8″ |
| Bar Capacity: 2″ |
| Spindle Bore: 2.44″ |
| Travels: |
|---|
| X-Axis Travel: 7.9″ |
| Z-Axis Travel: 23.6″ |
| X-Axis Rapid Traverse: 780 IPM |
| Z-Axis Rapid Traverse: 936 IPM |
| Spindle: |
|---|
| Spindle Motor: 20 HP |
| Maximum Spindle Speed: 4,500 RPM |
| Spindle Nose: A2-6 |
| Turret: |
|---|
| Turret Type: Automatic Turret |
| Number of Tool Positions: 12 |
| Turret Indexing Time: 1 Second |
| General: |
|---|
| Machine Weight (Approx.): 10,000 lbs. |
| Machine Dimensions (Approx.): 110″ L × 70″ W × 78″ H |
