*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

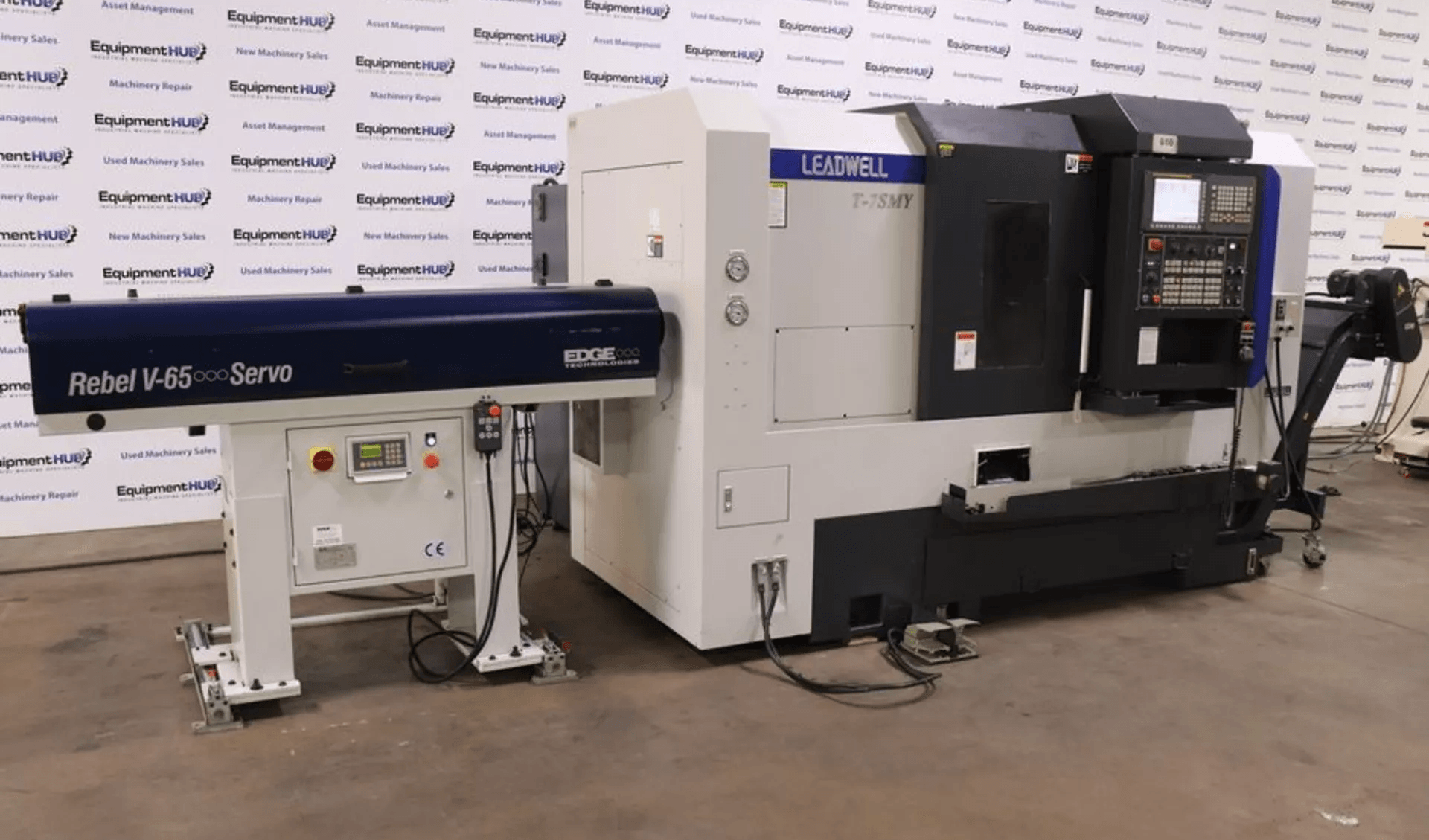

| Make: | Leadwell |
| Model No.: | T-7SMY |
| Year: | 2018 |
| Machine Type: | CNC Turning Center with Sub-Spindle & Y-Axis |
| Control: | Fanuc Oi-TF CNC Control |
| Country of Origin: | Taiwan |
| Equipped With: |
|---|

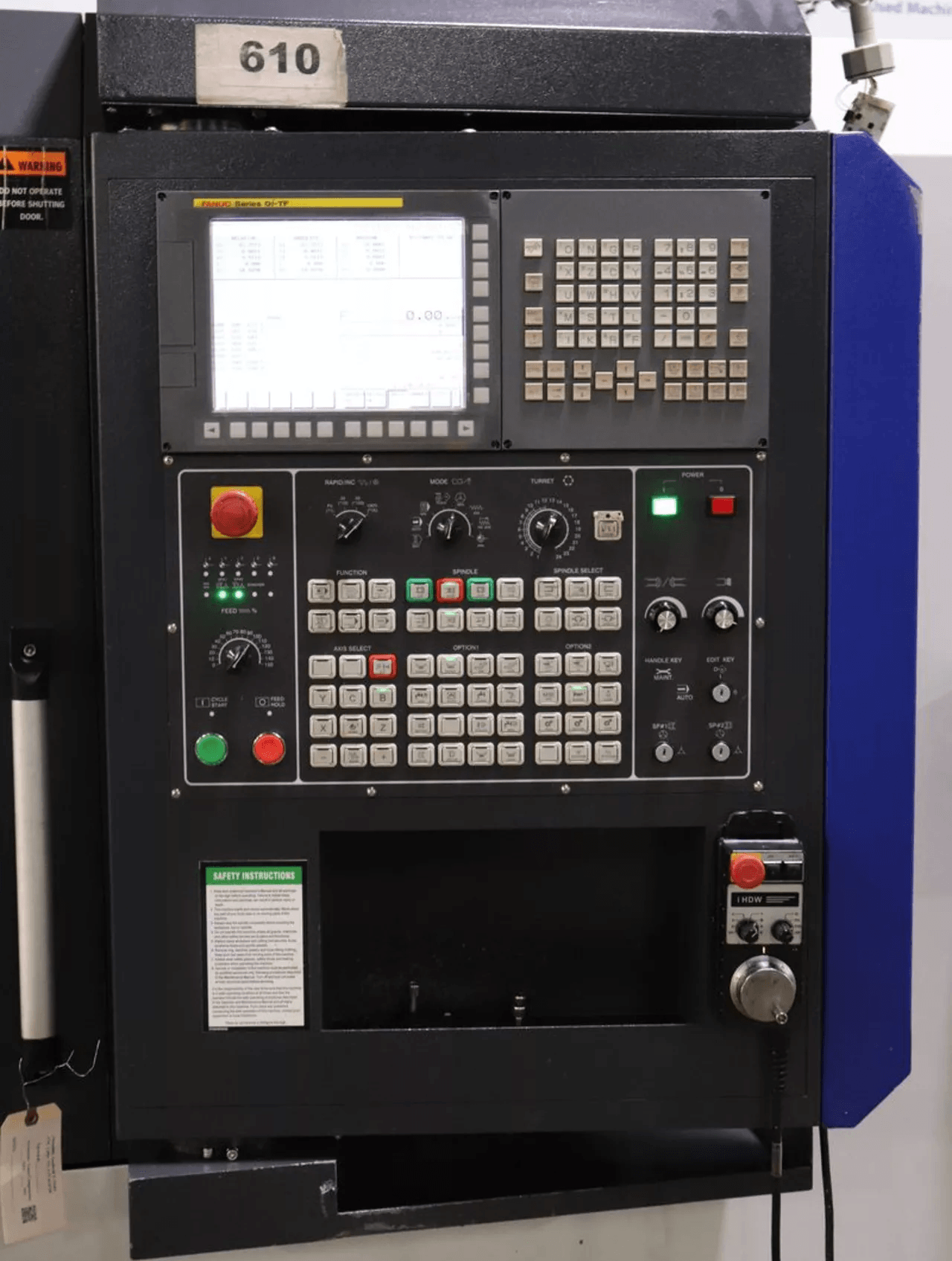

| Fanuc Oi-TF CNC Control |

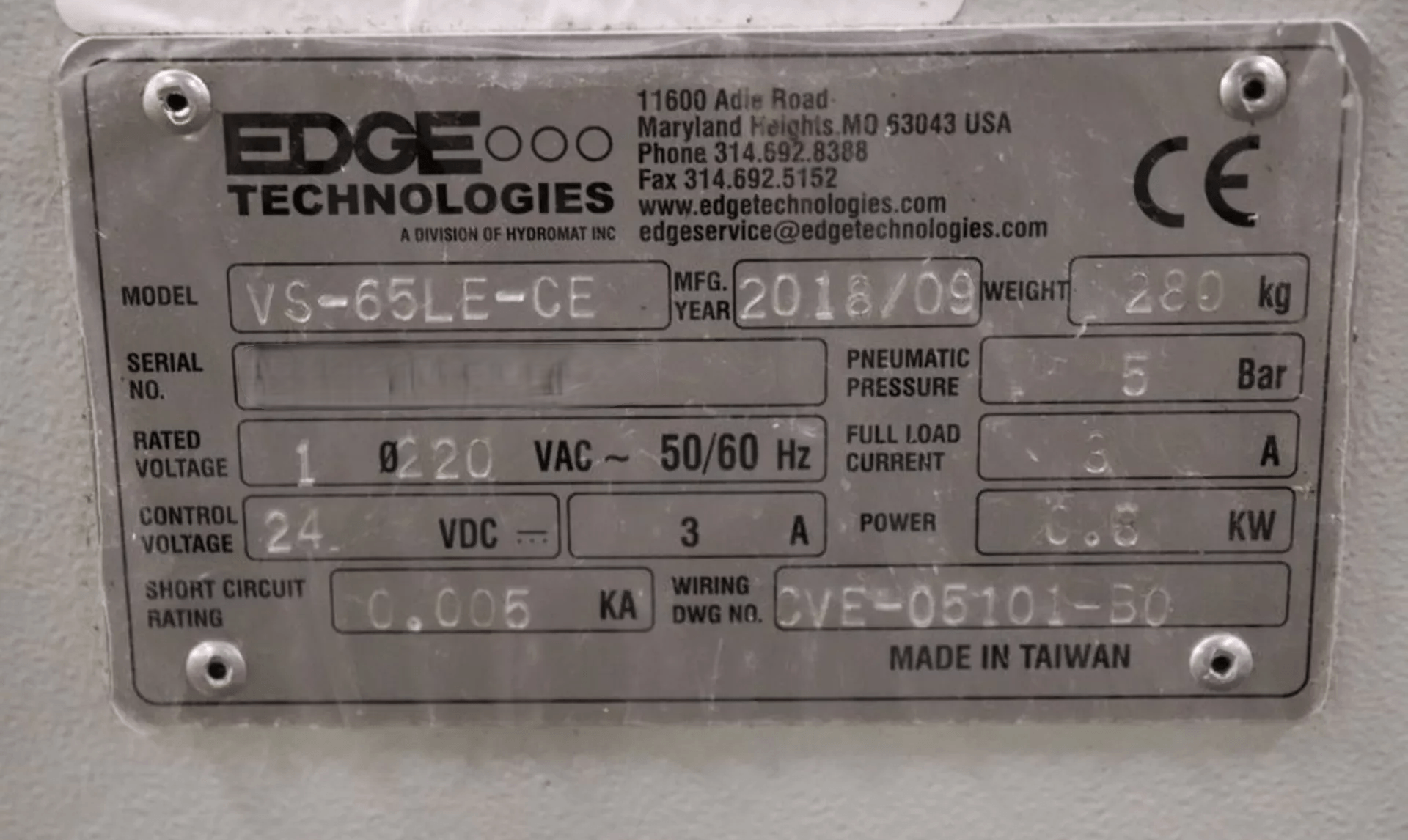

| Edge Technologies Rebel V-65 Servo Bar Feed |

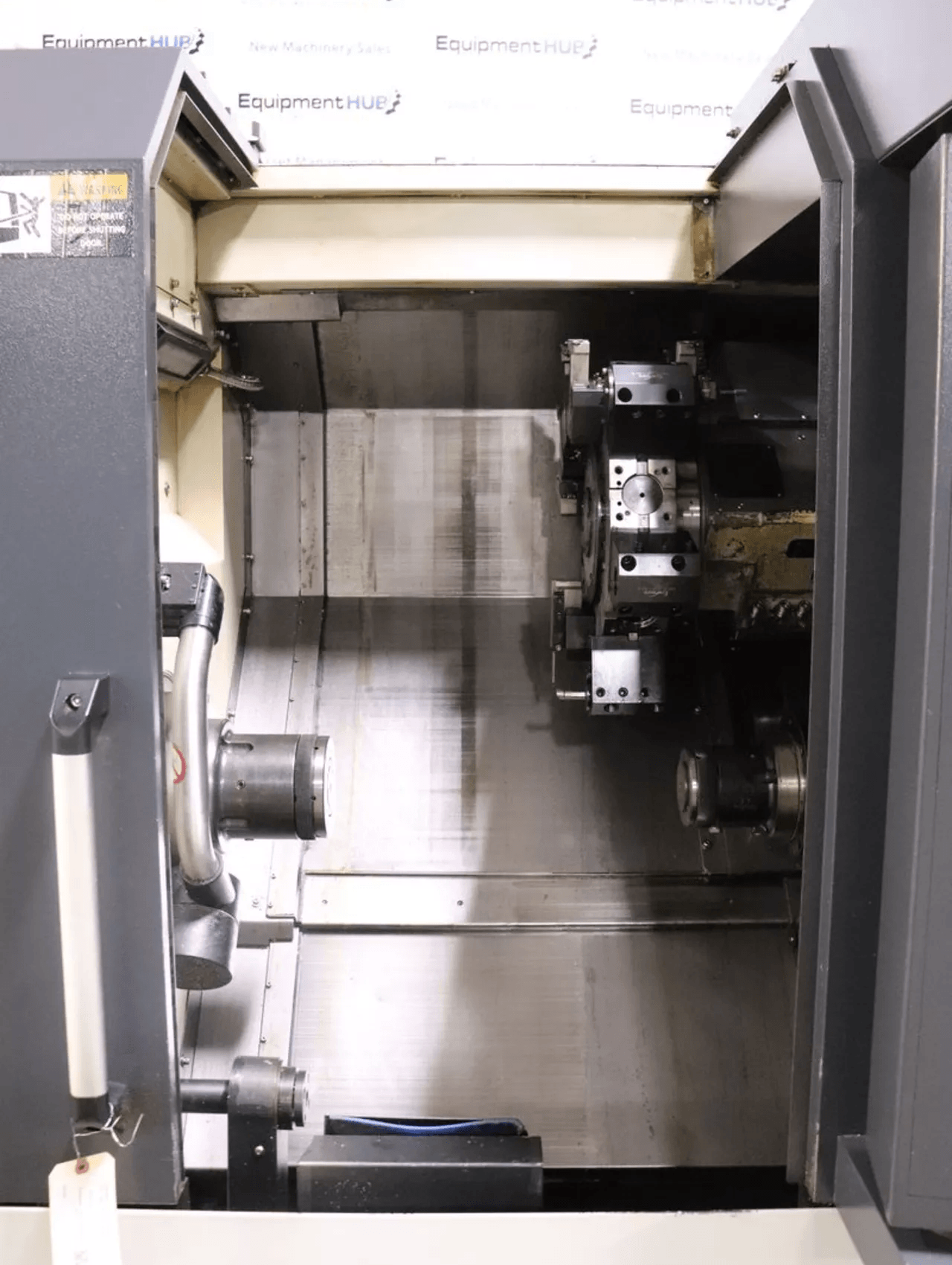

| Live Tool Turret |
| Qnty. 4 Live Tool Holders |
| Sub-Spindle |
| Y-Axis Capability |
| Keyarrow Chip Conveyor |
| Coolant System |
| Hydraulic Turret Clamping |
| Parts Catcher |
| Tool Setter |
| 8″ Main Chuck |
| 6″ Sub-Spindle Chuck |
| Full Enclosure |
| Capacity: |
|---|
| Max Work Swing: 24.8″ |
| Swing Over Cross Slide: 21.3″ |
| Max Turning Diameter: 14.9″ |
| Max Turning Length: 18″ |
| Max Workpiece Weight: 375 Lbs. |
| Travels: |
|---|
| X-Axis Travel: 8.1″ |
| Z-Axis Travel: 17.7″ |
| Y-Axis Travel: +/- 1.97″ (3.94″ Total) |
| B-Axis Travel (Sub-Spindle): 19.7″ |
| Main Spindle: |
|---|
| Spindle Nose: A2-6 |
| Chuck Size: 8″ |
| Bar Capacity: 2.5″ |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4,500 RPM |
| C-Axis Positioning: 0.001° |
| Sub-Spindle: |
|---|
| Sub-Spindle Nose: A2-5 |
| Sub-Spindle Chuck Size: 6″ |
| Sub-Spindle Bar Capacity: 1.63″ |
| Sub-Spindle Bore: 2.0″ |
| Sub-Spindle Speed: 6,000 RPM |
| C-Axis Positioning: 0.001° |
| Turret: |
|---|
| Turret Stations: 12 |
| Index Time Tool-to-Tool: 1.0 Second |
| Live Tool Speed: 5,000 RPM |
| Hydraulic Turret Clamping |
| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Cycle: 60 Hz |
| Machine Capacity: 40 KVA |
| Dimensions & Weight: |
|---|
| Approximate Weight: 15,000 Lbs. |
| Approximate Dimensions: 21′ L x 8′ W x 7′ H |
