*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Leadwell |
| Model No.: | MVC-1500i |
| Year: | 2007 |
| Machine Type: | CNC Vertical Machining Center |

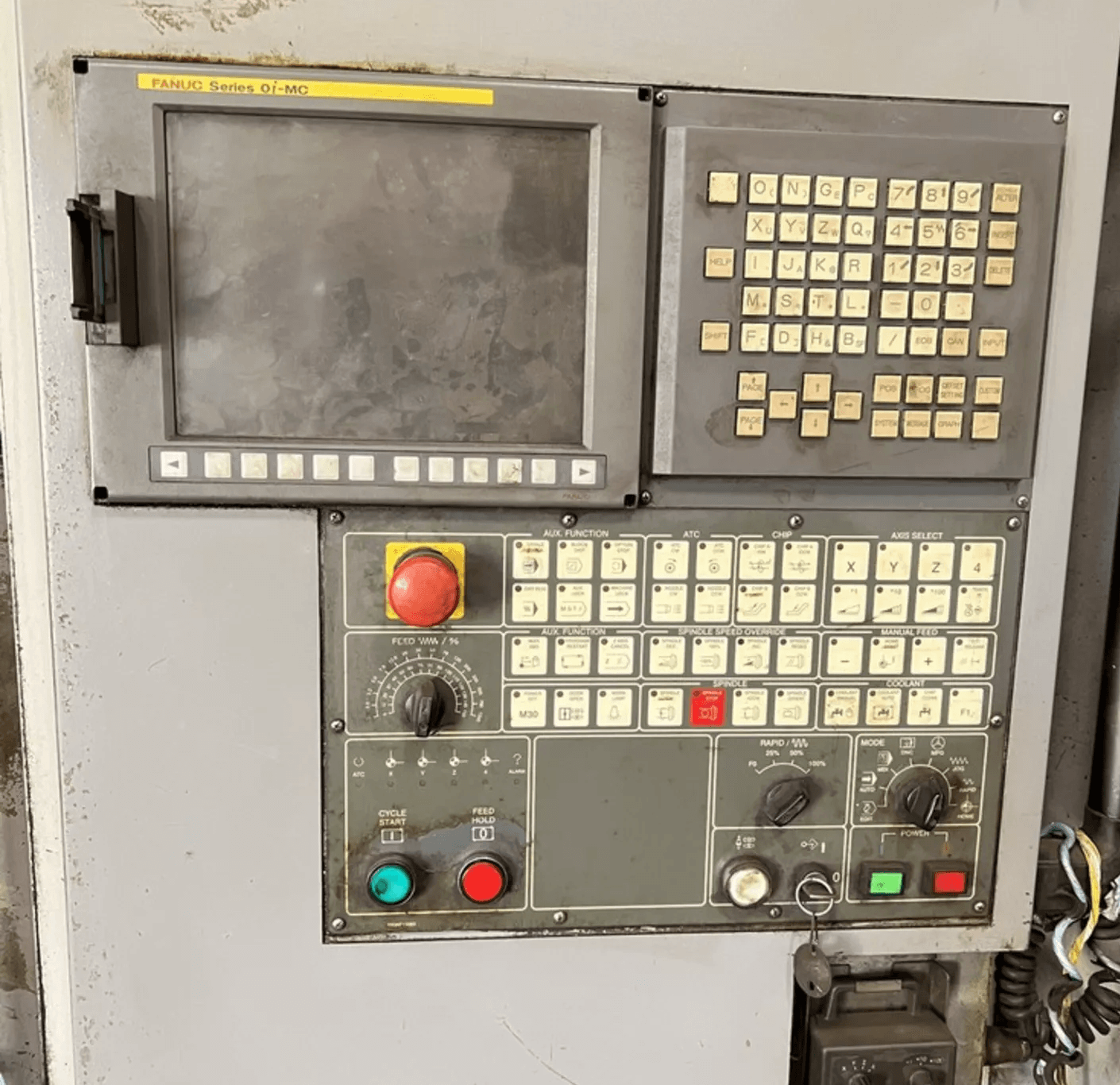

| Control: | Fanuc CNC Control |
| Country of Origin: | Taiwan |
| Equipped With: |
|---|
| Fanuc CNC Control |
| 60-Position Automatic Tool Changer |
| BT40 Spindle |
| Through-Spindle Coolant (Optional) |
| Chip Conveyor |
| Coolant System |
| Rigid Tapping |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 59″ |
| Y-Axis Travel: 30″ |
| Z-Axis Travel: 28″ |
| Spindle: |
|---|
| Spindle Speed: 8,000 RPM (Optional 10,000 RPM) |
| Spindle Taper: BT40 |
| Spindle Motor: 15 / 20 HP |
| Table: |
|---|
| Table Size: 63″ x 30″ |
| Max Table Load: 2,200 lbs |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 945 / 945 / 787 IPM |
| Tool Changer: |
|---|
| Tool Capacity: 60 Tools |
| Tool Change Type: Arm Type |
| Electrical: |
|---|
| Voltage: 220 / 440 V |
| Phase: 3 |
| Frequency: 50 / 60 Hz |
| General: |
|---|
| Air Required: 100 PSI |
| Power: 220/440V / 3-Phase |
| Overall Dimensions: 140″ x 120″ x 110″ High (Approx.) |
| Weight: 18,000 lbs (Approx.) |
