Makino A51 CNC Horizontal Machining Center

SKU 11942
Make/Model Makino A51
Year 2006
Out of stock
SKU: 11942
Make/Model: Makino A51
Year: 2006
SKU: 11942

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Makino
Model: A51
Year: 2006
Machine Type: CNC Horizontal Machining Center
CNC Control: Makino Professional 5 CNC
Features:
Makino Professional 5 CNC Control
Twin 15.7″ × 15.7″ Pallet System
Full 4th-Axis Rotary Pallet
60-Position Automatic Tool Changer
CAT 40 Spindle Taper
12,000 RPM Spindle
25 HP Spindle Motor
Mosnic Chip Conveyor
Coolant System
Through-Spindle Coolant

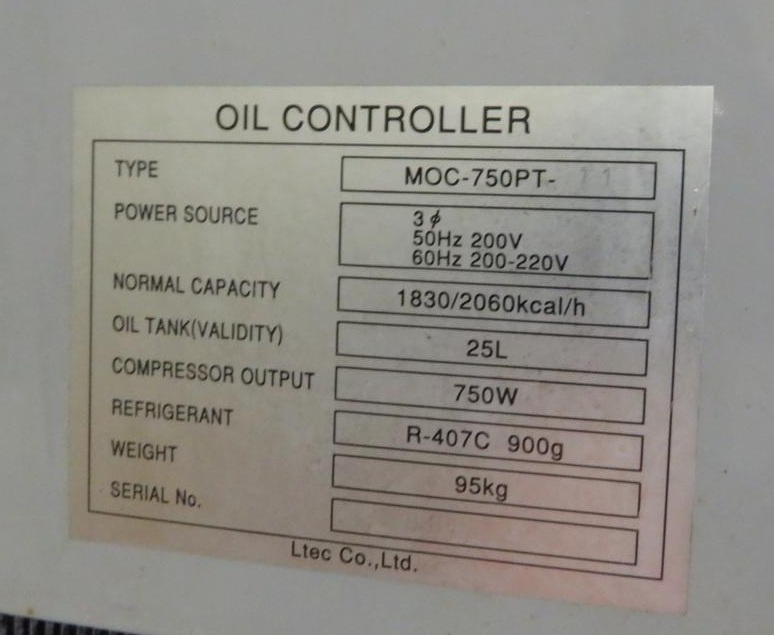

Spindle/Oil Cooling System
Fully Enclosed Machining Area
Automatic Lubrication System
Pallet:
Pallet Size: 15.7″ × 15.7″
Number of Pallets: 2
Pallet Capacity: 880 lbs.
Travels:
X-Axis Travel: 22″
Y-Axis Travel: 22″
Z-Axis Travel: 23.6″
Spindle:
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 25 HP
Automatic Tool Changer:
ATC Capacity: 60 Tools
Tool Taper: CAT 40
Tool Changer: Automatic
Maximum Tool Diameter: 3.5″ / 6.7″
Maximum Tool Length: 16.9″
Maximum Tool Weight: 26.5 lbs.
Feedrates:
Rapid Traverse X/Y/Z: 1,772–1,968 IPM
Cutting Feedrate: 630 IPM
General:
Machine Dimensions (Approx.): 152″ L × 102″ W
Machine Weight (Approx.): 17,200 lbs.
Pallet:
Pallet Size: 399 mm × 399 mm
Number of Pallets: 2
Pallet Capacity: 880 lbs.
Travels:
X-Axis Travel: 559 mm
Y-Axis Travel: 559 mm
Z-Axis Travel: 599 mm
Spindle:
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 25 HP
Automatic Tool Changer:
ATC Capacity: 60 Tools
Tool Taper: CAT 40
Tool Changer: Automatic
Maximum Tool Diameter: 89 mm / 170 mm
Maximum Tool Length: 429 mm
Maximum Tool Weight: 26.5 lbs.
Feedrates:
Rapid Traverse X/Y/Z: 1,772–1,968 IPM
Cutting Feedrate: 630 IPM
General:
Machine Dimensions (Approx.): 3,861 mm L × 2,591 mm W
Machine Weight (Approx.): 17,200 lbs.
CategoriesCNC Horizontal Machining Center
MakeMakino
Modela51
  • Makino Professional 5 CNC Control
  • Twin 399 mm × 399 mm Pallet System
  • Full 4th-Axis Rotary Pallet
  • 60-Position Automatic Tool Changer
  • CAT 40 Spindle Taper
  • 12,000 RPM Spindle
  • 25 HP Spindle Motor
  • Mosnic Chip Conveyor
  • Coolant System
  • Through-Spindle Coolant
  • Spindle/Oil Cooling System
  • Fully Enclosed Machining Area
  • Automatic Lubrication System
Makino A51 (2)Makino A51 (3)
