*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

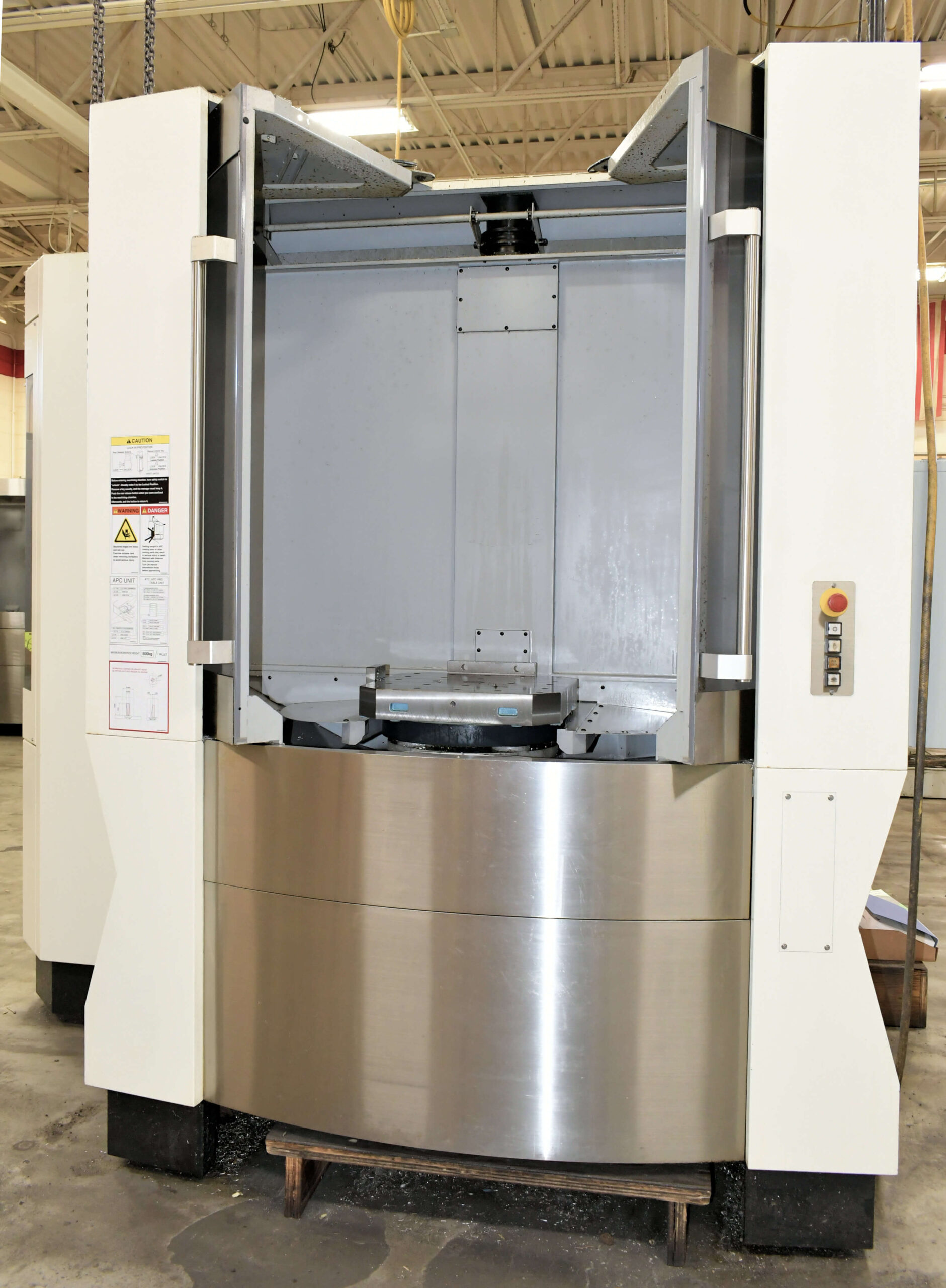

| Make: | Makino |
| Model: | A61NX |
| Year: | 2014 |
| Machine Type: | CNC Horizontal Machining Center |
| CNC Control: | Makino Professional 5 CNC Control |
| Features: |
|---|
| Makino Professional 5 CNC Control |
| Remote Manual Pulse Generator |
| 30 HP Spindle Motor |
| 14,000 RPM Spindle |
| HSK-63 Spindle Taper |
| 19.7″ × 19.7″ Pallet |
| 60-Position Automatic Tool Changer |
| Coolant Through Spindle |
| Chip Conveyor with Chip Filtration System |
| 75 KVA Transformer |
| Full Enclosure |
| 4-Axis B-Axis Rotary Pallet |
| Pallet: |
|---|
| Pallet Size: 19.7″ × 19.7″ |
| Pallet Capacity: 1,100 lbs |
| B-Axis: 360° Rotary Axis |
| B-Axis Indexing: 0.0001° |
| Travels: |
|---|
| X-Axis Travel: 28.7″ |
| Y-Axis Travel: 25.6″ |
| Z-Axis Travel: 31.5″ |
| Spindle: |
|---|
| Spindle Speed: 14,000 RPM |
| Spindle Motor: 30 HP |
| Spindle Taper: HSK-63 |
| Spindle Type: High-Speed Horizontal Spindle |
| Spindle Torque: 303 Nm |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 60 Positions |
| Tool Interface: HSK-63 |
| Tool-to-Tool Time: 0.9 sec |
| Maximum Tool Diameter: 8.1″ |
| Maximum Tool Weight: 26.4 lbs |
| Feedrates: |
|---|
| Rapid Traverse Rate: 2,362 IPM |
| Cutting Feed Rate: 1,968 IPM |
| General: |
|---|
| Power Source: 450v / 3-Phase / 60 Hz |
| Machine Weight (Approx.): 27,000 lbs |
| Machine Dimensions (Approx.): 112″ L × 198″ W × 114″ H |
