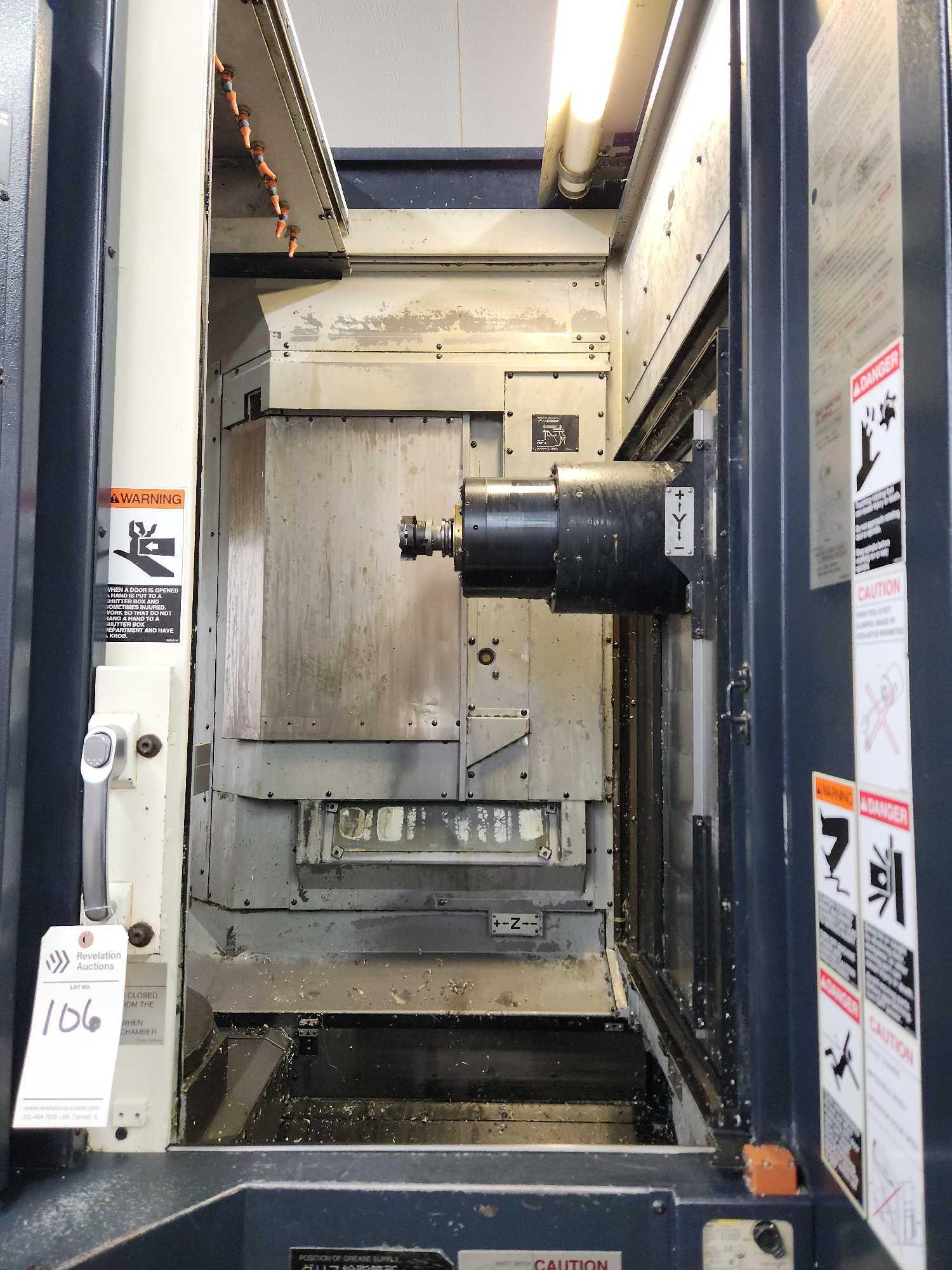

Makino A55E (2)

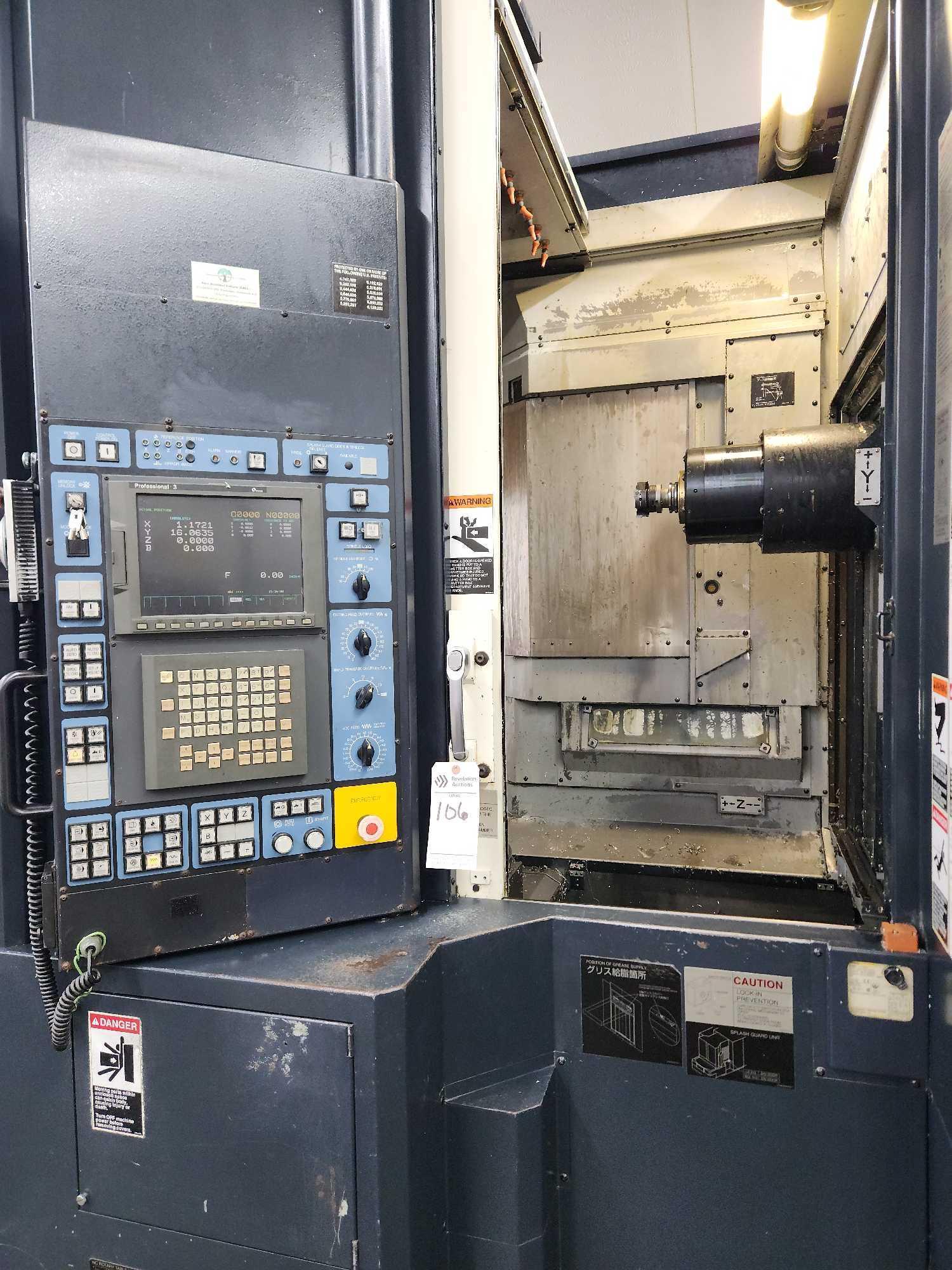

Makino A55E (4)

Makino A55E CNC Horizontal Machining Center

SKU 11845
Make/Model Makino A55E
Year 2001
Video On Request
Out of stock
SKU: 11845
Make/Model: Makino A55E
Year: 2001
Video: On Request
SKU: 11845

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Makino
Model: A55E
Year: 2001
Machine Type: 4-Axis CNC Horizontal Machining Center
Control: Fanuc Professional 3 CNC Control (Fanuc 16i)
Features:
Fanuc Professional 3 CNC Control (Fanuc 16i)
Color CRT Display
Multi-Part Program Storage
90-Station Automatic Tool Changer
(2) 15.7″ × 15.7″ Pallets
Full 4th-Axis Contouring / 0.001° Indexing
Heavy-Duty 14,000 RPM CAT-40 Spindle
Tool Life Monitor
Spindle Load Monitor
Rigid Tapping
Coolant System
Chip Conveyor
Through-Spindle Coolant System
Overhead Shower Coolant
Spindle Chiller
Air Dryer
Hydraulic Fixture Clamping
(2) Aluminum Tombstones
(8) 6″ Kurt Vises
Capacity:
Pallet Dimensions: 15.7″ × 15.7″
Number of Pallets: 2
Maximum Pallet Load: 1,100 lbs.
Number of Index Positions: 360,000
Travels:
Longitudinal Travel (X-Axis): 22.05″
Vertical Travel (Y-Axis): 22.05″
Spindle Travel (Z-Axis): 23.6″
Feed Rate, All Axes: 3,307 IPM
Rapid Traverse, All Axes: 3,307 IPM
Spindle:
Spindle Motor: 25 HP
Spindle Speed Range: 50–14,000 RPM
Spindle Taper: CAT-40
Automatic Tool Changer:
Tool Stations: 90
Tool Change Time, Tool-to-Tool: 2 Seconds
Maximum Tool Diameter: 2.76″
Maximum Tool Length: 14.2″
Maximum Tool Weight: 26.5 lbs.
General:
Power Source: 460V / 3-Phase / 60 Hz
Machine Dimensions (Approx.): 183″ L × 75″ W × 111″ H
Machine Weight (Approx.): 18,900 lbs.
Capacity:
Pallet Dimensions: 399 mm × 399 mm
Number of Pallets: 2
Maximum Pallet Load: 1,100 lbs.
Number of Index Positions: 360,000
Travels:
Longitudinal Travel (X-Axis): 560 mm
Vertical Travel (Y-Axis): 560 mm
Spindle Travel (Z-Axis): 599 mm
Feed Rate, All Axes: 3,307 IPM
Rapid Traverse, All Axes: 3,307 IPM
Spindle:
Spindle Motor: 25 HP
Spindle Speed Range: 50–14,000 RPM
Spindle Taper: CAT-40
Automatic Tool Changer:
Tool Stations: 90
Tool Change Time, Tool-to-Tool: 2 Seconds
Maximum Tool Diameter: 70 mm
Maximum Tool Length: 361 mm
Maximum Tool Weight: 26.5 lbs.
General:
Power Source: 460V / 3-Phase / 60 Hz
Machine Dimensions (Approx.): 4,648 mm L × 1,905 mm W × 2,819 mm H
Machine Weight (Approx.): 18,900 lbs.
CategoriesCNC Horizontal Machining Center
MakeMakino
ModelA55E
  • Fanuc Professional 3 CNC Control (Fanuc 16i)
  • Color CRT Display
  • Multi-Part Program Storage
  • 90-Station Automatic Tool Changer
  • (2) 399 mm × 399 mm Pallets
  • Full 4th-Axis Contouring / 0.001° Indexing
  • Heavy-Duty 14,000 RPM CAT-40 Spindle
  • Tool Life Monitor
  • Spindle Load Monitor
  • Rigid Tapping
  • Coolant System
  • Chip Conveyor
  • Through-Spindle Coolant System
  • Overhead Shower Coolant
  • Spindle Chiller
  • Air Dryer
  • Hydraulic Fixture Clamping
  • (2) Aluminum Tombstones
  • (8) 152 mm Kurt Vises
Makino A55E (3)Makino A55E (2)Makino A55E (4)

Payment Terms

Up to 3 buyers can reserve the same machine. If you're 2nd or 3rd in line, we'll tell you your place, and you'll get the next chance if the first buyer doesn't proceed.

Shipping & Logistics

We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.

Machine Inspection

Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.

Export & Documentation

For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
