Makino A81NX CNC Horizontal Machining Center

SKU 11736
Make/Model Makino A81NX
Year 2021
Video On Request
Out of stock
SKU: 11736
Make/Model: Makino A81NX
Year: 2021
Video: On Request
SKU: 11736

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Makino
Model: A81NX
Year: 2021
Features:

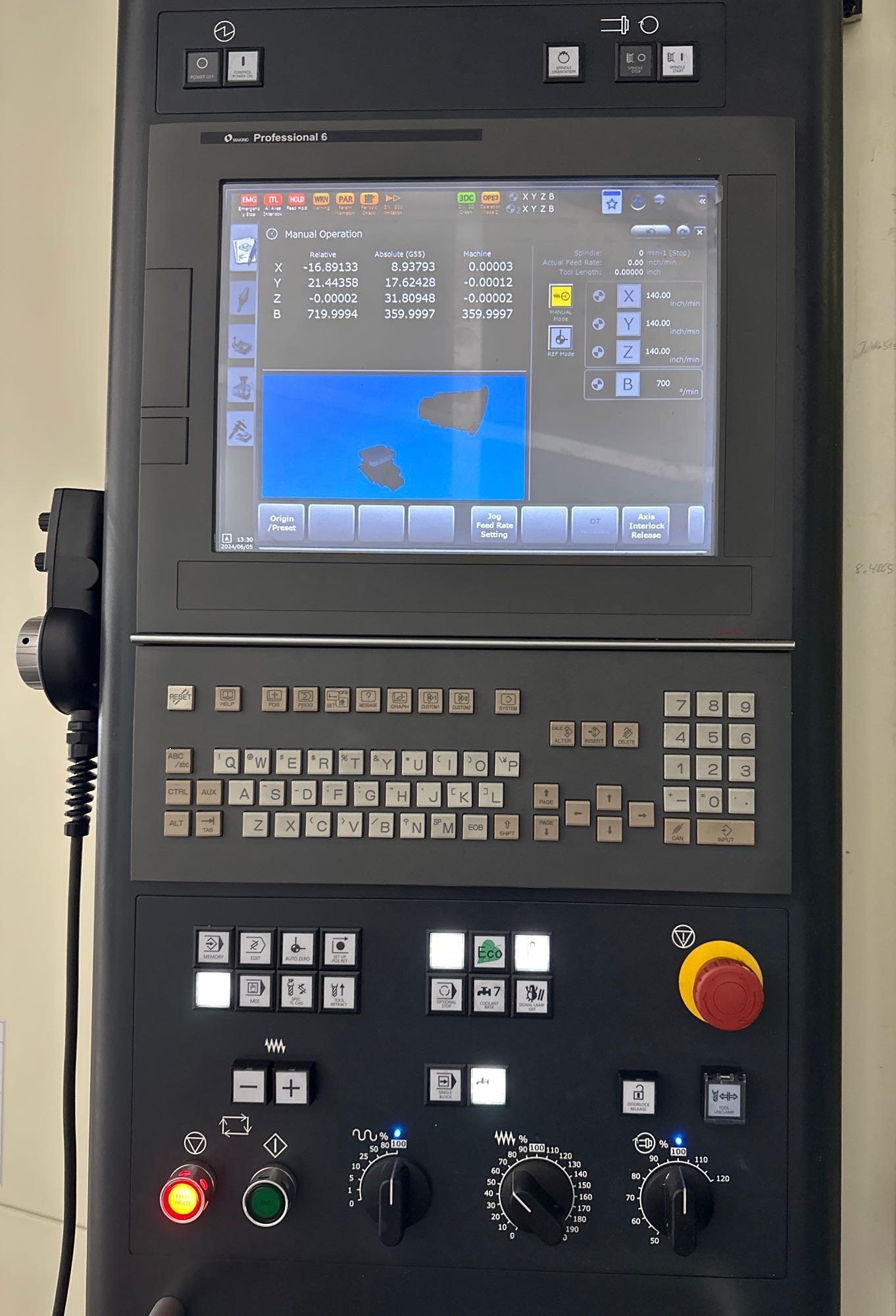

Makino Professional 6 CNC Control
Automatic Pallet Changer (APC)
(2) 24.8″ × 24.8″ Pallets
10,000 RPM Spindle
CT50 Big Plus Spindle
60-Position Automatic Tool Changer
Through-Spindle Coolant (TSC)
Spindle Chiller
Chip Conveyor
Renishaw NC4 Laser Tool Setter
Tool Breakage Detection
High-Pressure Coolant System
Automatic Lubrication System
Work Lights
Coolant Tank
30 CT50 Tool Holders
CT50 Rolling Tool Cart
Capacity:
Pallet Size: 24.8″ × 24.8″
Number of Pallets: 2
Maximum Workpiece Diameter: 39.4″
Maximum Workpiece Height: 51.2″
Maximum Workpiece Weight: 2,646 lbs
Travels:
X-Axis Travel: 35.4″
Y-Axis Travel: 35.4″
Z-Axis Travel: 40.2″
B-Axis Rotation: 360°
B-Axis Indexing: 0.001°
Table:
Pallet Size: 24.8″ × 24.8″
Pallet Capacity: 2,646 lbs
Number of Pallets: 2
Pallet Indexing: 0.001°
Spindle:
Spindle Speed: 10,000 RPM
Spindle Taper: CT50 Big Plus
Spindle Motor: 50 HP
Automatic Tool Changer:
Tool Capacity: 60 Tools
Tool Shank: CT50 Big Plus
Maximum Tool Diameter: 4.9″ (9.8″ without adjacent tools)
Maximum Tool Length: 23.6″
Maximum Tool Weight: 66 lbs
Rapid Traverse:
X-Axis Rapid Traverse: 2,362 IPM
Y-Axis Rapid Traverse: 2,362 IPM
Z-Axis Rapid Traverse: 2,362 IPM
General:
Cutting Time: 5,848 Hours

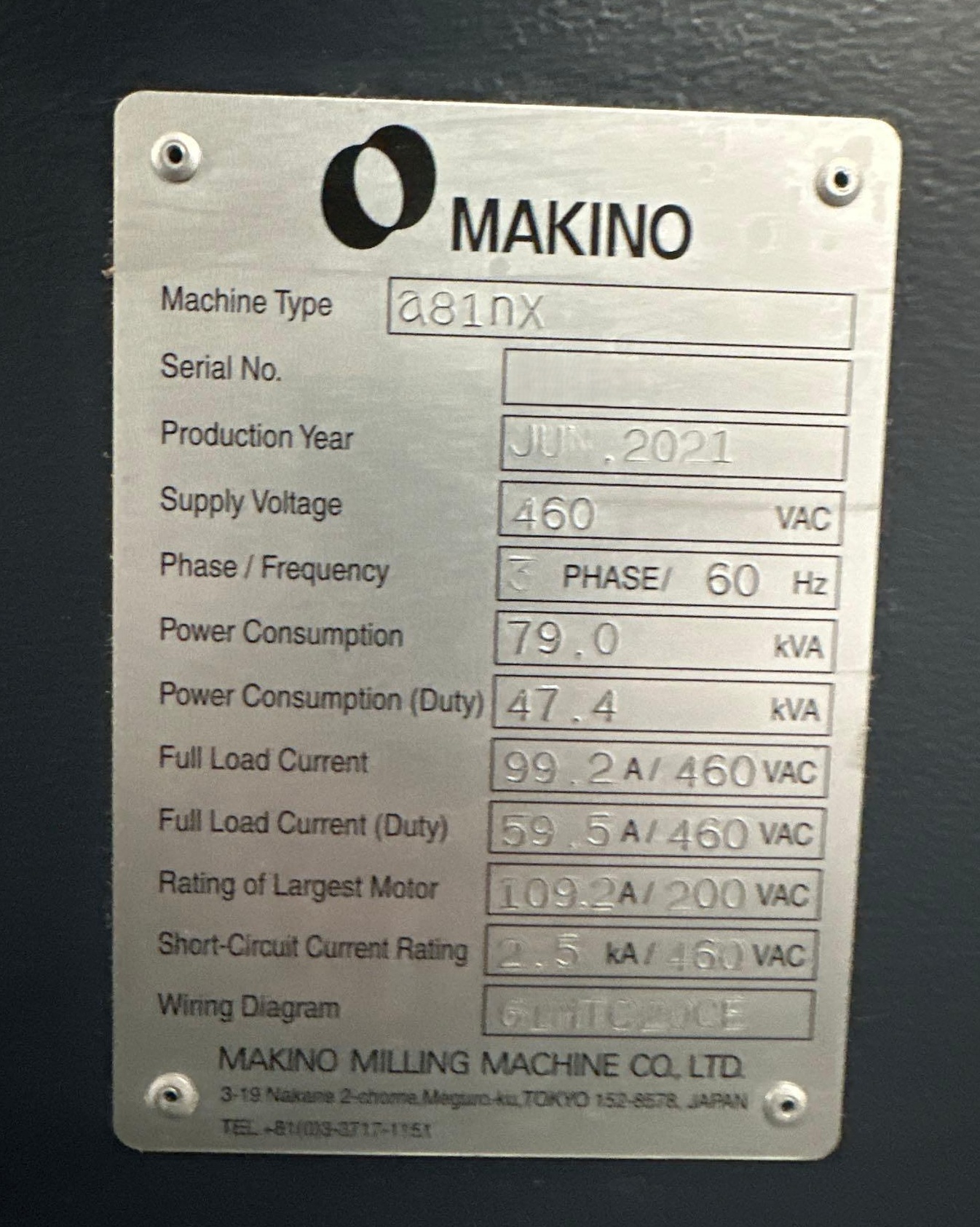

Power Source: 460 V / 3 Phase / 60 Hz
Power Consumption: 79.0 kVA
Machine Dimensions (Approx.): 225″ × 158″ × 135″
Machine Weight (Approx.): 39,700 lbs
Capacity:
Pallet Size: 630 mm × 630 mm
Number of Pallets: 2
Maximum Workpiece Diameter: 1,001 mm
Maximum Workpiece Height: 1,300 mm
Maximum Workpiece Weight: 2,646 lbs
Travels:
X-Axis Travel: 899 mm
Y-Axis Travel: 899 mm
Z-Axis Travel: 1,021 mm
B-Axis Rotation: 360°
B-Axis Indexing: 0.001°
Table:
Pallet Size: 630 mm × 630 mm
Pallet Capacity: 2,646 lbs
Number of Pallets: 2
Pallet Indexing: 0.001°
Spindle:
Spindle Speed: 10,000 RPM
Spindle Taper: CT50 Big Plus
Spindle Motor: 50 HP
Automatic Tool Changer:
Tool Capacity: 60 Tools
Tool Shank: CT50 Big Plus
Maximum Tool Diameter: 124 mm (249 mm without adjacent tools)
Maximum Tool Length: 599 mm
Maximum Tool Weight: 66 lbs
Rapid Traverse:
X-Axis Rapid Traverse: 2,362 IPM
Y-Axis Rapid Traverse: 2,362 IPM
Z-Axis Rapid Traverse: 2,362 IPM
General:
Cutting Time: 5,848 Hours
Power Source: 460 V / 3 Phase / 60 Hz
Power Consumption: 79.0 kVA
Machine Dimensions (Approx.): 5,715 mm × 4,013 mm × 3,429 mm
Machine Weight (Approx.): 39,700 lbs
CategoriesCNC Horizontal Machining Center
MakeMakino
ModelA81NX
  • Makino Professional 6 CNC Control
  • Automatic Pallet Changer (APC)
  • (2) 630 mm × 630 mm Pallets
  • 10,000 RPM Spindle
  • CT50 Big Plus Spindle
  • 60-Position Automatic Tool Changer
  • Through-Spindle Coolant (TSC)
  • Spindle Chiller
  • Chip Conveyor
  • Renishaw NC4 Laser Tool Setter
  • Tool Breakage Detection
  • High-Pressure Coolant System
  • Automatic Lubrication System
  • Work Lights
  • Coolant Tank
  • 30 CT50 Tool Holders
  • CT50 Rolling Tool Cart
