*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

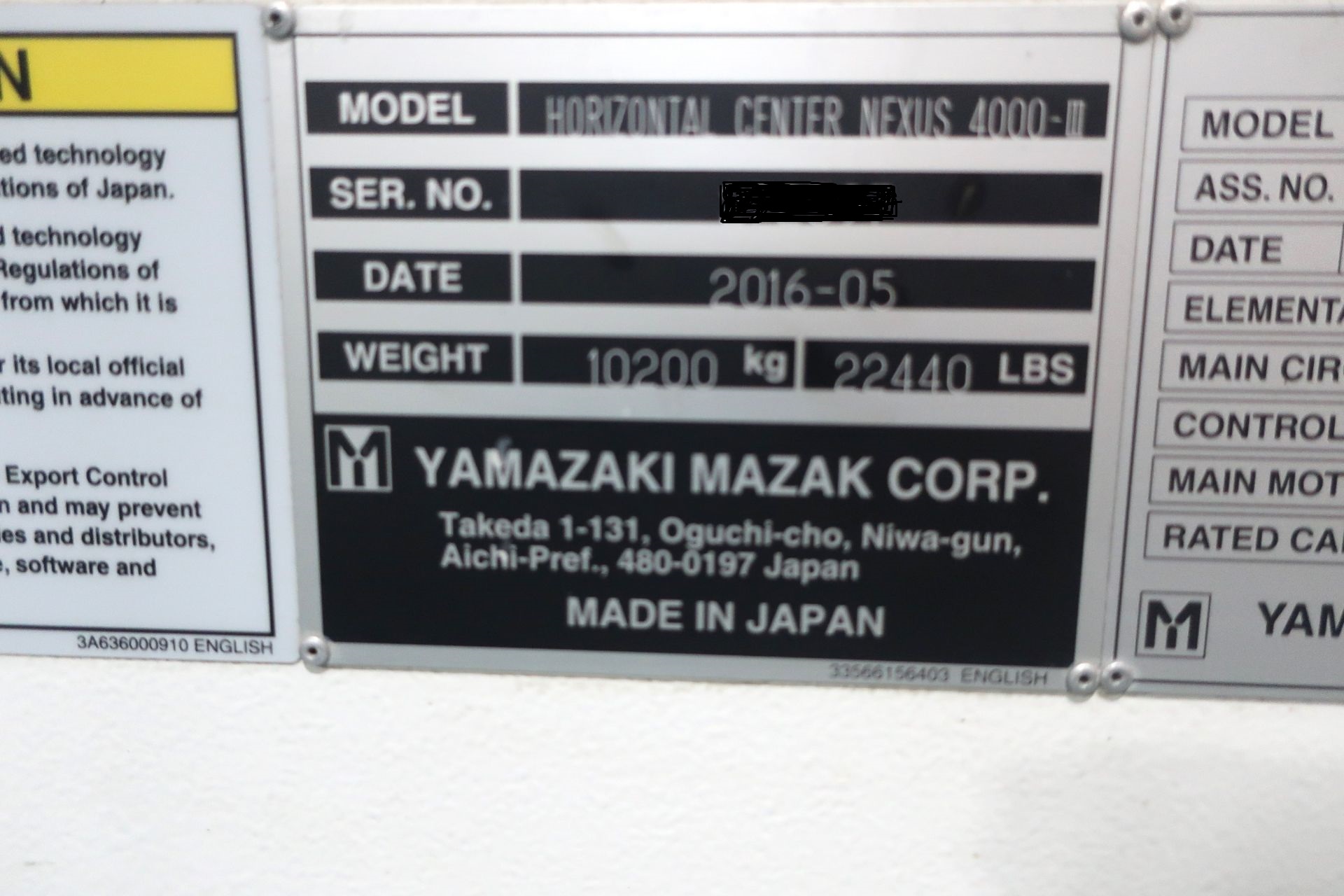

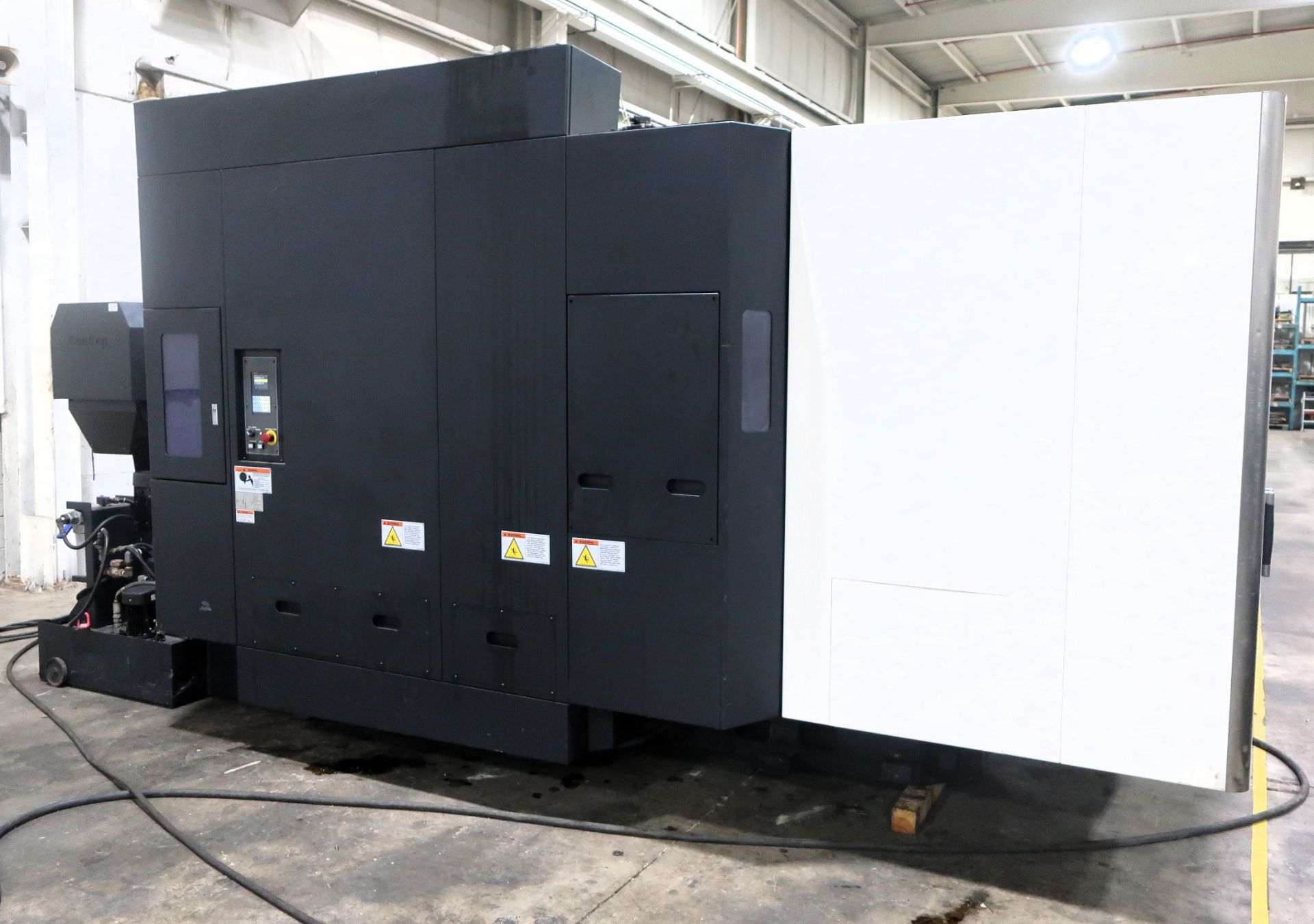

| Make: | Mazak |
| Model: | HCN Nexus 4000-III |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

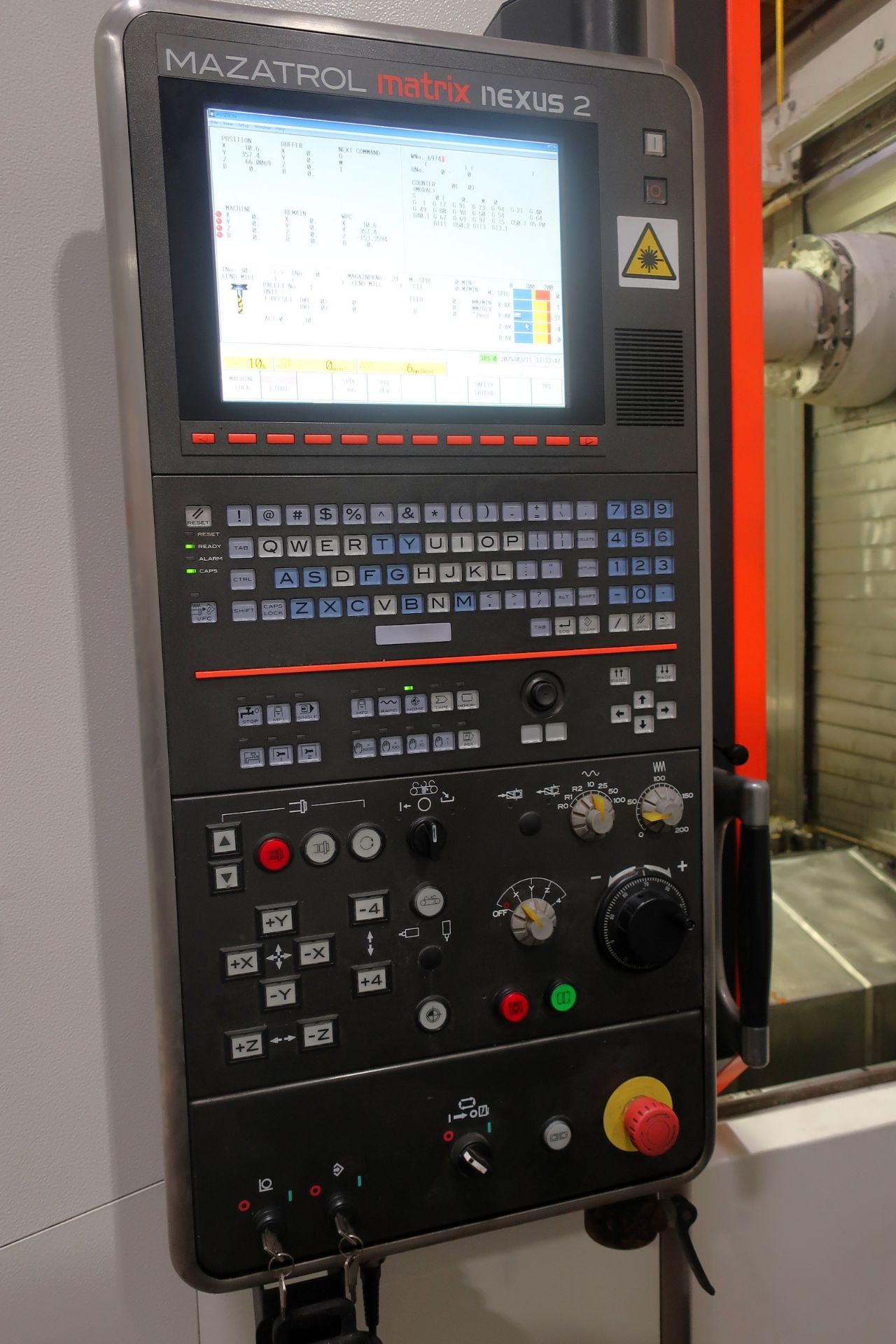

| Mazatrol Matrix Nexus 2 CNC Control |
| 2-Pallet Automatic Pallet Changer |
| 19″ Color LCD Touch Screen |
| Flood Coolant System |
| Spindle Chiller Unit |
| Absolute Positioning System |
| Coolers for Ball Screws (X, Y, Z) & Roller Guides |
| Air Through Spindle System |
| Operator Door Interlock with Lock Switch |
| Auto Power On/Off & Warm-Up Function |
| ATC & APC Auto Recovery |
| Tool ID Magazine Panel (Touch Panel) |
| USB Interface & LAN Port |
| Accuracy Inspection & Relocation Detector |
| Enclosed Coolant & Splash Cover |
| Prep for Rear Chip Conveyor (Consep-1) |
| Capacity: |
|---|
| Pallet Size: 15.75″ × 15.75″ |
| Distance Pallet Center to Spindle Nose: 2.8″ – 28.0″ |
| Travels: |
|---|
| X-Axis Travel: 22.0″ |
| Y-Axis Travel: 25.2″ |
| Z-Axis Travel: 25.2″ |
| Table Indexing Time: 1.3 sec (each 90°) |
| Spindle: |
|---|
| Spindle Taper: CAT-40 |
| Spindle Speed: 18,000 RPM |
| Main Spindle Motor: 25 HP |
| Spindle Bearing Size: 70 mm |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 2,362 IPM |
| Axis Acceleration / Deceleration: 1G |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 60 Tools |
| Tool Taper: CAT-40 |
| Max Tool Diameter: 6.7″ |
| Tool Selection: Random / Shortest Path |
| Tool Change Time (Chip-to-Chip): 2.4 sec |
| Optional Equipment: |
|---|
| Auto Tool Length Measurement & Break Detector |
| Manual Pulse Generator (Wired / Detachable) |
| High-Pressure Coolant Through Spindle (213 PSI) |
| Chip Conveyor (Consep-1) |
| Synchronized Tapping & Cylindrical Interpolation |
| Signal Tower (3-Color) |
| NC Rotary Table (360,000 Positions) |
| General: |
|---|
| Electrical: 220V / 3-Phase / 50–60 Hz |
| Machine Dimensions (Approx.): 87″ × 207″ × 106.8″ |
| Machine Weight (Approx.): 23,584 lbs |
