*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | MAZAK |
| Model: | INTEGREX 200SY |
| Year: | 1999 |
| Condition: | Used – Good |
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*

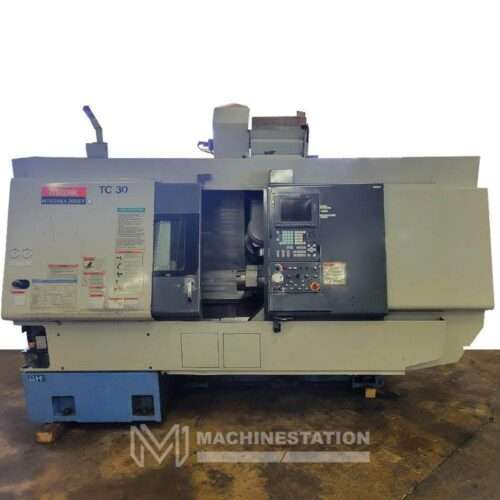

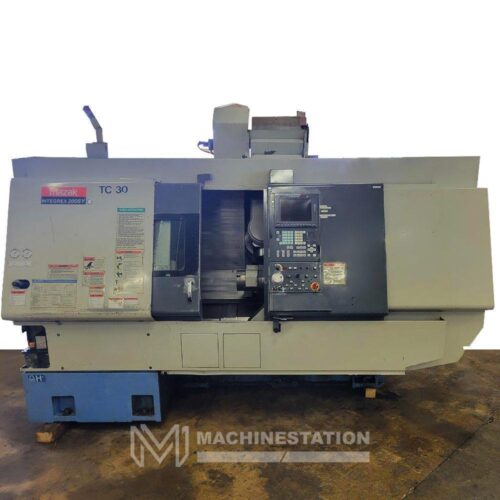

MAZAK INTEGREX 200SY Features:
Mazatrol Fusion 640 CNC Control

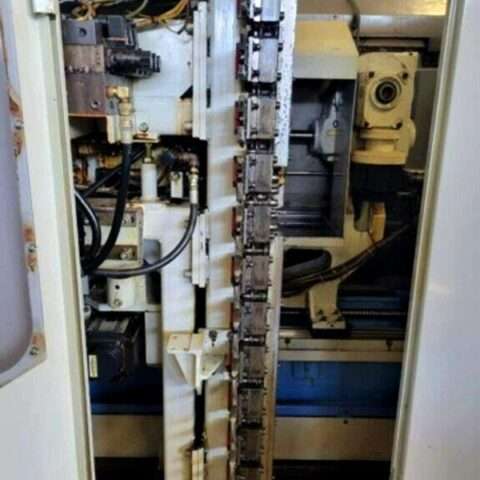

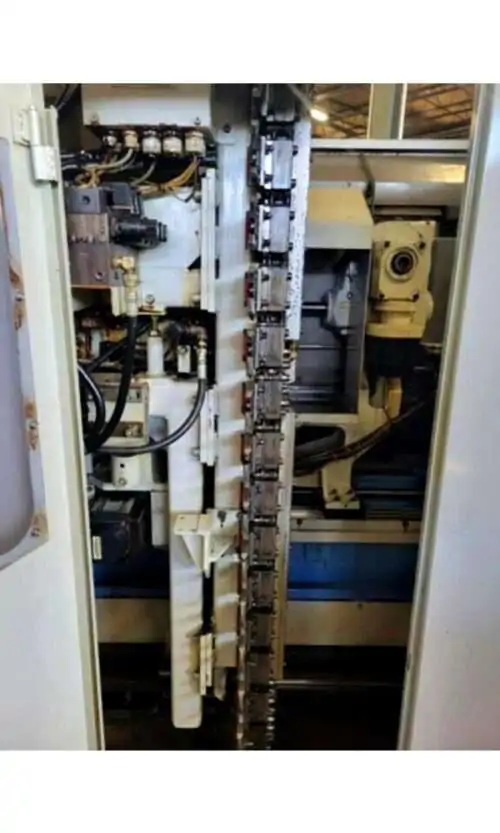

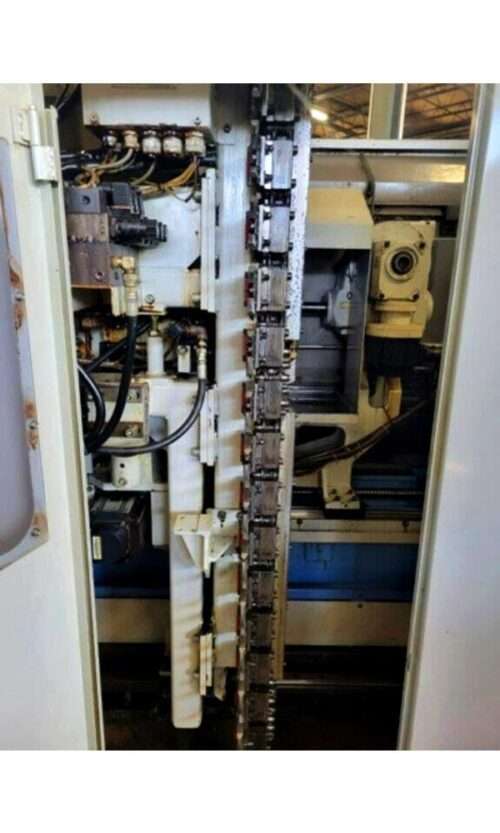

40-Station Tool Magazine – Live / Rotary Tools

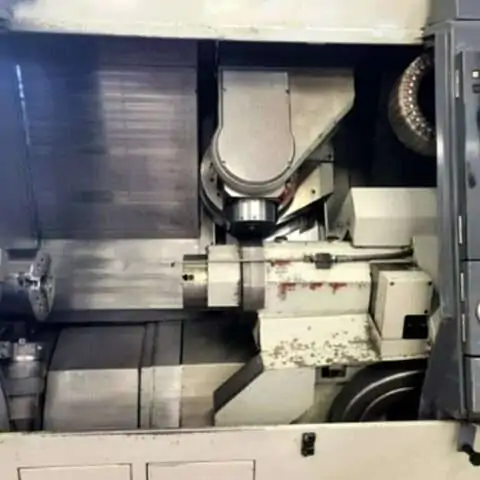

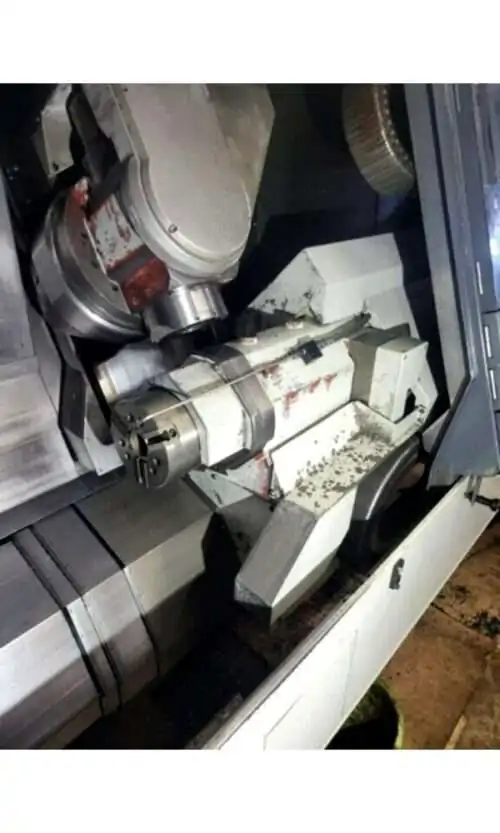

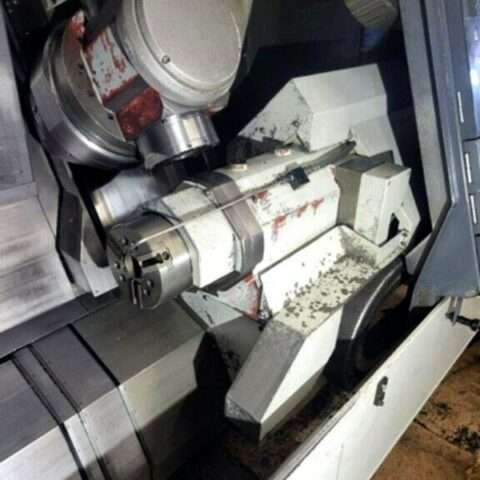

Full C-Axis on Both Spindles
8″ Chuck on Main Spindle
6″ Chuck on Sub Spindle
Rigid Tapping on Both Spindles
PCMCIA Card Slot
Tool Presetter
Foot Operated Control for Chuck
Chip Conveyor
MAZAK INTEGREX 200SY Specifications:
Capacity:
Max Turning Diameter: 21.25″
Max Turning Length: 40″
Max Bar Capacity: 2.0″
Swing Over Bed: 21.25″
Distance Between Spindles: 40″
Travels:
X Axis Travel: 20.87″
Y Axis Travel: 5.50″ (+/- 2.75″)
Z Axis Travel: 42.00″
Z2 Axis Travel (Sub Spindle): 39.57″
360 Degree (0.001) on Both Spindle
X Rapid Traverse Rate: 1181 Inch Per Minute
Y Rapid Traverse Rate: 590 Inch Per Minute
Z Rapid Traverse Rate: 1299 Inch Per Minute
Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.40″
Spindle Speed: 35-5000 RPM
Spindle Motor: 30 HP
Sub Spindle:
Spindle Nose: A2-6
Spindle Bore: 1.73″
Spindle Speed: 35-5000 RPM
Spindle Motor: 10 HP
Turret:
40 Tools Turret with ATC
Indexing Time: 0.5 Second
Live Tool Speed: 15-6,000 RPM
Live Tool Motor: 10 HP

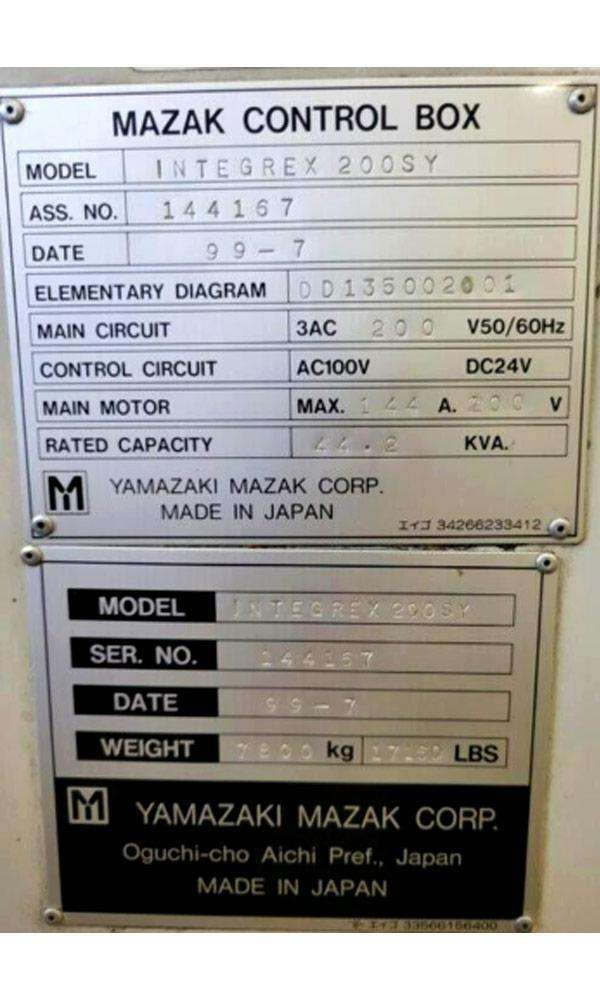

General:

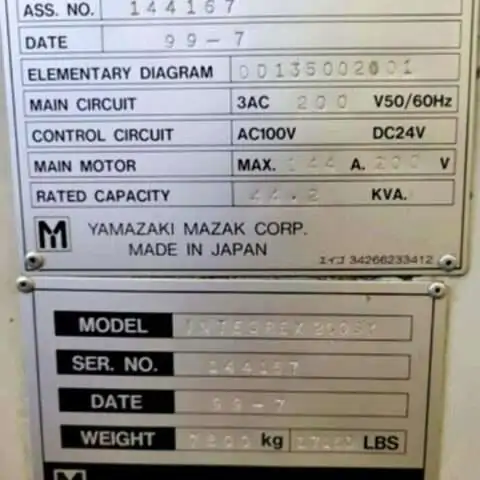

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 44.2 kva
Overall Dimensions: 137″ x 82″ x 95″ High
Overall Dimensions: 148″ x 82″ x 95″ High with Chip Conveyor
Weight : 17,160 lbs Approx.
“No Charges for loading at list Price”
