All specifications are approximations and are subject to verification.

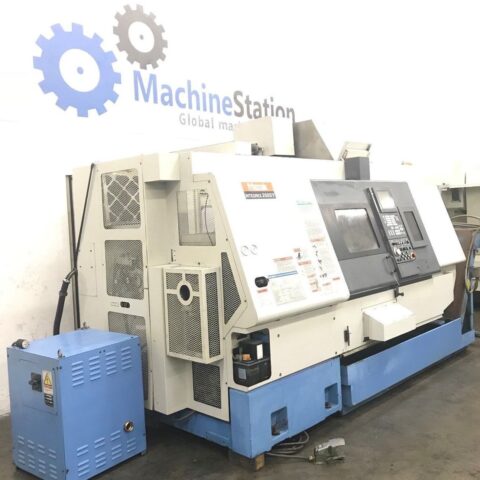

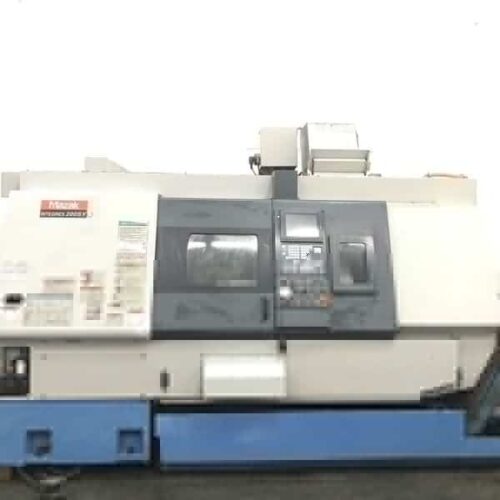

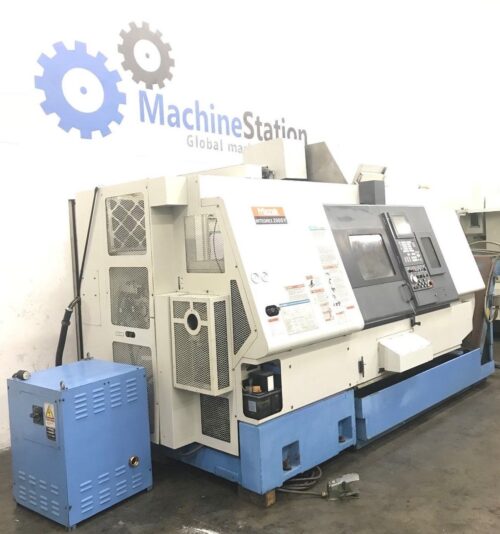

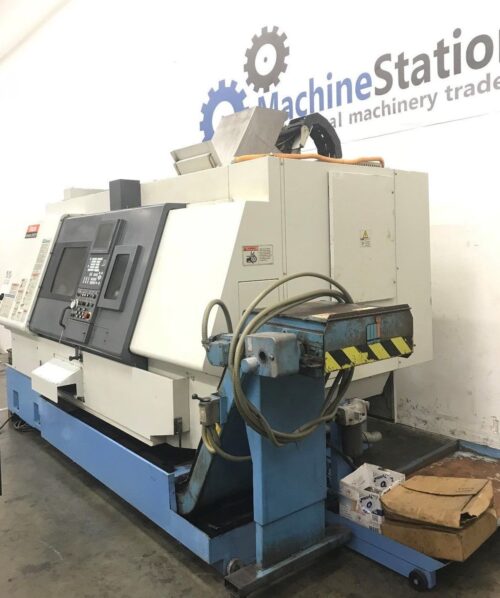

“One Owner Machine, Fully powered / tested & in Great working condition. Equipped with 2 X Hydraulic Chucks, Full C Axis, Milling, Sub Spindle and Y Axis. Comes with chip conveyor, parts Conveyor, manuals, live tool holders.”
| Make | Mazak |
| Model No. | Integrex 200SY |
| Year | 2001 |
| Condition | Used-Good |
| Country of Origin: | Japan |
-
MAZAK INTEGREX 200SY Equipped With:
- 40-Station Tool Magazine – Live / Rotary Tools
- Full C-Axis on Both Spindles
- Mazatrol Fusion 640 CNC Control
- PCMCIA Card Slot
- Tool Presetter
- Parts Catcher
- Parts Conveyor

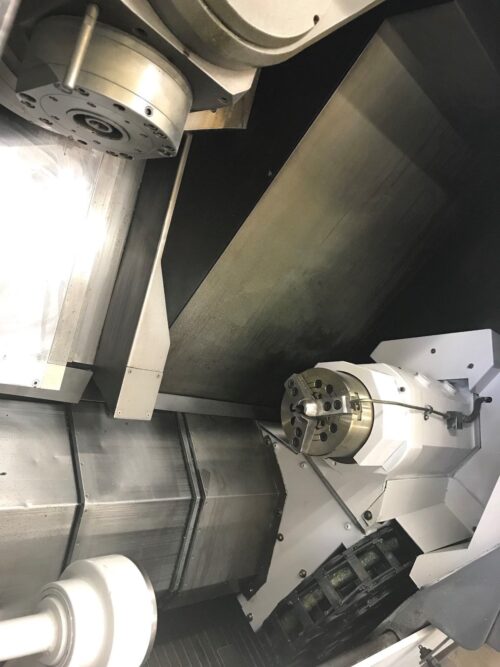

- 8″ Chuck on Main Spindle

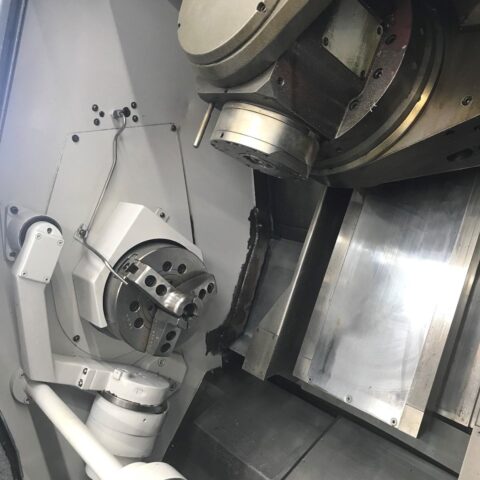

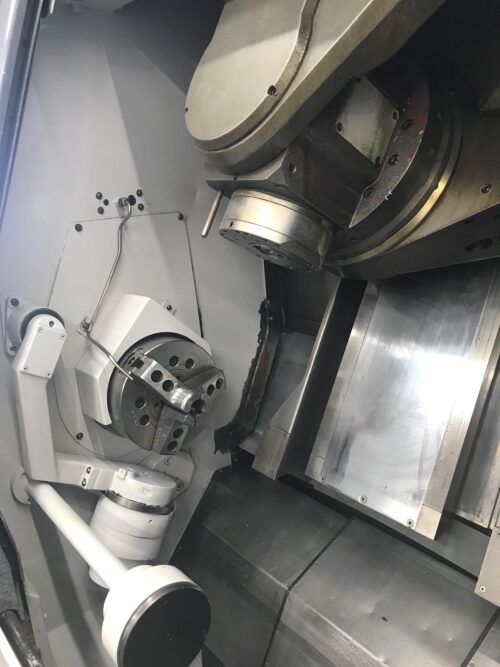

- 6″ Chuck on Sub Spindle
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck

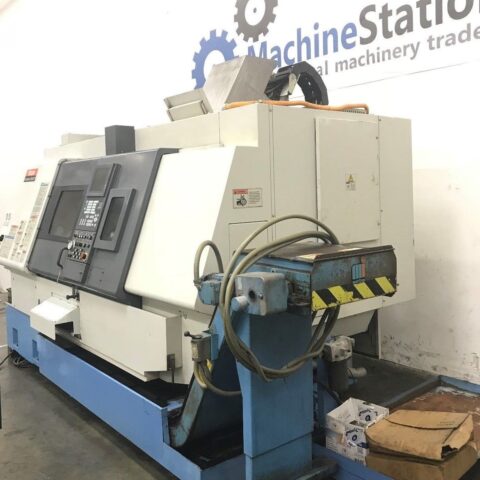

- Chip Conveyor
- Comes with Tool Holders, Original Manuals, Parts and Chip Conveyor.
-
MAZAK INTEGREX 200SY Specifications:
- Max. Turning Diameter: 21.25″
- Max. Swing over Bed: 21.25″
- Max. Turning Length: 40.00″
- Max. Bar Capacity: 2.0″
- X-Axis Travel: 20.87″
- Y Axis Travel: 5.50″
- Z-Axis Travel: 42.00″
- Z2- Sub Spindle Travels: 39.57″
- C-Axis: 360 Degree (0.001) on Both Spindle
- X Rapid Traverse Rate: 1181 Inch Per Minute
- Z Rapid Traverse Rate: 1299 Inch Per Minute
- Y Rapid Traverse Rate: 590 Inch Per Minute
- Spindle Bore: 2.40″
- Sub Spindle Bore: 1.73″
- Main Spindle Nose: A2-6
- Sub Spindle Nose: A2-6
- Main Spindle Speed: 35-5000 RPM
- Sub Spindle Speed: 35-5000 RPM
- Main Spindle Power: 22 kw
- Sub Spindle Power: 7.5 kw
- 40 Tools Turret with ATC
- Indexing Time: 0.5 Second
- Live Tool Speed: 15-6,000 RPM
- Live Tool Motor: 7.5 kw

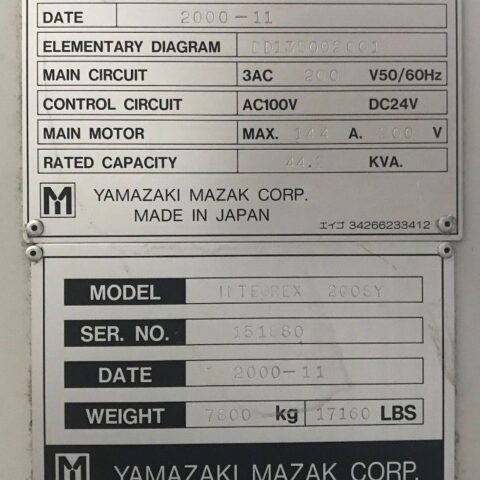

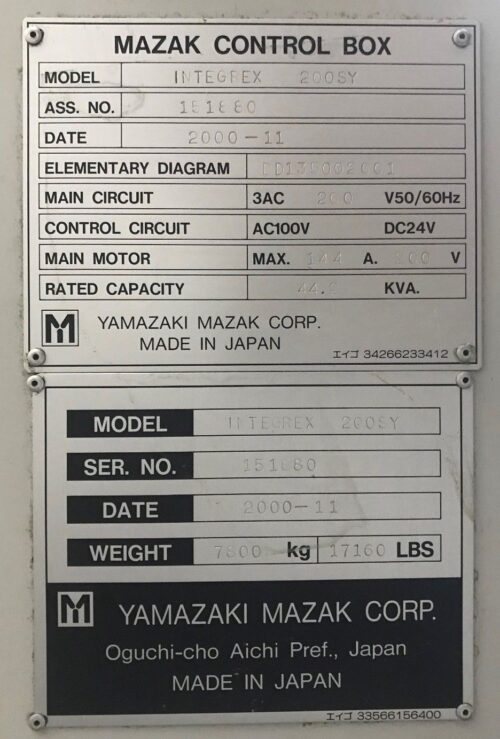

- Power Source: AC 200/220 V, Three Phase, 50/60 Hz
- Power Requirement: 35kva
- Weight : 16500 lbs Approx.
- Overall Dimensions: 137″ x 82″ x 95″ High
- Overall Dimensions: 148″ x 82″ x 95″ High with Chip Conveyor
