*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |

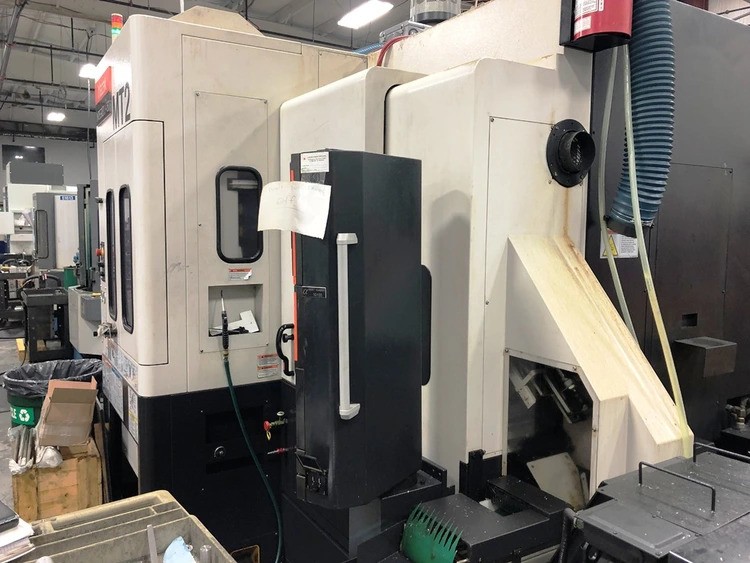

| Model: | Integrex i-150 |
| Year: | 2018 |
| Equipped With: |
|---|
| Mazatrol Smooth CNC Control |
| B-Axis Milling Head |
| C-Axis Main Spindle |
| Y-Axis |
| Twin Spindles |
| 72-Tool Magazine |
| Automatic Tool Changer (ATC) |
| 8″ Hydraulic Chuck |
| Programmable Tailstock |
| Renishaw Inspection Probe |

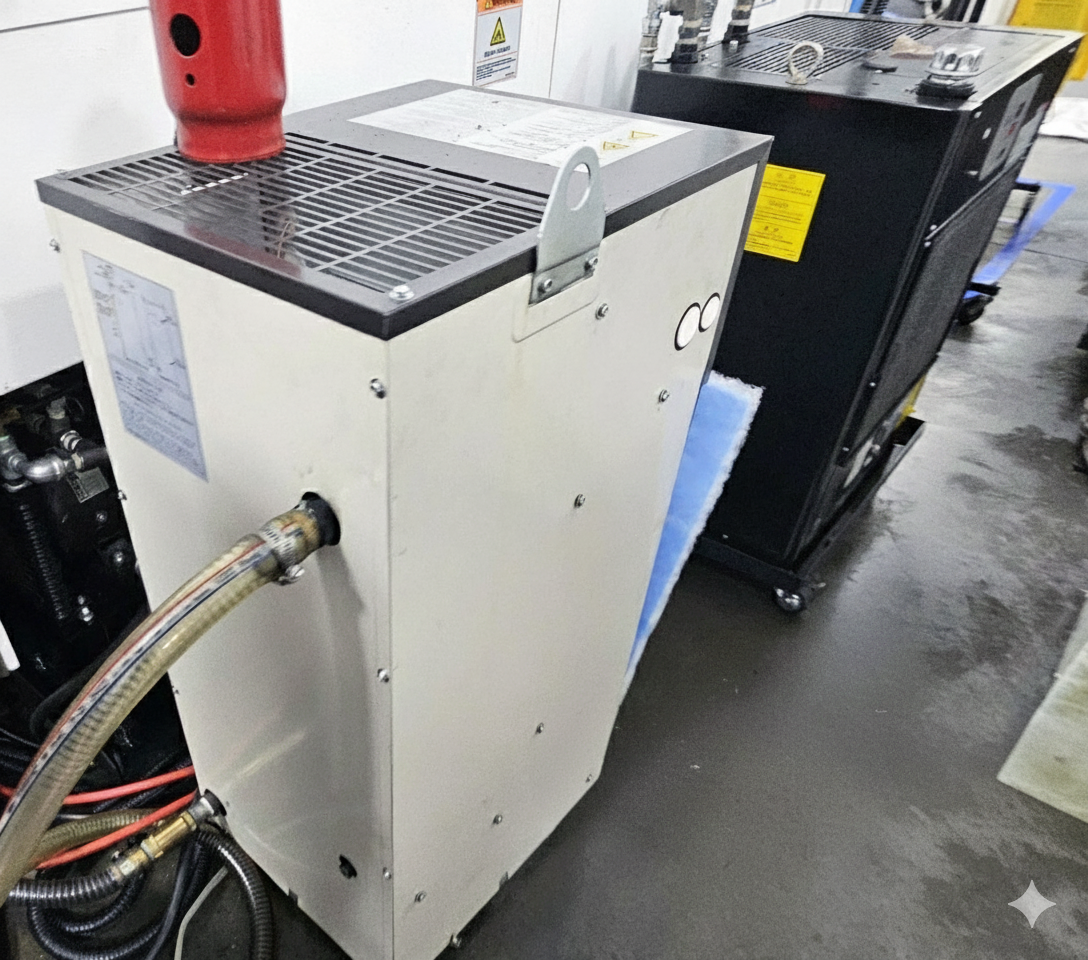

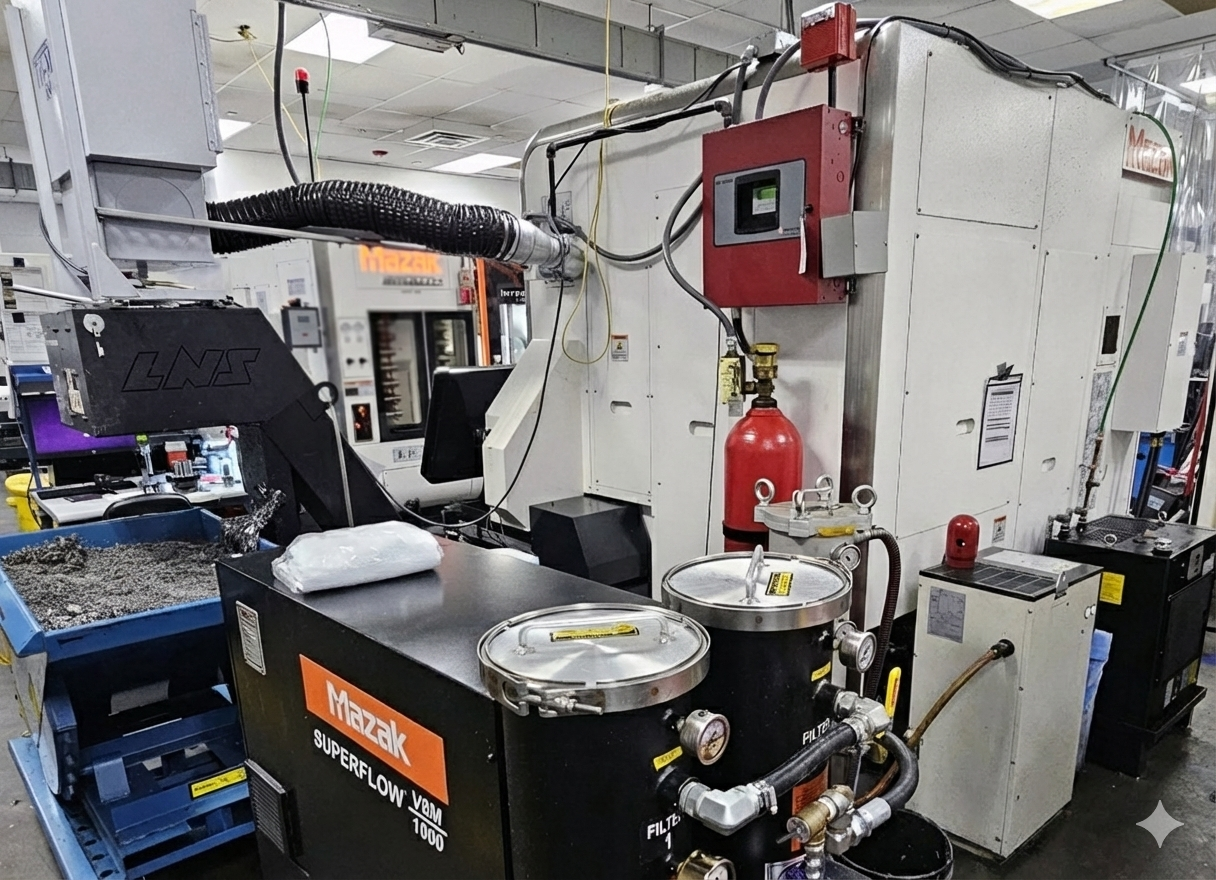

| 1,000 PSI High-Pressure Coolant System |
| LNS S80 Bar Feeder |
| Chip Conveyor |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Maximum Swing Over Bed: 17.0″ |
| Maximum Turning Diameter: 14.2″ |
| Maximum Turning Length: 16.0″ |
| Distance Between Centers: 16.0″ |
| Bar Capacity: 2.5″ |
| Chuck Size: 8″ |
| Travels: |
|---|
| X-Axis Travel: 24.1″ |
| Y-Axis Travel: 7.9″ |
| Z-Axis Travel: 17.9″ |
| B-Axis: 240° (0.0001° Indexing) |
| C-Axis: 0.0001° Positioning |
| Main & Sub Spindle: |
|---|
| Main Spindle Speed: 5,000 RPM |
| Sub Spindle Speed: 5,000 RPM |
| Main Spindle Motor: 15 HP |
| Sub Spindle Motor: 15 HP |
| Spindle Nose: A2-6 |
| Bar Capacity: 2.5″ |
| Milling Spindle: |
|---|
| Maximum Speed: 12,000 RPM |
| Milling Spindle Motor: 10 HP |
| Tool Taper: HSK-A63 |
| Automatic Tool Changer: |
|---|
| Tool Magazine Capacity: 72 Tools |
| Tool Shank: HSK-A63 |
| General: |
|---|
| Power Requirement: 220/230 V / 3-Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 132″ × 95″ × 104″ |
| Machine Weight (Approx.): 17,600 lbs |
